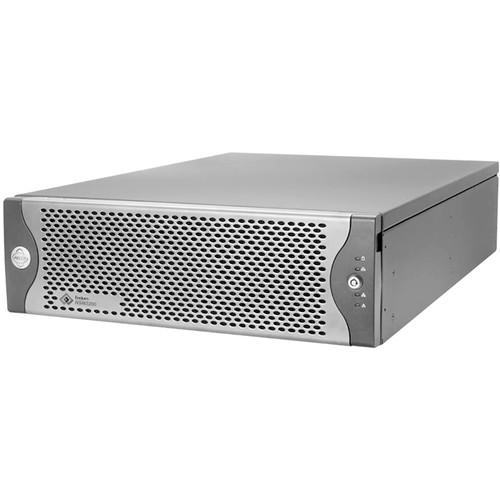

User Manual for Pelco NSM5200 Network Storage Manager Click to enlarge the picture
Contents of the user manual for the Pelco NSM5200 Network Storage Manager
- Product category: Network Video Recorders (NVRs) Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Network Video Recorders (NVRs)
|
User manual for the Pelco NSM5200 Network Storage Manager contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The 48TB Pelco NSM5200 Network Storage Manager is designed to meet the demanding needs of physical security and surveillance applications. Capable of offering a throughput of 250 Mb/s along with high performance, this Network Storage Manager eliminates common choke points and increases operational efficiency.
A Linux operating system with periodic defragmentation of the database ensures smooth operations. It keeps recording critical data even if a catastrophic failure occurs, thanks to pooled storage management that automatically distributes the load and active-active failover for uninterrupted recording. In case a user-defined critical event occurs, the NSM5200 Manager will send notifications of potential or actual issues to specific users.
The frame rate of aged video is lowered over time in network storage managers to free up storage capacity. Now with EnduraStor storage optimization technology, you can stipulate the priority level of an alarm or event video to retain the full frame rate of significant videos clips. Supporting RAID 6 storage configuration, the NSM5200 ensures reliable storage of your recorded video content.
The built-in diagnostic features of this network storage manager let you quickly diagnose an error condition and take preventive measures. With temperature sensors throughout the chassis, you can detect possible air-flow obstruction or clogged intake filters. Front panel buttons allow quick access to the hard drives and CompactFlash cards for maintenance operations. Moreover, a unique rail system allows you to effortlessly replace a worn out or faulty fan. The use of enterprise-class SAS technology in this Network Storage Manager offers advanced enclosure management and monitoring capabilities.
Packed into a fully integrated chassis, the NSM5200 Network Storage Manager is capable of simultaneously handling all other common disk and RAID functions efficiently. The use of low-power components and adaptive cooling technology that manages power dissipation based on load requirements makes it a highly energy-efficient unit. - Recording throughput up to 250 Mb/s
- Meets demanding performance requirements for write-intensive applications
- Hardware designed to eliminate single points of failure, including redundant fans and power supplies
- RAID 6 storage for optimum reliability
- Linux-based operating system with XFS file system and periodic defragmentation
- CompactFlash card is used to host the operating system for higher reliability than traditional hard disk drives
- Pooled storage management provides automatic distributed load balancing and active-active failover within a storage pool to ensure continued recording if catastrophic failure occurs
- Hot standby failover provides redundancy in installations where storage pooling cannot be utilized
- Multicast recording support allows recording of multicast data streams for restricted bandwidth scenarios
- Redundant recording ensures duplication of vital data for mission-critical applications
- Built-in EnduraStor storage management increases storage efficiency by grooming recorded streams based on age and priority
- Ability to serve 32 simultaneous playback streams per storage pool
- Performance levels maintained in normal and RAID error conditions
- Built-in diagnostic monitoring provides preventative maintenance and SNMP monitoring
- Onboard LED indicators to display warnings and failures
- Provides warning messages for items such as retention time issues, accumulation of software errors, network errors that result in packet loss, and changes to network link speeds
- Reports hardware diagnostics such as temperatures approaching established thresholds, hard disk drive failures, fan failures, power supply failures, or when a stream or the system is offline
- Communicates with an APC Smart-UPS series uninterruptible power supply to provide battery status information and initiate a shutdown if the available charge falls below its designated threshold
- Reduced cost of ownership and increased energy efficiency through consolidation of multiple hardware components into a fully integrated chassis
UPC: 700880333051 In the Box Pelco NSM5200 Network Storage Manager (48TB / US Power Cord) 2 x Power Cord (US) Rack Mount Kit (Brackets/Rails/Hardware) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco NSM5200 Network Storage Manager in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco NSM520 Specs | | | Operating System | Linux | | RAID Level | RAID 6 | | Storage | Maximum Supported: 36 TB (27.2 TB effective)
Installed: 48 TB | | Drive Interface | SAS/SATA II | | Fiber Channel | Supported (card available separately) | | Web Browser | Microsoft Internet Explorer 6.x (or later) with Adobe Flash Player 10 (or later) | | | | Interface | 2 x 1 Gb/s Ethernet RJ45 ports (1000Base-T) | | Auxiliary Interfaces | 3 x USB 2.0 ports (2 rear, 1 front) | | Front Panel Indicators | Power: Blue Pelco badge
Software Status: Green, amber, red (based on diagnostics)
Ethernet Port 1: Green, red, off
Ethernet Port 2: Green, red, off
Unit Status: Green, amber, red
Hard Drive Status: Green, red | | | | Power Input | 100 to 240 VAC, 50/60 Hz, autoranging | | Power Supply | Internal, dual-redundant, hot swappable | | Power Consumption | 100 VAC: 262 W, 2.65 A, 895 BTU/H
115 VAC: 263 W, 2.31 A, 895 BTU/H
220 VAC: 254 W, 1.25 A, 868 BTU/H | | | | Operating Temperature | 50 to 95°F / 10 to 35°C at unit air intake The temperature at the unit air intake can be significantly higher than room temperature. Make sure the temperature at the air intake of the unit is within the operating temperature range. | | Storage Temperature | -40 to 149°F / -40 to 65°C | | Operating Humidity | 20 to 80%, noncondensing | | Maximum Humidity Gradient | 10% per hour | | Operating Altitude | -50 to 10,000' / -16 to 3048 m | | Operating Vibration | 0.25 G at 3 Hz to 200 Hz at a sweep rate of 0.5 octave/minute | | | | Construction | Steel cabinet | | Finish | Front Panel: Gray metallic with black end caps
Chassis: Black matte finish | | Mounting Options | Rack, 3 RU per unit (rack rails and hardware are supplied) | | Certifications & Standards | CE, Class A, meets EN50130-4 standard requirements
FCC, Class A
UL/cUL Listed
C-Tick
S-Mark for Argentina
CCC | | Dimensions (DxWxH) | 24.3 x 17 x 5.2" / 61.8 x 43.2 x 13.2 cm | | Unit Weight | Empty (without drives): 46.4 lb / 21 kg
Loaded (with drives): 66.8 lb / 30 kg | | | | Box Dimensions (LxWxH) | 25.0 x 17.0 x 6.0" |
