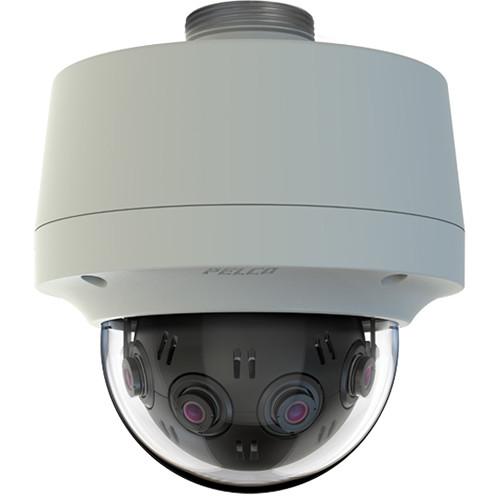

User Manual for Pelco Optera IMM Series 12MP Outdoor Network Dome Camera Click to enlarge the picture
Contents of the user manual for the Pelco Optera IMM Series 12MP Outdoor
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
|
User manual for the Pelco Optera IMM Series 12MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The Optera IMM Series 12MP Outdoor Network Dome Camera from Pelco features four 3MP 1/3.2" progressive-scan CMOS sensors to capture 2048 x 1536 resolution video at up to 15 fps. The four 2.7mm lenses produce a wide 270° panoramic view for monitoring open areas. The camera utilizes SureVision 2.0 technology to consistently and simultaneously deliver low-light performance and true WDR (Wide Dynamic Range) in order to capture high-quality images in challenging lighting conditions. The camera supports multiple streams in H.264 and M-JPEG compression formats and CVBR (Constrained Variable Bit Recording) to conserve video storage and bandwidth.
This network camera complies with PoE+ technology eliminating the need for additional cable runs. Enclosed in an IP66-, NEMA-4X-, and IK10-rated housing, this camera is suitable for outdoor use and is protected against water, dust, corrosion, and ice as well as impact. - Integrates four 3MP sensors to provide a total 12MP resolution at up to 12.5 fps
- Four 1/3.2" progressive-scan CMOS sensors provide a 270° panoramic view
- SureVision 2.0 Technology delivers WDR (Wide Dynamic Range) for low-light performance
- Pelco behaviors include Abandoned Object, Adaptive Motion Detection, Camera Sabotage, Directional Motion, Loitering Detection, Object Counting, Object Removal, and Stopped Vehicle
- microSD card slot for local storage
- IP66-, NEMA-4X-, and IK10-rated housing
- 1.5" NPT thread for use with Pelco wall mounts (available separately)
- ONVIF Profile S and G compliant
UPC: 700880335031 In the Box Pelco Optera IMM Series 12MP Outdoor Network Dome Camera (Gray) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Optera IMM Series 12MP Outdoor Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco IMM12027-1EP Specs | | | Image Sensor | 4 x 3MP 1/3.2" progressive-scan CMOS sensors | | Resolution | 4 x 2048 x 1536 | | Signal-to-Noise Ratio | > 50 dB | | Sensitivity | Color (33 ms): 0.5 lux @ f/2.5
Mono (33 ms): 0.2 lux @ f/2.5 | | Day/Night Operation | Mechanical IR cut filter (On / Off / Auto selectable with different set points) | | Wide Dynamic Range | > 120 dB | | Range | Detection: 130' (36 m)
Classification: 70' (21 m)
Recognition: 45' (13 m)
Identification: 19' (5 m) | | | | Focal Length | 4 x 2.7mm fixed lenses | | Aperture | f/2.5 | | Field of View | Horizontal: 270°
Vertical: 73° | | | | Streaming | Bidirectional: Full or half duplex | | Input/Output | 600 Ohms differential, 1 V p-p maximum signal level | | Compression | G.711 PCM 8-bit, 8 kHz mono at 64 Kb/s | | | | Dome Attenuation | f/0.0 light loss | | Pan Adjustment | 370° | | | | Users | Unicast: Up to 20 simultaneous users depending on the resolution settings, and frame rate
Multicast: Unlimited users with H.264 | | Security Access | Password protected | | Software Interface | Web browser view and setup | | Supported Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, ARP, ICMP, and 802.1x (EAP) IPv6 supports mixed IPv4 and IPv6 installations, but not IPv6-only deployments. | | | | Video Streams | Set of streams to deliver full resolution views; secondary stream that comprises a lower resolution mosaic of above streams | | Frame Rate | User selectable up to 12.5 fps | | Video Encoding | H.264 high, main, or base profiles
M-JPEG (mosaic stream only) | | Bit Rate | 25 Mbps
Default maximum for CVBR (Constrained Variable Bit Rate) at maximum resolution and frame rate | | | | Client | Processor: Intel Core i3 processor, 2.4 GHz
Operating System: Microsoft Windows 10, 7 (32-and 64-bit), Vista; Mac OS X 10.9 or later
Memory: 4 GB RAM
Network Interface: 100 Mbps (or greater)
Monitor: Minimum of 1024 x 768 resolution, 16- or 32-bit pixel color resolution
Web Browser: Internet Explorer 8.0 or later, Mozilla Firefox 35 or later, Google Chrome 40 or later, WebGL 2.0 or later | | VMS Software | Operating System: Windows 7 64-bit or later
Video Memory: 2 GB
System Memory: 8 GB
Processor: Intel Core i7 2.0 GHz or better | | | | Open API | Pelco API can transmit behavior alarm data to third-party applications | | | | Pelco System Integration | Pelco VideoXpert, Digital Sentry | | Open API | Pelco API, Panomersive SDK, ONVIF Profile S and G | | | | Network Port | RJ45 connector for 1000Base-T
1 Gbps auto MDI/MDI-X PoE+ Class 4 | | Cable Type | Cat5 or better | | Input Power | PoE+ (IEEE 802.3at, Class 4) | | Power Consumption | Without Heater: 17 W
With Heater: 23 W | | Local Storage | microSDHC | | Alarm | Unsupervised: Detects open or closed alarm state
Supervised: Detects open and short alarm state with external 1-kOhm resistor to detect alarm tampering | | Relay Input | 3.5 VDC, 3.5 mA | | Relay Output | ±32 VDC, 150 mA | | | | Operating Temperature | -40 to 122°F (-40 to 50°C) Thermostatically controlled via active heating and cooling. | | Operating Humidity (Relative) | 10 to 95% condensing | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Storage Humidity | 15% to 85%, noncondensing | | Impact Resistance | IK10 (20J) | | Shock and Vibration | EN50155 Category 1, Class B
IEC 60068:2-6 and 2-27
ISTA-2A, Sequence 5, MIL810G | | | | Dimensions | 7.0 x 6.2" (17.8 x 15.75 cm) | | Weight | 3.9 lb (1.7 kg) | | | | Package Weight | 7.1 lb | | Box Dimensions (LxWxH) | 17.7 x 8.6 x 7.9" |
