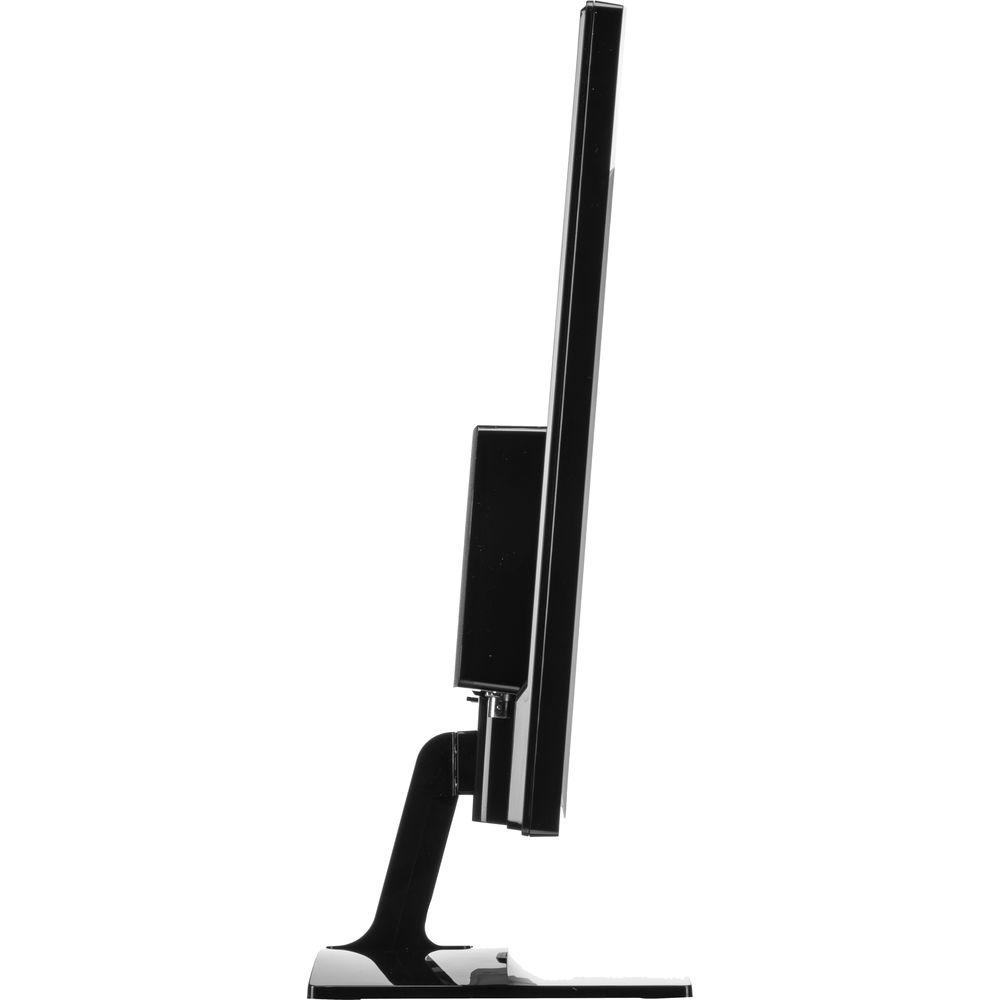

User Manual for Pelco PMCL600 Series 24" 1920 x 1080 Desktop LED Monitor Click to enlarge the picture
Contents of the user manual for the Pelco PMCL600 Series 24" 1920 x
- Product category: Surveillance Monitors Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Surveillance Monitors
 |
User manual for the Pelco PMCL600 Series 24" 1920 x contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|

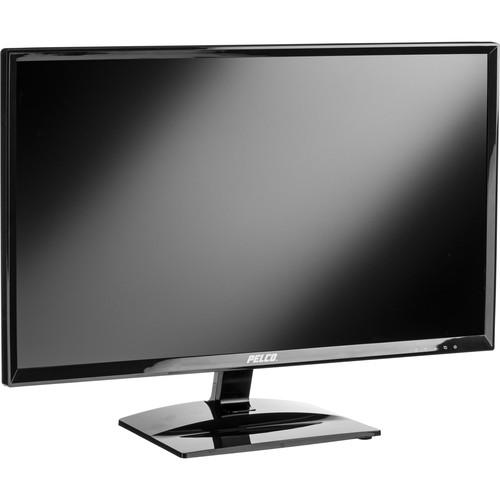

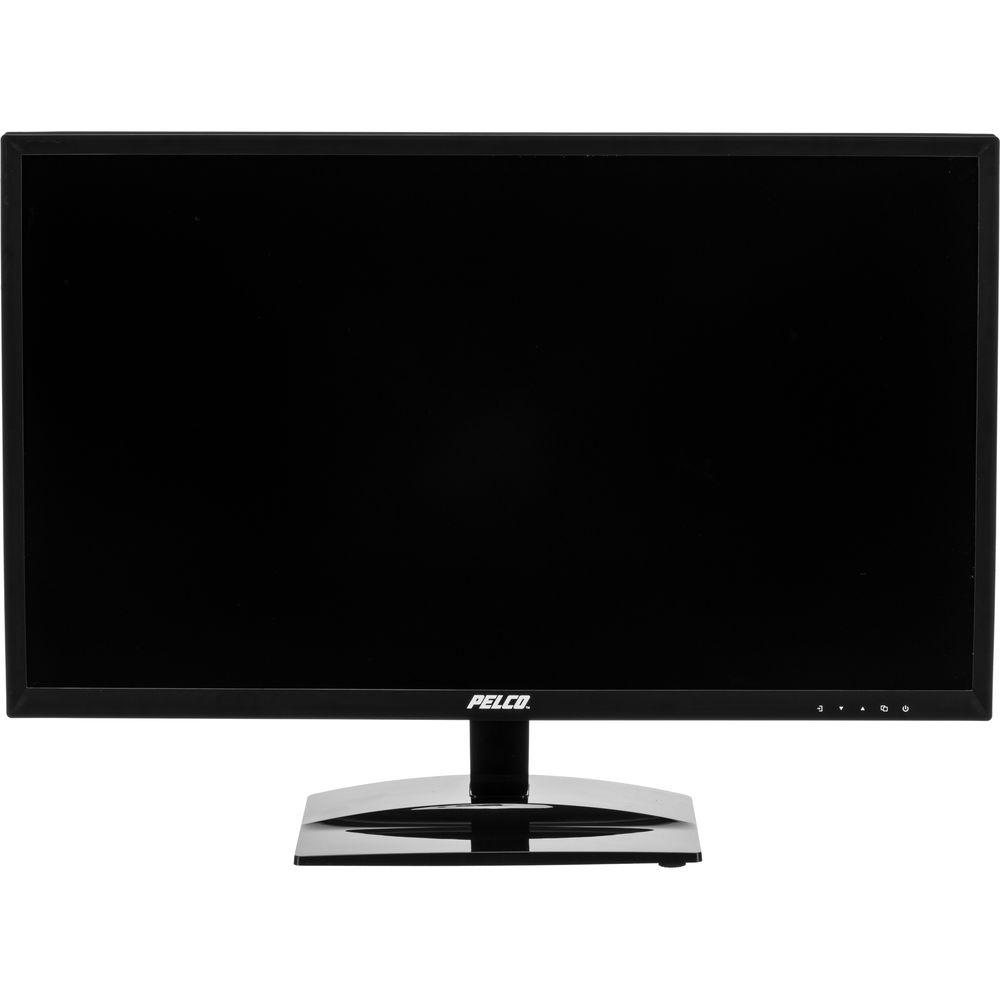

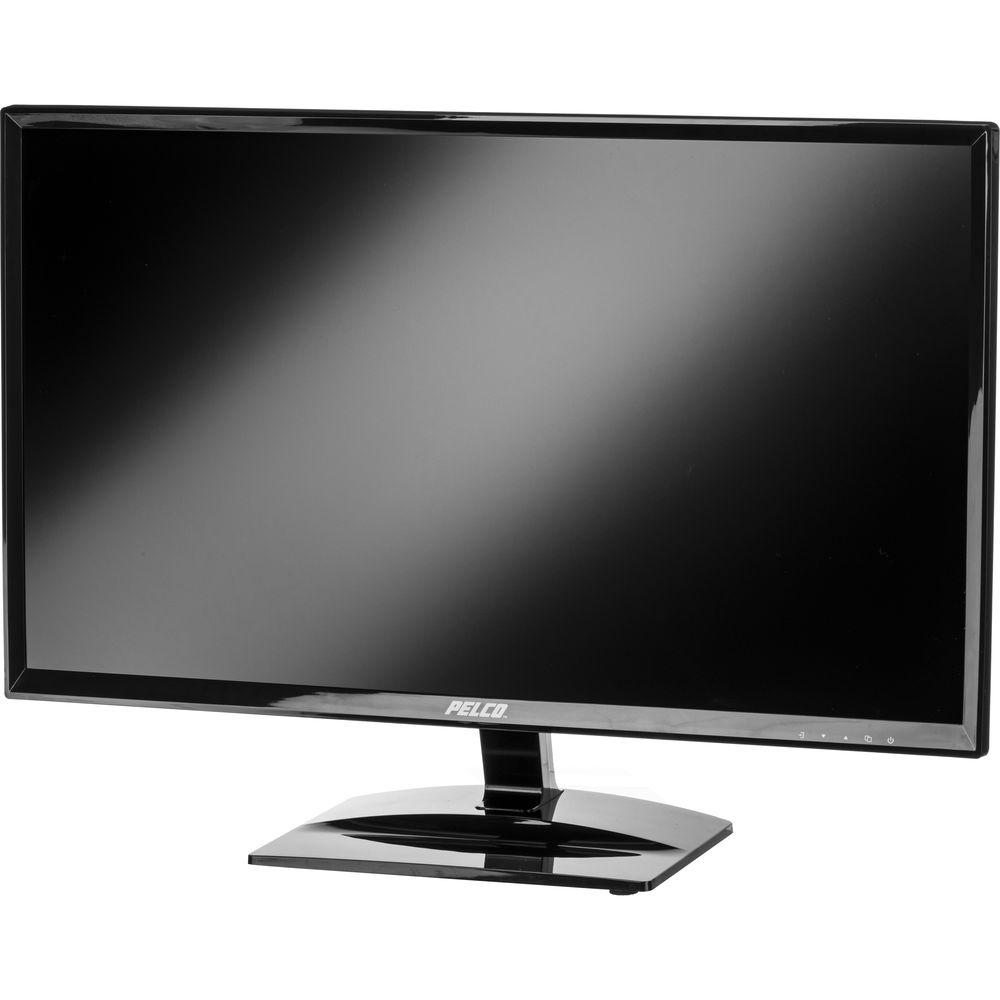

Product description The PMCL600 Series 24” 1920 x 1080 Desktop LED Monitor from Pelco displays videos at a resolution of 1920 x 1080, and is engineered to meet the demands of surveillance operators. It allows you to customize and deliver an efficient video surveillance configuration for your installation. This monitor can be configured to meet your security needs by creating a video wall or used as a standalone unit. Multiple video streams can be viewed on this monitor, which significantly reduces your security installation's power requirements. It provides true color reproduction and is compatible with most Pelco and third-party CCTV megapixel cameras. When used with lower resolution camera systems, this monitor can seamlessly scale down the output to 720p, providing crisp, detailed images from all cameras. - Offers 1920 x 1080 resolution
- 0.27 x 0.27mm pixel pitch

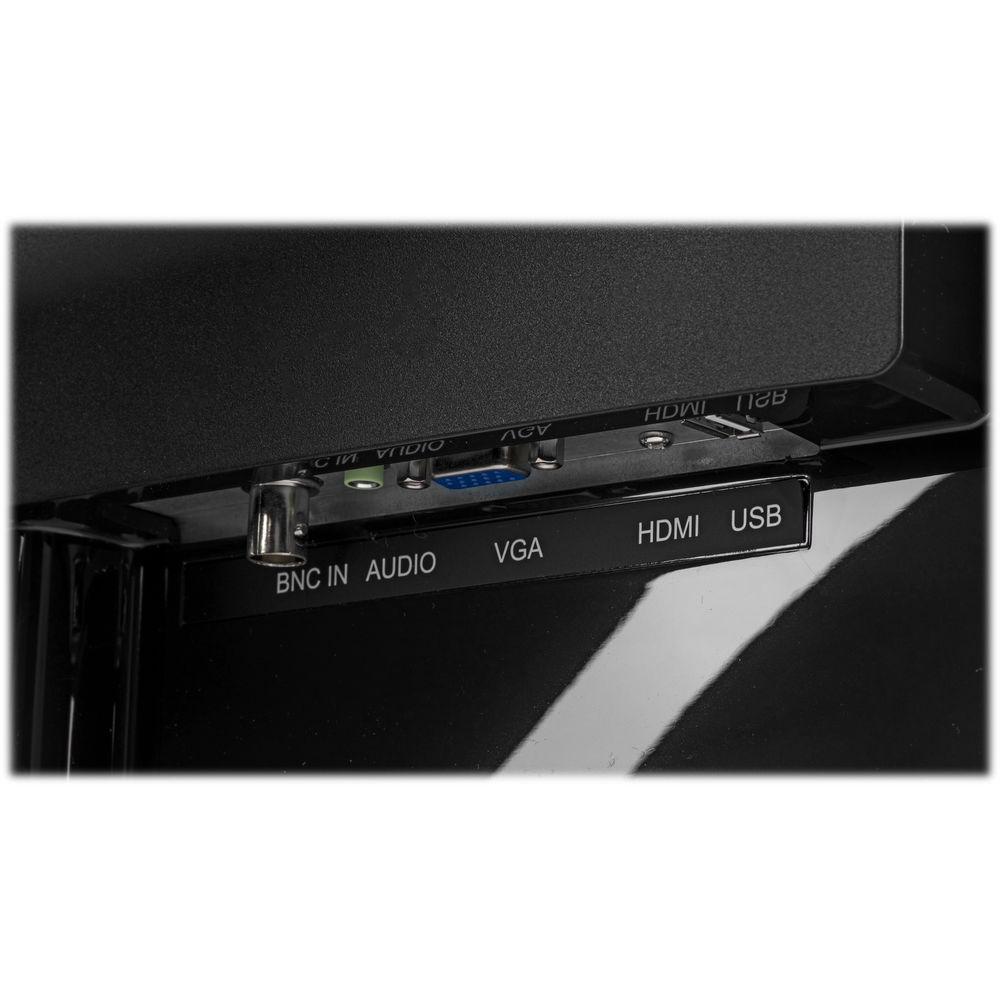

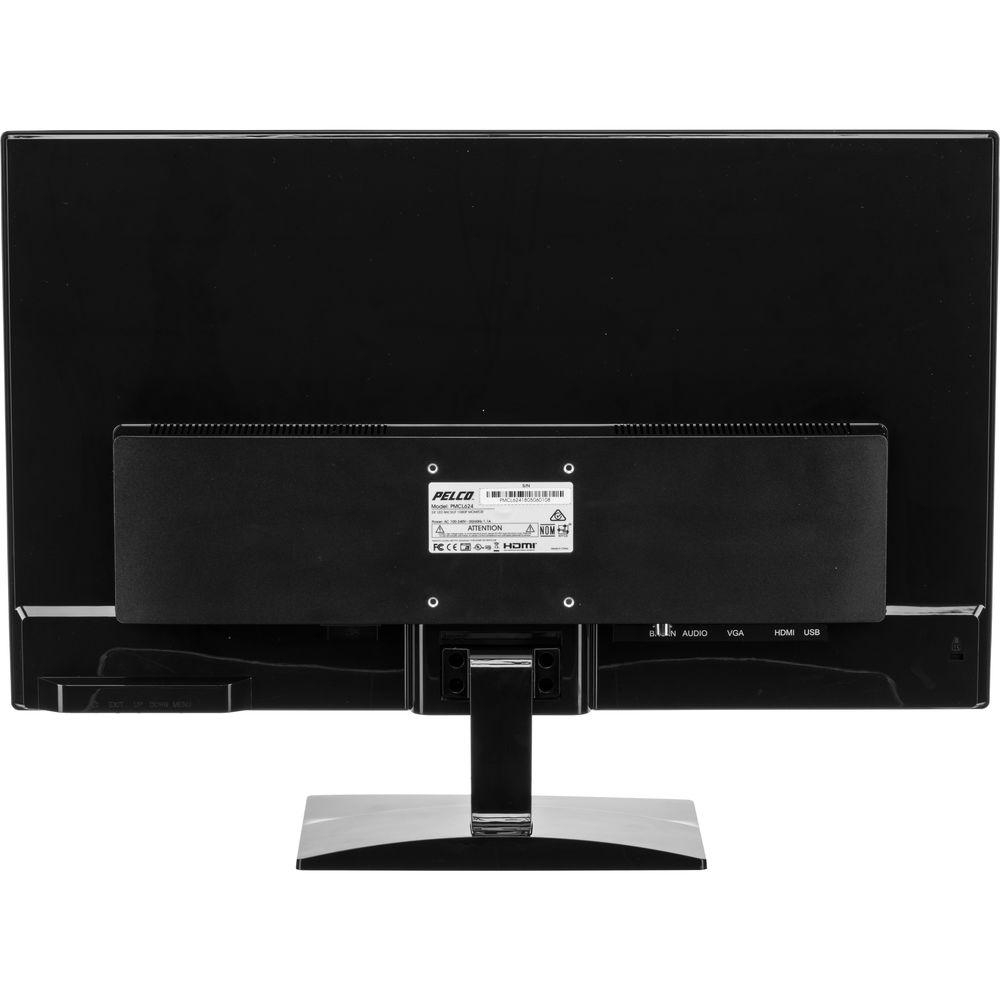

- Accepts HDMI, VGA, and BNC inputs
- OSD menu selection of 16:9 widescreen or 4:3 SD aspect ratio
- LED-backlit panel with 178° ultra wide viewing angle
- Built-in stereo speakers (8 x 2") and audio amplifier
- Included desk stand is easily removable for 75 x 75mm VESA mounting
- Power cable and VGA cables included
- Auto-on when VGA or HDMI DVR/NVR video is detected
UPC: 700880339183 In the Box Pelco PMCL600 Series 24" 1920 x 1080 Desktop LED Monitor Power Cable VGA Cable Desk Stand Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco PMCL600 Series 24" 1920 x 1080 Desktop LED Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco PMCL600 Specs | Application | CCTV Applications | | LCD Size | 24" / 61 cm | | Viewing Area | 20.75 x 11.67" / 527.04 x 296.46 mm | | Video System | NTSC/PAL | | Resolution | Native: 1920 x 1080 at 60 Hz
Optimum:
HDMI:
1920 x 1080 60 Hz
1280 x 1024 60/70/75 Hz
1024 x 768 60 Hz
800 x 600 60 Hz
640 x 480 60 Hz
VGA:
1920 x 1080 60 Hz
1280 x 1024 60/75 Hz
1024 x 768 60 Hz
800 x 600 60 Hz
640 x 480 60 Hz | | Video Formats | 480p, 1080i, 1080p | | Pixel Pitch | 0.27 x 0.27 mm | | Aspect Ratio | 16:9 or 4:3 | | Response Time | 5 ms | | Viewing Angle | 178°/178° | | Contrast Ratio | 1000:1 | | Brightness | 250 cd/m2 | | Display Colors | 16.7 Million | | Backlight | LED | | Panel Life | 40,000 hours | | Refresh Rate | 60, 70, 75 Hz (Depending on Resolution) | | Picture Control | Not Specified by the Manufacturer | | Speaker | 8 Ohms 2 W/Channel | | Remote Control | No | | Inputs/Outputs | Video Input:
1 x BNC
1 x HDMI
1 x VGA
Video Output:
Not specified by the manufacturer
Additional Inputs:

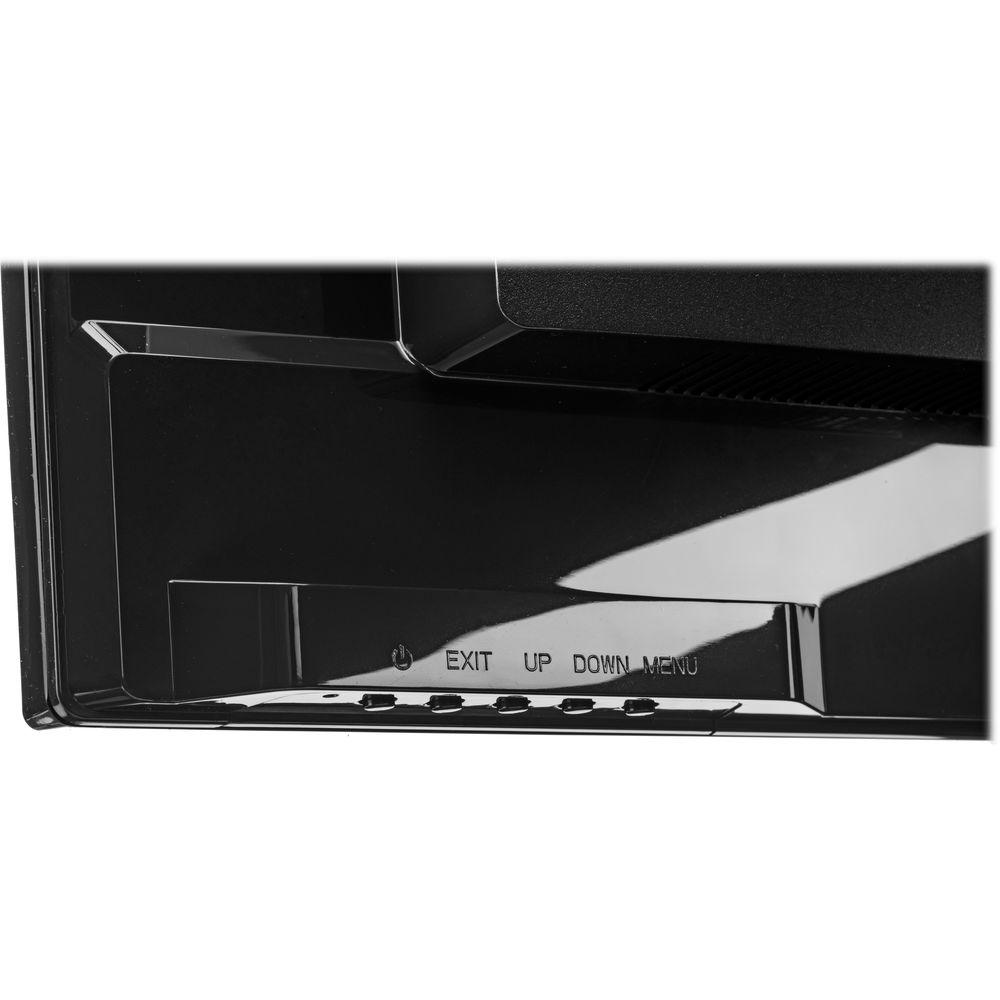

1 x USB | | Audio | 3.5 mm Stereo Jack | | Front Panel Controls | Power, Left/Right, Up/Down, Menu, Input | | Indicator LEDs | Power On/Off | | VESA Compliant | 75 x 75 mm | | Frequency | Horizontal: 15 kHz to 75 kHz
Vertical: 25 Hz to 75 Hz | | Power Requirements | 100 to 240 VAC, 50/60 Hz | | Power Consumption | <35 W | | Certification | CE, Class B
FCC, Class B
ICES-003, Class B
UL/cUL Listed | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | Operating & Storage: 10 to 85%, Non Condensing | | Dimensions | 19.8 x 14.49 x 6.34" / 502.8 x 367.98 x 161.09 mm (Without Stand)
21.78 x 15.6 x 6.34" / 553.2 x 396.3 x 161 mm (With Stand) | | Weight | 7.9 lb / 3.6 kg (Without Stand)
8.4 lb / 3.8 kg (With Stand) | | | | Package Weight | 12.5 lb | | Box Dimensions (LxWxH) | 23.9 x 17.5 x 5.8" |
