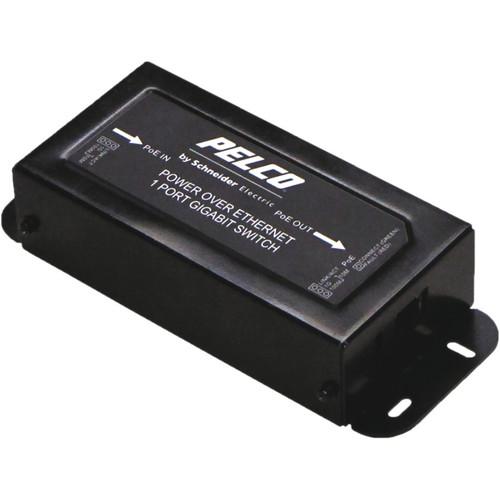

Product description The Pelco POE1XT Single-Port PoE Gigabit Extender is designed to meet the demanding data rate and power requirements of IP cameras with high-quality streaming video capabilities. It provides a voltage boost to PoE, adding another 328' (100m), to extend Ethernet to 656.2' (200m). The Gigabit extender accepts power from an IEEE802.3at source and is 25K signature resistance detection IEEE802.3at input compliant. - Powered by an IEEE802.3at source
- Output is IEEE802.3af compliant
- Fully compliant 25k signature resistance detection (IEEE802.3at and IEEE802.3af)
- Boost circuit to compensate for wire drops
- Over current protection (OCP) and short circuit protection (SCP)
- Extends Ethernet to 656.17' (200m)
- Accepts 45 to 57 VDC power input
- 19W total output power with 33.6W PoE input
- Suitable for schools, casinos, airports, retail stores, and infrastructure
UPC: 700880327418 In the Box Pelco POE1XT Single-Port PoE Gigabit Extender Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco POE1XT Single-Port PoE Gigabit Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco POE1XT Specs | | | Source | Receives power from an IEEE802.3at source | | Input Detection | 25k detection IEEE802.3at compliance | | Voltage Range | DC Input: 45 to 57 VDC | | Input Current | DC: 1.0 A at 45 VDC and maximum load
0.8 A at 57 VDC and maximum load | | | | Total Output Power | 802.3af: 19 W with 33.6 W PoE input | | DC Output Voltage | 54 V minimum, 56 V typical, 57 V maximum | | Output Current | 10 mA minimum, 330 mA maximum | | Ripple and Noise | 250 mV maximum | | Output Detection | 25k detection IEEE802.3af compliance | | Efficiency | 75% minimum at maximum load | | Short Circuit Protection | Outputs equipped with short circuit protection; the output can be shorted permanently without damage | | Over Current Protection | 450 mA maximum for PoE class 0 to 3 detection on output | | | | Input/Output | RJ45 | | Input Connections | GND: Pins 1,2 7,8
+VIN: Pins 3,6 4,5 | | Output Connections | GND: Pins 1,2
+VIN: Pins 3,6 | | | | Power Consumption | 5 W maximum | | Operating Temperature | Megabit Data Rates at 10 /100 Mbps: 32 to 131°F (0 to 55°C)
Gigabit Data Rates: 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 149°F (25 to 65°C) | | Maximum Humidity Gradient | 5 to 90% | | Immunity | ESD: EN61000-4-2, level 3
RS: EN61000-4-3, level 3
Surge: EN61000-4-5, level 2 | | Isolation | Hi-Pot: 2,121 VDC for 1 minute, 10 mA | | Insulation Resistance | Input to Ground: >10 MOhms, 500 VDC
Output to Ground: >10 MOhms, 500 VDC | | Certifications | CE, EN55022 class A
FCC, part 15, class A | | Dimensions (WxHxD) | 5.91 x 1.26 x 2.36" (150 x 32 x 60 mm) | | | | Package Weight | 0.94 lb | | Box Dimensions (LxWxH) | 7.1 x 3.0 x 1.9" |
