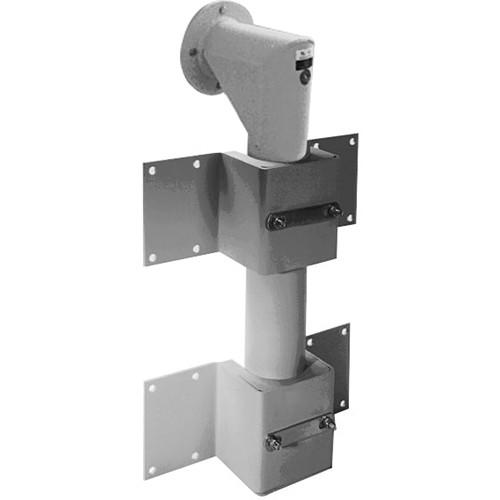

User Manual for Pelco PP100 Mount Parapet Adaptor Click to enlarge the picture
Contents of the user manual for the Pelco PP100 Mount Parapet Adaptor
- Product category: Mounting Hardware Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Mounting Hardware
|
User manual for the Pelco PP100 Mount Parapet Adaptor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The Pelco PP100 Mount Parapet Adaptor is designed for use with EWM (Esprit), PSWM (PS20 Scanner), and WM2000 wall mounts. When used with the appropriate wall mount, you can mount an enclosure, pan/tilt, Esprit positioning system, or PS20 series scanner to the inside of a parapet. The rugged aluminum construction and gray polyester powder coat finish provide strength and durability to the mount. Capable of completing a 360° rotation through loosening of the U-bolts, the parapet adaptor can support up to 75 lbs (34 kg). A 3.5" (8.89 cm) diameter feed-through hole is provided for an easy cable pass-thru, making for a neat set-up. Furthermore, the unit includes 4/5 16" mounting studs for quick and simple installation of the wall mount. A versatile design enables the mount to be positioned on any parapet with a minimum height of 18" (45.72 cm) and anywhere on the parapet, including corners. It is safety-engineered for safe installation and servicing. - Parapet mount designed for use with EWM (Esprit), PSWM (PS20 Scanner), and WM2000 wall mounts
- Mount an enclosure, pan/tilt, Esprit positioning system, or PS20 Series scanner to the inside of a parapet using appropriate wall mount
- Rugged aluminum construction and gray polyester powder coat finish for strength and durability
- Mount can be rotated a full 360° by simply loosening the U-bolts securing the tube assembly
- Supports loads of up to 75 lbs (34 kg)
- 3.5" (8.89 cm) diameter feed-through hole for an easy cable pass-thru
- 4/5 16" mounting studs for quick and simple installation
- Versatile design - mount can be positioned on any parapet with a minimum height of 18" (45.72 cm) and anywhere on the parapet, including corners
- Safety-engineered to eliminate hazardous installation and servicing
UPC: 700880021040 In the Box Pelco PP100 Mount Parapet Adaptor 2 x Wall Mounting Brackets 2 x 5/16-18-UNC x 3.5" I.D. Threaded U Bolts 4 x 5/16-18-UNC Hex Nuts 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco PP100 Mount Parapet Adaptor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco PP100 Specs | Mechanical | Positioning Adjustment:
Unlimited 360°
Adapter Mounting:
4, 5/16-inch mounting studs (nuts and split lock washers provided)
Suggested Mounting Method:
Secure PP100 to parapet wall with 16 fasteners (not supplied); minimum 1/4-inch (6 mm) diameter recommended | | General | Maximum Load: 75 lbs (34kg)
Construction: Aluminum
Finish: Gray polyester powder coat
Dimensions WxHxD: 15 x 24.3 x 7.3" (38.1 x 56.5 x 18.4cm)
Weight: 10 lbs (4.5kg) |
