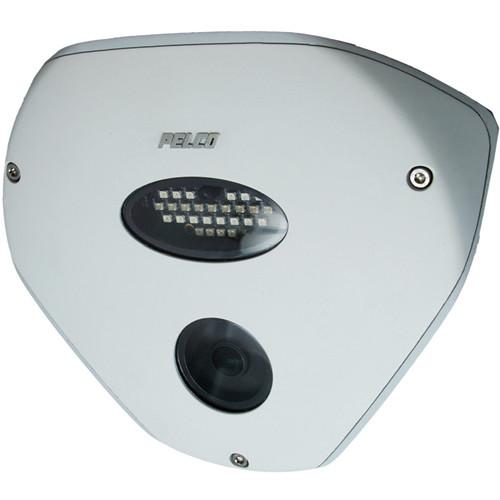

User Manual for Pelco Sarix IBD IBD129-1 1.2MP Outdoor Network Corner Mount Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Pelco Sarix IBD IBD129-1 1.2MP Outdoor
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
|
User manual for the Pelco Sarix IBD IBD129-1 1.2MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The Sarix IBD IBD129-1 1.2MP Outdoor Network Corner Mount Camera from Pelco is designed to record 1280 x 960 avideo in high-risk areas. It features an anti-ligature, no-grip design without anchor pointsand fits flush to corners for protection against attempts to detach or disable the camera. Despite sitting flush to a single corner, the camera's 45° angled view allows it to capture video in an entire 33 x 33' room, including directly below the camera.
This camera features a 1.8mm fixed lens with a 115° horizontal and 86° vertical field of view. A microSD card slot supports up to 128GB of local storage. It has an IR LED that provides up to 33' night vision. This camera is powered via PoE and is compatible with Pelco and third-party video systems. - Supports up to two simultaneous video streams and a third service stream
- Connects to Pelco video management systems such as VideoXpert, Endura version 2.0 (or later), and Digital Sentry version 7.3 (or later)
- Motion detection and camera sabotage detection
- Smart Compression Technology
- Integrates with major third-party systems through the ONVIF Profile S, Profile G, and Profile Q standards
- Standard web browser interface for easy remote setup and administration
- Rated IK10+ for vandal resistance
UPC: 700880342602 In the Box Pelco Sarix IBD IBD129-1 1.2MP Outdoor Network Corner Mount Camera with Night Vision 3 x TP4x30mm Self-Tapping Screw 3 x Plastic Anchor 2 x Desiccant T20 Security Torx Wrench 8-Pin Terminal Block 2-Pin Terminal Block Mounting Template Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Sarix IBD IBD129-1 1.2MP Outdoor Network Corner Mount Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco Sarix IBD Specs | | | Sensor | 1.2 MP 1/2.8" CMOS | | Focal Length | 1.8mm | | Lens Field of View | Horizontal: 115°
Vertical: 86° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.02 Lux
B&W: 0 Lux | | Shutter Speed | 1/10,000 to 1/5 Seconds | | | | Streaming Resolution | 1280 x 960 | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711 | | Built-In Mic | Yes | | External Audio Input | Terminal Block (Unspecified Pin Count) | | External Audio Output | Terminal Block (Unspecified Pin Count) | | | | Security | HTTPS, Password Protection | | Supported Protocols | DNS, FTP, GB28181, HTTP, ICMP, IGMP, IPv4/v6, LDAP, NTP, ONVIF Profile G, ONVIF Profile Q, ONVIF Profile S, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSH, SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | ONVIF | | Analytics | Simple Motion Detection, Camera Sabotage Detection | | Event Trigger | Yes | | Event Action | Recording, Alarm | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | 1 x 940 nm | | IR Range | 32.81' / 10 m | | Video Management Software | VideoXpert, Endura Version 2.0 (or Later), Digital Sentry 7.3 (or Later), Third-Party VMS | | Supported Languages | Arabic
English
French
German
Italian
Korean
Portuguese
Russian
Simplified Chinese
Spanish
Turkish | | Certifications | FCC (Part 15 Class A), ICES-003 Class A, IEC 62676, KC, RCM, UL, cUL, as per Manufacturer | | Internal Storage | 128 GB | | External Storage Options | Local PC | | Power Source | AC, DC, PoE 802.3af (15 W) | | Power Consumption | DC: 12.8 W (With Heater)
DC: 11.9 W
AC: 9.5 W (With Heater)
AC: 8.7 W
PoE: 9.2 W (With Heater)
PoE: 8.3 W With IR On | | Material of Construction | Aluminum | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 0 to 90% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions | H: 7.7 x W: 7.7" / H: 19.6 x W: 19.5 cm | | Weight | 2.6 lb / 1.2 kg |
