Pelco Sarix IBE Series IBE129-1I 1.3MP

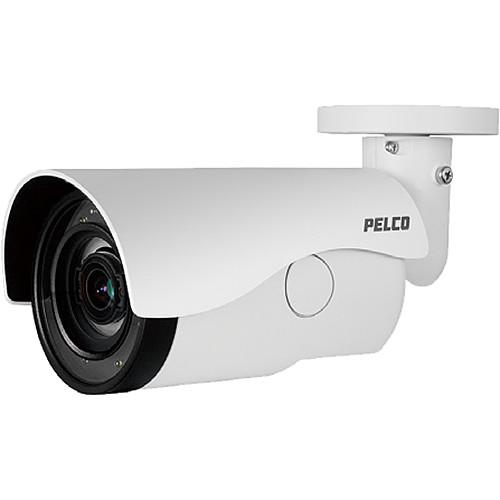

User Manual for Pelco Sarix IBE Series IBE129-1I 1.3MP Network Bullet Camera with Night Vision

• Product category: Wired IP Cameras Pelco
• Brand: Pelco
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Pelco Wired IP Cameras

Product description

• SureVision 3.0 technology

• 130 dB wide dynamic range (WDR)

• Color vision down to 0.05 lux at 33 ms and down to 0.005 lux at 500 ms

• Smooth response to illumination changes

• Anti-bloom technology

• 3D noise filtering

• Enhanced tone mapping

• Up to 1.3MP resolution at up to 60 fps

• Autofocus varifocal 3-9mm lens

• 3x motorized optical zoom

• Manual focus plus three autofocus modes: Temperature change (every 18°F), day/night transition, and daily autofocus routine

• All autofocus options available through web UI

• MJPEG and H.264 video compression for efficient storage and bandwidth use

• Two independently configurable video streams plus service video stream

• Constrained variable bit rate (CVBR) or constant bit rate (CBR) stream encoding

• Integrates with Pelco video management systems including VideoXpert, Endura (version 2.0 or later), and Digital Sentry (version 7.3 or later), as well as with major third-party video management systems via Pelco API

• PoE, 12 VDC, or 24 VAC powered

• PoE enables clean, clutter-free installation

• Built-in video analytics with eight user-configurable behaviors (up to two can be run simultaneously): Abandoned object, intrusion detection, camera sabotage, wrong direction, loitering detection, object counting, object removal, and stopped vehicle

• Adaptive IR illumination for night vision to an effective range of up to 98'

• 4GB RAM

• ONVIF Profiles S and G compliant for compatibility with wide range of Pelco and third-party video systems

• Compact, ready-to-install surface-mount enclosure

• IK10-rated vandal resistance

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Pelco Sarix Enhanced Specs

Recording Media	SD (Up to 128 GB)
Pan/Tilt	None
Alarm I/O	2 / 1
I/O Connections	1 x RJ45 1 x Power
IR Range	98.43' / 30 m
Video Management Software	VideoXpert, Endura, Digital Sentry
Supported Languages	Arabic English French German Italian Korean Portuguese Russian Simplified Chinese Spanish Turkish
Certifications	FCC (Part 15 Class A), ICES-003 Class A, UL, as per Manufacturer
Internal Storage	None
Power Source	AC, DC, PoE 802.3af (15 W)
Power Consumption	8.5 W
Material of Construction	Aluminum
Operating Temperature	14 to 131°F / -10 to 55°C
Storage Temperature	-40 to 140°F / -40 to 60°C
Operating Humidity	10 to 90%
IK Rating	IK10
