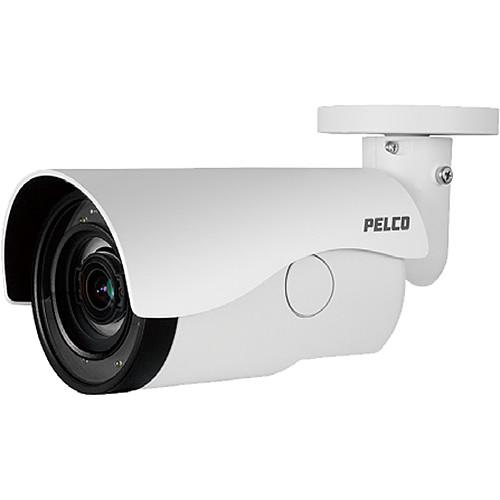

User Manual for Pelco Sarix IBE Series IBE229-1I 2MP Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Pelco Sarix IBE Series IBE229-1I 2MP
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
|
User manual for the Pelco Sarix IBE Series IBE229-1I 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description Watch over your property with the Sarix IBE Series IBE229-1I 2MP Network Bullet Camera with Night Vision from Pelco. Featuring a 1/2.8" CMOS sensor and a 3-9mm 3x motorized varifocal lens, this camera captures video at resolutions up to 1920 x 1080 at 60 fps in horizontal fields of view ranging from 113.7 to 38°. The camera is equipped with an IR cut filter and adaptive IR illuminators for night vision to an effective range of up to 98'. Moreover, the camera provides various autofocus modes to deliver clear, focused images regardless of scene or environment variations.
The IBE229-1I has an SD card slot for edge storage and input and output connections for two-way audio communication. H.264 and MJPEG configurable streams allow you to optimize storage and bandwidth use, while ONVIF compliance ensures compatibility with a wide range of surveillance equipment. - SureVision 3.0 technology
- 130 dB wide dynamic range (WDR)
- Color vision down to 0.05 lux at 33 ms and down to 0.005 lux at 500 ms
- Smooth response to illumination changes
- Up to 2MP resolution at up to 60 fps
- Autofocus varifocal 3-9mm lens
- 3x motorized optical zoom
- Manual focus plus three autofocus modes: Temperature change (every 18°F), day/night transition, and daily autofocus routine
- All autofocus options available through web UI
- MJPEG and H.264 video compression for efficient storage and bandwidth use
- Two independently configurable video streams plus service video stream
- Constrained variable bit rate (CVBR) or constant bit rate (CBR) stream encoding
- Integrates with Pelco video management systems including VideoXpert, Endura (version 2.0 or later), and Digital Sentry (version 7.3 or later), as well as with major third-party video management systems via Pelco API
- PoE, 12 VDC, or 24 VAC powered
- PoE enables clean, clutter-free installation
- Built-in video analytics with eight user-configurable behaviors (up to two can be run simultaneously): Abandoned object, intrusion detection, camera sabotage, wrong direction, loitering detection, object counting, object removal, and stopped vehicle
- Adaptive IR illumination for night vision to an effective range of up to 98'
- ONVIF Profiles S and G compliant for compatibility with wide range of Pelco and third-party video systems
- Compact, ready-to-install surface-mount enclosure
- IK10-rated vandal resistance
UPC: 700880339343 In the Box Pelco Sarix IBE Series IBE229-1I 2MP Network Bullet Camera with Night Vision Power Terminal Block Alarm Terminal Block 5 x M4 Self-Tapping Screws 5 x Plastic Screw Anchors Torx T20 Security Bit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Sarix IBE Series IBE229-1I 2MP Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco Sarix Enhanced Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 3 to 9mm | | Maximum Aperture | f/1.3 | | Zoom | Optical: 3x | | Lens Field of View | Horizontal: 113.7 to 38.0°
Vertical: 61.1 to 21.4° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.005 Lux
B&W: 0 Lux | | Shutter Speed | 1/20,000 to 2 Seconds | | Camera Angle Adjustment | Horizontal: 0 to 360°
Vertical: -90 to 5° | | | | Streaming Resolution | 1920 x 1080 at 60 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711, PCM | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X, Password Protection | | Supported Protocols | ARP, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSH, SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | Pelco API | | Analytics | Abandoned Object, Intrusion Detection, Camera Sabotage, Wrong Direction, Loitering Detection, Object Counting, Object Removal, and Stopped Vehicle | | Event Trigger | Yes | | Event Action | Notification, Alarm | | | | Windows OS Support | Windows XP, 7 | | Mac OS Support | macOS 10.12, OS X 10.11, OS X 10.10, OS X 10.9, OS X 10.8, OS X 10.7, OS X 10.6, OS X 10.5, OS X 10.4 | | | | Recording Media | SD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 2 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | IR Range | 98.43' / 30 m | | Video Management Software | VideoXpert, Endura, Digital Sentry | | Supported Languages | Arabic
English
French
German
Italian
Korean
Portuguese
Russian
Simplified Chinese
Spanish
Turkish | | Certifications | FCC (Part 15 Class A), ICES-003 Class A, UL, as per Manufacturer | | Internal Storage | None | | Power Source | AC, DC, PoE 802.3af (15 W) | | Power Consumption | 8.5 W | | Material of Construction | Aluminum | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 10 to 90% | | IK Rating | IK10 | | Dimensions |
