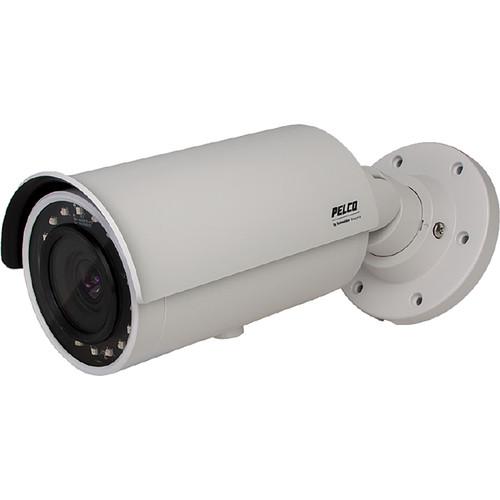

User Manual for Pelco Sarix IBP 3MP Outdoor Network Bullet Camera with 3 to 10.5mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Pelco Sarix IBP 3MP Outdoor Network
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
|
User manual for the Pelco Sarix IBP 3MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The Sarix IBP 3MP IP Network Bullet Camera from Pelco has a remote zoom lens for wide angle or long range surveillance needs. The integrated 3 to 10.5mm varifocal lens features an autofocus capability that allows the camera to be automatically refocused when needed. Additionally, the camera features a mechanical IR cut filter and advanced integrated adaptive IR illumination for increased sensitivity in low-light environments.
The camera supports up to two simultaneous video streams and a third service stream. The two streams can be compressed with efficient H.264 high or main profiles or MJPEG formats. It features an on-board edge storage with a microSD card (sold separately) that stores videos to the card upon alarm, or video can be written continuously to the SD card in the case of network outage. - Up to 30 frames per second at 3MP
- Autofocus motorized remote zoom lens
- Operating temperature up to 131°F
- Up to 64GB edge storage with microSD card
- Motion detection and camera sabotage detection
- Power over Ethernet (PoE+) Class 4, 24 VAC, 12 VDC
- IK10 vandal resistance rating, IP66 ingress protection
- Compatible with Pelco and third-party video systems
- ONVIF Profile S and Profile G
UPC: 700880338216 In the Box Pelco Sarix IBP 3MP Outdoor Network Bullet Camera with 3 to 10.5mm Lens & Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Sarix IBP 3MP Outdoor Network Bullet Camera with 3 to 10.5mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco Sarix IBP Specs | | | Imaging Sensor | 1/2.8" CMOS progressive scan | | Maximum Resolution | 2048 x 1536 (3 MP) | | Electronic Shutter | 1/5 to 1/45,000 sec | | Wide Dynamic Range | 75 dB | | White Balance | 2,000 to 10,000K | | 3D-DNR | Yes (On/Of selectable) | | Signal to Noise Ratio | ≥50 dB | | Sensitivity | f/1.2 | | Minimum Illumination | Color: 33 ms: 0.25 lux
200 ms: 0.02 lux
0 lux with IR on | | IR Cut Filter | Yes (Auto/Manual selectable), with different set points on lux | | IR Illumination | Adaptive IR up to 115' (35 m); auto ON in night mode, or OFF | | | | Lens Type | Built-in; varifocal | | Focal Length | f/1.4, 3 to 10.5mm | | Focus | Autofocus, motorized | | Zoom | Remote | | Auto Iris | DC drive lens | | Field of view (FOV) | Diagonal: 115 to 34°
Horizontal:98 to 30°
Vertical: 52 to 16° | | | | Video Streams | Up to 2 simultaneous streams, plus service stream; the secondary stream is variable based on the setup of the primary stream | | Text Overlay | Camera name, time, date, and customizable text with multiple languages supported | | Aspect Ratio | 4:3 | | Frame Rates | 30, 25, 20, 16.67, 15, 12.5, 10, 7.5, 5, 3,2, 1 | | Video Encoding | H.264 High, Main, and Baseline profiles; and MJPEG | | Bit Rate Control | Constant bit rate (CBR), constrained variable bit rate (CVBR) with configurable maximum value | | Flip / Mirror | Corridor Mode: 180, 90, and 270° (H.264 only) | | Streaming | Streaming: 640 x 480 or 640 x 352; 2 fps, JPEG | | Privacy Masking | 4 configurable windows | | | | Streaming | Bi-directional | | Input | Line in/terminal block | | Encoding | G.711 A-law/G.711 U-law | | | | Supported Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), ICMP, IPv4, IPv6, SNMP v2c/v3, HTTP, HTTPS, SSL, SSH, SMTP, FTP, RTSP, UPnP, DNS, NTP, RTP, RTCP, LDAP (client), QoS, GB28181 | | Users | Unicast 1 administrator, up to 4 viewers
Multicast Unlimited users H.264 | | Security Access | Multiple user access levels with password protection | | | | Video Management Software | VideoXpert: Endura version 2.0 (or later)
Digital Sentry 7.3 (or later)
Third-party VMS through Pelco API 1.0
ONVIF Profile S, G, and Q | | Mobile Application Support | Pelco Mobile | | Analytics | Simple motion detection and camera sabotage detection | | Local Storage | Capture 1-, 5-, or 10-second video clips on camera sabotage, motion detection, or alarm input; record video continuously in the case of network outage with option to overwrite; access video through FTP protocol and ONVIF Profile G | | Discovery | Discover cameras and upgrade firmware using the Pelco Device Utility 2 version 2.2 or later; cameras discovered and firmware upgrade through Endura Utilities | | Web Browser Support | Microsoft Internet Explorer 9.0, Apple Safari 7.0.6, Mozilla Firefox 31.0, Google Chrome 37.0.2062.124 m and later | | UI Language | English, French, German, Italian, Portuguese, Arabic, Russian, Spanish, Turkish, Korean, Simplified Chinese | | | | Network Port | RJ45 connector for 100BaseTX | | Power Input | PoE (IEEE 802.3af, Class 3); 24 VAC nominal, 18 to 32 VAC range, 12 VDC | | Power Consumption | <11.50 W | | Local Storage | Up to 64 GB on microSDHC or SDXC card | | Alarm | Input: 1
Output: 1; PhotoMOS relay (30 V, 1 A)
Triggers: Unsupervised mode that detects switch closures (N.O. and N.C.) | | | | Operating Temperature | -40 to 131°F (-40 to 55°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Operating Humidity | 15 to 85%, RH condensing | | Storage Humidity | 5 to 90%, RH non-condensing | | | | Construction | Die cast aluminum, cylindrical | | Ingress Protection | IP66, Type 4X | | Vandal Resistance | IK10 (20J impact) per IEC 62262 | | Finish | RAL 7047 | | Dimensions (Ø x L) | 4.53 x 10.6" (11.5 x 26.9 cm) | | Weight | 3.89 lb (1.76 kg) | | | | Package Weight | 6.05 lb | | Box Dimensions (LxWxH) | 14.0 x 7.6 x 7.1" |
