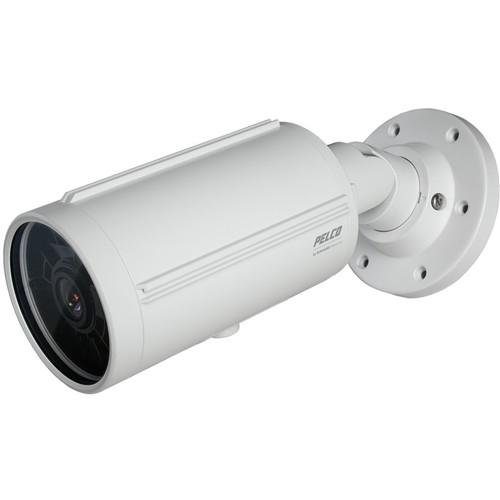

User Manual for Pelco Sarix IBP Series IBP121-1R 1MP Environmental Bullet Camera with 3-10.5mm Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Pelco Sarix IBP Series IBP121-1R 1MP
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
|
User manual for the Pelco Sarix IBP Series IBP121-1R 1MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The Sarix IBP Series IBP121-1R 1MP Environmental Bullet Camera with 3-10.5mm lens from Pelco features a remote zoom lens for wide angle or long range surveillance needs. Autofocus capability ensures the camera can be automatically refocused when needed. Additionally, the camera offers advanced color accuracy and advanced integrated adaptive IR illumination for increased sensitivity in low-light installations. It features a mechanical IR cut filter. The camera supports up to 2 simultaneous video streams and a third service stream. The 2 streams can be compressed with efficient H.264 High or Main profiles or MJPEG formats. The streams can be configured to a variety of frame rates and bit rates to optimize image quality with bandwidth and storage efficiency. In addition, the camera features onboard edge storage with a microSD card (sold separately). Video clips of varying lengths can be stored to the card upon alarm, or video can be written continuously to the SD card in the case of network outage. Video can be retrieved from the card through the FTP protocol. Simple motion detection algorithms allow the camera to record or trigger an alarm when motion is detected in a selected zone or throughout the entire scene. A camera sabotage alarm is triggered if the lens is obstructed or the camera is repositioned. It connects to Pelco video management systems, such as Endura version 2.0 (or later) or Digital Sentry version 7.3 (or later). It also integrates with major third-party video management systems through the open Pelco API and other third-party software and systems through the open ONVIF Profile S standard. A standard Web browser interface allows for easy remote setup and administration. Controls are optimized for convenient one-step camera configuration for features including color, exposure, flicker control, and streaming. -
- Up to 5MP resolution
- Up to 30 images per second
- Autofocus motorized remote zoom lens
- Operating temperature up to 131°F (55°C)
- Up to 64 GB edge storage with microSD card
- Motion detection and camera sabotage detection
- Power over Ethernet (PoE+) Class 4, 24 VAC, 12 VDC
- IK10 vandal resistance and IP66 ingress protection
- Compatible with Pelco and third-party video systems
- ONVIF Profile S and G
UPC: 700880338094 In the Box Pelco Sarix IBP Series IBP121-1R 1MP Environmental Bullet Camera with 3-10.5mm Lens & Night Vision Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Sarix IBP Series IBP121-1R 1MP Environmental Bullet Camera with 3-10.5mm Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco Sarix IBP Specs | | | Sensor | 1/3" 1 MP CMOS sensor | | Sensor Resolution | 1280 x 960 (1.2 MP) | | Imager Readout | Progressive scan | | Electronic Shutter Speed | 1/5 to 1/30,000 sec | | Dynamic Range | 75 dB | | White Balance | 2,000 to 10,000K | | Signal to Noise Ratio | ≥50 dB | | Digital Noise Reduction (DNR) | Yes (On/Off selectable) | | Minimum Illumination | Color:
0.05 lux at 33 ms; 0.02 lux at 200 ms
Mono with IR Illumination:
0 lux at 33 ms; 0 lux at 200 ms | | Mechanical IR Cut Filter | Yes (Auto/Manual selectable) with different set points on lux | | IR Illumination | Adaptive IR up to 114.8' (35 m), Auto On in night mode or Off | | | | Type | Built-in, varifocal | | Focal Length | 3-10.5mm | | Aperture | f/1.4 | | Focus | Autofocus, motorized | | Zoom | Remote | | Auto Iris Control | DC drive lens | | Field of View | Diagonal: 112-33°
Horizontal: 86-27°
Vertical: 63-19° | | | | Video Streams | Up to 2 simultaneous streams, plus service stream; the secondary stream is variable based on the setup of the primary stream | | Overlay | Camera name, date, time, and customizable text with multiple languages supported | | Available Resolutions | 1280 x 720 (0.9 MP); 16:9 aspect ratio
800 x 600 (0.5 MP); 4:3 aspect ratio
640 x 480 (0.3 MP); 4:3 aspect ratio
320 x 240 (0.1 MP); 4:3 aspect ratio
320 x 180 (0.1 MP); 16:9 aspect ratio | | Supported Frame Rates | 30 (full), 25, 20, 16.67, 15, 12.5, 10, 7.5, 5, 3, 2, 1 fps | | Video Encoding | H.264 High, Main, or Baseline profiles and MJPEG | | Bit Rate Control | Constant bit rate (CBR), constrained variable bit rate (CVBR) with target range | | Service | Service Stream: 640 x 480 or 640 x 352, 2 fps, JPEG | | Privacy Masking | 4 configurable windows | | | | Streaming | Bi-directional | | Input | Line in/terminal block | | Encoding | G.711 A-law/G.711 U-law | | | | Port | RJ45 connector for 100Base-TX | | Supported Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), ICMP, IPv4, IPv6, SNMP v2c/v3, HTTP, HTTPS, SSL, SSH, SMTP, FTP, RTSP, UPnP, DNS, NTP, RTP, RTCP, LDAP (client), QoS, GB28181 | | Users | Unicast: 1 administrator, up to 4 viewers
Multicast: Unlimited users H.264 | | Security Access | Multiple user access levels with password protection | | | | Power Input | PoE (IEEE 802.3af, Class 3); 24 VAC, 18 to 32 VAC range, 12 VDC | | Power Consumption | <11.50 W | | Alarm | Input: 1
Output: 1; PhotoMOS relay (30 V, 1 A)
Triggers: Unsupervised mode that detects switch closures (N.O. and N.C.) | | | | Operating temperature | -40 to 131°F (-40° to 55°C) | | Storage Temperature | -40° to 140°F (-40° to 60°C) | | Humidity | Operating: 15 to 85%, RH condensing
Storage: 5 to 90%, RH non-condensing | | | | Video Management Software | VideoXpert, Digital Sentry 7.3 (or later); Endura 2.0 (or later); Third-party VMS through Pelco API 1.0 and ONVIF Profile S, G, and Q | | Mobile Apps | Integrated with Pelco Mobile App | | Analytics | Simple motion detection and camera sabotage detection | | Local Storage | Captures 1-, 5-, or 10-sec video clips on camera sabotage, motion detection, or alarm input
Records video continuously in case of network outage with the option to overwrite
Access video through FTP protocol | | Firmware Upgrade | Discovery and firmware upgrade through Pelco Device Utility 2 version 2.2 and Endura Utilities | | Interface | Web browser view and setup | | Web Browser Support | Microsoft Internet Explorer 9.0, Apple Safari 7.0.6, Mozilla Firefox 31.0, Google Chrome 37.0.2062.124 m and later | | Language Support | English, French, German, Italian, Portuguese, Arabic, Russian, Spanish, Turkish, Korean, Simplified Chinese | | | | Certifications | CE, EN 55022 (Class A), EN 50130-4, EN 60950-1
FCC (Class A) - 47 CFR Part 15
UL/cUL listed, UL60950-1
CAN/CSA-C22.2 No. 60950-1-07
UL/IEC 60950-22
ICES-003 (Class A)
RCM
KC
ONVIF Profile S and G conformant | | | | Construction | Die-cast aluminum, cylindrical | | Ingress Protection | IP66 | | Vandal Resistant | IK10 (20 J impact) per IEC 62262 | | Dimensions | With Bracket: 4.53 x 10.60" (11.51 x 26.94 cm) | | Weight | 6.21 lb (2.82 kg) | | | | Package Weight | 5.75 lb | | Box Dimensions (LxWxH) | 14.05 x 7.75 x 7.3" |
