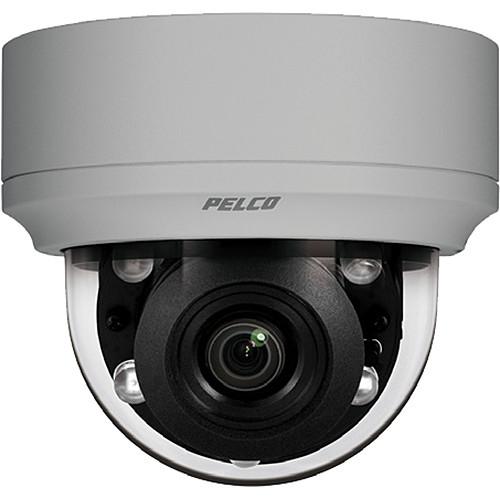

User Manual for Pelco Sarix IME Series 3MP Outdoor Network Mini Dome Camera with 9-22mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Pelco Sarix IME Series 3MP Outdoor
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
|
User manual for the Pelco Sarix IME Series 3MP Outdoor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The Sarix IME Series 3MP Outdoor Network Mini Dome Camera from Pelco features a 9-22mm remote zoom lens for wide angle or long-range surveillance needs. Autofocus ensures the camera can be automatically refocused. The camera offers four advanced autofocus options; temperature change (every 9°F), day/night transition, a daily autofocus routine, and manual autofocus. It captures images at a resolution up to 2048 x 1536 with a 1/2.8" sensor. Additionally, the camera features SureVision technology, delivering consistent color science, fast processing power, and simultaneous low-light performance with wide dynamic range (WDR) and anti-bloom technologies. It also includes features like 3D noise filtering, smooth response to illumination changes, and improved tone mapping to retain color accuracy and overall image contrast. The water-resistant and vandal-resistant housing of this camera ensures reliable video surveillance for a variety of indoor and outdoor applications. - Camera Highlights
-
- Offers frame rates up to 60 fps at 3MP
- Autofocus motorized remote zoom lens
- Four autofocus options available through the web UI
- SureVision 3.0 technology
- 130 dB Wide Dynamic Range (WDR)
- Anti-bloom technology
- 3D noise filtering
- Enhanced tone mapping
- Up to 128GB edge storage via microSD card (available separately)
- Built-in heater
- PoE (IEEE 802.3af) Class 3 input
- Supports 24 VAC/12 VDC dual voltage operation
- IP66- and IK10-rated enclosure
- Aluminum body
- Video Streaming
-
- Supports up to two simultaneous video streams and a third service stream
- Simultaneous video streams can be compressed with H.264 (High, Main, or Base profiles) or MJPEG formats
- Streams can be configured to a variety of frame rates and bit rates to optimize image quality for bandwidth and storage efficiency
- Streams can be encoded as constrained variable bit rate (CVBR) or constant bit rate (CBR)
- Open and Integrated
-
- Connects to Pelco video management systems such as VideoXpert, Endura version 2.0 (or later), and Digital Sentry version 7.3 (or later)
- Can be integrated with third-party systems through the open Pelco API or the ONVIF Profile S, G, and Q standards
- Built-In Analytics Suite
-
- Includes eight user-configurable behaviors, which can be enabled using a standard web browser
- You can create several custom profiles for each behavior that contains different camera settings
- Camera is capable of running up to two behaviors at the same time
- Behavior alarms are compatible with VideoXpert or a third-party system that supports Pelco’s API system
- Abandoned Object – Detects objects placed within a defined zone and triggers an alarm if the object remains in the zone unattended
- Intrusion Detection – Detects and tracks objects that enter a scene and then triggers an alarm when the objects enter a user-defined zone
- Camera Sabotage – Detects contrast changes in the field of view including any unauthorized repositioning of the camera
- Wrong Direction – Generates an alarm in a high traffic area when a person or object moves in a specified direction
- Loitering Detection – Identifies when people or vehicles remain in a defined zone too long
- Object Counting – Counts the number of objects that cross a defined line
- Object Removal – Triggers an alarm if an object is removed from a user-defined zone
- Stopped Vehicle – Detects vehicles stopped near a sensitive area longer than the user-defined time allows
UPC: 700880339435 In the Box Pelco Sarix IME Series 3MP Outdoor Network Mini Dome Camera with 9-22mm Varifocal Lens Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Sarix IME Series 3MP Outdoor Network Mini Dome Camera with 9-22mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco Sarix IME Specs | | | Sensor | 1/2.8" CMOS progressive scan | | Sensor Resolution | 2048 x 1536 | | Signal to Noise Ratio | >60 dB | | Electronic Shutter | 1/20,000 (or faster) to 2 sec | | Wide Dynamic Range | 130 dB | | White Balance | 2000 to 10,000K | | Sensitivity | At f/1.6, 2850K, SNR >20 dB:
Color (33 ms): 0.2 lux
Color (500 ms): 0.01 lux
Mono (33 ms): 0.1 lux
Mono (500 ms): 0.0025 lux | | Mechanical IR Cut Filter | Yes, (On/Off/Auto selectable) with different set points on lux | | | | Type | Built-in, varifocal | | Focal Length | 9-22mm | | Aperture | f/1.3 | | Focus Type | Autofocus, motorized | | Zoom | Remote | | Auto Iris | DC drive P-iris | | Field of View | Horizontal: 33° (W), 14° (T)
Vertical: 24° (W), 10° (T) | | | | Streaming | Bidirectional (full or half duplex) | | Input/Output | Line level/external microphone input; single-ended, stereo, 1 V p-p maximum signal level | | Compression | G.711 PCM 8-bit, 8 kHz mono at 64 kb/s | | | | Video Streams | Independently configurable primary and secondary streams plus service stream | | Available Resolutions | 4:3 Aspect Ratio:
3 MP: 2048 x 1536
2.95 MP: 1984 x 1488
1.8 MP: 1600 x 1200
16:9 Aspect Ratio:
2 MP (1080p): 1920 x 1080 | | Maximum Frame Rate | Up to 60 fps
30 fps with WDR | | Video Encoding | H.264 High, Main, or Base profiles; MJPEG | | Bit Rate Control | Constrained variable bit rate (CVBR) and constant bit rate (CBR) | | Mode | Corridor Mode: Electronic image flip and mirror: 180, 90, and 270° (H.264 only) | | Stream Type | Service Stream: JPEG stream; 640 x 480 or 640 x 360, up to 15 fps | | | | Port | RJ45 connector for 100Base-TX Auto MDI/MDI-X | | Cable Type | Cat5 or better for 100Base-TX | | Supported Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, SSH, SSL, SMTP, FTP, ARP, ICMP, and 802.1x (EAP) | | Users | Unicast: Up to 20 simultaneous users depending on resolution settings
Multicast: Unlimited users H.264 | | Security Access | Password protected | | | | Interface | Web browser view and setup | | Languages Supported | Arabic, English, French, Italian, German, Korean, Spanish, Portuguese, Russian, Simplified Chinese, Turkish | | Features | 16 window blanks, configurable in size
Password protection
Snapshot with JPEG capture at 2016 x 1523 resolution
Text overlays for camera name, time, date
Image overlays | | | | Supported | Detects open or closed alarm state | | Input | 5 VDC maximum, 0.5 mA maximum | | Relay Output | ±350 VDC, ±130 mA maximum | | | | Processor | Intel Core i3, 2.4 GHz | | Operating System | Microsoft Windows 7 (32- and 64-bit), or DirectX 11, Windows XP Service Pack 3 with DirectX 9.0c
Mac OS X 10.4 (or later) | | RAM | 4 GB | | Network Interface | 100 Mb/s | | Monitor | Minimum 1024 x 768 resolution, 16- or 32-bit color | | Web Browser | Internet Explorer 7.0 (or later), Google Chrome (51 or later) Mozilla Firefox 3.5 (or later)
Internet Explorer 8.0 (or later) is recommended for configuring analytics | | Media Player | Pelco Media Player Windows 7, XP
QuickTime 7.6.4 for Mac OS X 10.4 (or later) | | | | Requirements | For Pelco Analytics:
Pelco Interface: WS5200 Advanced System Management
Software on an Endura 2.0 (or later) system
Open API: The Pelco API can transmit behavior alarm data to third-party applications (available on the Pelco Developer Network website) | | | | Pelco System Integration | VideoXpert
Endura 2.0 (or later)
Digital Sentry 7.3 (or later)
DX4700/DX4800 | | Other | Open API: Pelco API or ONVIF Profile S, Profile G, and Profile Q
Mobile Application: Integrated with Pelco Mobile Application | | | | Certifications and Compliance | CE (Class A)
FCC (Class A)
ICES-003 (Class A) UL/cUL Listed
UL/IEC 60950-22
KC
RCM
Meets IP66 and IK10 rating, and Type 4X
ONVIF Profile S, Profile G, and Profile Q | | | | Input Power | PoE (IEEE 802.3af, Class 3)
24 VAC ±10%
12 VDC ±10% | | Power Consumption | Up to 12 W nominal | | Current Consumption | 330 mA at POE
0.5 A at 24 VAC
1 A at 12 VDC | | | | Temperature | Operating: -40 to 131°F (-40 to 55°C)
Storage: 14 to 140°F (-10 to 60°C)
Startup: -40°F (-40°C) with heater | | Humidity | Operating: 5 to 95% (condensing)
Storage: 20 to 80% (non-condensing) | | Impact Resistance | IK10 (20J) all surfaces per IEC 62262 | | | | Mount Type | Surface | | Dome Attenuation | Clear: f/0.0 light loss | | Pan/Tilt Adjustment | Manual: 355° pan, 75° tilt, 340° rotation | | Local Storage | microSD/SDHC/SDXC (Up to 128 GB with separately sold card) | | Dimensions | 5.27 x 4.62" (13.38 x 11.74 cm) | | Weight | 2.25 lb (1.02 kg) | | | | Package Weight | 2.95 lb | | Box Dimensions (LxWxH) | 7.0 x 7.0 x 6.8" |
