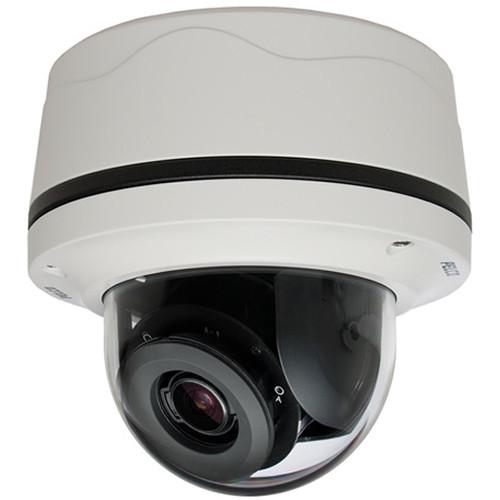

User Manual for Pelco Sarix IMP 3MP Network Mini Dome Camera with 3-10.5mm Varifocal Lens Click to enlarge the picture
Contents of the user manual for the Pelco Sarix IMP 3MP Network Mini
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
|
User manual for the Pelco Sarix IMP 3MP Network Mini contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The white Sarix IMP 3MP Network Mini Dome Camera from Pelco comes with a 3-10.5mm varifocal lens. The mini dome camera features a remote zoom lens for wide angle or long range surveillance needs. It captures images in a resolution of up to 2048 x 1536 with a 1/2.8” sensor. Autofocus capability ensures the camera can be automatically refocused when needed.
The camera features onboard edge storage via a microSD card. Video clips of varying lengths can be stored to the card upon alarm, or video can be written continuously to the memory card in case of a network outage. Video can be retrieved from the card through FTP protocol or by using an ONVIF Profile G enabled client. -
- Up to 30 images per second (fps) at 3MP
- Autofocus motorized remote zoom lens
- Operating temperature up to 131°F
- Up to 64GB edge storage via microSD card (available separately)
- Motion detection and camera sabotage detection
- PoE, 24 VAC, 12 VDC
- Vandal resistance rating of IK10
- Compatible with Pelco and third-party video systems
- ONVIF Profile S and G
UPC: 700880338377 In the Box Pelco Sarix IMP 3MP Network Mini Dome Camera with 3-10.5mm Varifocal Lens Limited 3-Year Warranty Specification PDF 1.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Sarix IMP 3MP Network Mini Dome Camera with 3-10.5mm Varifocal Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco Sarix IMP Specs | Sensor | 1/2.8" CMOS Progressive scan | | Resolution | 2048 x 1536 (3.1 MP) | | Electronic Shutter | 1/5 to 1/45,000 sec | | Wide Dynamic Range | 75 dB | | White Balance | 2,000 to 10,000K | | 3D Noise Reduction | Yes (ON/OFF selectable) | | Minimum Illumination | Color: 0.25 lux at 33 ms, 0.03 lux at 200 ms
Mono: 0.10 lux at 33 ms, 0.02 lux at 200 ms | | Signal to Noise Ratio | ≥50 dB | | Focal Length | f/1.4, 3-10.5mm | | Focus | Autofocus, motorized | | Zoom | Remote | | Auto Iris | DC drive lens | | Field of View | Diagonal: 115 to 34°
Horizontal: 88 to 30°
Vertical: 52 to 16° | | Pan/Tilt Adjustment | Pan: 370°
Tilt: 90°
Rotate: 355° | | Video Streams | Up to 2 simultaneous streams, plus service stream | | Aspect Ratio | 4:3 at 3.1 / 1.2 / 0.5 / 0.3 / 0.1 MP
16:9 at 2.1 / 0.9 / 0.1 MP | | Video Frame Rate | 30 / 25 / 20 / 16.67 / 15 / 12.5 / 10 / 7.5 / 5 / 3 / 2 / 1 | | Video Encoding | H.264 high or main profiles, and MJPEG | | Bit Rate Control | Constant bit rate (CBR), constrained variable bit rate (CVBR) with configurable maximum value | | Flip / Mirror | Electronic image flip and mirror: 180, 90, and 270° (H.264 only) | | Stream Type | Service: 640 x 480 / 640 x 352 at 2 fps, JPEG | | Privacy | Window Blanking: 8 configurable windows | | Audio Streaming | Bi-directional | | Input | Line in and out | | Encoding | G.711 A-law / G.711 U-law | | Network Port | 1 x RJ45 connector for 100BaseTX | | Power Input | PoE Class 2, 24 VAC nominal, 18 to 32 VAC range, 12 VDC | | Power Consumption | Indoor: <6 w
Outdoor: <16 W (with heater ring) | | Local Storage | Up to 64 GB on microSDHC/SDXC card | | Alarm | 1 x input
1 x output PhotoMOS relay (30 V, 1 A)
Triggers: Unsupervised mode that detects switch closures (N.O. and N.C.) | | Supported Protocols | TCP/IP, UDP/IP (unicast, multicast IGMP), ICMP, IPv4, IPv6, SNMP v2c/v3, HTTP, HTTPS, SSL, SSH, SMTP, FTP, RTSP, UPnP, DNS, NTP, RTP, RTCP, LDAP (client), QoS, GB28181 | | Users | Unicast: 1 administrator, up to 4 viewers
Multicast: Unlimited users H.264 | | Security Access | Multiple user access levels with password protection | | Video Management Software | VideoXpert, Endura 2.0 (or later), Digital Sentry 7.3 (or later), Third-party VMS through Pelco API, ONVIF Profile S, and ONVIF Profile G | | Video Overlay | Camera name, time, date, and customizable text with multiple supported languages | | Mobile Application Support | Pelco Mobile | | Analytics | Simple motion detection and camera sabotage detection | | Local Storage | Capture 1-, 5-, or 10-second video clips on camera sabotage, motion detection, or alarm input
Record video continuously in the case of network outage with option to overwrite
Access video through FTP protocol and ONVIF Profile G | | Firmware | Camera Discovery and Firmware: Discover cameras upgrade firmware upgrade using the Pelco Device Utility 2 version 2.2 or later; or Pelco Utilities | | Web Browser Support | Microsoft Internet Explorer 9.0, Apple Safari 7.0.6, Mozilla Firefox 31.0, Google Chrome 37.0.2062.124 m and later | | Multilingual Input Languages | English, French, German, Italian, Portuguese,Arabic, Russian, Spanish, Turkish, Korean, Simplified Chinese | | Operating Temperature | Indoor: 14 to 131°F (-10 to 55°C) | | Operating Humidity | 5 to 90%, RH non-condensing | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Construction | Plastic body and trim ring with polycarbonate bubble | | Rating | IK10 (20J) Impact Resistance | | Certifications | CE - EN 55022 (Class A), EN 50130-4, EN 60950-1
FCC (Class A) - 47 CFR Part 15
UL and cUL Listed - UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
UL/IEC 60950-22
ICES-003 (Class A)
RCM
KC
ONVIF Profile S and Profile G conformant | | Dimension | 2.9 x 5.5 5.3" (7.6 x 13.9 x 13.7 cm) | | Weight | 2.66 lb (1.2 kg) | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 8.0 x 6.6 x 6.5" |
