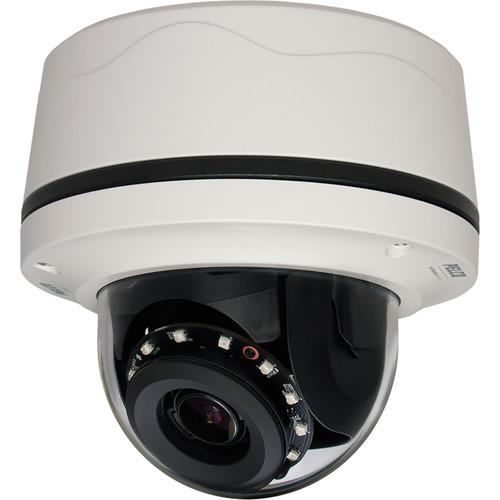

User Manual for Pelco Sarix IMP 3MP Outdoor Network Dome Camera with 3-10.5mm Varifocal Lens & Night Vision Click to enlarge the picture
Contents of the user manual for the Pelco Sarix IMP 3MP Outdoor Network
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
|
User manual for the Pelco Sarix IMP 3MP Outdoor Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The gray Sarix IMP 3MP Outdoor Network Dome Camera from Pelco comes with a 3-10.5mm varifocal lens. The mini dome camera features a remote zoom lens for wide angle or long range surveillance needs. It captures images at a resolution up to 2048 x 1536 with a 1/2.8” sensor. Autofocus capability ensures the camera can be automatically refocused when needed. Additionally, the Sarix IMP camera features advanced color science and a mechanical IR cut filter for increased sensitivity in low-light installations. The camera can capture clear images at night to a distance of 82'. -
- Up to 30 images per second (fps) at 3MP
- Autofocus motorized remote zoom lens
- Integrated adaptive IR illumination
- Operating temperature up to 131°F
- Up to 64GB edge storage via microSD card
- Motion detection and camera sabotage detection
- Power over Ethernet (PoE+) Class 4, 24 VAC
- Vandal-resistant IK10 rating
- Compatible with Pelco and third-party video systems
- ONVIF Profile S and G
UPC: 700880338384 In the Box Pelco Sarix IMP 3MP Outdoor Network Dome Camera with 3-10.5mm Varifocal Lens & Night Vision Limited 3-Year Warranty Specification PDF 1.1mbwsetxddctbrvabwq Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Sarix IMP 3MP Outdoor Network Dome Camera with 3-10.5mm Varifocal Lens & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco Sarix IMP Specs | Sensor | 1/2.8" CMOS Progressive scan | | Resolution | 2048 x 1536 (3.1 MP) | | Electronic Shutter | 1/5 to 1/45,000 sec | | Wide Dynamic Range | 75 dB | | White Balance | 2,000 to 10,000K | | 3D Noise Reduction | Yes (ON/OFF selectable) | | Minimum Illumination | Color: 0.25 lux at 33 ms, 0.03 lux at 200 ms
B&W: 0.10 lux at 33 ms, 0.02 lux at 200 ms
0 lux with IR on | | Mechanical IR Cut Filter | Yes (auto/manual selectable), with different set points on lux | | IR Illumination | Adaptive IR up to 82' (25 m), auto on in night mode, or off | | Signal to Noise Ratio | ≥50 dB | | Focal Length | f/1.4, 3-10.5mm | | Focus | Autofocus, motorized | | Zoom | Remote | | Auto Iris | DC drive lens | | Field of View | Diagonal: 115 to 34°
Horizontal: 88 to 30°
Vertical: 52 to 16° | | Pan/Tilt Adjustment | Pan: 370°
Tilt: 90°
Rotate: 355° | | Video Streams | Up to 2 simultaneous streams, plus service stream | | Aspect Ratio | 4:3 at 3.1 / 1.2 / 0.5 / 0.3 / 0.1 MP
16:9 at 2.1 / 0.9 / 0.1 MP | | Video Frame Rate | 30 / 25 / 20 / 16.67 / 15 / 12.5 / 10 / 7.5 / 5 / 3 / 2 / 1 | | Video Encoding | H.264 high or main profiles, and MJPEG | | Bit Rate Control | Constant bit rate (CBR), constrained variable bit rate (CVBR) with configurable maximum value | | Flip / Mirror | Electronic: 180, 90, and 270° (H.264 only) | | Stream Type | Service: 640 x 480 / 640 x 352 at 2 fps, JPEG | | Privacy | Window Blanking: 8 configurable windows | | Audio Streaming | Bi-directional | | Input | Line in and out | | Encoding | G.711 A-law / G.711 U-law | | Network Port | 1 x RJ45 connector for 100BaseTX | | Power Input | PoE+ Class 4, 24 VAC, and PoE+ | | Power Consumption | Indoor: <6 w
Outdoor: <16 W (with heater ring) | | Local Storage | Up to 64 GB on microSDHC/SDXC card | | Alarm | 1 x input
1 x output PhotoMOS relay (30 V, 1 A)
Triggers: Unsupervised mode that detects switch closures (N.O. and N.C.) | | Supported Protocols | TCP/IP, UDP/IP (unicast, multicast IGMP), ICMP, IPv4, IPv6, SNMP v2c/v3, HTTP, HTTPS, SSL, SSH, SMTP, FTP, RTSP, UPnP, DNS, NTP, RTP, RTCP, LDAP (client), QoS, GB28181 | | Users | Unicast: 1 administrator, up to 4 viewers
Multicast: Unlimited users H.264 | | Security Access | Multiple user access levels with password protection | | Video Management Software | VideoXpert, Endura 2.0 (or later), Digital Sentry 7.3 (or later), Third-party VMS through Pelco API, ONVIF Profile S, and ONVIF Profile G | | Video Overlay | Camera name, time, date, and customizable text with multiple supported languages | | Mobile Application Support | Pelco Mobile | | Analytics | Simple motion detection and camera sabotage detection | | Local Storage | Capture 1-, 5-, or 10-second video clips on camera sabotage, motion detection, or alarm input
Record video continuously in the case of network outage with option to overwrite
Access video through FTP protocol and ONVIF Profile G | | Firmware | Camera Discovery and Firmware: Discover cameras upgrade firmware upgrade using the Pelco Device Utility 2 version 2.2 or later; or Pelco Utilities | | Web Browser Support | Microsoft Internet Explorer 9.0, Apple Safari 7.0.6, Mozilla Firefox 31.0, Google Chrome 37.0.2062.124 m and later | | Multilingual Input Languages | English, French, German, Italian, Portuguese, Arabic, Russian, Spanish, Turkish, Korean, Simplified Chinese | | Operating Temperature | Outdoor: -40 to 131°F (-40 to 55°C)
(Thermostatically controlled heating provides ramped heating control between the initial heater on at 15°C (59°F) and full heating mode at -40°F) | | Operating Humidity | 5 to 90%, RH noncondensing | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Construction | Aluminum body and trim ring with polycarbonate bubble | | Rating | IP66 Ingress Protection
IK10 (20J) Impact Resistance | | Certifications | CE - EN 55022 (Class A), EN 50130-4, EN 60950-1
FCC (Class A) - 47 CFR Part 15
UL and cUL Listed - UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
UL/IEC 60950-22
ICES-003 (Class A)
RCM
KC
ONVIF Profile S and Profile G | | Dimension | 2.9 x 5.5 5.3" (7.6 x 13.9 x 13.7 cm) | | Weight | 3.1 lb (1.4 kg) |
