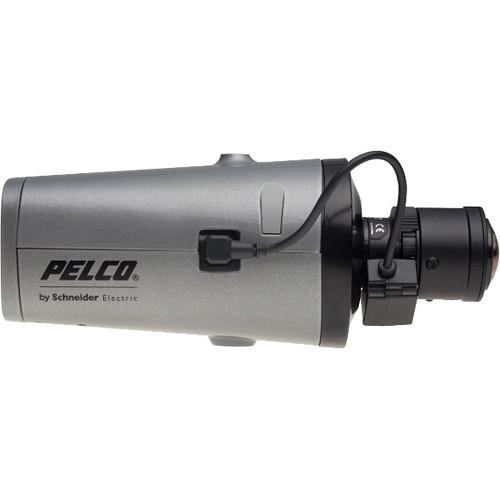

User Manual for Pelco Sarix IXE Series 2MP Network Box Camera with SureVision 3.0 Click to enlarge the picture
Contents of the user manual for the Pelco Sarix IXE Series 2MP Network
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
 |
User manual for the Pelco Sarix IXE Series 2MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The Sarix IXE Series 2MP Network Box Camera features SureVision technology which helps the camera achieve better resolution, consistent color science, fast processing, and simultaneous advanced low-light performance with wide dynamic range (WDR) and anti-bloom technologies. It comes with a 1/2.8" CMOS sensor and is compatible with standard CS-mount megapixel lenses. The camera supports two independent video and a service stream. These streams can be compressed in MJPEG and H.264 formats across several resolution configurations. The camera includes eight user-configurable analytics behaviors and can run two simultaneously. For each behavior, you can create several custom profiles that contain different camera settings. You can set up different scenarios to automatically detect and trigger alarms when a specific activity is detected. Available Pelco analytics include abandoned object, intrusion, camera sabotage, wrong direction, loitering, object counting, object removal, and stopped vehicle detection. This camera supports Power over Ethernet (PoE) to simplify planning, wiring, and installation. PoE works with enabled network switches or power injectors, eliminating the need for separate power supplies and cabling, and increases camera safety with an uninterruptible power supply (UPS). UPC: 700880339473 In the Box Pelco Sarix IXE Series 2MP Network Box Camera with SureVision 3.0 (No Lens) Limited 3-Year Warranty Spec sheet PDF 723.2kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Sarix IXE Series 2MP Network Box Camera with SureVision 3.0 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco Sarix IXE Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Lens Mount | CS | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.005 Lux

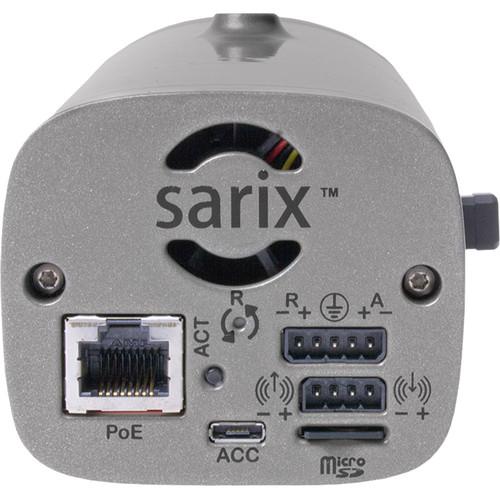

B&W: 0.001 Lux | | Shutter Speed | 1/20,000 to 2 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 3 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711, PCM | | Built-In Mic | Yes | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | IEEE 802.1X, Password Protection | | Supported Protocols | ARP, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSH, SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | Pelco, ONVIF | | Analytics | Abandoned Object, Intrusion, Camera Sabotage, Wrong Direction, Loitering, Object Counting, Object Removal, and Stopped Vehicle Detection | | Event Trigger | Yes | | Event Action | Notification, Alarm | | Data Streaming | Yes | | | | Windows OS Support | Windows XP, 7 | | Mac OS Support | OS X 10.4 | | | | Recording Media | microSD (Up to 128 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
2 x Power
1 x 7-Pin Terminal Block | | Supported Languages | English
French
German
Italian
Portuguese
Russian
Spanish
Traditional Chinese
Turkish | | Certifications | FCC (Part 15 Class A), ICES-003 Class A, IEC60950-22, KC, RCM, UL, cUL, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC | | Power Source | AC, DC, PoE 802.3af (15 W) | | Power Consumption | 12 W | | Material of Construction | Aluminum, Plastic | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 5 to 95% | | Weight | 1.1 lb / 0.5 kg |
