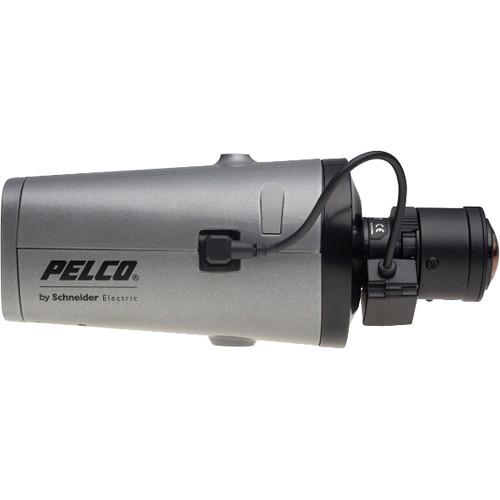

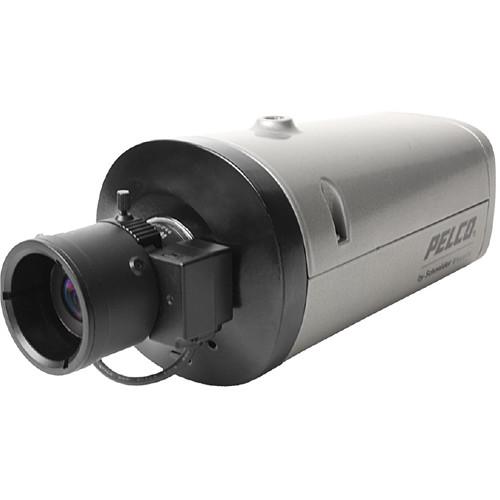

User Manual for Pelco Sarix IXE Series IXE21 2MP PoE Box Camera with SureVision 2.0 Technology Click to enlarge the picture
Contents of the user manual for the Pelco Sarix IXE Series IXE21 2MP
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
 |
User manual for the Pelco Sarix IXE Series IXE21 2MP contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The Sarix IXE Series IXE21 2MP PoE Box Camera features SureVision technology which helps the camera achieve better resolution, consistent color science, fast processing power, and simultaneous advanced low-light performance with wide dynamic range (WDR) and anti-bloom technologies. It comes with a 1/3" CMOS sensor and is compatible with standard CS mount megapixel lenses. The camera supports two independently-configurable video streams in addition to a service video stream. These streams can be compressed in MJPEG and H.264 formats across several resolution configurations. IXE21 includes eight user-configurable behaviors and is capable of running up to two behaviors at the same time. For each behavior, you can create several custom profiles that contain different camera settings. With these profiles, you can set up different scenarios for the behavior, which will automatically detect and trigger alarms when the specific activity is detected. Available Pelco behaviors include abandoned object, adaptive motion detection, camera sabotage, directional motion, loitering detection, object counting, object removal, and stopped vehicle. This camera supports Power over Ethernet (PoE) to simplify planning, wiring, and installation. PoE functionality works with PoE-enabled network switches or power injectors, eliminating the need for separate power supplies and cabling, and increases camera fail-safety through an uninterruptable power supply (UPS). - Sarix Enhanced Range with SureVision 2.0
- This Sarix Enhanced (E) range cameras features SureVision technology which helps the camera to achieve better resolution, consistent color science, fast processing power, and simultaneous advanced low-light performance with wide dynamic range (WDR) and anti-bloom technologies. Apart from these, SureVision 2.0 also includes 3D noise filtering, smooth response to illumination changes, and improved tone mapping to retain color accuracy and overall image contrast.
- Camera
- This IXE series camera is compatible with a standard CS mount megapixel lens for wide-angle or long-range surveillance needs. The box cameras feature an auto back focus mechanism to accommodate this range of lenses and to ensure that the camera automatically stays in perfect focus. The Sarix IXE Series features advanced color science and a mechanical IR cut filter for increased sensitivity in low-light installations.
- Video
- The IXE series supports two independently-configurable video streams in addition to a service video stream. The streams can be compressed in MJPEG and H.264 formats across several resolution configurations. The IXE Series offers real-time video (30 ips) using H.264 compression for optimized bandwidth and storage efficiency.
- Open and Integrated
- The Sarix Enhanced range camera seamlessly connects to Pelco video management systems such as Endura version 2.0 (or later), and Digital Sentry version 7.3 (or later). It integrates with major third-party video-management systems through the Pelco API, and other third-party software and systems through the ONVIF Profile S and Profile G standards.
- Built-In Analytics
- Pelco Analytics enhance the flexibility and performance of Sarix Enhanced range cameras. Eight Pelco behaviors are preloaded and included. Pelco behaviors can be configured and enabled using a standard Web browser, and they are compatible with Endura or a third-party system that supports alarms using Pelco's API.
- Pelco Analytics
- Pelco analytics are configured and enabled using a standard Web browser, and Pelco behavior alarms are compatible with Endura or a third-party system that supports Pelco's API system. Pelco analytics behaviors can be scheduled to work during a certain time or condition. For example, during the day, a camera can be configured with Object Counting to count the number of people that enter a lobby door. At night, the operator can change the profile to Camera Sabotage to trigger an alarm if a camera is moved or obstructed.
UPC: 700880323540 In the Box Pelco Sarix IXE Series IXE21 2MP PoE Box Camera with SureVision 2.0 Technology (No Lens) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Sarix IXE Series IXE21 2MP PoE Box Camera with SureVision 2.0 Technology in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco IXE21 Specs | | | Sensor | 1/3" CMOS | | Imager Readout | Progressive scan | | Maximum Resolution | 2 MP (1920 x 1080); 1 MP (1280 x 960); 0.5 MP (800 x 608) | | Signal-to-Noise Ratio | >60 dB | | Focus | Auto-back focus | | Electronic Shutter | 1 to 1/77,000 sec | | Wide Dynamic Range | True Wide Dynamic Range: Up to 100 dB (sensor level is not inclusive of SureVision image processing) | | Auto White Balance Range | 2,000 to 10,000°K | | Sensitivity | @ f/1.2; 2,850°K; SNR >20 dB
Color: 0.1 lux (33 ms); 0.005 lux (500 ms)
Mono: 0.05 lux (33 ms); 0.0013 lux (500 ms) | | Day/Night Mode | Yes | | Mechanical IR Cut Filter | Yes (ON/OFF/AUTO selectable) with different set points on lux | | | | Video Streams | Multiple simultaneous streams with up to 2 different configurations plus service stream; the secondary stream is variable based on the setup of the primary stream | | Available Resolutions | Stream 1 (4:3):
1.9 MP @ 5.7 Mbps; 1.2 MP @ 3.8 Mbps; 0.5 MP @ 2 Mbps; 0.3 MP @ 1.5 Mbps; 0.08 MP @ 0.5 Mbps
Stream 2 (16:9):
1080p @ 6 Mbps; 720p @ 2.9 Mbps; 0.5 MP @ 1.7 Mbps; 0.2 MP @ 1.2 Mbps; 0.06 MP @ 0.4 Mbps | | Frame Rate | Up to 30, 25, 15, 12.5, 10, 5, 1 fps (depending on the coding, resolution, and stream configuration) | | Video Encoding | H.264 High, main, or base profiles; and MJPEG | | Bit Rate | Constrained variable bit rate (CVBR), constant bit rate (CBR), and variable bit rate (VBR) with target range | | Streaming | JPEG stream; the aspect ratio will be consistent with the independent streams | | | | Streaming | Bidirectional: full or half duplex | | Input/Output | Line level/external microphone input; 600 ohms differential, 1 Vpp maximum signal level; built-in microphone | | Compression | G.711 PCM 8 bit, 8 kHz mono at 64 kbps | | | | Supported Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP, FTP, ARP, ICMP, and 802.1x (EAP) IPv6 protocol supports mixed IPv4 and IPv6 installations, but not IPv6-only deployments. | | Users | Unicast: Up to 20 simultaneous users depending on the resolution settings

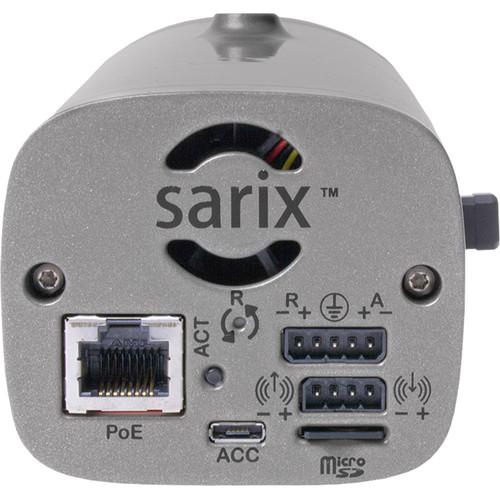

Multicast: Unlimited users H.264 | | Security Access | Password protected | | Software Interface | Web browser view and setup | | | | Total Number of Network Ports | 2 (1 x RJ-45 connector for 100Base-TX; 1 x auto MDI/MDI-X) | | Accessory Port | Micro B USB connector for Pelco accessories | | Cable Type | Cat5 or better for 100Base-TX | | Input Power | PoE (IEEE 802.3af, Class 3) | | Power Consumption | 9 W nominal | | Current Consumption | 350 mA maximum | | Local Storage | microSD, SDHC | | Alarm | Input 10 VDC maximum, 5 mA maximum
Output 0 to 15 VDC maximum, 75 mA maximum | | Relay Output | 32 VDC maximum; 150 mA maximum | | | | Processor | Intel Core i3 processor, 2.4 GHz | | Operating System | Microsoft Windows 7 (32- and 64-bit), or Window Vista; or Mac OS X 10.4 (or later) | | Memory | 4 GB RAM | | Network Interface | 100 Mb (or greater) | | Monitor | Minimum of 1024 x 768 resolution, 16- or 32-bit pixel color resolution | | Web Browser | Internet Explorer 7.0 (or later) or Mozilla Firefox 3.5 (or later); Internet Explorer 8.0 (or later) is recommended for configuring analytics Internet Explorer is not supported by Mac OS X 10.4 | | Media Player | Pelco Media Player or QuickTime 7.6.5 for Windows 7, XP, or Vista; or QuickTime 7.6.4 for Mac OS X 10.4 (or later) | | | | Interface | Pelco Interface: WS5200 Advanced System Management Software on an Endura 2.0 (or later) system | | API Supported | Open API: Pelco API or ONVIF Profile S and Profile G; Pelco API can transmit behavior alarm data to third-party applications | | Pelco System Integration | Endura 2.0 (or later) Digital Sentry 7.3 (or later) | | Mobile Application Support | Integrated with Pelco Mobile Application | | Software Features | Multilingual menus in user interface: English, French, Italian, German, Spanish, Portuguese, Russian, Chinese, Turkish
16 window blanks, configurable in size
Password protection
Snapshot with JPEG capture at 2016 x 1523 resolution
Text overlays for camera name, time, and date | | | | Certification | KCC; MTBF > 200,000 POH (reporting standard is RELEX Modeling) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Humidity | 20 to 80%, RH non-condensing | | | | Lens Mount | CS mount; adjustable | | Auto Iris | DC drive | | Camera Mount | 0.25"(6.35 mm) UNC-20 screw; top and bottom of camera housing | | Construction | Aluminum with silver powder paint | | Dimensions | 5.35 x 2.97 x 3.09" (13.59 x 7.54 x 7.82 cm) | | Weight | 1.16 lb (0.52 kg) | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 7.8 x 5.2 x 5.2" |
