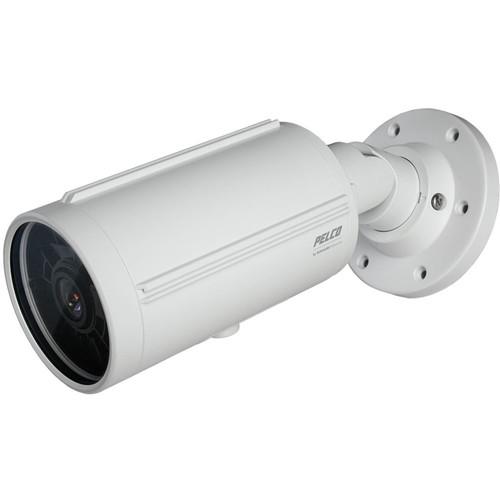

User Manual for Pelco Sarix Pro IBP222-1I 2MP Network Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Pelco Sarix Pro IBP222-1I 2MP Network
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
|
User manual for the Pelco Sarix Pro IBP222-1I 2MP Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The white Sarix Pro IBP222-1I 2MP Network Bullet Camera from Pelco is an indoor camera that supports resolutions of up to 1920 x 1080 at 30 fps. This camera has a 9-22mm varifocal lens with a 41.4-17.1° diagonal field of view and a mechanical IR cut filter. It supports 2-way audio and features a microSDHC/SDXC memory card slot that supports up to 64GB of storage. An RJ45 port allows for Ethernet connection and this camera can be powered via PoE or using a power supply (available separately). - Motorized remote zoom lens for wide angle or long range surveillance needs
- Autofocus capability allows the camera to be automatically refocused when needed
- Supports up to two simultaneous video streams and a third service stream
- Compatible with Pelco video management systems such as VideoXpert, Endura version 2.0 (or later), and Digital Sentry version 7.3 (or later)
- Electronic image flip and mirror: 180, 90, and 270°
- Window blanking with four configurable windows
- Multicast unlimited users with H.264
- 2000 to 10,000K white balance range
- 3D digital noise reduction
- ≥50 dB signal to noise ratio
- Capture 1-, 5-, or 10-second video clips on camera sabotage, motion detection, or alarm input
- Record video continuously in case of network outage with option to overwrite
- Sunshield minimizes the effects of rain and sunlight on image quality
- Access video through FTP protocol and ONVIF Profile G
UPC: 700880338162 In the Box Pelco Sarix Pro IBP222-1I 2MP Network Bullet Camera with Night Vision Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Sarix Pro IBP222-1I 2MP Network Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco Sarix IBP Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 9 to 22mm | | Maximum Aperture | f/1.4 | | Zoom | Optical: 2.4x | | Lens Field of View | Horizontal: 35.8 to 14.9°
Vertical: 19.7 to 8.4°
Diagonal: 41.4 to 17.1° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.02 Lux | | Shutter Speed | 1/25,000 to 1/5 Seconds | | | | Streaming Resolution | 1920 x 1080 at 1/2/3/5/7/10/12.5/15/16/20/25/30 fps | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | | | Streaming | Two-Way | | Audio Formats | G.711 | | External Audio Input | Terminal Block (Unspecified Pin Count) | | External Audio Output | Terminal Block (Unspecified Pin Count) | | | | Security | HTTPS, Password Protection | | Supported Protocols | DNS, FTP, GB28181, HTTP, ICMP, IGMP, IPv4/v6, LDAP, NTP, ONVIF Profile G, ONVIF Profile S, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSH, SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | Pelco, ONVIF | | Analytics | Simple Motion Detection, Camera Sabotage Detection | | Event Trigger | Yes | | Event Action | Recording, Alarm | | | | Recording Media | microSD (Up to 64 GB) | | Pan/Tilt | None | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x Power
1 x RJ45 | | IR Range | 114.83' / 35 m | | Supported Languages | Arabic
English
French
German
Italian
Korean
Portuguese
Russian
Simplified Chinese
Spanish
Turkish | | Internal Storage | None | | External Storage Options | Local PC | | Power Source | AC, DC, PoE 802.3af (15 W) | | Power Consumption | 6 W | | Material of Construction | Aluminum | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Storage Temperature | -40 to 140°F / -40 to 60°C | | Operating Humidity | 15 to 85% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
