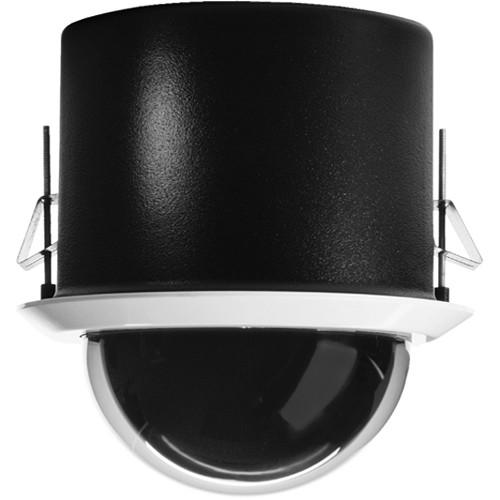

Product description The black SD436-F0 Spectra IV SE 36x Day/Night Indoor Dome Camera from Pelco is designed keeping in mind ease of installation and maintenance. Each dome system consists of three components: a back box, a dome drive, and a lower dome. These three system components are interchangeable with other Spectra IV SE dome systems, making retrofitting and application adjustments simple. Also, dome drives and lower domes can be removed and replaced reducing maintenance time.
It features a built-in back box memory to store camera and location-specific dome settings, including labels, presets, patterns, and zones. A passive UTP circuit is located on the door assembly for convenient video transmission through twisted pair wire. For added flexibility, fiber modules can also be attached to the door assembly for transmission over single-mode or multimode fiber.
This indoor camera features the LowLight technology that allows it to compensate for scenes where minimal light is present. It features built-in motion detection and 128x WDR (Wide Dynamic Range) that enables the system to compensate for scenes where dramatic contrasts in lighting are present. The camera’s electronic image stabilization digitally reduces blurring of the camera image due to vibration caused by external sources, such as wind and traffic. Auto sharpness enhances picture detail by increasing the aperture gain of the camera and sharpening the edges in the picture. The dome drive features removable and fixed mount bracket only (camera and lens not included).
The lower dome bubble is designed to ensure that an optimal optical relationship between the lens and bubble is achieved, providing crystal clear video at long focal lengths. It features an internal scheduling clock that allows for the scheduling of presets and patterns. Window blanking enables a user to configure up to 8 four-sided, user-defined privacy areas. Password protection prevents unauthorized users from changing the system settings. The configurable on-screen compass and tilt display provides positioning information when needed. The Intuitive multilingual on-screen menus are displayed in English, Spanish, Portuguese, Italian, French, German, Russian, Polish, Turkish, and Czech.
The variable speed capabilities of the system range from a smooth and fast pan motion of 400°/sec to a smooth creep speed of 0.1°/sec. The system is capable of continuous 360° rotation and has an auto-flip feature that allows the dome to rotate 180° and reposition itself for uninterrupted viewing of any subject that passes directly beneath the dome.
In addition, with TXB-N module (sold separately), you can add IP network capability at any time to a Spectra IV dome system without losing analog viewing and control. By snapping the TXB-N module into the back box, you can stream network video to a Web browser, Endura, Digital Sentry, or third-party software recording solution allowing integration into virtually any IP-based system.
1. Fixed mount dome system includes back box (BB4-F), dome drive (DD5-FM), plus choice of lower dome (LDHQF-0).
2. Dome Drive (DD5-FM) accepts camera and lens combinations including a BNC connector up to 5.00 x 2.75 x 2.75" (12.70 x 6.99 x 6.99cm). - General Features
-
- Day/Night, 540 TVL, 128x Wide Dynamic Range (WDR), motion detection, and electronic image stabilization
- Autotracking
- Window blanking
- Camera title overlay, 20 user-definable characters
- Horizontal and zone blanking
- On-screen compass and tilt display
- Password protection
- Built-in surge and limited lightning protection
- Sure focus
- Integrated passive UTP (Unshielded Twisted Pair) circuit
- Ability to add IP network capability by purchasing TXB-N Module (sold separately)
- Internal scheduling clock
- UL / cUL listed
- Back-Box Features
-
- Built-in memory stores camera / dome settings
- Single back box for suspended or hard ceiling applications
- Requires 5.25” (133.35mm) space above ceiling and 3.25” (82.55mm) below
- Minimum ceiling thickness 0.5” (12.7mm) and maximum 1.75” (44.45mm)
- Quick disconnect to dome drive
- Aluminum construction
- Suitable for use in environmental air handling spaces
- Dome Drive Features
-
- 256 Presets
- ±0.1° Preset accuracy
- Electronic image stabilization
- Image enhancement
- Multilingual menus (English, Spanish, Portuguese, Italian, French, German, Russian, Polish, Turkish, and Czech)
- RJ-45 port for software update and setup
- On-screen compass, tilt, and zoom display
- 400°/sec Pan preset speed and 200°/sec tilt preset speed
- Rotating discreet liner with sealed fixed bubble
- Window Blanking: Up to 8, four-sided, user-defined shapes
- 8 Zones (configurable in size) can be labeled with up to 20 characters each or set to output blank video
- 7 Alarm inputs
- 1 Auxiliary (Form C) relay output and 1 open collector auxiliary output (can be alternately configured to operate upon alarm)
- Configurable locations of labels and on-screen displays
- Action on Alarm: Alarms can be individually configured for 3 priority levels, to initiate a stored pattern, or to go to an associated preset when received
- Resume after Alarm: Allows the dome to return to a previously configured state after alarm acknowledgement or to its previous position before alarm
- Multiple park and power-up action
- Patterns: Up to 8, on-screen, user-defined configurable patterns, including pan, tilt, zoom, and preset functions
- Proportional Pan / Tilt: Continually decreases pan / tilt speeds in proportion to depth of zoom
- Variable Scan Speed: Scan speed can be configurable between 1 to 40°/sec
- Pan motion allows 0.1 to 150°/sec pan speed
- Configurable limit stops for auto / random / frame scan modes
- Autosensing protocol (Coaxitron, RS-422 Pelco P and Pelco D, Sensormatic, Vicon); accepts other control protocols with optional translator card
- Digital position and zoom control and feedback through Pelco D protocol
- Built-in menu system for setup of configurable functions
- Auto-Flip rotates dome 180° at bottom of tilt travel
- Configurable zoom speeds
- Low-lux noise reduction (reduces noise in low light)
UPC: 700880317365 In the Box Pelco SD436-F0 Spectra IV SE 36x Day/Night Indoor Dome Camera (NTSC, Black) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco SD436-F0 Spectra IV SE 36x Day Night Indoor Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco SD436-F0 Specs | | | Signal Format | NTSC | | Scanning System | 2:1 interlace | | Image Sensor | 1/4" EXview HAD | | Effective Pixels (H x V) | 768 x 494 | | Horizontal Resolution | >540 TVL | | Lens | f/1.4 (focal length, 3.3 to 119 mm) | | Zoom | 36x optical, 12x digital | | Zoom Speed | Optical Range: 3.2 / 4.6 / 6.6 sec | | Horizontal Angle of View | 57.2° at 3.3 mm wide zoom
1.7° at 119 mm telephoto zoom | | Focus | Automatic with manual override | | Sensitivity | Maximum at 35 IRE:
NTSC / EIA: 0.55 lux at 1/60 sec shutter (color)
0.018 lux at 1/2 sec shutter (color)
0.00018 lux at 1/2 sec shutter (B&W) | | Sync System | Internal / AC line lock, phase adjustable using remote control, V-Sync | | White Balance | Automatic with manual override | | Shutter Speed | Automatic (electronic iris) / Manual
1/2 to 1/30,000 sec | | Iris Control | Automatic with manual override | | Gain Control | Automatic / Off | | Video Output | 1 Vpp, 75 Ω | | Video Signal-to-Noise Ratio | >50 dB | | Image Stabilization | Electronic: Integrated / Selectable | | Wide Dynamic Range | 128x | | Sharpness | Auto: Integrated / Selectable | | Certifications | Ratings / Patents:
CE, Class B
FCC, Class B
C-Tick
Meets NEMA Type 1 and IP40 standards
US Patents 5,931,432; 6,793,415 B2; 6,802,656 B2; 6,821,222 B2; 7,161,615 B2 | | | | Input Voltage | 18 to 32 VAC; 24 VAC nominal
22 to 27 VDC; 24 VDC nominal | | Input Power | 24 VAC: 23 VA nominal (without heater);
73 VA nominal (with heater)
24 VDC: 0.7 A nominal (without heater);
3 A nominal (with heater) | | Fuse | 1.25 A | | Outputs | Auxiliary: 2 | | Alarm Inputs | 7 | | | | Pan Movement | Dome Drive Only:
360° continuous pan rotation | | Vertical Tilt | Unobstructed, 2 to -92° | | Manual Pan/Tilt Speeds | Pan: 0.1° to 80°/sec manual operation, 150°/sec turbo
Tilt: 0.1° to 40°/sec manual operation | | Preset Speeds | Pan: 400°/sec Tilt: 200°/sec
For variable-speed operation, an appropriate controller is required (with non-variable speed control, Spectra IV SE pan / tilt speed is 20°/sec) | | | | Construction | Back Box:
In-Ceiling: Aluminum Dome Drive: Aluminum, thermo plastic
Bubble: Acrylic | | Light Attenuation | Smoked: f/0.5 light loss | | Cable Entry | Back Box: In-Ceiling: 0.75" (19.05 mm) conduit fitting | | Environment | In-Ceiling: Indoor | | Operating Temperature | Indoor In-Ceiling: 32 to 122°F (0 to 50°C) | | Effective Projected Area (EPA) | 20.50 in² (52.07 cm²), without mount | | Weight | Approximately:
Back Box:
In-Ceiling: 1.50 lb (0.68 kg)
Dome Drive:
Lower Dome In-Ceiling: 0.20 lb (0.09 kg) | | | | Package Weight | 8.7 lb | | Box Dimensions (LxWxH) | 22.4 x 12.0 x 10.4" |
