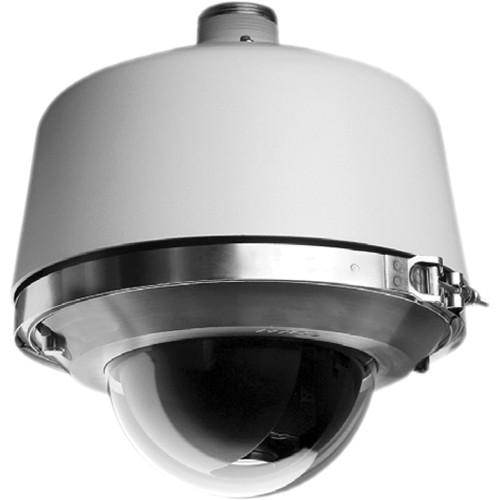

Product description The light gray SD436-PRE0 Pressurized Spectra IV SE Dome Camera System from Pelco provides protection of the camera optics and electronics from moisture, corrosive gases, and airborne contaminants. This system includes DD436 Dome Drive with integrated 36x Day/Night camera, BB4-PR-E Pressurized Environmental Pendant Back Box, and LD53PR-0 Lower Dome with Smoked Bubble designed for optimum optical clarity.
A stainless steel construction provides added protection in harsh environments. The dome system is easily pressurized with dry nitrogen to 8 psig (55 kPa) before or after installation to stabilize the environment inside the system. Sensors strategically placed in the dome system send an alert message when changes in internal pressure, temperature, or dew point are beyond factory-set acceptable limits. The sensors also allow for instant on-screen display of internal temperature, pressure, and dew point.
The included BB4-PR-E Pressurized Environmental Pendant Back Box features a sun shroud, heater, and fan to maintain a consistent operating environment. The back box also features built-in back box memory, an integrated passive UTP circuit, 2 auxiliary outputs, and 7 alarm inputs. The included LD53PR-0 Lower Dome with Smoked Bubble features an O-ring seal and a stainless steel V-band to create a reliable pressure seal. The V-band has a unique latching system with 1 captivated fastener making lower dome installation easy. Accessible on the lower dome trim ring are a Schrader valve for system purging and a pressure relief valve. The system is supplied with a pre-wired cable with mating connector. The cable includes all wires for system's functionality, including power, alarms, auxiliaries, coaxial video, UTP video, and serial control.
The included Spectra IV SE DD436 Dome Drive features an integrated 36x Day/Night Camera allowing the system to produce high-quality videos in difficult environments. The camera features LowLight technology, which allows the cameras to compensate for scenes where minimal light is present. Moreover, it also features built-in motion detection and 128x WDR that enables the system to compensate for scenes where dramatic contrasts in lighting are present. This day/night camera features EIS (Electronic Image Stabilization) that digitally reduces blurring of the image due to vibration caused by external sources, such as wind and traffic. The Auto Sharpness feature enhances the picture detail by increasing the aperture gain of the camera and sharpening the edges in the picture.
The Spectra IV SE dome drive features many software enhancements that increase the performance and makes configuration and operation easy. An internal scheduling clock allows for the scheduling of presets and patterns. Window blanking enables a user to configure up to eight, 4-sided, user-defined privacy areas. Password protection prevents unauthorized users from changing the system settings. Configurable on-screen compass and tilt display provides positioning information when needed.
Intuitive multilingual on-screen menus can be displayed in English, Spanish, Portuguese, Italian, French, German, Russian, Polish, Turkish, and Czech. The dome drive's variable speed capabilities range from a smooth, fast pan motion of 400°/sec to a smooth creep speed of 0.1°/sec. The system is capable of continuous 360° rotation and has an auto flip feature that allows the dome to rotate 180° and reposition itself for uninterrupted viewing of any subject that passes directly beneath the dome.
With the Pelco TXB-N module (sold separately), you can add IP network capability at any time to this dome system without losing analog viewing and control. By snapping the TXB-N module into the back box, you can stream network video to a web browser, Endura, Digital Sentry, or third-party software recording solution allowing integration into virtually any IP-based system. - Dome Drive
-
- 256 presets, ±0.1° preset accuracy
- Electronic image stabilization and image enhancement
- Multilingual Menus (English, Spanish, Portuguese, Italian, French, German, Russian, Polish, Turkish, and Czech)
- RJ-45 data port for software update and setup
- On-screen compass, tilt, and zoom display
- 400°/sec pan preset speed and 200°/sec tilt preset speed
- Rotating discreet liner with sealed fixed bubble
- Window Blanking: Up to 8, four-sided, user-defined shapes
- 8 zones, configurable in size, can be labeled with up to 20 characters each or set to output blank video
- 7 alarm inputs
- 1 Auxiliary (form C) relay output and 1 open collector auxiliary output (can be alternately configured to operate upon alarm)
- Configurable locations of labels and on-screen displays
- Action on Alarm: Alarms can be individually configured for 3 priority levels, to initiate a stored pattern, or to go to an associated preset when received
- Resume After Alarm: Allows the dome to return to a previously configured state after alarm acknowledgement or to its previous position before alarm
- Multiple park and power-up action
- Up to 8, on-screen, user-defined configurable patterns including pan, tilt, zoom, and preset functions
- Proportional Pan / Tilt: Continually decreases pan/tilt speeds in proportion to depth of zoom
- Variable Scan Speed: Scan speed can be configurable between 1 to 40°/sec
- Pan motion allows 0.1 to 150°/sec pan speed
- Configurable limit stops for auto / random / frame scan modes
- Autosensing Protocol: Coaxitron, RS-422 Pelco P and Pelco D, Sensormatic, Vicon
- Digital position and zoom control and feedback Through Pelco D protocol
- Built-in menu system for setup of configurable functions
- Auto Flip rotates dome 180° at bottom of tilt travel
- Configurable zoom speeds
- Low lux noise reduction reduces noise in low light
1 Please Note: The system accepts other control protocols with a translator card (sold separately) close - Back Box and Lower Dome
-
- Pressurized to 8 psig (55 kPa)
- Solid-state sensors for internal temperature, pressure, and dew point
- On-demand environmental status display for internal temperature, pressure, and dew point
- On-screen alert modes and programmable menus for pan/tilt, camera, and sensor alert settings
- Built-in back box memory
- Integrated passive UTP circuit
- 2 auxiliary outputs and 7 alarm inputs
- Environmental pendant style back box
- Stainless steel construction
- Meets NEMA Type 6P and IP67 standards
- Built-in power line surge and limited lightning protection
- UL/cUL listed
UPC: 700880318744 In the Box Pelco SD436-PRE0 Pressurized Spectra IV SE Dome Camera System (Light Gray, NTSC) DD436 Spectra IV SE Dome Drive (NTSC) BB4-PR-E Spectra IV Pressurized Environmental Pendant Back Box (Gray) Pressurized Spectra Lower Dome Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco SD436-PRE0 Pressurized Spectra IV SE Dome Camera System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco SD436-PR-E0 Specs | | | Signal Format | NTSC | | Scanning System | 2:1 Interlace | | Image Sensor | 1/4" EXview HAD | | Effective Pixels | 768 (H) X 494 (V) | | Horizontal Resolution | >540 TVL | | Lens | Focal Length: 3.3 to 119 mm
Aperture: f/1.4 | | Zoom | 36x optical, 12x digital | | Zoom Speed | Optical Range: 3.2 / 4.6 / 6.6 sec | | Focus | Horizontal Angle of View:
57.2° at 3.3 mm wide zoom
1.7° at 119 mm telephoto zoom
Automatic with manual override | | Sensitivity | At 35 IRE NTSC/EIA (maximum)
Color: 0.55 lux at 1/60 sec and 0.018 lux at 1/2 sec
B&W: 0.00018 lux at 1/2 sec | | Sync System | Internal / AC line-lock, phase adjustable using remote control, V-Sync | | White Balance | Automatic with manual override | | Shutter Speed | Automatic (electronic iris) / Manual
1/2 to 1/30,000 | | Iris Control | Automatic iris control with manual override | | Gain Control | Automatic / off | | Video Output | 1 Vpp, 75 Ω | | Video Signal-to-Noise Ratio | >50 dB | | Wide Dynamic Range | 128x | | Image Stabilization | Electronic Image Stabilization: Integrated/selectable | | Sharpness Adjustment | Auto Sharpness: Integrated / selectable | | | | Pan Movement | 360° continuous pan rotation | | Vertical Tilt | Unobstructed +2 to -92° | | Manual Pan/Tilt Speeds | Pan: 0.1 to 80°/sec manual operation, 150°/sec Turbo
Tilt: 0.1 to 40°/sec manual operation | | Preset Speeds | Pan: 400°/sec
Tilt: 200°/sec For variable-speed operation, an appropriate controller is required (with non-variable speed control, Spectra IV SE pan/tilt speed is 20°/sec) | | | | Construction | Back Box and Lower Dome: Type 316L stainless steel
Bubble: Polycarbonate, 0.090" thick
V-Band: Type 316L stainless steel
Pressure Relief and Schrader Valve: Brass
Connector: Nickel-plated steel | | Light Attenuation | 1 F-stop | | Mounting | 1.5" NPT, threaded | | Pressure Relief Valve | Valve: Schrader
Pressure: 8 psig (55 kPa), not factory pressurized
Pressure Relief: 10 psig (69 kPa) | | | | Input Voltage | 18 to 32 VAC; 24 VAC nominal
22 to 27 VDC; 24 VDC nominal | | Input Power | 24 VAC: 23 VA nominal (without heater); 73 VA nominal (with heater)
24 VDC: 0.7 A nominal (without heater) | | Fuse | 1.25 A | | Auxiliary Output | 2 | | Alarm Inputs | 7 | | Certifications | CE, Class B
FCC, Class B
C-Tick
S Mark for Argentina
Meets NEMA Type 6P and IP67 standards | | Operating Temperature | Maximum: 140°F (60°C) absolute maximum; 122°F (50°C) sustained maximum
Minimum: -60°F (-51.11°C) absolute minimum; minimal icing at sustained minimum of -50°F (-45°C); prevents icing at sustained minimum of -40°F (-40°C); de-ices 0.1" (2.5 mm) within 3 hours after power-up Assumes no wind chill factor. | | Overall Dimensions | 11.63 x 10.50" (29.50 x 26.70 cm) | | Weight | Back Box: 10.2 lb (4.6 kg)
Lower Dome: 3.3 lb (1.5 kg) |
