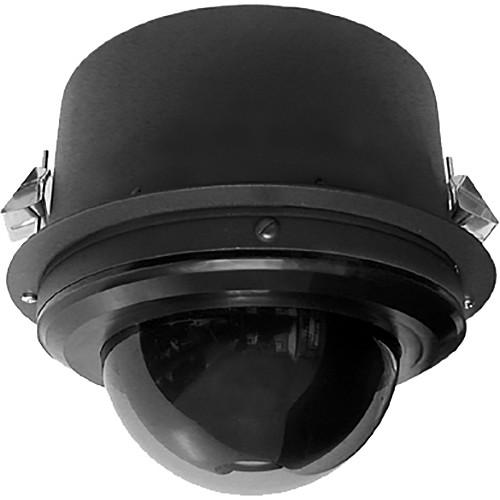

User Manual for Pelco Spectra Enhanced 1080p 20X PTZ Outdoor Network In-Ceiling Dome Camera with Heater Click to enlarge the picture
Contents of the user manual for the Pelco Spectra Enhanced 1080p 20X PTZ
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
|
User manual for the Pelco Spectra Enhanced 1080p 20X PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The gray Spectra Enhanced 1080p 20X PTZ Outdoor Network In-Ceiling Dome Camera from Pelco includes a black back box with black trim ring, clear lower dome, and dome drive. It captures video with a wide dynamic range (WDR) imaging system at up to 60 fps and has various features that include image defog and access to Pelco's full suite of Spectra Enhanced behavioral analytics. It also features SureVision 3.0 for low-light performance.
This Spectra Enhanced camera is compatible with Pelco's VideoXpert video management system while maintaining backward compatibility with Pelco's legacy Endura and Digital Sentry VMS platforms. Using High-Profile H.264 compression, it can store up to 32GB of still images or video on a compatible microSD card. - Camera
-
- 1920 x 1080 20x optical zoom camera that records at up to 60 frames per second with 130 dB of WDR (Wide Dynamic Range)
- SureVision 3.0 low-light performance
- Built-in video analytics include abandoned object, adaptive motion detection, auto tracker, camera sabotage, directional motion, loitering detection, object counting, object removal, and stopped vehicle
- Up to 32 window blanking privacy zones with custom blurring options
- Five White Balance modes
- Vivid imaging mode to automatically increase color saturation and sharpening
- Supports up to 32GB of local storage via SD
- Connects to Pelco IP and hybrid video systems, such as VideoXpert, Endura 2.0 (or later), and Digital Sentry 7.3 (or later)
- Compatible with Digital Sentry NVS (DS NVS) with four free Pelco IP licenses
- General
-
- Light Attenuation : Smoked f/0.5 light loss
- Cable Entry: Through 1.5" NPT pendant mount
- Alarm
-
- Unsupervised: Detects open or closed alarm state
- Supervised: Detects open and short alarm state with external 1 kOhm resistor
- Environmental
-
- Starts at temperatures as low as -22°F
1 Please Note: Cold starts within 90 minutes at specified temperature. Removes ice of 0.1" within 3 hours of powering up. close - Minimum System Requirements
-
- Processor: Intel Core i3 Processor, 2.4 GHz
- Operating System: Windows 7 (32-bit and 64-bit) with DirectX 11, Windows XP Service Pack 3 with DirectX 9.0c, or Mac OS X 10.4 (or later)
- Network Interface: 100 megabits (or greater)
- Monitor: Minimum of 1024 x 768 resolution, 16- or 32-bit pixel color resolution
- Web Browser: Internet Explorer 8.0 (or later) or Firefox 3.5 (or later); Internet Explorer 8.0 (or later) is recommended for configuring analytics
- Media Player: Pelco Media Player or QuickTime 7.6.5 for Windows XP and Windows 7; or QuickTime 7.6.4 for Mac OS X 10.4 (or later)
UPC: 700880339848 In the Box Pelco Spectra Enhanced 1080p 20X PTZ Outdoor Network In-Ceiling Dome Camera with Heater Heater and Blower B6-F-E Back Box LD6F-1 Lower Dome with Clear Bubble D6220L Dome Drive Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Spectra Enhanced 1080p 20X PTZ Outdoor Network In-Ceiling Dome Camera with Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco Spectra Enhanced Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 4.7 to 94mm | | Maximum Aperture | f/1.6 - f/3.5 | | Zoom | Optical: 20x
Digital: 12x | | Lens Field of View | Horizontal: 59.5 to 3.3° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.008 Lux
B&W: 0.001 Lux | | Shutter Speed | 1/10000 to 1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 60 fps (8 Mb/s H.264)
1920 x 1080 at 10/12.5/15/25/30/50/60 fps (6.05 Mb/s MJPEG) | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | , 20 Streams | | Automatic Gain Control | Yes | | | | Streaming | Single | | Built-In Mic | No | | External Audio Input | 3.5 mm | | Built-In Speaker | No | | | | Security | Password Protection | | Supported Protocols | DHCP, DNS, FTP, HTTP, , IPv4/v6, NTP, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSH, SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | Pelco | | Analytics | Abandoned object, adaptive motion detection, auto tracker, camera sabotage, directional motion, loitering detection, object counting, object removal, stopped vehicle | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | Data Streaming | Yes | | Built-In Installation Aids | None | | | | Windows OS Support | Windows XP, 7 | | Mac OS Support | OS X 10.11, OS X 10.10, OS X 10.9, OS X 10.8, OS X 10.7, OS X 10.6 | | | | Recording Media | SD (Up to 32 GB) | | Pan/Tilt | Manual Pan: 360° at 80°/s
Manual Tilt: 90° (0 to 90°) at 450°/s | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x 6-Pin Terminal Block | | Video Management Software | VideoXpert, Endura 2.0 (or later), Digital Sentry 7.3 (or later), or Digital Sentry NVS (DS NVS) | | Supported Languages | Arabic
English
French
German
Italian
Korean
Portuguese
Russian
Simplified Chinese
Spanish
Turkish | | Certifications | IEC60068-2-6, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC, NAS | | Power Source | AC, DC, PoE 802.3af (15 W), PoE 802.3at (30 W) | | Power Consumption | 18 W (With Heater)
60 W (With Heater, Blower) | | Material of Construction | Aluminum, Plastic | | Operating Temperature | -49 to 122°F / -45 to 50°C | | Storage Temperature | -5 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 100% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions | H: 8.8 x W: 9.9" / H: 22.4 x W: 25.1 cm | | Weight | 6.5 lb / 2.9 kg |
