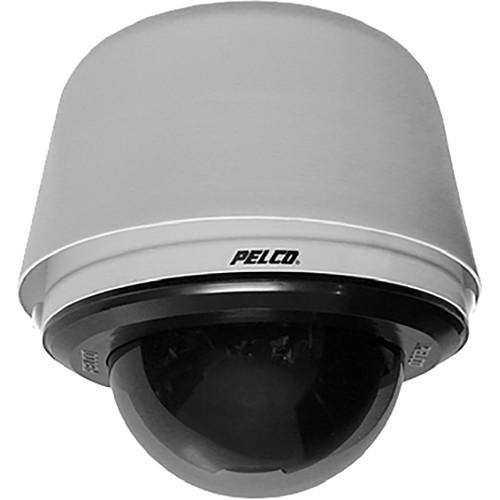

User Manual for Pelco Spectra Enhanced 1080p 20x PTZ Outdoor Network Pendant Dome Camera with Heater Click to enlarge the picture
Contents of the user manual for the Pelco Spectra Enhanced 1080p 20x PTZ
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
|
User manual for the Pelco Spectra Enhanced 1080p 20x PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The gray Spectra Enhanced 1080p 20x PTZ Outdoor Network Pendant Dome Camera from Pelco includes a back box and a smoked lower dome. It captures video with a wide dynamic range (WDR) imaging system at up to 60 fps and has various features that include image defog and Pelco's full suite of behavioral analytics. It also features SureVision 3.0 for low-light performance.
This Spectra Enhanced camera is compatible with Pelco's VideoXpert video management system while maintaining backward compatibility with Pelco's legacy Endura and Digital Sentry VMS platforms. Using High-Profile H.264 compression, it can store up to 32GB of still images or video on a compatible microSD card. This camera can be powered via PoE+ or an external power supply (available separately). Camera - 1920 x 1080 20x optical zoom camera that records at up to 60 frames per second with 130 dB of WDR (Wide Dynamic Range)
- SureVision 3.0 low light performance
- Built-in video analytics include Abandoned Object, Adaptive Motion Detection, Autotracker, Camera Sabotage, Directional Motion, Loitering Detection, Object Counting, Object Removal, and Stopped Vehicle
- Up to 32 window blanking privacy zones with custom blurring options
- Vivid imaging mode to automatically increase color saturation and sharpening
- Supports up to 32GB of local storage
- Environmental pendant form factor
- Connects to Pelco IP and hybrid video systems such as VideoXpert, Endura 2.0 (or later), and Digital Sentry 7.3 (or later)
- Compatible with Digital Sentry NVS (DS NVS) with four free Pelco IP licenses
- Manufactured and assembled in the USA
UPC: 700880340059 In the Box Pelco Spectra Enhanced 1080p 20x PTZ Outdoor Network Pendant Dome Camera with Heater (US Version) Sunshield B6-PG-E Back Box LD6PB-0 Lower Dome with Smoke Bubble D6220L Dome Drive Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Spectra Enhanced 1080p 20x PTZ Outdoor Network Pendant Dome Camera with Heater in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco Spectra Enhanced Specs | | | Sensor | 2 MP 1/2.8" CMOS | | Focal Length | 4.7 to 94mm | | Maximum Aperture | f/1.6 - f/3.5 | | Zoom | Optical: 20x
Digital: 12x | | Lens Field of View | Horizontal: 59.5 to 3.3° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.008 Lux
B&W: 0.001 Lux | | Shutter Speed | 1/10,000 to 1/1 Seconds | | | | Streaming Resolution | 1920 x 1080 at 30/60 fps (8 Mb/s ) | | Supported Video Compression | H.264, MJPEG | | Multi-View Streaming | Yes, 2 Streams | | Automatic Gain Control | Yes | | | | External Audio Input | 3.5 mm | | External Audio Output | 3.5 mm | | | | Security | HTTPS, IEEE 802.1X, Password Protection | | Supported Protocols | DHCP, DNS, FTP, HTTP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, QoS Layer 3 DiffServ, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSH, SSL/TLS, TCP, UDP, UPnP | | | | Application Programming Interface (API) | Pelco, ONVIF | | Analytics | Abandoned Object, Adaptive Motion Detection, AutoTracker, Camera Sabotage, Directional Motion, Loitering Detection, Object Counting, Object Removal, Stopped Vehicle | | Event Trigger | Yes | | Event Action | Recording, Notification, Alarm | | | | Windows OS Support | Windows XP, 7 | | Mac OS Support | macOS 10.12, OS X 10.11, OS X 10.10, OS X 10.9, OS X 10.8, OS X 10.7, OS X 10.6, OS X 10.5, OS X 10.4 | | | | Recording Media | microSD (Up to 32 GB) | | Pan/Tilt | Manual Pan: 360° at 80°/s
Manual Tilt: 91° (-90 to 1°) at 45°/s
Programmed Pan: 360° at 450°/s
Programmed Tilt: 91° (-90 to 1°) at 450°/s | | Alarm I/O | 1 / 1 | | I/O Connections | 1 x RJ45
1 x Power | | Video Management Software | VideoXpert, Endura 2.0 (or Later), and Digital Sentry 7.3 (or Later) | | Certifications | C-Tick, FCC (Part 15 Class A), ICES-003 Class A, IEC60068-2-6, KC, NEMA TS2, NEMA Type 4X, UL, cUL, as per Manufacturer | | Internal Storage | None | | External Storage Options | Local PC | | Power Source | AC, DC, PoE 802.3at (30 W) | | Power Consumption | AC: 24 W
AC: 81 W (With Heater, Blower)
DC: 1 W
DC: 3 W (With Heater, Blower)
PoE+: 18 W (With Blower) | | Material of Construction | Aluminum | | Operating Temperature | -49 to 122°F / -45 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 10 to 100% | | IP Rating | IP66 | | IK Rating | IK10 | | Dimensions |
