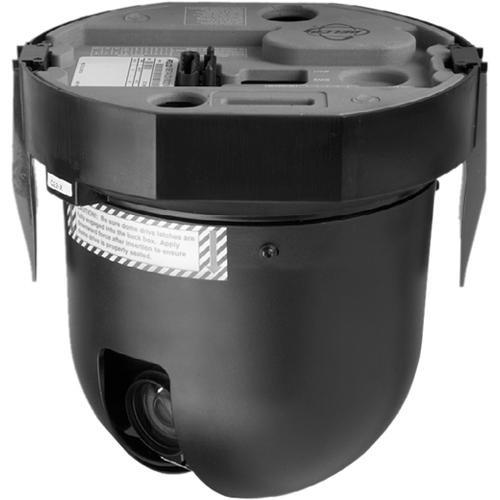

User Manual for Pelco Spectra IV SL Dome Drive Click to enlarge the picture
Contents of the user manual for the Pelco Spectra IV SL Dome Drive
- Product category: Interface Modules Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Interface Modules
|
User manual for the Pelco Spectra IV SL Dome Drive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The Pelco Spectra IV SL Dome Drive (23x) with ¼" EXview HAD image sensor delivers clear images at a resolution of 540TVL. The camera has a varifocal lens with a focal length of 3.6-82.8 mm at f/1.6 and offers a 23x optical zoom and 12x digital zoom. The on-screen compass, tilt, and zoom display feature helps in determining positions when required. Image quality is enhanced with features such as backlight compensation, white balance, and automatic gain control. With 64 presets, the camera offers ± 0.1° preset accuracy and is capable of continuous 360° rotation. The proportional pan/tilt feature decreases pan/tilt speeds in proportion to the depth of zoom, and the camera's variable scan speed ranges from 1-40°/sec. The DD423 camera also has a 'freeze frame between presets' feature that ensures a seamless frame transition between presets. Password-protection ensures that settings cannot be tampered by unauthorized persons. Zone Blanking will blank out an entire area or zone (which is set by a system operator) to eliminate any unnecessary video information from being processed, thus decreasing video traffic over a network. Up to 8 zones can be programmed to output blank video for areas not requiring video surveillance. The blank video output can be with or without labels; each label has a maximum limit of 20 characters. The Window Blanking function blocks up to 4 user-defined, 4-sided shapes from being viewed by the operator. - Image Sensor and Resolution
- With ¼" EXview HAD image sensor, the camera delivers crisp and clear images at a resolution of 540TVL.
- Lens and Zoom Capability
- Features a varifocal lens with a focal length of 3.6-82.8 mm at f/1.6 and offers a 23x optical zoom and 12x digital zoom.
- Illumination
- With a minimum illumination of 0.65 lux at 1/60 sec (color mode) and 0.15 lux at 1/60 sec (black & white mode), the camera produces clear images even in low light conditions.
- Backlight Compensation
- Adjusts video gain to correct the exposure when the object being captured is in front of a bright light.
- Automatic White Balance
- Adjusts the red, green, and blue colors in the image by taking a white color reference to get the most natural colors.
- Automatic Gain Control
- Amplifies the video signal when there is a drop in the signal strength below a specific level ensuring consistently clear pictures.
- Proportional Pan/Tilt
- Decreases pan/tilt speeds in proportion to the depth of zoom. The camera is also capable of continuous 360° rotation.
- Presets and Speeds
- Supports 64 presets at ± 0.1° preset accuracy and offers 400°/sec pan preset speed and 200°/sec tilt preset speed. A freeze frame button ensures seamless frame transmission between presets.
- Auto Flip
- Supports 180° rotation and also allows you to reposition the camera for viewing any object that passes beneath the camera.
- On-Screen Compass, Tilt, and Zoom Display
- Helps in determining positions when required.
- Multi-lingual Menu
- Allows quick and easy access to the camera via the intuitive multi-lingual menus that can be displayed in English, Spanish, Portuguese, Italian, French, German, Russian, Polish, Turkish, and Czech.
- AC Line Lock
- Eliminates timing discrepancies in H/V sync that cause picture interruptions at the switching point.
- Zone Blanking
- Blanks out an entire area or zone (which is set by a system operator) to eliminate any unnecessary video information from being processed, thus decreasing video traffic over a network. Up to 8 zones can be programmed to output blank video for areas not requiring video surveillance. The blank video output can be with or without labels; each label has a maximum limit of 20 characters.
- Window Blanking
- Blocks up to 4 user-defined, 4-sided shapes from being viewed by the operator.
- Password-protection
- Password usage restricts access to unauthorized persons.
- Other Features
- 1 alarm input and 1 auxiliary relay output Digital position and zoom control and feedback using D or P protocol Configurable limit stops for auto/random/frame scan modes
UPC: 700880275337 In the Box Pelco Spectra IV SL Dome Drive (23x) 3-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Spectra IV SL Dome Drive in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco DD423 Specs | Signal System | NTSC | | Image Sensor | 1/4" color progressive scan CCD | | Number of Pixels | 768 x 494 | | Resolution | 540 TV lines | | Lens | Focal Length: 3.6-82.8mm, F1.6
Zoom: 23x optical, 12x digital
Zoom Speeds: 2.9/4.2/5.8 seconds
Focus: Auto with manual override
Angle of View: 54° at 3.6mm wide zoom/2.5° at 82.8mm tele zoom | | Iris Operation | Auto with manual override | | Minimum Illumination | 0.65 lux at 1/60 sec (color)
0.15 lux at 1/60 sec (B-W) | | Signal-to-Noise Ratio | >50dB | | Pan Angle | 360° continuous pan rotation | | Pan Speed | Manual: 0.1-80°/sec
Turbo: 150°/sec
Preset: 400°/sec | | Tilt Angle | +2 ~ -92° | | Tilt Speed | Manual: 0.1-40°/sec
Preset: 200°/sec
(For variable speed operation an appropriate controller is required. With nonvariable speed control, Spectra IV pan/tilt speed is 20°/sec) | | Preset Positions | 64 | | Controls | Day/Night Function
White Balance (auto with manual override)
Gain Control (auto/off)
Shutter Speed, Auto/Manual (1/2-1/30,000 sec) | | Video Output | BNC or UTP (passive) | | Audio Output | None | | Sync System | Internal/AC line lock, phase adjustable using remote control, V-Sync | | Communication Port | Coaxitron, RS-422, RJ-45 (for software update and setup) | | Communication Protocol | Auto-sensing Protocol (Coaxitron, RS-422 Pelco P and Pelco D, Sensormatic, Vicon); Accepts Other Control Protocols with Optional Translator Card | | Alarm I/O | 1 alarm input, 1 relay output | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 9.8 x 9.8 x 9.6" |
