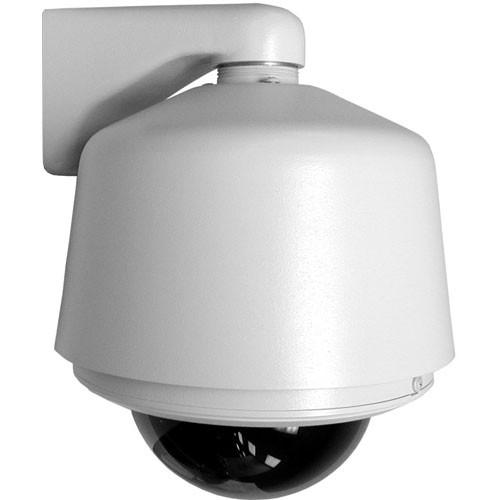

User Manual for Pelco Spectra IV SL SD423-PG-E1 Dome System Click to enlarge the picture
Contents of the user manual for the Pelco Spectra IV SL SD423-PG-E1 Dome
- Product category: Wired Analog & HD Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired Analog & HD Cameras
|
User manual for the Pelco Spectra IV SL SD423-PG-E1 Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The Pelco Spectra IV SL SD423-PG-E1 Dome System (Back Box, Clear Lower Dome) includes an environmental pendant light gray back box, a clear lower dome, and a DD423 Day/Night camera. The environmental pendant back box is made of aluminum and comes with an integrated passive UTP circuit located on the door allows seamless transmission of videos via twisted pair wire. Additionally, for transmission over a single-mode or multimode fiber, Pelco fiber modules can be attached to the door assembly. The aluminum constructed back box is equipped with a heater, sun shield, and fan to maintain a consistent operating environment. The acrylic lower dome bubble, specially designed for optimal relationship with the lens, causes zero lightloss and facilitates clear videos even at long focal lengths. With a 1/4" EXview HAD image sensor and LowLight Technology, the DD423 Day/Night camera offers clear images at a resolution of 540TVL. The camera has a varifocal lens with a focal length of 3.6-82.8mm at f/1.6 and offers a 23x optical zoom and 12x digital zoom. With 64 presets, the camera offers ±0.1° preset accuracy. The on-screen compass, tilt, and zoom display feature helps in determining positions, and window blanking allows the user to set up to 8 user-defined 4-sided privacy areas. These zones can either be labeled with a maximum of 20 characters each or set to output blank video. The proportional pan / tilt feature decreases pan / tilt speeds in proportion to the depth of zoom and the camera's variable scan speed ranges from 1-40°/sec. It also has a 'freeze frame between presets' feature that ensures a seamless frame transition between presets. Password-protection ensures that settings cannot be tampered by unauthorized persons. The auto-focus feature automatically focuses the camera on the selected object or area. Auto white balance takes a standard white color reference to adjust the RGB (red, green, and blue) colors to produce good quality images in a wide range of lighting conditions. Automatic iris control adjusts the amount of light passing through the lens. AC line lock is used to eliminate timing discrepancies in H/V sync that cause picture interruptions at the switching point. - Environmental Pendant Back Box (Light Gray)
-
- Aluminum construction
- Keeps the camera secure
- Passive UTP circuit for seamless transmission of videos through twisted pair
- Single-mode or multimode fiber
- Includes heater, sun shield, and fan
- Clear Lower Dome
-
- Zero lightloss
- Acrylic material
- Ensures high optical clarity
- Designed for optimal optical relationship between the lens and bubble
- Provides clear video even at long focal lengths
- DD423 Day/Night Camera
-
- 1/4" EXview HAD image sensor with a resolution of 540TVL
- LowLight technology
- 2:1 interlace scanning system and a 23x optical zoom / 12x digital zoom
- Varifocal lens with a focal length of 3.6-82.8 mm at f/1.6 64 presets with ±0.1° accuracy
- On-screen compass, tilt, and zoom display
- Password-protection for network security
- 400°/sec pan preset speed and 200°/sec tilt preset speed
- Window blanking allows up to 8 user-defined 4-sided privacy areas that can be labeled with a maximum of 20 characters
- Proportional pan / tilt decreases pan / tilt speeds in proportion to the depth of zoom
- Variable scan speed of 1-40°/sec
- Auto-focus feature automatically focuses the camera on the selected object or area
- Auto white balance with manual override takes a standard white color reference to adjust the RGB colors to produce good quality images in a wide range of lighting conditions
- Automatic iris control with manual override adjusts the amount of light passing through the lens
- AC line lock eliminates timing discrepancies in H/V sync that cause picture interruptions at the switching point
- Digital position and zoom control and feedback through Pelco D protocol
- Built-in menu system for setup of configurable functions
- 180° auto flip rotation
- Freeze frame during presets
- 1 alarm input / 1 auxiliary relay output
- Multilingual menus - English, Spanish, Portuguese, Italian, French, German, Russian, Polish, Turkish, and Czech
- RJ-45 data port
UPC: 700880276457 In the Box Pelco Spectra IV SL SD423-PG-E1 Dome System (Back Box, Clear Lower Dome) BB4-PG-E Spectra IV SE Environmental Pendant Back Box (Gray) fxebsbutttrx Spectra IV SL Dome Drive (23x) Spectra Lower Dome 3-Year Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Spectra IV SL SD423-PG-E1 Dome System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco SD423-PG-E1 Specs | Signal System | NTSC | | Image Sensor | 1/4" color progressive scan CCD | | Number of Pixels | 768 x 494 | | Resolution | 540 TV lines | | Lens | Focal Length: 3.6-82.8mm, F1.6
Zoom: 23x optical, 12x digital
Zoom Speeds: 2.9/4.2/5.8 seconds
Focus: Auto with manual override
Angle of View: 54° at 3.6mm wide zoom/2.5° at 82.8mm tele zoom | | Iris Operation | Auto with manual override | | Minimum Illumination | 0.65 lux at 1/60 sec (color)
0.15 lux at 1/60 sec (B-W) | | Signal-to-Noise Ratio | >50dB | | Pan Angle | 360° continuous pan rotation | | Pan Speed | Manual: 0.1-80°/sec
Turbo: 150°/sec
Preset: 400°/sec | | Tilt Angle | +2 ~ -92° | | Tilt Speed | Manual: 0.1-40°/sec
Preset: 200°/sec
(For variable-speed operation an appropriate controller is required. With nonvariable speed control, Spectra IV pan/tilt speed is 20°/sec) | | Preset Positions | 64 | | Controls | Day/Night Function
White Balance (auto with manual override)
Gain Control (auto/off)
Shutter Speed, Auto/Manual (1/2-1/30,000 sec) | | Video Output | BNC or UTP (passive) | | Audio Output | No | | Sync System | Internal/AC line lock, phase adjustable using remote control, V-Sync | | Communication Port | Coaxitron, RS-422, RJ-45 (for software update and setup) | | Communication Protocol | Auto-sensing Protocol (Coaxitron, RS-422 Pelco P and Pelco D, Sensormatic, Vicon); Accepts Other Control Protocols with Optional Translator Card | | Alarm I/O | 1 alarm input, 1 relay output | | Construction | Construction
Back Box: aluminum
Camera: aluminum, thermo plastic
Bubble: acrylic
Cable Entry
Through 1.5" NPT pendant mount | | Power Requirements | 24VAC or 24VDC | | Power Consumption | AC: 23VA
DC: 0.7A | | Operating Temperature | (Assumes no wind chill factor)
Maximum:
140°F (60°C) absolute maximum
122°F (50°C) sustained maximum
Minimum:
-60°F (-51°C) absolute minimum
Prevents icing at sustained minimum of -50°F (-45°C)
De-ices 0.1" (2.5mm) within 3 hours after power-up | | Dimensions (WxH) | 8.6 x 10.6" (218 x 269mm) | | Weight | Back Box: 3.5 lbs (1.6kg)
Dome Drive: 3.3 lbs (1.5kg)
Lower Dome: 0.6 lbs (0.27kg) | | | | Package Weight | 12.3 lb | | Box Dimensions (LxWxH) | 26.4 x 11.7 x 10.9" |
