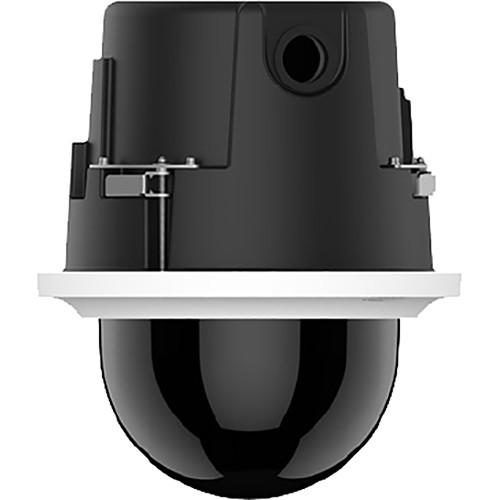

User Manual for Pelco Spectra Professional Series P1220 PTZ Indoor In-Ceiling IP Dome Camera with 4.3 to 86 mm Lens Click to enlarge the picture
Contents of the user manual for the Pelco Spectra Professional Series P1220 PTZ
- Product category: Wired IP Cameras Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Wired IP Cameras
|
User manual for the Pelco Spectra Professional Series P1220 PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The Spectra Professional Series P1220 PTZ Indoor In-Ceiling IP Dome Camera from Pelco consists of a back box, dome drive, and smoked lower dome with white trim ring. This system features a 4.3 to 86 mm lens and a 1/3” sensor that allows capturing images with resolutions up to 1920 x 1080. This IP camera uses H.264 compression for efficient network bandwidth usage.The camera delivers clear, live streaming, HD images over the Internet using a standard web browser. The dome system features open architecture connectivity for third-party software recording solutions allowing integration into virtually any IP-based HD system. It is also compatible with Digital Sentry video management systems. The camera is Endura-enabled to record, manage, configure, and view multiple live streams. When connected to an Endura HD network-based video security system, the dome system has access to EnduraStor and EnduraView for optimized image quality and bandwidth efficiency.Two built-in analytics, motion detection and camera sabotage, are preloaded in the camera and can be configured and enabled using a standard web browser. They are compatible with Endura or a third party system that supports alarms using Pelco’s API. Window blanking is used to conceal user-defined privacy areas that cannot be viewed by an operator. A blanked area will appear on the screen as a solid gray window. The camera also connects to Pelco IP and hybrid systems. This camera from the Spectra Professional series is a suitable solution to view details such as faces, license plates, tattoos, or other specific features when in a zoomed-in position. - General
-
- 2MP camera records Full HD images at 30 ips
- 16:9 aspect ratio
- Supports 20x optical zoom and 12x digital zoom
- Allows you to control and monitor video over an IPv4 network via a standard web browser
- Offers 2 video streams Dual H.264 or H.264 and scalable MJPEG
- 360° continuous pan rotation at speeds up to 430° per second
- Supports TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, and more protocols
- PoE+ IEEE 802.3at Class 4
- A blanked area will appear on the screen as a solid gray window
- Features open architecture connectivity to third-party software
- Easily connects to Pelco IP and hybrid systems
- Offers an application programming interface (API) and software developer’s kit (SDK) for interfacing with Pelco’s IP cameras
- ONVIF Profile S conformant
- Indoor In-Ceiling Dome Camera
-
- Single back box for suspended or hard ceiling applications
- Requires 5.5” (14cm) space above ceiling for installation
- Requires a minimum ceiling thickness of 0.5” (1.3cm) and a maximum 1.5” (3.8cm)
- Aluminum, stainless steel, and PC-ABS construction
- Suitable for use in environmental air handling (plenum) spaces
- White RAL 9003 finish
- Smoked dome with white trim ring
- Software Features
-
- Features 16 preset tours, 128 dome presets, and 8 configurable window blanks
- Built-in video motion detection (VMD) triggers an alarm when motion occurs based on the user-defined area and sensitivity levels
- Camera Sabotage detects contrast changes in the field of view and triggers an alarm if the lens is obstructed by spray paint, a cloth, or a lens cap and unauthorized repositioning of the camera
- Window blanking is used to conceal user-defined privacy areas that cannot be viewed by an operator
- Preset accuracy: Pan ±0.1°; Tilt ±0.05°
- Multilingual Menus
- Password protection
- Auto Flip rotates the dome 180° at the bottom of tilt travel
- Configurable park with actions
- Proportional pan/tilt continually decreases pan/tilt speeds in proportion to depth of zoom
1 Please Note: Using the maximum number of window blanks in a single view can affect camera performance and could interrupt certain camera functions. close UPC: 700880333969 In the Box Pelco Spectra Professional Series P1220 PTZ Indoor In-Ceiling IP Dome Camera with 4.3 to 86 mm Lens (Smoked Bubble) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Spectra Professional Series P1220 PTZ Indoor In-Ceiling IP Dome Camera with 4.3 to 86 mm Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco P1220-FWH0 Specs | | | Sensor | 1/3" CMOS Sensor | | Zoom | Optical: 20x
Digital: 12x | | Maximum Resolution | 1920 x 1080 | | Lens | f/1.6 to f/4.2, focal length 4.3 mm (wide) to 86.0 mm (tele) | | Horizontal Angle of View | 55.4° (wide) to 2.9° (tele) | | Aspect Ratio | 16:9 | | Shutter | 1 to 1/8,000 sec | | Dynamic Range | 60 dB | | White Balance | 2,500 to 8,000 K | | Noise Reduction | 3D (On/Off selectable) | | Signal to Noise Ratio | 50 dB | | Light Sensitivity | Color (33 ms): 0.3 lux
Color (200 ms): 0.08 lux
Mono (33 ms): 0.1 lux
Mono (200 ms): 0.015 lux Sensitivity in lux for 90% reflectance, f/1.6 (wide angle), 24 dB noise at 30 IRE (30% of signal level) | | Features | Day/Night Capabilities, IR Cut Filter, Auto Iris Control, Automatic Gain Control, Active Noise Filtering | | | | Streaming | Embedded with stream 1 and stream 2 | | Input | Line in/terminal block | | Encoding | G.711 A-law/G.711 U-law | | | | Video Encoding | H.264 High, Main, or Base profiles and MJPEG | | Video Streams | Up to 2 simultaneous streams; the second stream is variable based on the setup of the primary stream | | Frame Rate | Up to 30, 25, 20, 16.67, 15, 12.5, 10, 7.5, 5, 3, 2, 1 (depending on the combination of coding, resolution, and stream configuration) | | Available Resolutions | H.264 High Profile (IP GOP structure) at 30 ips and 16:9 Aspect Ratio
2.07 MP: 1920 x 1080
0.92 MP: 1280 x 720
0.59 MP: 1024 x 576
0.52 MP: 960 x 540
0.23 MP: 640 x 352
0.06 MP: 320 x 180 | | | | Supported Protocols | TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, SNMP v2c/v3, QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP, FTP, and 802.1x (EAP) | | Users | Unicast: 1 admin and up to 4 viewers simultaneously depending on resolution settings (2 guaranteed streams)
Multicast: Unlimited users H.264 | | Security Access | Password protected | | Software Interface | Web browser view and setup | | Pelco System Integration | Endura 2.0 (or later), Digital Sentry 7.3.208 (or later) | | API Supported | Pelco API, ONVIF Profile S | | Mobile Application Support | Integrated to Pelco Mobile App | | Video Motion Detection | Simple motion detection and camera Sabotage | | Local Storage | Up to 32 GB SD Card; Capture 1-5-10 second video clips on camera sabotage, motion detection, or alarm input; record video continuously in the case of network outage with option to overwrite; access video through FTP protocol Memory card not included. | | | | Processor | Intel Core i3 Processor, 2.4 GHz | | Operating System | Windows 7 (32-bit and 64-bit), 8 | | Memory | 4 GB RAM | | Network Interface | 100 megabits (or greater) | | Monitor | Minimum of 1024 x 768 resolution, 16- or 32-bit pixel color resolution | | Web Browser | Internet Explorer 9.0 (or later), Firefox 31 (or later), or Chrome 23 (or later) | | Media Player | Pelco Media Player† or QuickTime® 7.6.5 for Windows; or QuickTime 7.6.4 for Mac OS X 10.4 (or later) Pelco Media Player is recommended for control, smoothness, and reduced latency as compared to QuickTime.
This product is not compatible with QuickTime version 7.6.4 for Windows | | | | Construction | Back Box Assembly: Aluminum and stainless steel
Dome Drive Assembly: PC-ABS and sheet metal
Lower Dome Assembly: Polycarbonate and PC-ABS | | Light Attenuation | 50% light attenuation | | Cable Entry | 0.75" conduit fitting (back box) | | | | Pan Movement | 360° continuous pan rotation | | Tilt Movement | 1 to -90° | | Preset Speeds | Pan: 430°/sec
Tilt: 200°/sec | | Preset Accuracy | Pan: ±0.1°
Tilt: ±0.05° | | Speed Control | Manual: 0.1°/sec to 100°/sec (Pan), 0.1°/sec to 50°/sec (Tilt) | | | | Ports | RJ-45 connector for 100Base-TX, Auto MDI/MDI-X; Auto negotiate/manual setting | | Cabling Type | Cat5 or better for 100Base-TX | | Input Voltage | 18 to 32 VAC; 24 VAC nominal | | Input Power | 24 VAC; 26 VA; PoE+ IEEE 802.3at Class 4, 48 V, 600 mA | | Alarms | Inputs: 4
Output: 1; PhotoMOS relay (30 V, 1 A)
Triggers: Unsupervised mode that detects switch closures (N.O. and N.C.) | | Certifications & Ratings | CE, Class A, FCC, Class A, UL/cUL Listed, C-Tick, KCC, ONVIF Profile S | | | | Environment | Indoor | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Storage Temperature | -40 to 140°F (-40 to 60°C) | | Humidity | Operating/Storage: 20 to 80% (non-condensing) | | Effective Projected Area (EPA) | Without Mount: 135 square inches (869 square centimeters)
With IWM Series Mount: 247 square inches (1592 square centimeters) | | | | Dimensions (Ø x H) | 8.7 x 10.2" (22.2 x 25.1 cm) | | Weight | 6.2 lb (2.8 kg) |
