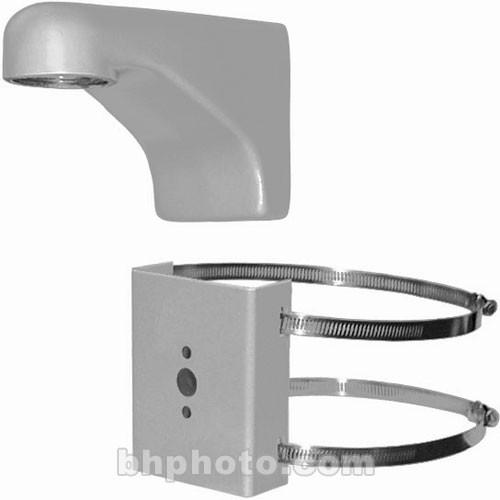

User Manual for Pelco SWM-GY Wall Mount Click to enlarge the picture
Contents of the user manual for the Pelco SWM-GY Wall Mount
- Product category: Mounting Hardware Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Mounting Hardware
|
User manual for the Pelco SWM-GY Wall Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The gray Pelco SWM-GY Wall Mount provides indoor and outdoor wall mounting for Pelco pendant components such as domes, back boxes, and adaptors and has a load-bearing capacity of 10 lb (4.5 kg). The wall mount can also be attached to other Pelco pendant domes that have a 1.5" NPT pipe thread mount. An anti-seize lubricant can be applied to protect the pipe threads from galling, corrosion and seizing. The cable feedthrough conceals the electrical wiring. A gasket, attached to the base keeps the mount moisture-free. With a mounting cleat and adjusting plate, the mount can be attached to any vertical load-bearing surface, SWM-PA Series pole adaptor, or SWM-CA Series corner mount adaptor (sold separately). The mount is constructed of aluminum and has a gray polyester powder coat finish. When used outdoors, the SWM-GY wall mount can be used along with a sun-shield (sold separately) to protect it from excessive sunlight. - Provides indoor and outdoor wall mounting for Pelco pendant components such as domes, back boxes, and adaptors
- Up to 10 lb load-bearing capacity
- Attaches to the wall using a 1.5" NPT pipe thread, which is protected from corrosion by an anti-seize lubricant
- Cable feedthrough conceals electrical wiring
- Gasket attached to the base keeps the mount moisture-free
- With a mounting cleat and adjusting plate, the mount can be attached to any vertical load-bearing surface, SWM-PA Series pole adapter or SWM-CA Series corner mount adaptor (sold separately)
- Constructed of aluminum with a gray polyester powder coat finish
- When used outdoors, the SWM-WT wall mount can be used along with a sunshield (sold separately)) to protect it from excessive sunlight
UPC: 700880050927 In the Box Pelco SWM-GY Wall Mount (Gray) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco SWM-GY Wall Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco SWM-GY Specs | Compatible Camera | Spectra and DF5 series | | Mounting Method | Mount is secured by a set screw to a mounting plate that is attached to the mounting surface with two fasteners (not supplied) no greater than 1/4" diameter. | | Cable Entry | Via cable feedthrough hole in mount adapters | | Maximum Load | 10 lb (4.5 kg) | | Environment | Indoor/outdoor | | Construction | Cast aluminum with gray polyester powder coat | | Dimensions | 3.1 x 4.2 x 6.3" (7.9 x 10.5 x 15.9 cm) | | Weight | 1.1 lb (0.5 kg) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 7.25 x 7.15 x 5.6" |
