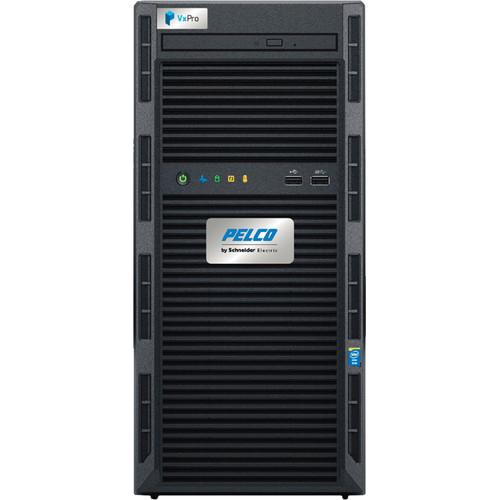

User Manual for Pelco VideoXpert Eco Server NVR Click to enlarge the picture
Contents of the user manual for the Pelco VideoXpert Eco Server NVR
- Product category: Network Video Recorders (NVRs) Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Network Video Recorders (NVRs)
|
User manual for the Pelco VideoXpert Eco Server NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description Stream and record surveillance video with this VideoXpert Eco Server NVR from Pelco, with a maximum recording throughput of 200 Mbps. Channel licenses (available separately) can be added one at a time or in bundles to scale the system to your needs. The NVR can be configured to have up to 12TB of JBOD storage (HDDs available separately). External storage options include PCs via Internet connection, network servers, and USB storage devices.
The Eco Server enables video live view and playback via its DisplayPort and DVI video outputs. It supports unicast and multicast transmission modes using Microsoft Windows for easy configuration and maintenance. Integration of Dell's iDRAC (Dell Remote Access Controller) platform and support of Dell's OpenManage tools allow for remote configuration and management of the server, reducing the need for physical access to it. The server supports ONVIF S-compliant cameras and devices. - VideoXpert in-a-box functionality for small to mid-sized applications
- Simple setup, IT-friendly
- Designed for unicast or multicast environments using Microsoft Windows for easy configuration and maintenance
- Supports attached storage (NAS) to extend video storage capacity
- Includes VxToolbox for simple configuration of one or more servers
- Includes pre-defined roles for easy user creation
- Software extensible through plug-ins including mapping, information overlays (eConnect), and license plate recognition (PlateSmart)
- Supports aggregation through a VxUltimate 2.0 system
- Supports 3rd-party cameras and devices that are ONVIF-compliant, profile S
- Investigation mode enables operators to synchronize video playback and export investigative playlists covering scenes of interest
- Monitor multiple VxPro sites with a single client
- Supports shared displays so operators can send video to surveillance personnel
- A la carte design allows you to order software, hardware with licensing, or a complete solution with loaded hardware and maintenance licensing
- Integrated Dell iDRAC controller
- Supports Dell OpenManage tools
UPC: 700880341742 In the Box Pelco VideoXpert Eco Server NVR Keyboard Mouse USB Drive with Resource & Recovery Information Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco VideoXpert Eco Server NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco VideoXpert Eco Specs | | | Form Factor | Tower | | Processor | Intel Xeon E3-1220 v5 | | Memory | 8 GB DDR4 | | Operating System | Windows 10 IoT Enterprise, 64-bit (LTSB) | | OS Drive | SSD 120 GB | | Storage | 12 TB (7200 RPM) max.
HDDs available separately | | Raid Level | JBOD | | Optical Drive | DVD+RW | | USB | 2 x USB 2.0 ports (front panel)
2 x USB 2.0 ports (rear panel)
2 x USB 3.0 ports (front panel) | | Power Supply | Single | | Certifications | CE (class A), FCC part 15 (class A), ICES-0003 (class A), UL/cUL listed, C-Tick, CCC, KCC, NOM | | | | Processor | Intel Core i5 | | Memory | 8 GB | | Operating Systems | Windows 7 (64-bit), Windows 10 (64-bit), or Windows Server 2012 | | | | Max Number of Channels | Not Specified by Manufacturer | | Licenses | Available separately | | Recording Resolution | Not Specified by Manufacturer | | Outputs | DisplayPort, DVI | | | | Ports | 2 x Gigabit Ethernet (1000Base-T) ports | | Maximum Recording Throughput | 200 Mbps | | | | Dimensions | 14.17 x 6.89 x 17.12" (36.0 x 17.5 x 43.5 cm) | | Weight | Not Specified by Manufacturer |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 55 owners. Add your rating and experience with the product.
