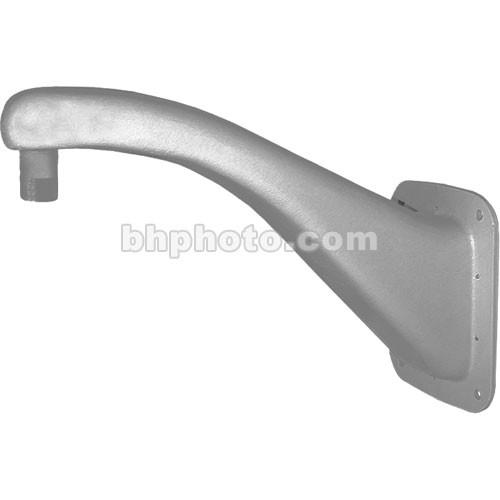

User Manual for Pelco Wall Mount for Pelco's Spectra and DP5 8 Pendant Series Domes Click to enlarge the picture
Contents of the user manual for the Pelco Wall Mount for Pelco's Spectra
- Product category: Mounting Hardware Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Mounting Hardware
|
User manual for the Pelco Wall Mount for Pelco's Spectra contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The Pelco IWM24 Wall Mount for Pelco's Spectra and DP5 Pendant Series Domes can also be used with other Pendant domes that utilize 1.5-inch NPT pipe for mounting. It is constructed of cast aluminum and includes an integral 24 VAC, 100 VA transformer. The input wiring can enter the arm from openings in the mounting plate and is designed to support up to seventy-five pounds. Buy the wall mount that was designed for your Pelco Spectra or Pendant series enclosure and you will be sure you have the right fit. - Sturdy & Convenient
- Made of cast aluminum, UL-listed and supports up to seventy-five pounds. The IWM Series includes an integral 24 VAC, 100 VA transformer and the input power (120 or 240 VAC, 50/60 Hz) is selectable via an internal slide switch which is easily accessible through a front access cover plate. Also, the input wiring can enter the arm from openings in the mounting plate or flexible metal conduit fitting may be installed on the bottom of the mount -- it is your choice.
UPC: 700880045220 In the Box Pelco Wall Mount for Pelco's Spectra and DP5/8 Pendant Series Domes (Grey) One Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco Wall Mount for Pelco's Spectra and DP5 8 Pendant Series Domes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco IWM24 Specs | Mount Type | Wall | | Construction | Cast Aluminum | | Finish | Grey polyester powder coat | | Adjustments | None | | Dimensions | (L) 14.6 x (H) 8.0" (37.2 x 20.3 cm) | | Weight Capacity | 75.0 lbs (34.0 kg) | | Weight | 6.6 lbs (3.0 kg) | | | | Package Weight | 8.5 lb | | Box Dimensions (LxWxH) | 19.3 x 8.7 x 8.3" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 24 owners. Add your rating and experience with the product.
