User Manual for Pelco WCS1-4 Outdoor Single Output 4 26 28 VAC Fused Power Supply, 100 VA - 100 120 240 VAC Input Click to enlarge the picture
Contents of the user manual for the Pelco WCS1-4 Outdoor Single Output 4
- Product category: Power Supplies Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Power Supplies
|
User manual for the Pelco WCS1-4 Outdoor Single Output 4 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|

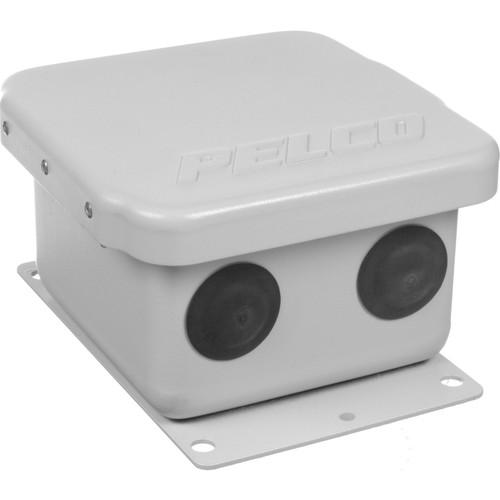

Product description The Pelco WCS1-4 is a single-output power supply for use with standard CCD cameras as well as Pelco's indoor or outdoor Spectra and Esprit pan-and-tilt systems. This model outputs 4, 26 or 28 VAC power, with the extra voltage above 24 VAC provided as a way to compensate for power loss from long cable runs. Input voltage is selectable between 100, 120 or 240 VAC.
The maximum current capacity for this model is 4 A (100 VA), with a fuse system providing protection from power overloads. While this method requires the replacement of fuses after each occurrence, by acting faster and being more precise, a fuse system provides a higher degree of oveload protection as compared to a circuit-breaker system. This unit is suitable for outdoor installation and can be secured by an optional padlock. - Single power supply for standard CCD cameras as well as Pelco's Spectra and Esprit pan-and-tilt dome systems
- Weather-proof design for outdoor installation (NEMA Type 4X and IP66)
- 120 VAC or 240 VAC selectable input
- 28 VAC Power output for long cable runs
- AC Power indicator with power On/Off switch
UPC: 700880052549 In the Box Pelco WCS1-4 Outdoor Single Output 4/26/28 VAC Fused Power Supply, 100 VA - 100/120/240 VAC Input 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco WCS1-4 Outdoor Single Output 4 26 28 VAC Fused Power Supply, 100 VA - 100 120 240 VAC Input in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco WCS1-4 Specs | Type | Outdoor | | Output | Voltage: 4/26/28 VAC
Connectors: x1
Connector Type: screw-type barrier strip
Wire Size: 12-16 gauge solid wire | | Input | Voltage: 100/120/240 VAC
Connector Type: screw-type barrier strip
Wire Size: 12-16 gauge solid wire | | Maximum Current Capacity | 4 A (100 VA) | | Circuit Protection | Fuse | | Construction | Aluminum with stainless steel link-lock latch; can be secured with padlock (not supplied) | | Finish | Gray polyester powder coat | | Cable Entry | Hole plugs for 0.75" (1.9 cm) conduit | | Operating Temperature | -50 ~ 122°F (-45.56 ~ +50°C) | | Dimensions (WxHxD) | 12.6 x 15.3 x 5.1" (32 x 38.8 x 12.9 cm) | | Weight | 6.8 lb (3.1 kg) | | | | Package Weight | 7.995 lb | | Box Dimensions (LxWxH) | 14.45 x 10.15 x 5.1" |
