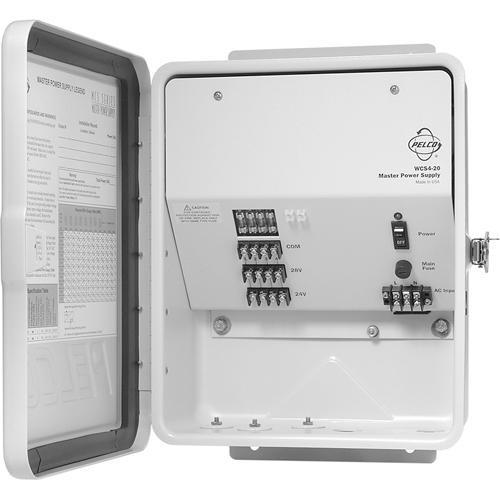

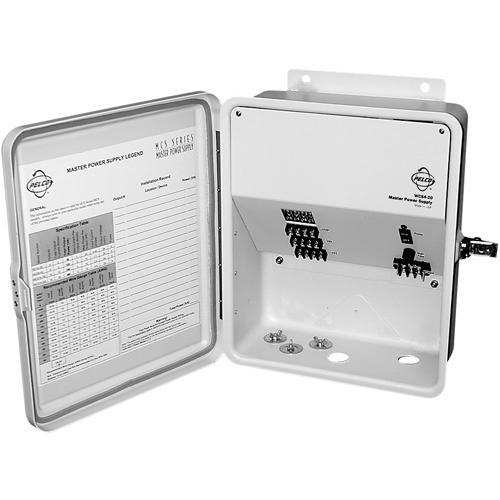

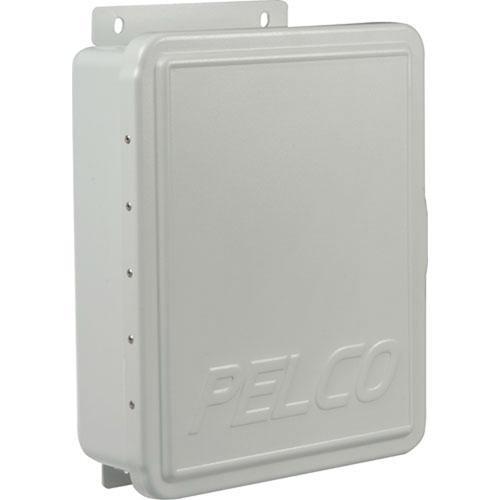

User Manual for Pelco WCS4-20B Outdoor 4-Output 24VAC 12A Power Supply w Circuit Breaker Click to enlarge the picture
Contents of the user manual for the Pelco WCS4-20B Outdoor 4-Output 24VAC 12A
- Product category: Power Supplies Pelco
- Brand: Pelco
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelco Power Supplies
 |
User manual for the Pelco WCS4-20B Outdoor 4-Output 24VAC 12A contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelco product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelco user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelco product will considerably shorten its lifespan!
|
Product description The Pelco WCS4-20B can be used to supply 24VAC power for up to four CCTV devices. When used with an integrated system such as Spectra and Esprit, this unit will power the pan/tilt, heater, and blower modules in addition to the camera. A circuit breaker system is used to protect devices from a power overload. - 28VAC for Long Cable Runs
- To compensate for the voltage drop that may occur over long wire runs this power supply offers 28VAC outputs in addition to the 24VAC connectors.
- Circuit Breaker Protection
- Circuit breakers have an advantage over fuses in that they will self-reset when the fault is corrected, eliminating the need for replacing fuses.
UPC: 700880052686 In the Box Pelco WCS4-20B Outdoor 4-Output 24VAC 12A Power Supply w/Circuit Breaker (Class 2) 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelco WCS4-20B Outdoor 4-Output 24VAC 12A Power Supply w Circuit Breaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelco WCS4-20B Specs | Power Input | 120VAC or 240VAC (selectable) | | Power Output | 4x 24/28VAC | | Maximum Current Capacity | 12A (288 VA) | | Circuit Protection | Circuit breaker | | Construction | Aluminum with gray polyester powder coat (meets NEMA Type 4X and IP66 standards) | | Cable Entry | Hole plugs for 0.75" (19mm) conduit | | Operating Temperature | -50 ~ 122°F (-45 ~ +50°C) | | Dimensions (WxHxD) | 6.7 x 4 x 7.7" (170 x 103 x 194mm) | | Weight | 16.2 lbs (7.3kg) | | | | Package Weight | 20.35 lb | | Box Dimensions (LxWxH) | 18.819 x 15.433 x 10.158" |
