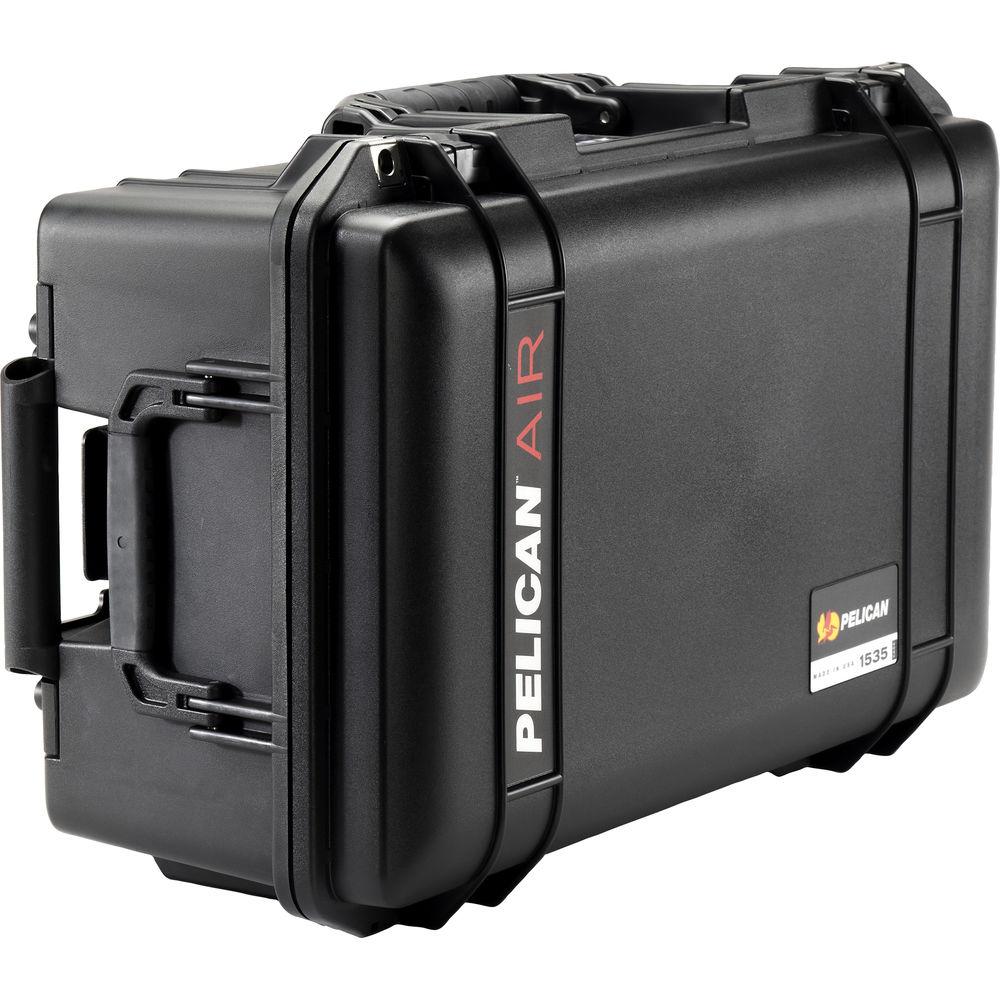

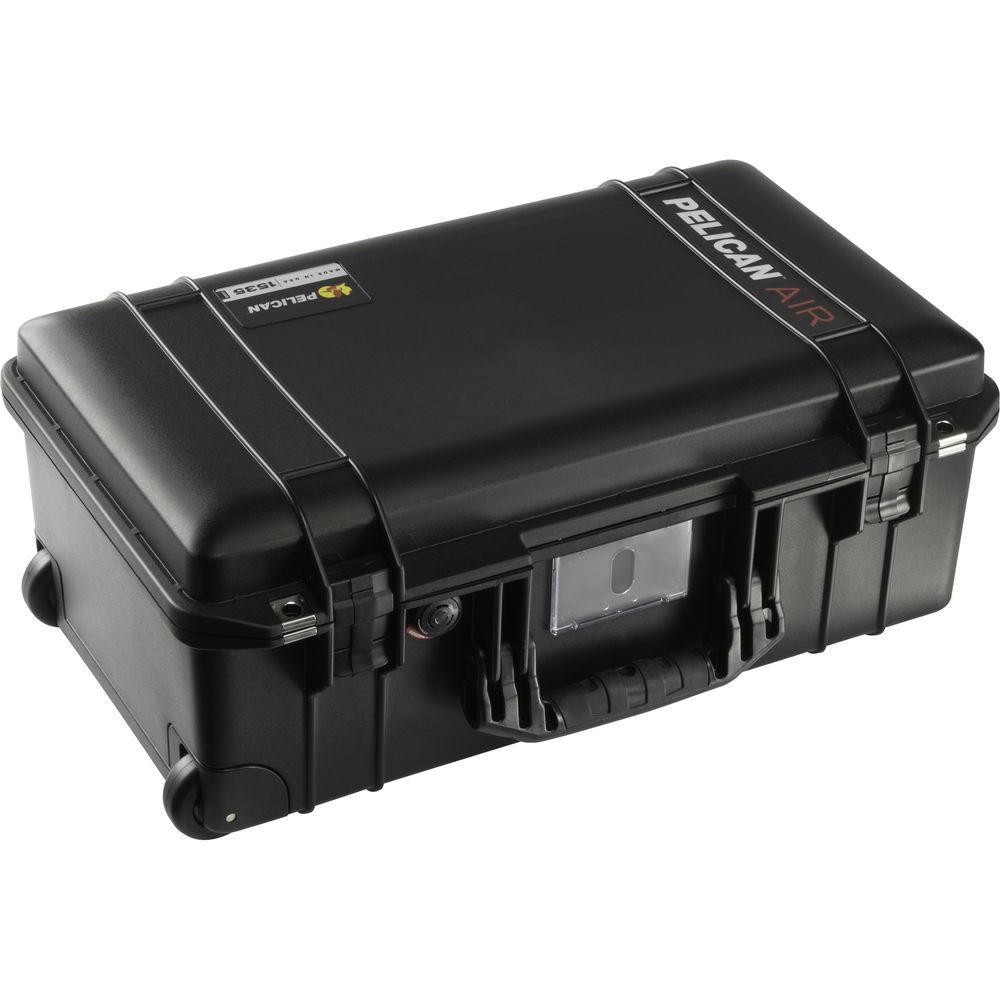

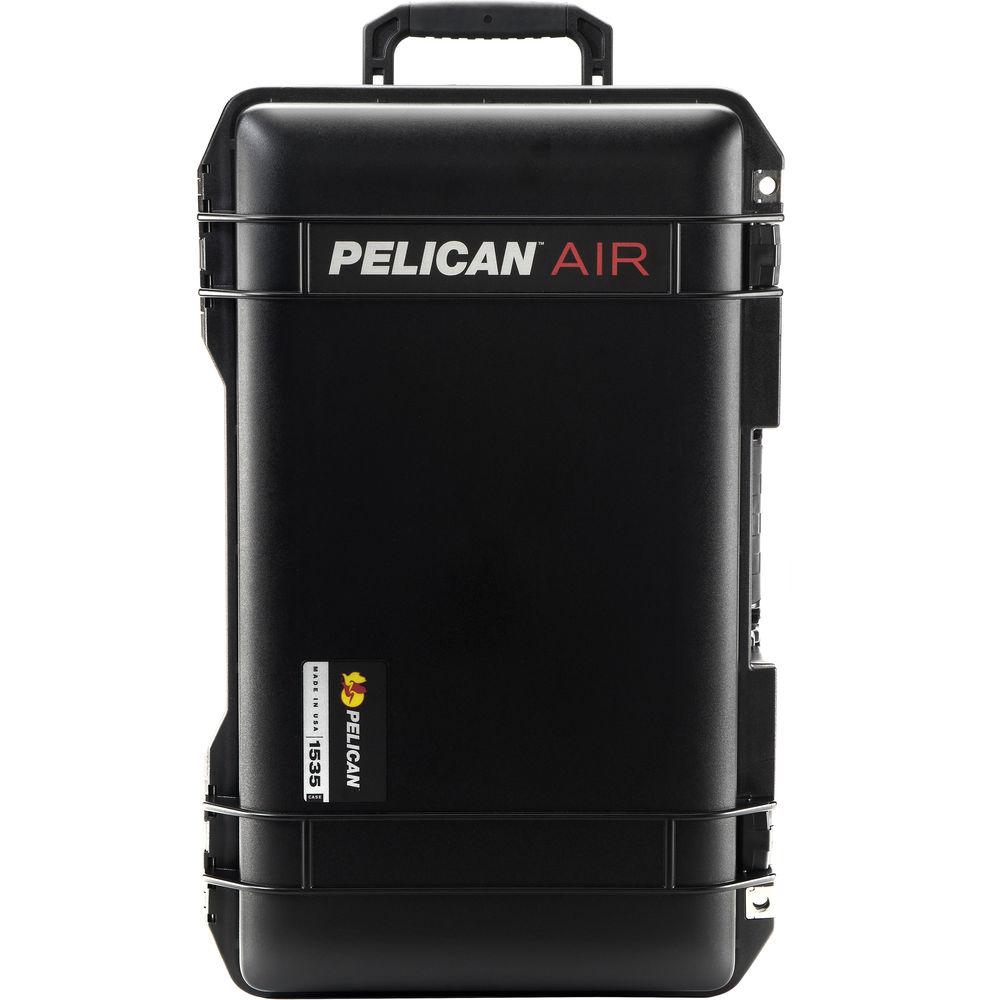

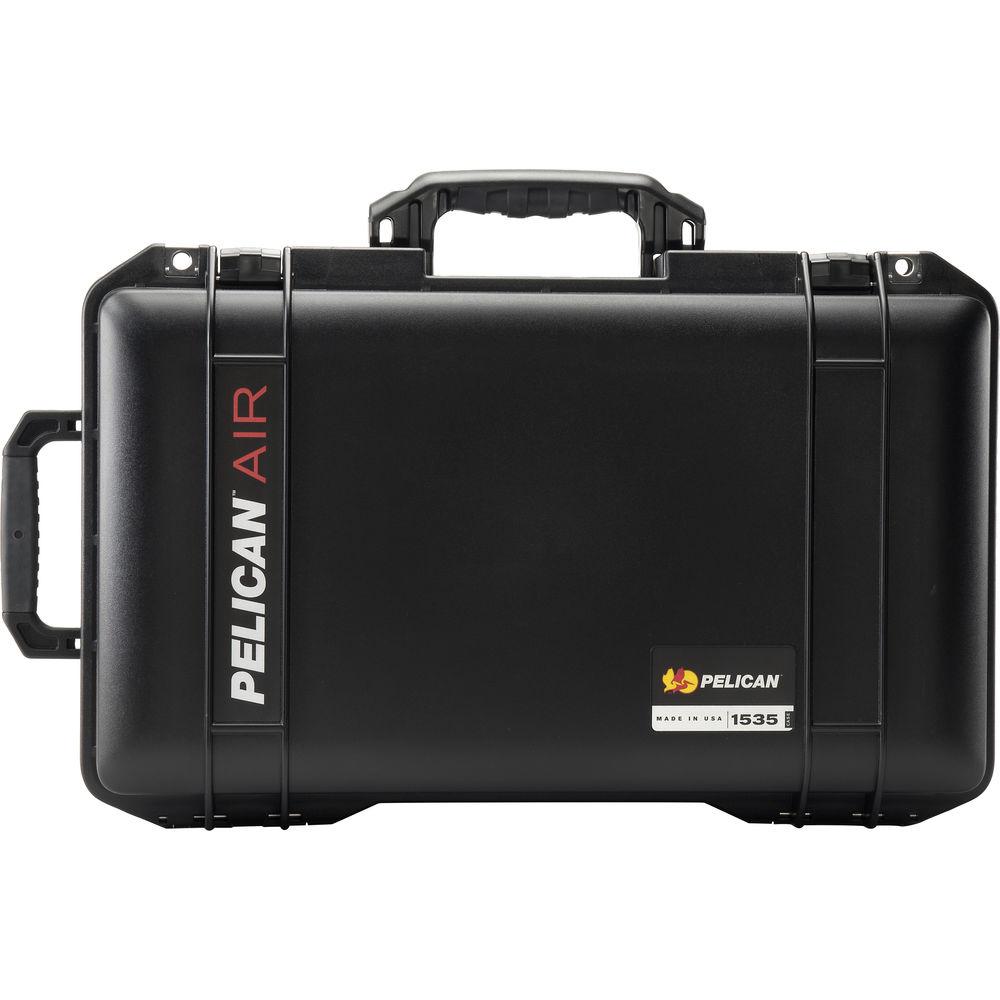

Product description Studio Storage Solutions Read More Combining strength and lightness, the black Pelican 1535 Air Wheeled Carry-On Case with Pick-N-Pluck Foam 2017 is watertight, crushproof, dustproof, and optimized for travel. For travel by air, Pelican has aggregated available airline rules for maximum overhead and check-in dimensions with the goal of creating a case that conforms to their requirements. Of course, there will always be exceptions, so it's wise to contact your carrier before departing.
Your 1535 Air case is made of a super-light, proprietary HPX polymer with honeycomb structural elements that is up to 40% lighter than most other Pelican polymers. This confidence-inspiring design has been drop-tested on concrete on all sides and corners while loaded with gear. Not content to stop there; the case is also tested with a 28 lb steel dart dropped from a height of 3 feet, submerged for 30 minutes at a depth of 3.3 feet, and wheels are roll tested over 1,000 yards with loads at 5 mph.

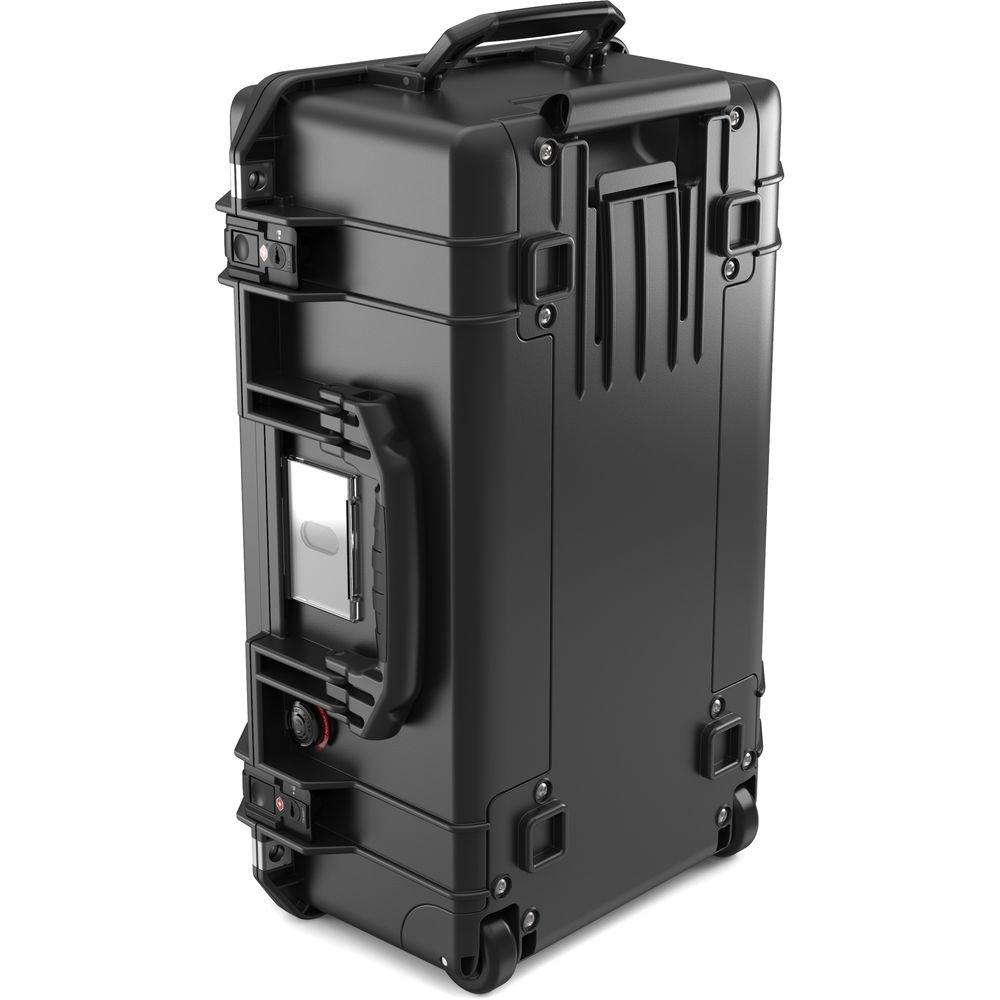

Fully-featured, the case has ABS double-throw latches that accept a user-supplied padlock, a watertight O-ring gasket, an automatic purge valve, and stainless-steel hasp protectors. Users will appreciate the new, stylish conic curve lid shape, rubber overmolded handles, and an extending trolley handle. Additionally, for easier case ID, there's an attractive, removable polycarbonate card holder that may be placed on the front or side of the case.

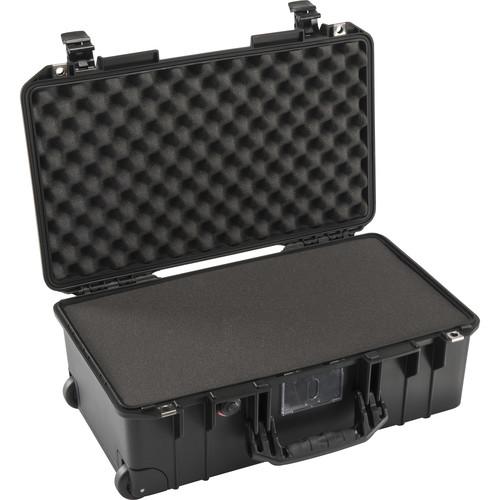

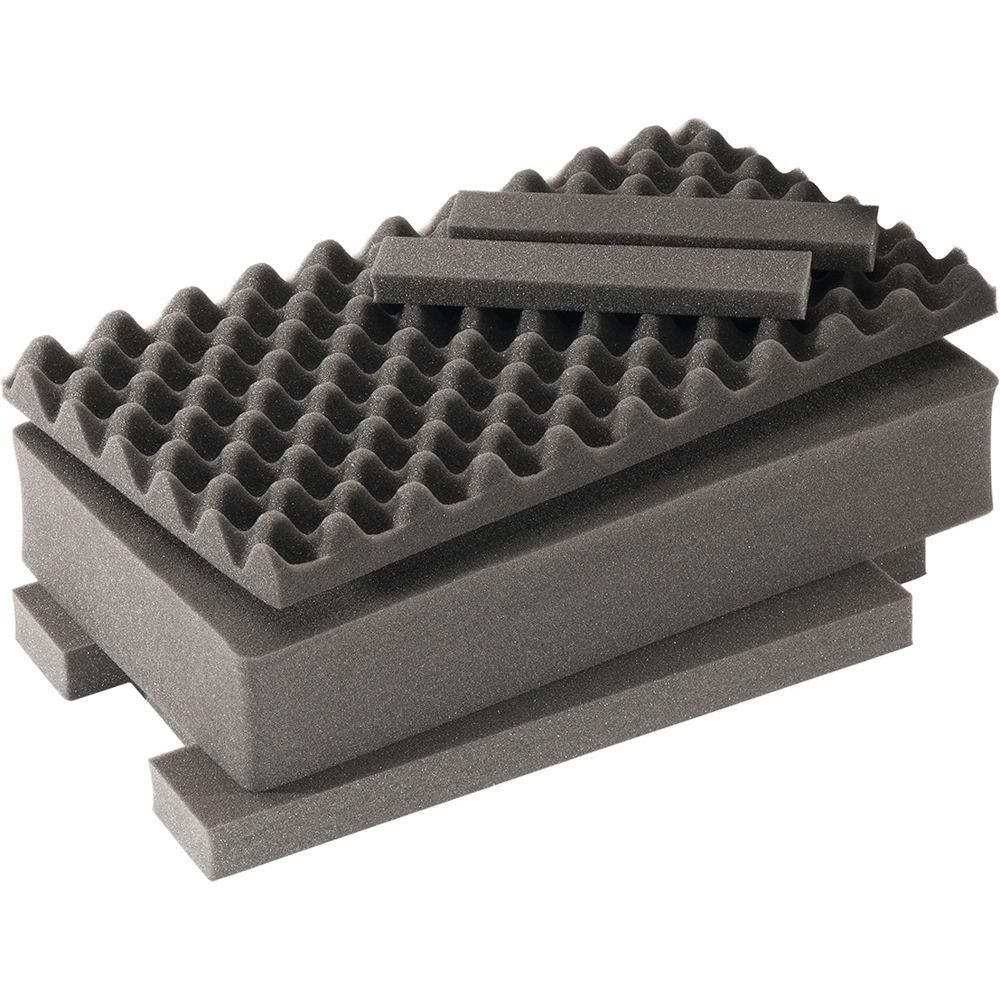

Organizing equipment is an easy and straightforward operation with the Pick-N-Pluck foam interior. Simply arrange the gear you wish to carry on the foam, try a variety of placements, and when you're satisfied, remove pieces of foam until items fit to your satisfaction. UPC: 019428154363 In the Box Pelican 1535 Air 2017 Wheeled Carry-On Case with Pick-N-Pluck Foam (Black) Pick-N-Pluck Foam Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelican 1535 Air 2017 Wheeled Carry-On Case with Pick-N-Pluck Foam in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelican 1535 Air Case Specs | Material | Body: HPX polypropylene blend polymer
Latch: ABS
O-Ring: EPDM
Purge Body: ABS
Purge Vent: Hi-flow Gore-Tex 3-micron hydrophobic non-woven
Purge O-Ring: 70 Shore Nitrile | | Waterproofing | Watertight O-ring gasket | | Maximum Buoyancy | Floats in salt water with 64.8 lbs / 29.4 kg | | Temperature Range | 0 - 140°F / -18 - 60°C | | Type of Closure | Hinged with double ABS latches | | Interior Fitting | Pick-N-Pluck foam | | Carrying/Transport Options | Overmolded handle, extending trolley handle, and wheels | | Volume | 7.1 gal / 26.9 L | | Interior Dimensions | Overall: 20.39 x 11.2 x 7.21" / 51.8 x 28.4 x 18.3 cm
Bottom Depth: 5.21" / 13.2 cm
Lid Depth: 2" / 5.1 cm | | Exterior Dimensions | 21.96 x 13.97 x 8.98" / 55.8 x 35.5 x 22.8 cm | | Weight | 9.98 lb / 4.53 kg | | | | Package Weight | 11.4 lb | | Box Dimensions (LxWxH) | 22.5 x 14.5 x 9.0" |
