User Manual for Pelican 2780 LED Headlight Click to enlarge the picture
Contents of the user manual for the Pelican 2780 LED Headlight
- Product category: Headlamps Pelican
- Brand: Pelican
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelican Headlamps
 |
User manual for the Pelican 2780 LED Headlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelican product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelican user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelican product will considerably shorten its lifespan!
|

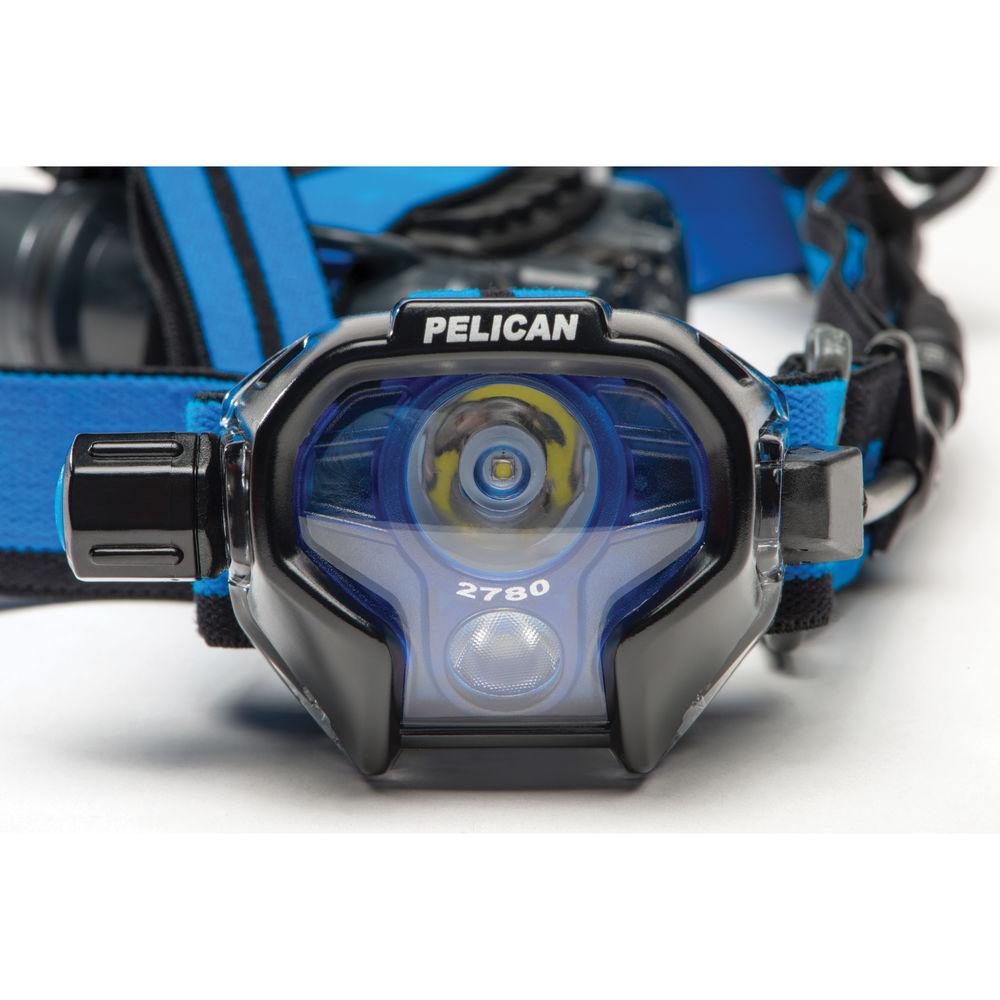

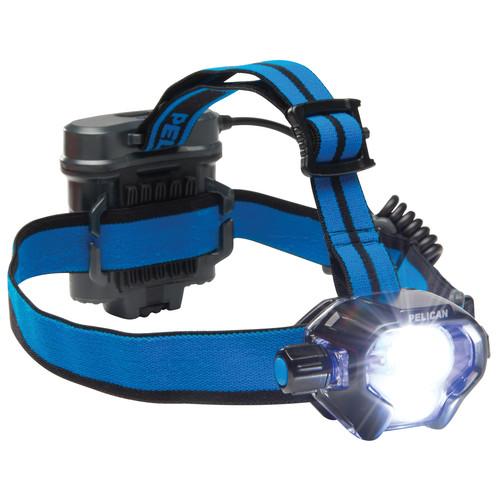

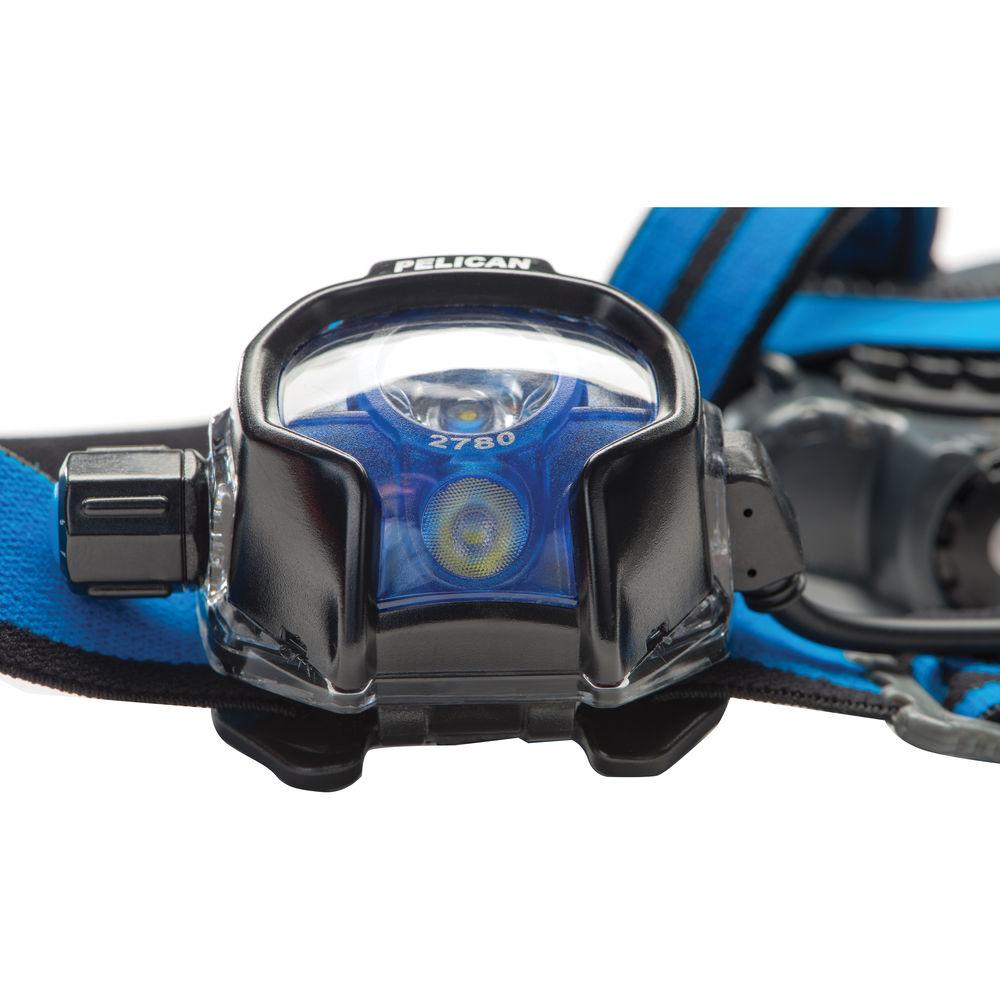

Product description The 2780 LED Headlight from Pelican is a versatile waterproof headlight that offers a wide beam steering angle and a variety of lighting modes. The light features a forward-pointing LED and a downcast LED. In addition to separate forward and downcast illuminations, the headlight can provide a combination of the two and a selection of lighting modes: low, medium, high, and strobe. To help you put the light beam where it is needed most, the pivoting head allows you to steer the beam 70°.
The lightweight housing is IPX7-rated and provides waterproof performance, which protects the light from damage when submerged to 3.3' for 30 minutes. Its elasticized headband is adjustable to accommodate most wearers. The battery compartment is located in the back to counterbalance the front light and houses four included AA batteries. Also supplied with the headlight are three interchangeable front cover plates of different colors: green, black, and white. - Light Performance
-
- Low: 53 lumens
- Medium: 203 lumens
- High: 430 lumens
- Forward LED serves as a main illumination source
- Downcast LED illuminates the path

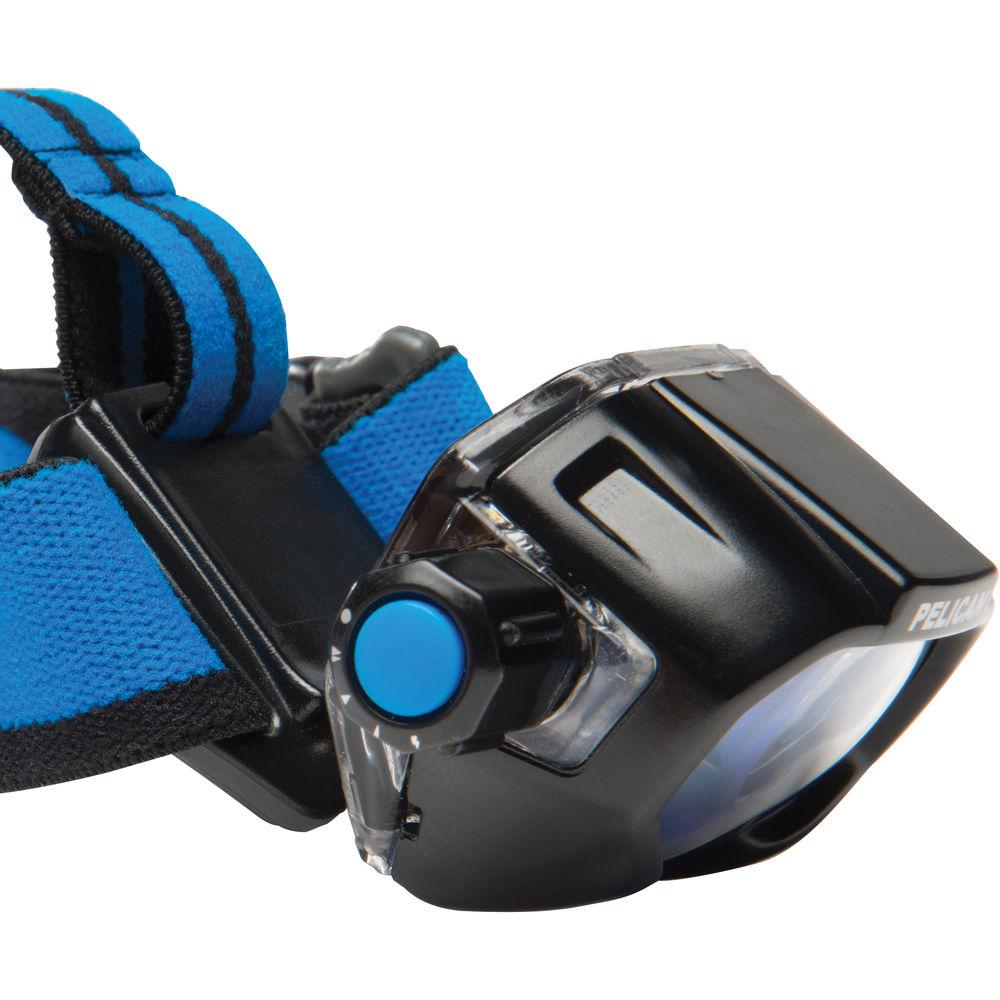

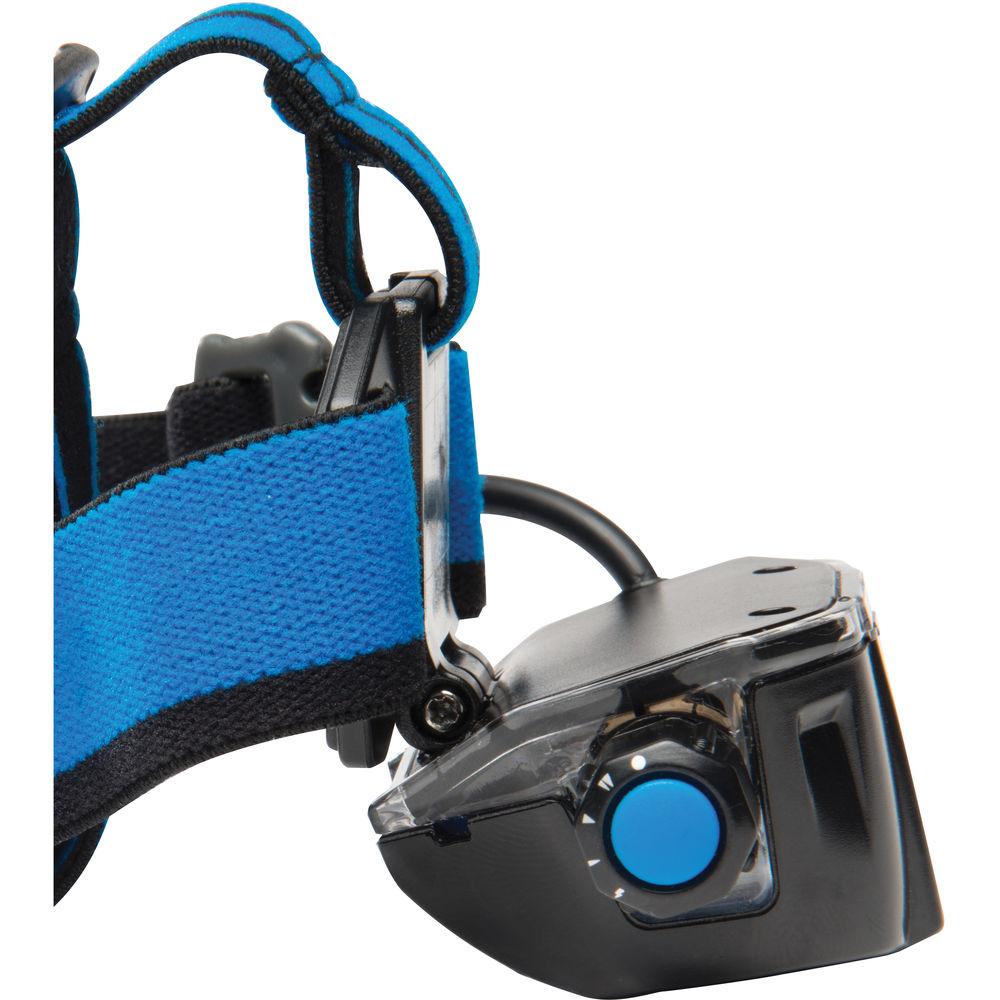

- Pivoting head allows 70° beam steering
- Low, medium, high, and strobe modes
- Switching and Electronics
-
- Pushbutton and rotary switches
- Battery indicator has three blue LEDs
- The battery compartment accommodates four AA batteries
- Construction Details
-
- Green, black, and white interchangeable front covers are included
- Adjustable headbands provide a secure fit

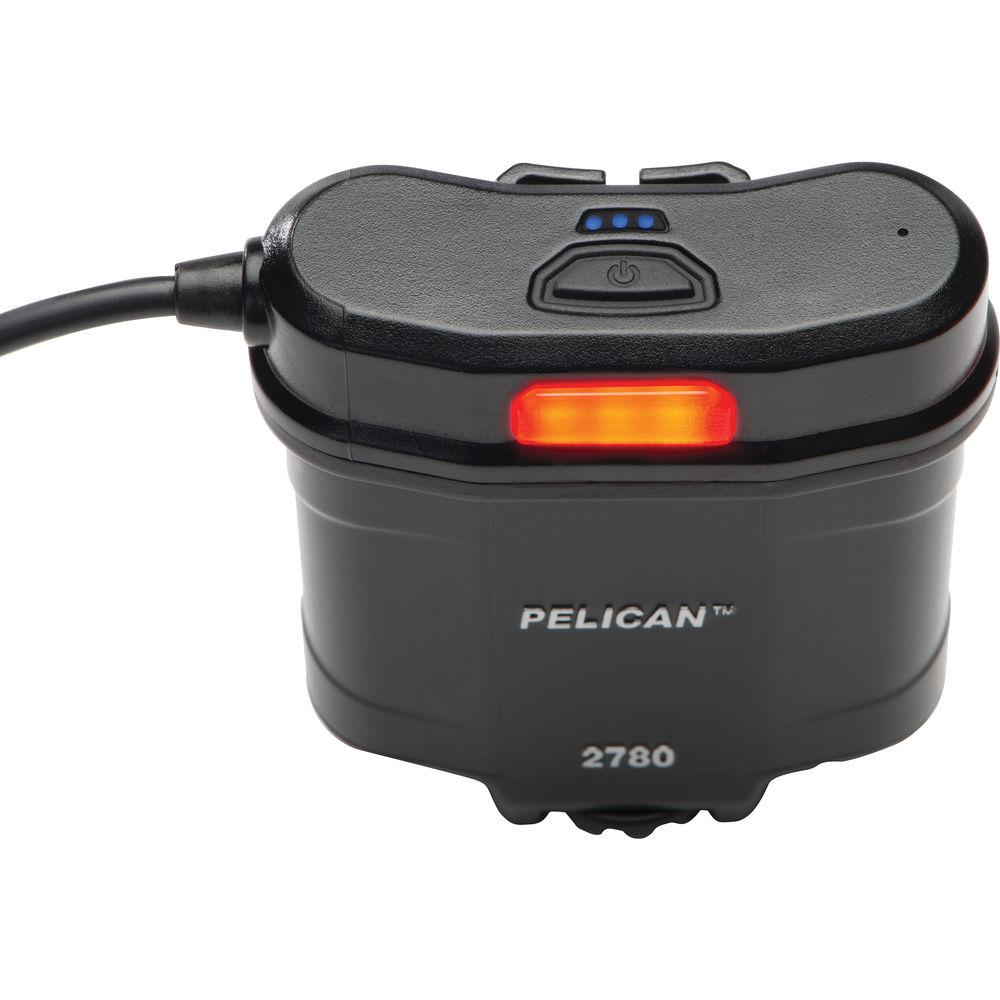

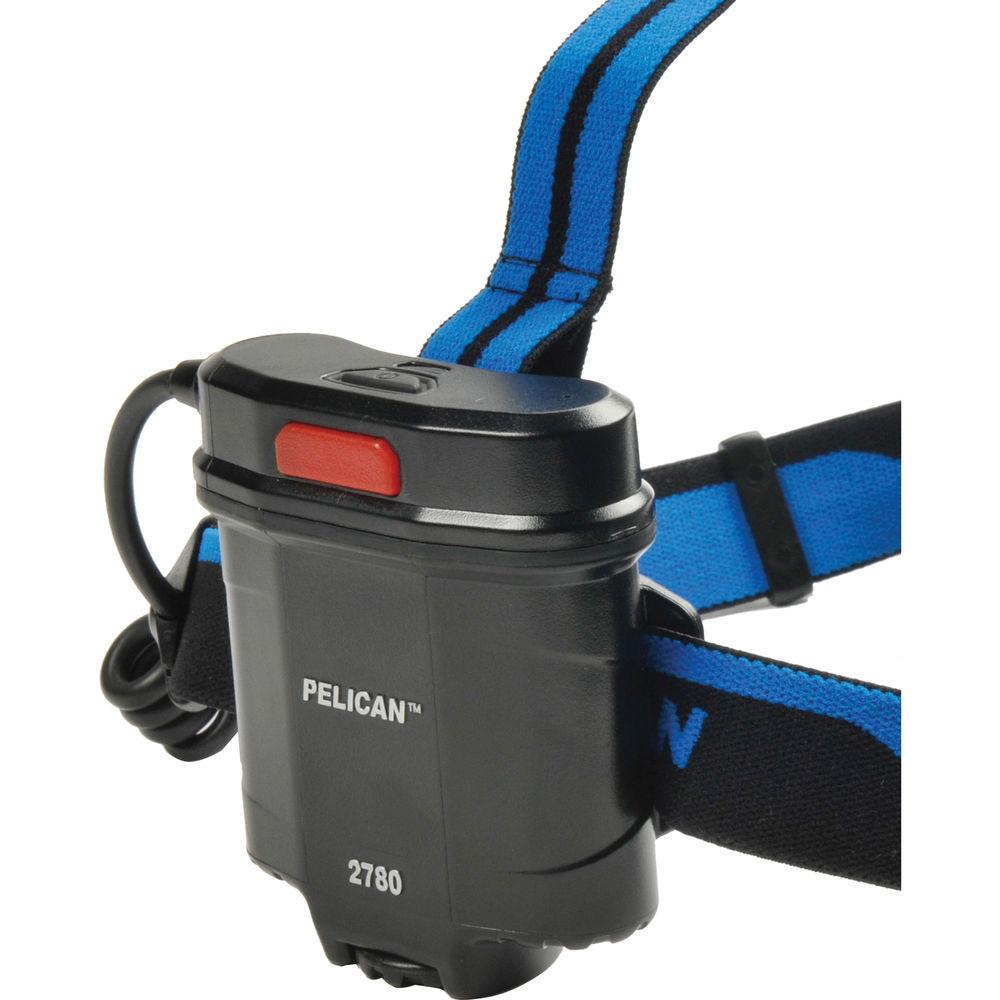

- Rear battery compartment holds more batteries and provides better balance
- IPX7-rated, waterproof submersible to 3.3' for 30 minutes
UPC: 019428128791 In the Box Pelican 2780 LED Headlight - 4 x AA Batteries
- 3 x Interchangeable Cover Plates
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelican 2780 LED Headlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelican 027800-0000-110 Specs | | | Lumen Output | High: 430 Lumens
Medium: 203 Lumens
Low: 53 Lumens | | Illumination Source | 1 x LED | | Estimated Runtime | High: 1.5 Hours
Medium: 3 Hours
Low: 12 Hours | | Battery Type | 4 x AA | | | | Water Resistance | Waterproof to 3.3' / 1 m, IPX7 | | Dimensions | W: 3.0" / W: 7.6 cm | | Weight | 8.8 oz / 250 g (With Batteries) | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 7.5 x 4.3 x 3.6" |
