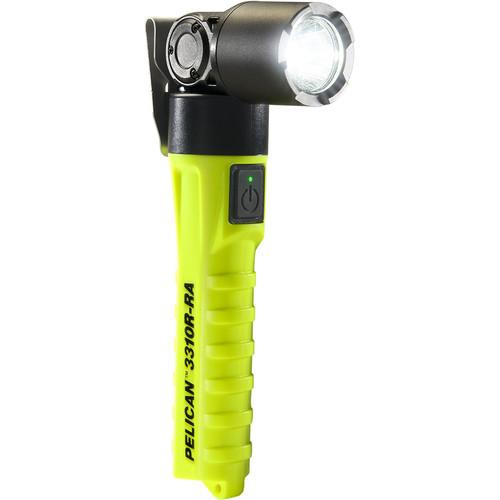

Product description Designed with first responders, industrial professionals and skilled trades people in mind, the yellow Pelican 3310R-RA Right Angle Rechargeable FlashLight is also well-suited to recreational and home use. Clip it to a pocket and your hands are free for tools and tasks. Compact and waterproof, the light offers two brightness levels, a high-power boost setting and a flashing mode, with a maximum runtime of more than two days. The 3310R's 3.7V lithium ion battery recharges in five hours and will run the 403-lumen high power setting for two hours and the 21-lumen low setting for 50 hours. The boost setting puts out an impressive 1067 lumens on a momentary basis when the brightest light is needed. You'll always know how much power you have, thanks to the full-time battery level indicator on the on/off switch. The light is built for the rigors of daily use, with a sturdy ABS plastic body, type II anodized aluminum head, synthetic rubber O-ring gasket and a glass lens with anti-reflective coating for optimal light transmission. - Performance
-
- Low: 21 lumens
- High: 403 lumens
- Boost: 1067 lumens
- Flashing mode
- White LED
- Switching
-
- Location: Side
- Type: Click-type pushbutton
- Momentary and constant-on modes
- Click for constant output, press and hold for boost level
- Construction
-

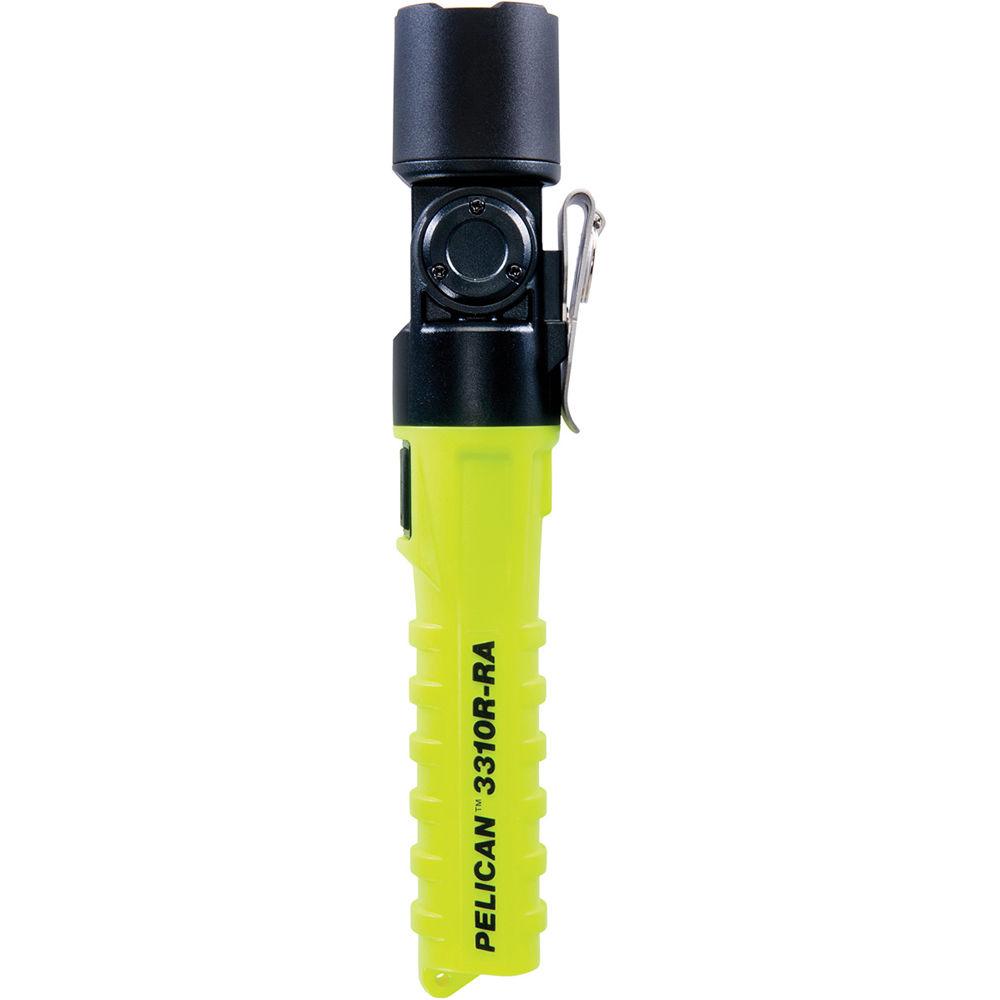

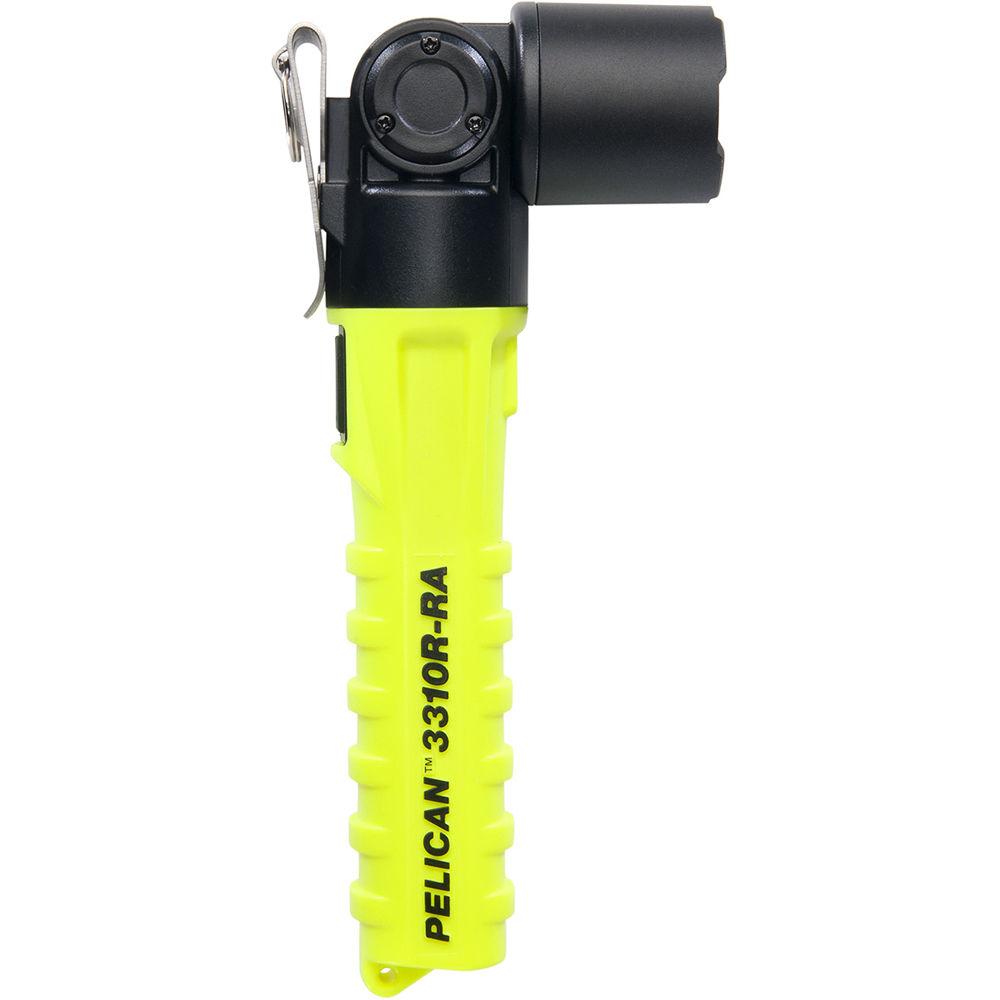

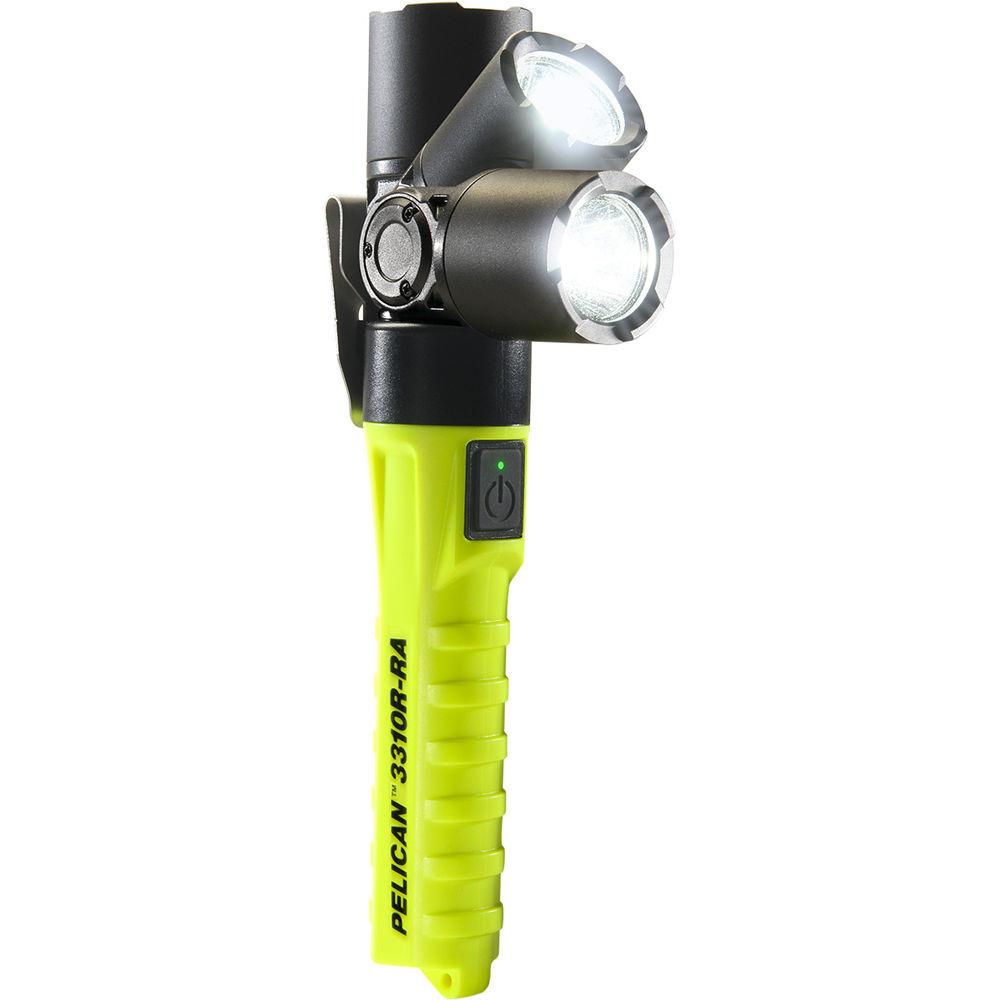

- Right-angle head with pocket/belt/strap clip for hands-free illumination
- ABS plastic housing
- Type II anodized aluminum shroud
- Anti-reflective coated glass lens
- Synthetic rubber O-ring seal
- IPX8-rated, waterproof to 3.3' for up to 30 minutes
- On-board charging 3.7V lithium ion battery
- Lightweight: 5.4 oz with battery

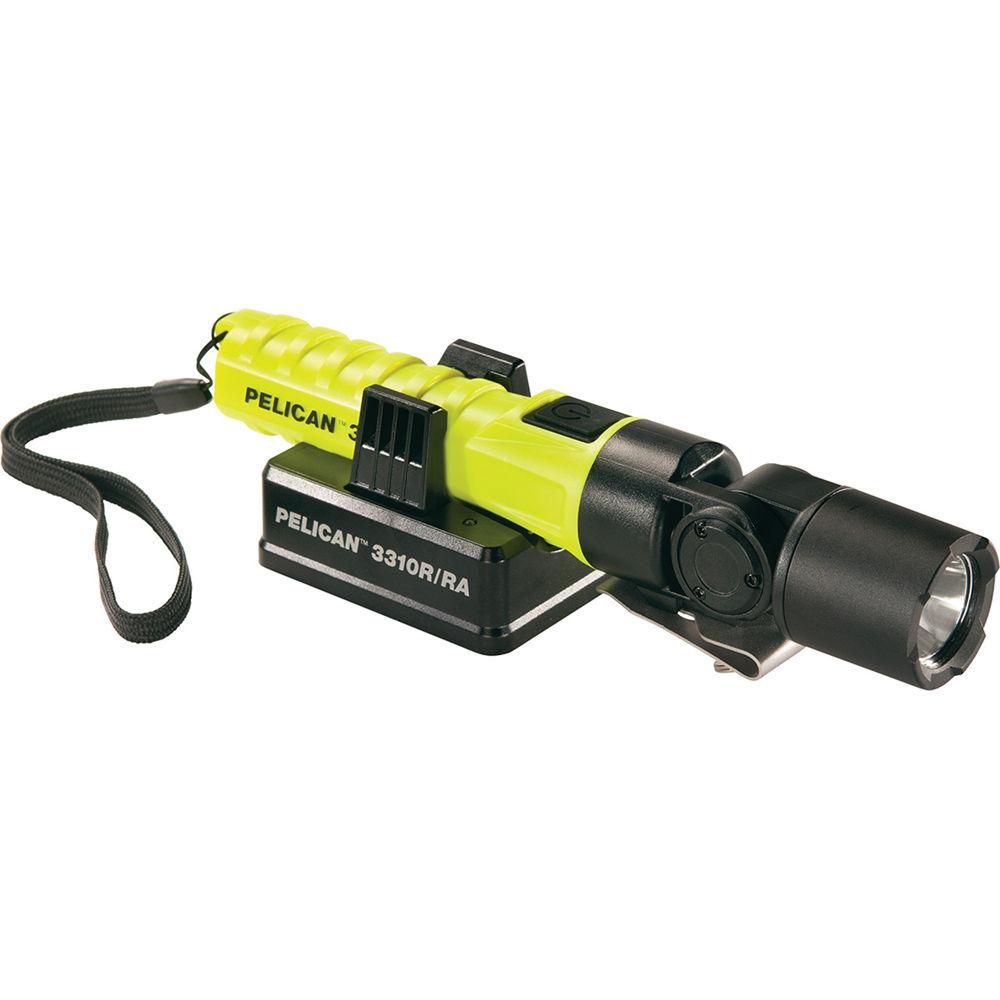

In the Box Pelican 3310R-RA Right-Angle Rechargeable FlashLight (Yellow) Charging Dock Lanyard 18650 Li-Ion Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelican 3310R-RA Right-Angle Rechargeable FlashLight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelican 3310R Specs | | | Lumen Output | High: 403 Lumens
Low: 21 Lumens
Turbo: 1067 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | High: 2 Hours
Low: 50 Hours | | Battery Type | 1 x Built-In Lithium-Ion | | Output Voltage | 3.7 VDC | | | | Material of Construction | Aluminum, Plastic | | Water Resistance | Waterproof to 3.3' / 1 m, IPX8 | | Dimensions | L: 6.1" / L: 15.5 cm | | Weight | 5.4 oz / 153 g (With Batteries)
3.6 oz / 102 g (Without Batteries) |
