User Manual for Pelican 3765 Rechargeable Right-Angle LED Flashlight Click to enlarge the picture
Contents of the user manual for the Pelican 3765 Rechargeable Right-Angle LED Flashlight
- Product category: Handheld Flashlights Pelican
- Brand: Pelican
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelican Handheld Flashlights
 |
User manual for the Pelican 3765 Rechargeable Right-Angle LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelican product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelican user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelican product will considerably shorten its lifespan!
|

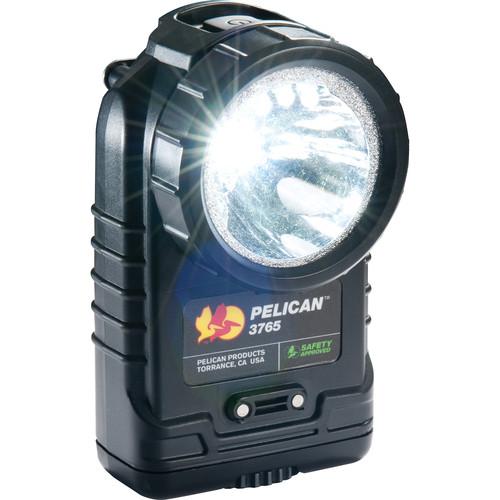

Product description Pelican engineered the black 3765 Rechargeable Right-Angle LED Flashlight to hold up to the demanding needs of firefighters and workers in hazardous industrial environments.Its head is set at a right angle to the body, making it ideal for wearing on a belt, a harness, or MOLLE-type gear for hands-free use. The single LED produces a low output of 113 lumens with a high of 237 lumens, with a secondary low-output LED set at a downward angle to light the way directly in front of you for added safety in smoky conditions. An auxiliary flashing mode can be used to signal to a partner. The light is driven by four included NiMH batteries that can be recharged in the light using the included charging base. If your batteries run out of their charge before your shift is over, the light can run on four standard AA alkaline batteries.The body is made of ABS plastic, which is corrosion and impact resistant, as well as temperature resistant. Its resistance to high temperatures ensures it will keep working in extreme conditions, while also remaining a neutral comfortable temperature in cold and wet conditions. The body is sealed to an IPX4 rating, allowing its use in driving rain and water. - Light Performance
-
- Low output of 113 lumens
- High 237-lumen output
- Single white LED emitter
- 140-lumen flashing mode can be used to signal or to mark location
- 32-lumen downcast light illuminates the area directly in front of the user for safe navigation
- Switching
-
- Type: Push button
- Location: Top of head
- Opt for low or high output with downcast light, or downcast only
- Press and hold switch to activate flashing signal mode
- Construction Details
-
- Approved to NFPA (National Fire Protection Association) 1901 standard for use by firefighters and in hazardous industrial environments
- Black ABS polymer plastic housing
- Temperature, impact, and corrosion resistant

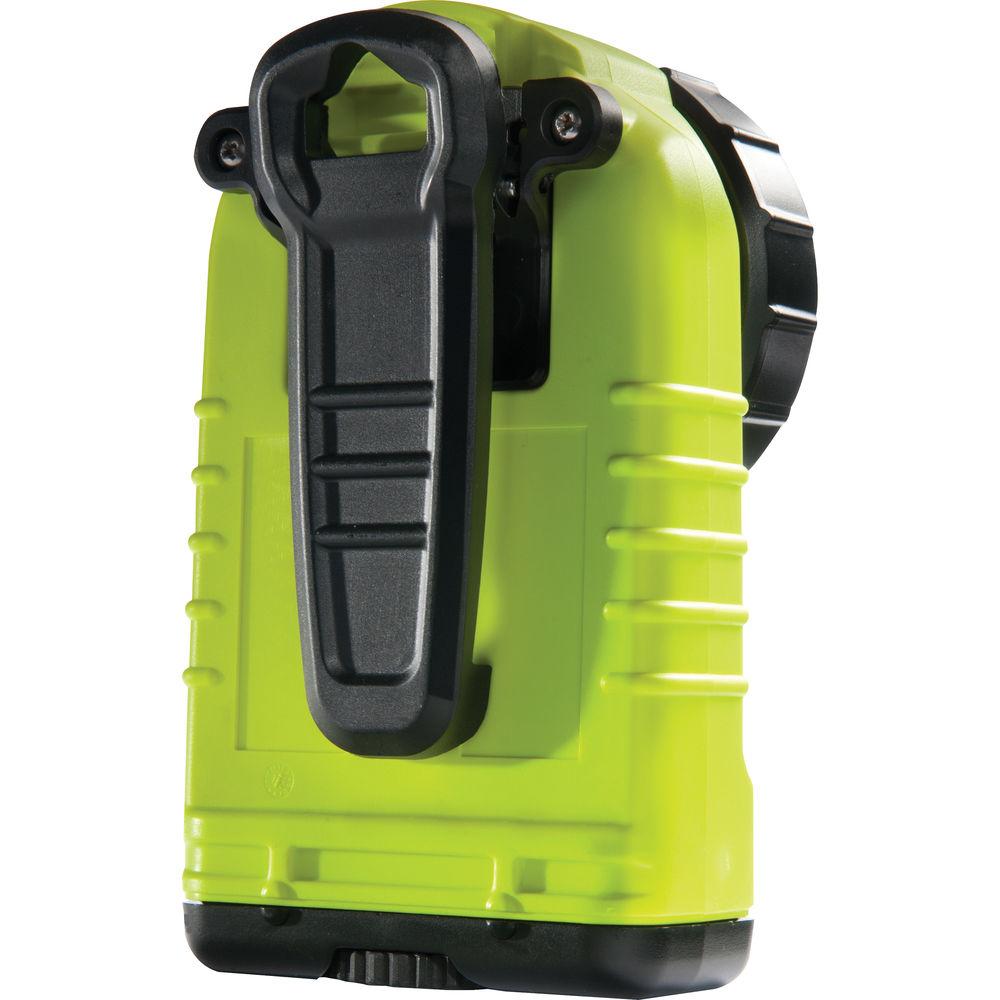

- Integrated oversized hands-free clip for pockets or harnesses
- IPX4-rated water resistant against driving rain or water jets
- Locking battery compartment door
- Electronics
-
- Integrated battery level and charging indicators

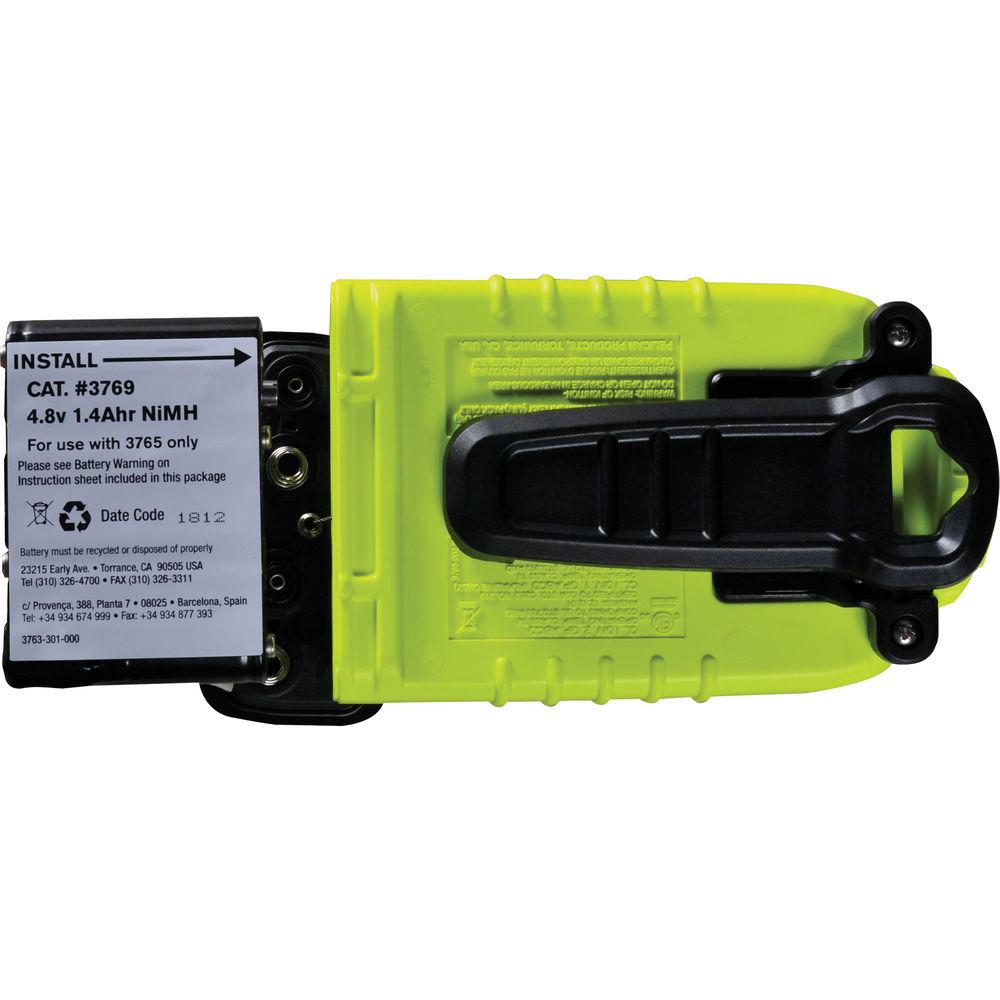

- Runs on four included rechargeable NiMH batteries
- Capable of running on four disposable AA alkaline batteries

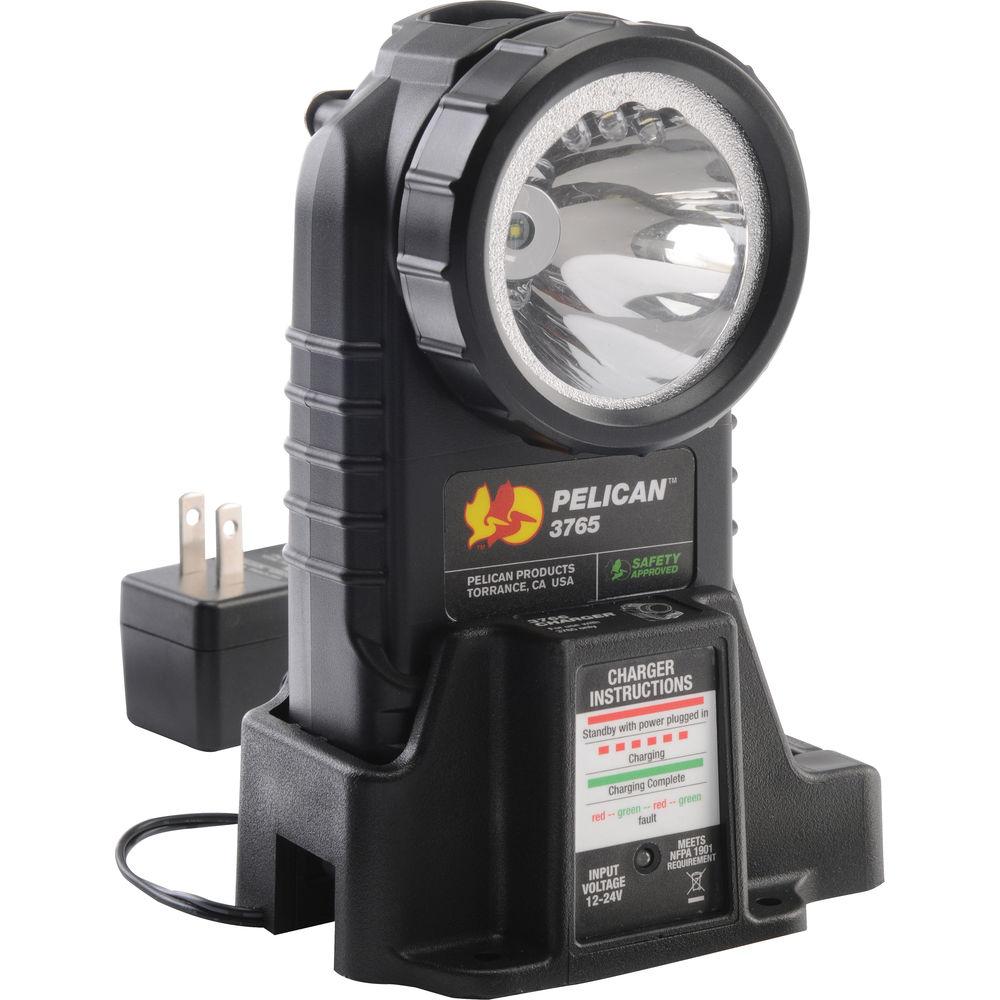

- Charging base with 110 VAC power cord included
UPC: 019428154325 In the Box Pelican 3765 Rechargeable Right-Angle LED Flashlight (Black) 4 x NiMH AA Batteries Charging Dock 100-240 VAC Charge Cord Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelican 3765 Rechargeable Right-Angle LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelican 3765 Specs | | | Lumen Output | Low: 113 Lumens
High: 237 Lumens
Strobe: 140 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | Low: 6.5 Hours
High: 3 Hours
Strobe: 9 Hours | | Battery Type | 4 x AA NiMH | | Charging Time | 3.5 Hours | | | | Lens Material | Polycarbonate | | Material of Construction | ABS Polycarbonate | | Water Resistance | Water Resistant, IPX4 | | Dimensions | L: 5.4" / L: 13.6 cm | | Weight | 14.60 oz / 414.0 g (With Batteries)
11.01 oz / 312.0 g (Without Batteries) |
