User Manual for Pelican 7000 LED Flashlight v2 Click to enlarge the picture
Contents of the user manual for the Pelican 7000 LED Flashlight v2
- Product category: Handheld Flashlights Pelican
- Brand: Pelican
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelican Handheld Flashlights
 |
User manual for the Pelican 7000 LED Flashlight v2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelican product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelican user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelican product will considerably shorten its lifespan!
|

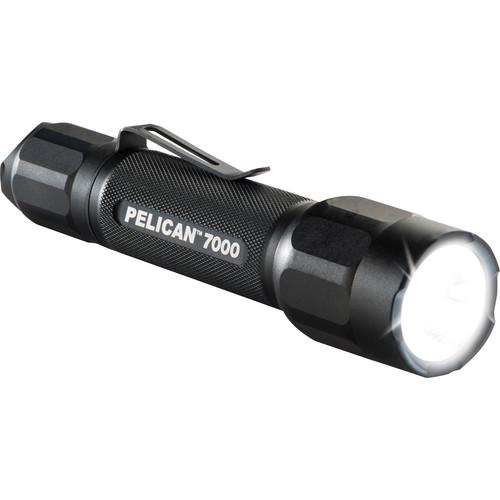

Product description Pelican updated their flagship tactical light with increased outputs to produce their second edition of the 7000 LED Flashlight. Its form and function remain the same, but the low output is increased by more than 50% to 99 lumens and the high is boosted to 774 lumens - an increase of nearly 30%. The light comes with four preset programs that are chosen by pressing the two-stage tactical tailcap switch a number of times, with confirmation of the selected program being indicated by a number of flashes. Use this same method to activate the battery status function to find out how much power is left.Built for a lifetime of duty, the housing is made of a lightweight and durable aluminum alloy with a scratch and corrosion-resistant anodized finish. It is O-ring sealed to achieve an IPX7 rating, making it waterproof and submersible to 3.3' for up to 30 minutes. Rounding out the thoughtful design is a partially-shrouded tailcap to prevent accidental activation, and an octagonal anti-roll design on the tailcap and head. This practical tactical light is powered by one 18650 or two CR123 lithium batteries, and Pelican includes two CR123 to get you started. - Performance
-
- Low: 99 lumens
- Med: 457 lumens
- High: 774 lumens
- One white LED emitter
- Disorientating strobe mode
- Preset programs allows customized options for specific jobs/uses

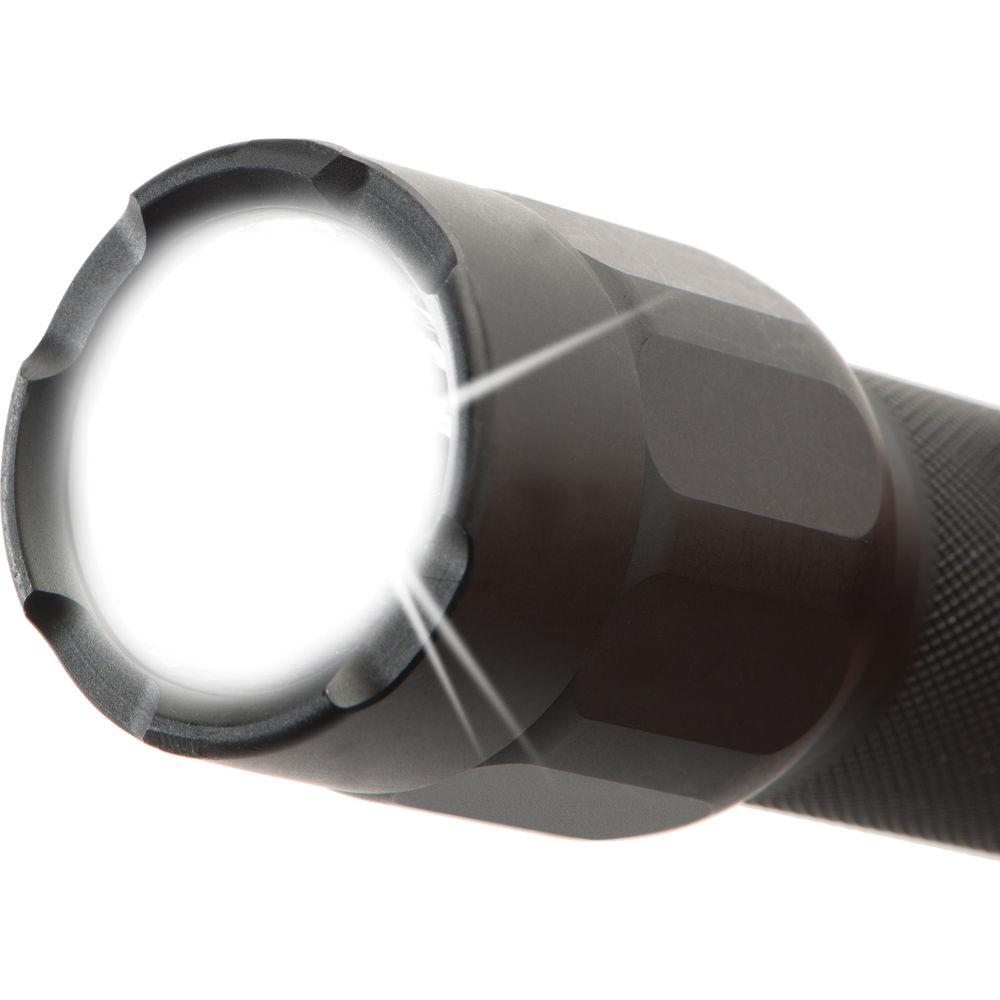

- Reflector produces a tight center spot with wide spill
Preset programs:- #1: High > Strobe > Medium > Low
- #2: High Only
- #3: High > Medium > Low
- #4: Low > Medium > High
- Switching
-
- Location: Tailcap
- Type: Two-stage pushbutton
- Momentary and constant-on activation
- Press button a predetermined number of times to select one of the four programs or to select the battery status feature
- Partially-shrouded tailcap helps to prevent accidental activation
- Construction
-
- Lightweight and durable aluminum alloy housing
- Scratch and corrosion-resistant anodized finish
- IPX7-rated, waterproof and submersible to 3.3' for 30 minutes
- Octagonal anti-roll head and cap design
- Nickle-plated steel clip

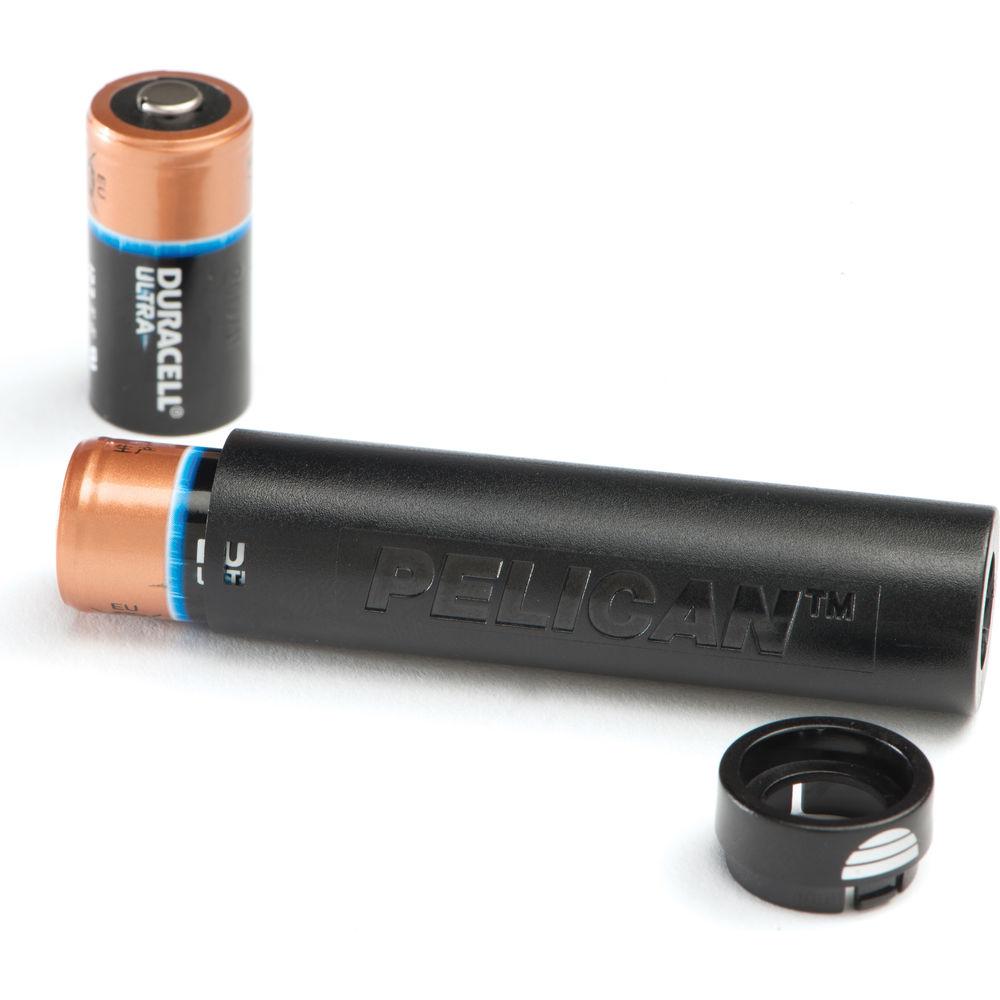

- Runs on one 18650 or two CR123 batteries
- Two CR123 lithium batteries are included
UPC: 019428134860 In the Box Pelican 7000 LED Flashlight v2 (Black) 2 x CR123 Battery Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelican 7000 LED Flashlight v2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelican 070000-0001-110 Specs | | | Lumen Output | High: 774 Lumens
Medium: 457 Lumens
Low: 99 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | High: 1.5 Hours
Medium: 2 Hours
Low: 16 Hours | | Battery Type | 2 x CR123A | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 3.3' / 1 m, IP67 | | Dimensions | L: 5.3" / L: 13.5 cm | | Weight | 4.4 oz / 124.7 g (Without Batteries)
5.6 oz / 158.8 g (With Batteries) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 7.5 x 4.4 x 1.5" |
