User Manual for Pelican 7100 Rechargeable Tactical Flashlight Click to enlarge the picture
Contents of the user manual for the Pelican 7100 Rechargeable Tactical Flashlight
- Product category: Handheld Flashlights Pelican
- Brand: Pelican
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelican Handheld Flashlights
 |
User manual for the Pelican 7100 Rechargeable Tactical Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelican product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelican user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelican product will considerably shorten its lifespan!
|

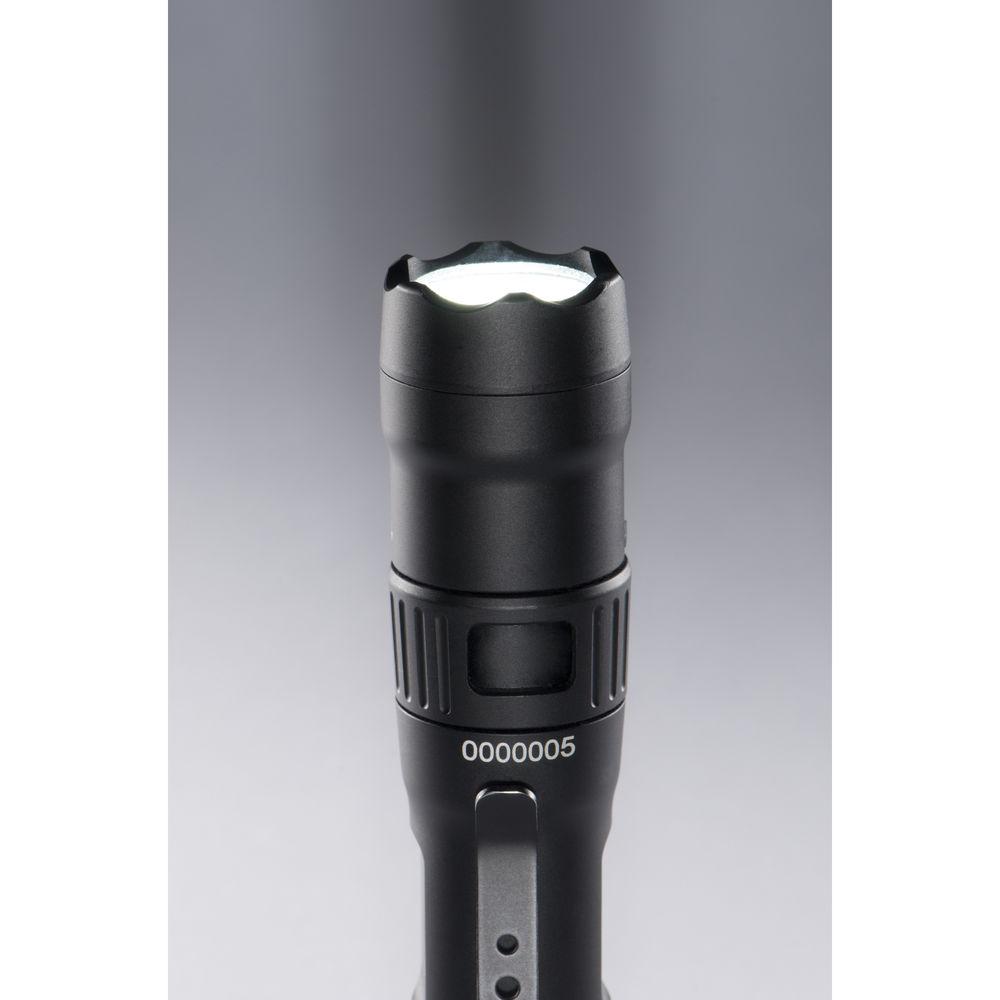

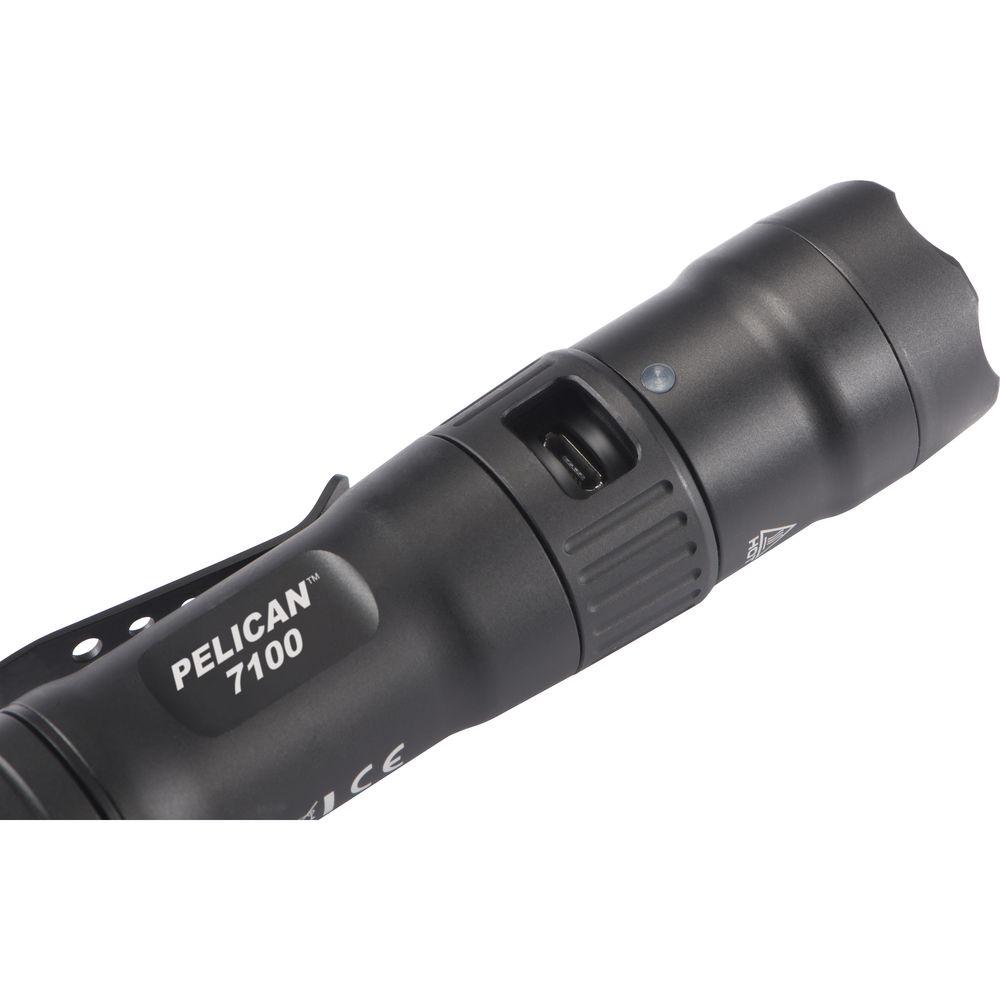

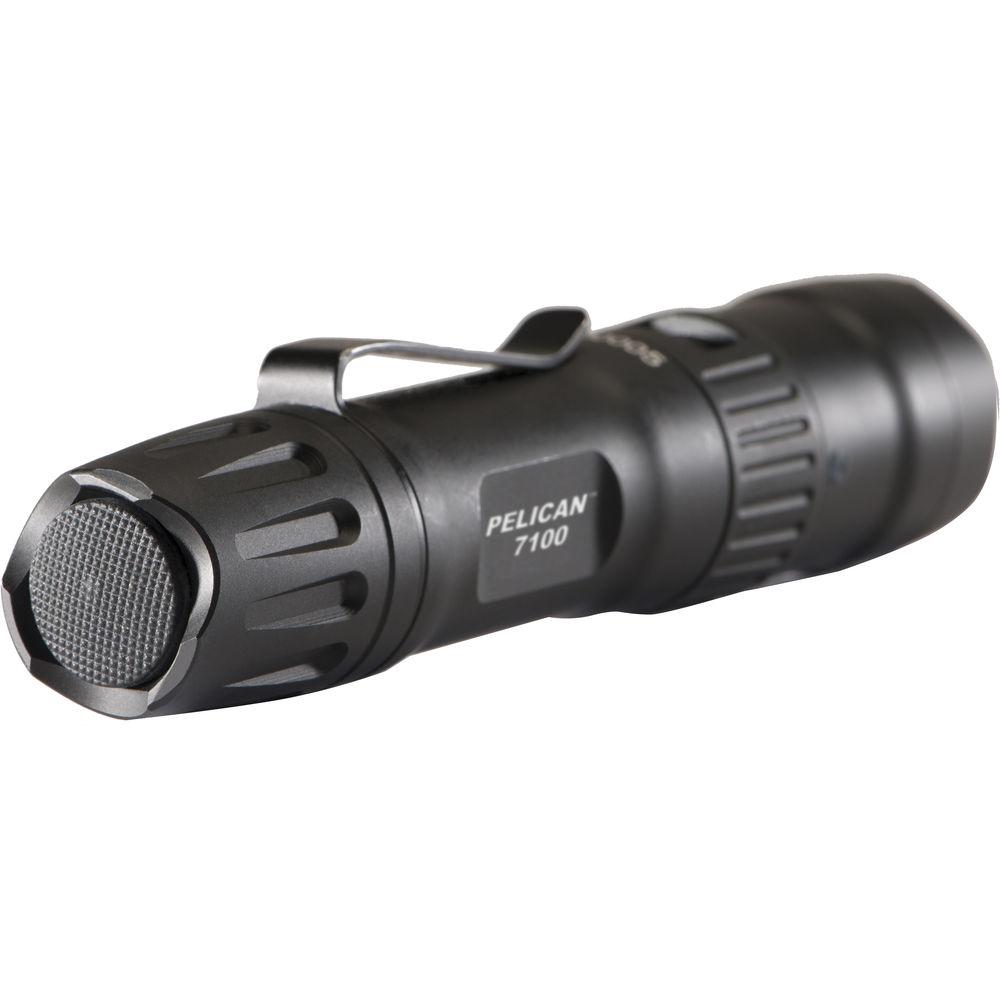

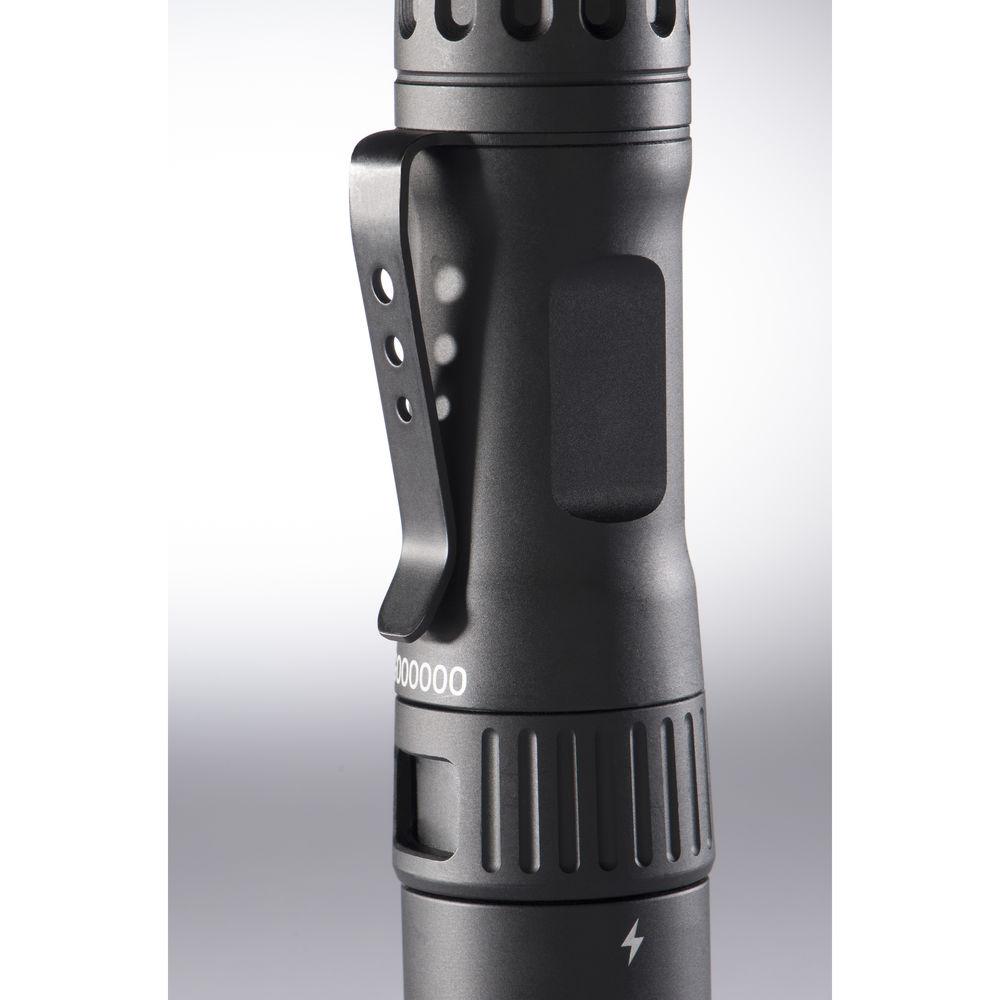

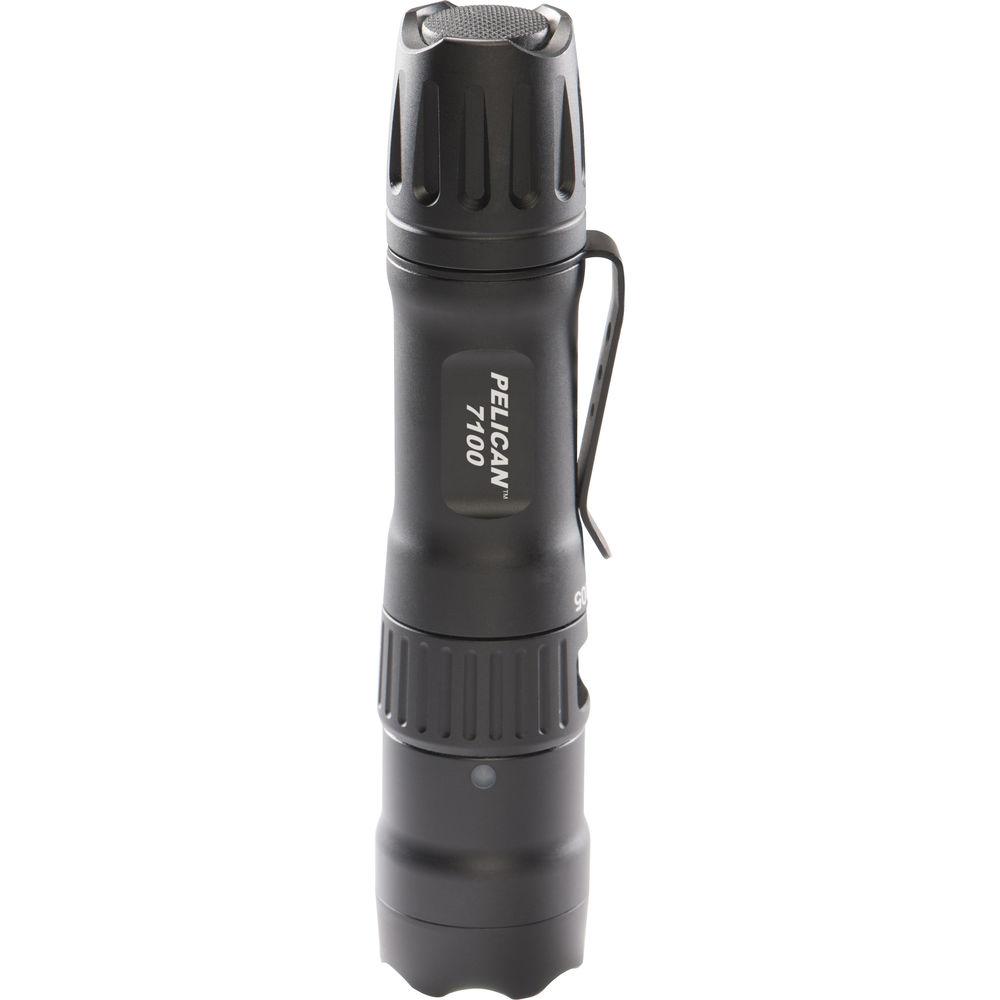

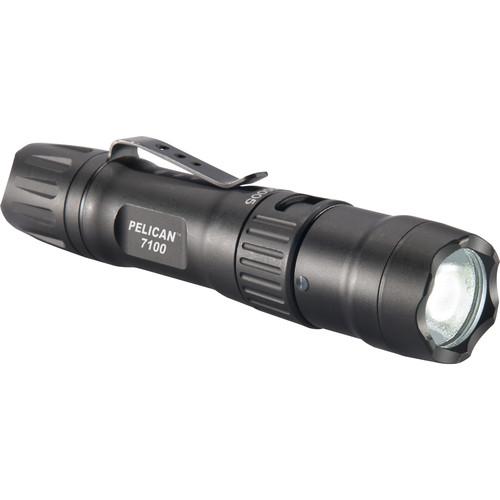

Product description The 7100 Tactical Flashlight from Pelican is a compact, versatile piece of gear for personal or professional use. Its battery recharges onboard via the built-in USB port and it offers up to 695 lumens output, has a maximum runtime of 9.25 hours and allows you to customize the way it cycles through brightness settings. The 7100 is equipped with one 14500 lithium-ion battery that can be charged in 90 minutes. Runtime ranges from 1.25 hours on high power to 9.25 hours on low. The flashlight features a built-in battery level indicator. In a pinch, it can run on one AA alkaline battery. You can choose from among four programmed brightness setting cycles (high/strobe/medium/low, high only, high/medium/low, low/medium/high, high/low). The housing is constructed of type II anodized aluminum that will stand up to the rigors of everyday use, and the lens is made of anti-reflective coated glass. The 7100 is rated IPX8 water-resistant and can withstand being submerged around a depth of 3.3 feet. Measuring just 5.1", the light comes with a removable, high-carbon steel clip for carry options. - Light Performance
-
- Low: 33 lumens
- Medium: 348 lumens
- High: 695 lumens
- Runtimes: 9.25 hours/low, 1.5 hours/medium, 1.25 hours/high
- White LED emitter
- Switching & Power
-
- Tailcap pushbutton with momentary and constant on
- Choose from four brightness setting programs
- One rechargeable 14500 lithium-ion battery

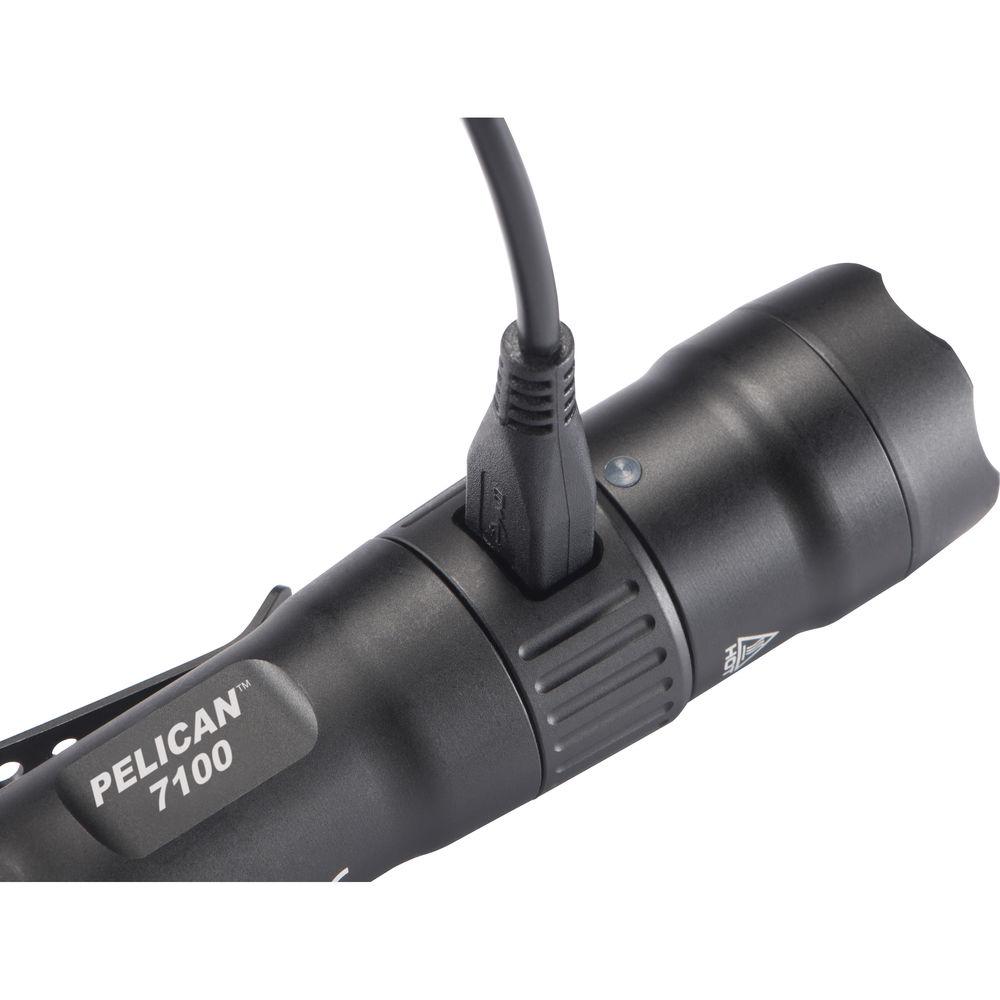

- Onboard charging via built-in USB port
- Full charge in 90 minutes
- Can run on one AA battery
- Battery power/charge indicator light
- Construction Details
-
- Type II anodized aluminum housing
- Temperature, corrosion, and impact-resistant
- Anti-reflective coated glass lens
- Crenellated bezel
- IPX8-rated water-resistance
UPC: 019428138943 In the Box Pelican 7100 Rechargeable Tactical Flashlight (Black) 14500 Lithium-Ion Battery USB Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelican 7100 Rechargeable Tactical Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelican 071000-0000-110 Specs | | | Lumen Output | High: 695 Lumens
Medium: 348 Lumens
Low: 33 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | Low: 9.25 Hours
Medium: 1.5 Hours
High: 1.25 Hours | | Battery Type | 1 x 14500 Lithium-Ion or
1 x AA Alkaline | | Output Voltage | 3.7 VDC | | Charging Time | 1.5 Hours | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof, IPX8 | | Dimensions | L: 5.1" / L: 13.0 cm | | Weight | 4.4 oz / 125 g (With Batteries)
3.6 oz / 102 g (Without Batteries) | | | | Package Weight | 0.435 lb | | Box Dimensions (LxWxH) | 7.7 x 4.65 x 1.4" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Pelican 7100 Rechargeable Tactical Flashlight
| Subject: troubleshooting issue | | Date: 25.04.2022 19:39:38 | Name: Donald K McIntosh | | I now turn the light off and it comes back on about 3 seconds later. I again turn the light off and it comes back on about 3 seconds later. The light will not stay off. | | Post reply |
