User Manual for Pelican 7600 Rechargeable Tactical Tri-Color Flashlight Click to enlarge the picture
Contents of the user manual for the Pelican 7600 Rechargeable Tactical Tri-Color Flashlight
- Product category: Handheld Flashlights Pelican
- Brand: Pelican
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelican Handheld Flashlights
 |
User manual for the Pelican 7600 Rechargeable Tactical Tri-Color Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelican product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelican user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelican product will considerably shorten its lifespan!
|

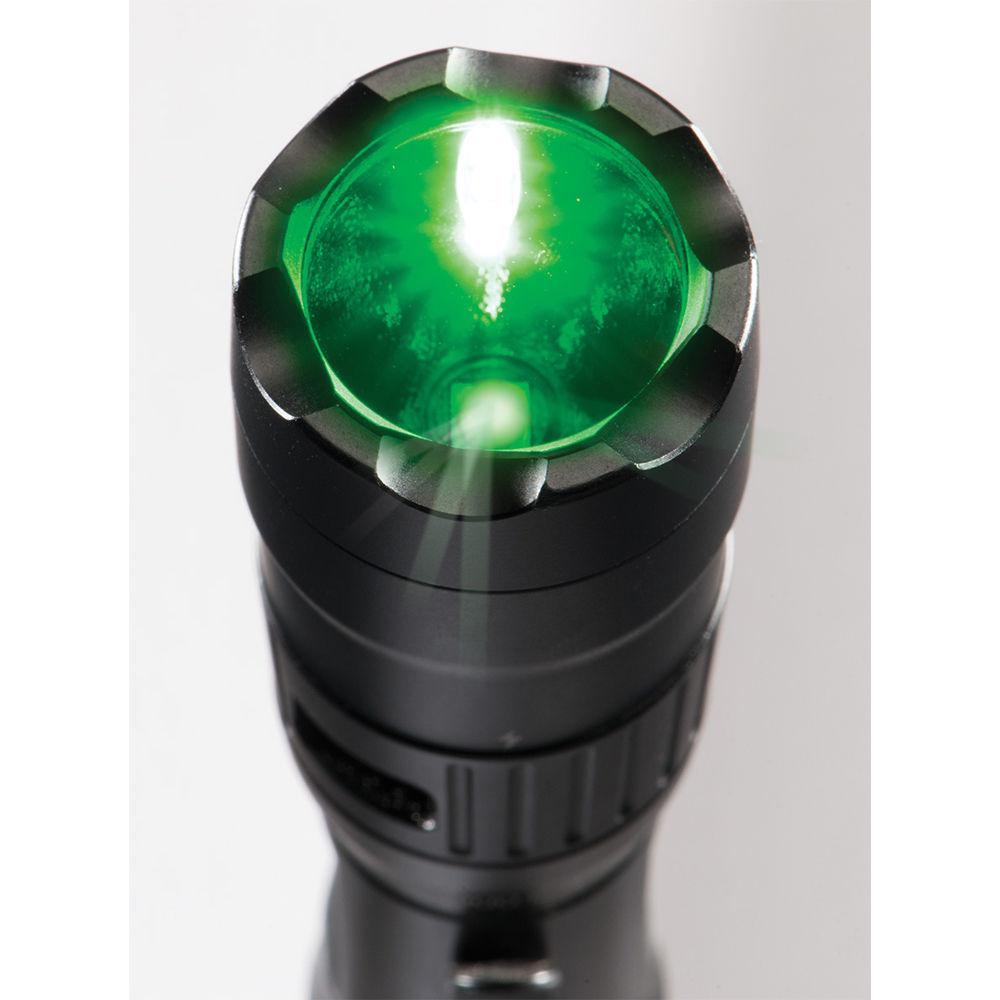

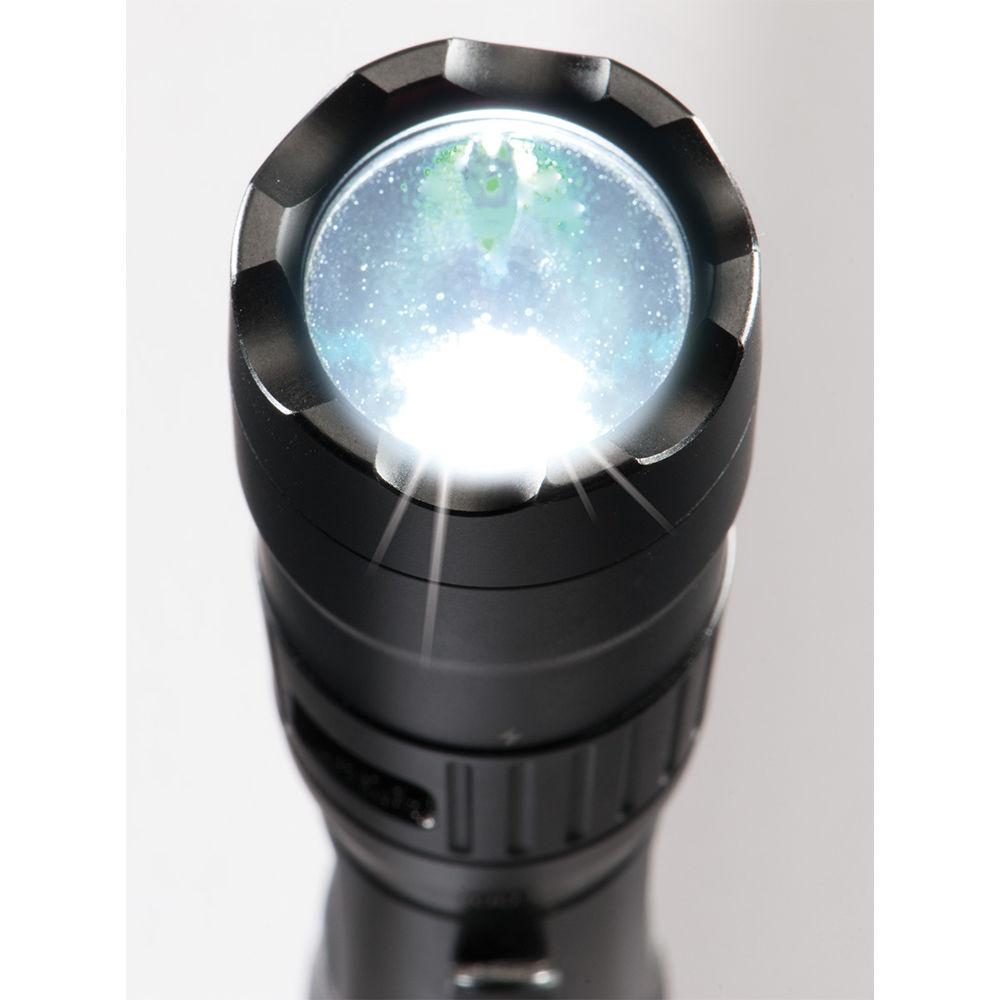

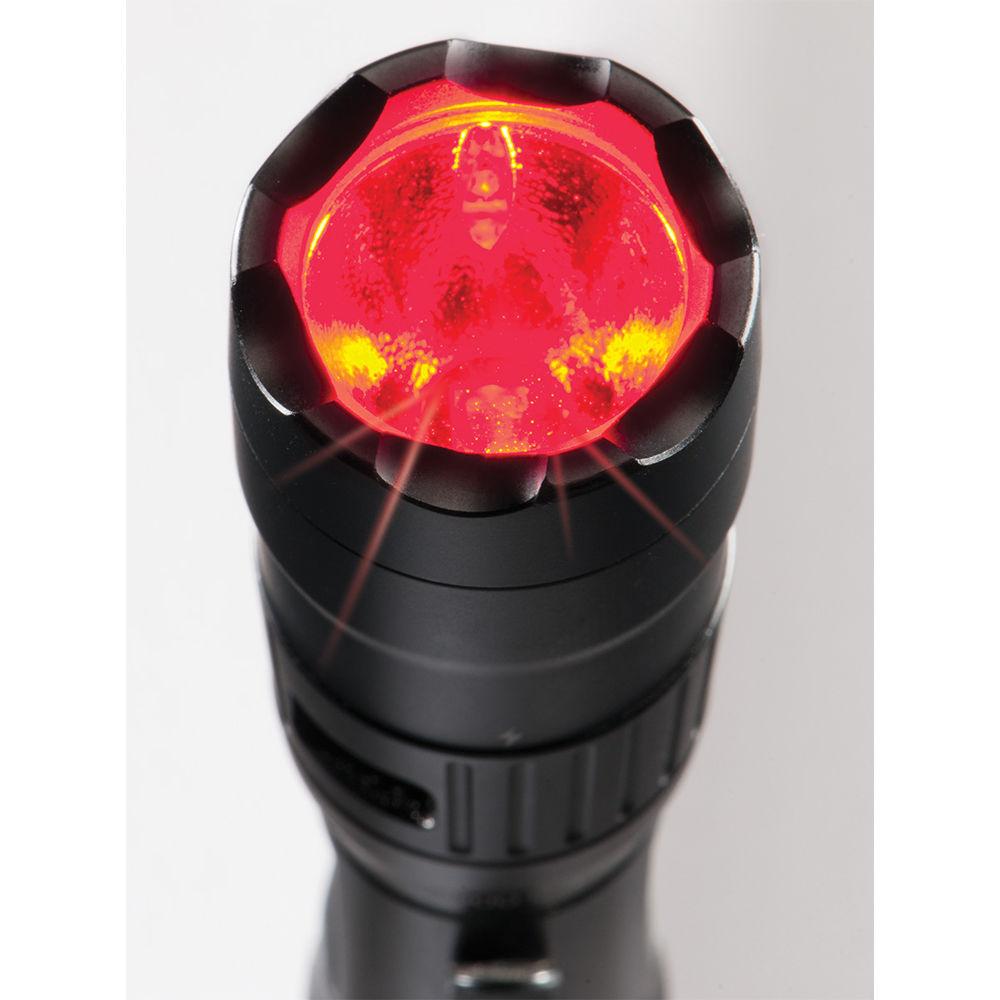

Product description Pelican's 7600 Rechargeable Tactical Tri-Color Flashlight is a versatile, light tool that can accompany you on your trips or help you in your workplace. This durable, waterproof, 944-lumen LED flashlight features three output colors (white, red, and green) and uses one rechargeable 18650 battery or two non-rechargeable CR123 batteries for power. It has a rotating ring on the handle to switch between output colors and offers a built-in micro-USB port for charging the included rechargeable 18650 battery internally. It is compact enough (7") to fit most backpacks or pockets and will not add much weight. It also offer a carbon-steel belt clip for wearing on your waist. For lasting battery life and proper illumination, this product has four light modes (low, medium, high, strobe) and five interchangeable mode activation sequences. Use the tailcap dual push-button switch for activating, deactivating, and configuring this flashlight as needed, and monitor the built-in LED battery status indicator to measure your usage.
The 7600 is outfitted with CNC-machined, high-quality aluminum, and is sealed with an NBR O-ring to be waterproof and submersible to 3.3'. Its anti-reflection coated window is protected with a crenellated bezel, and the diamond-textured, wide push button is surrounded by a crenelated shroud. - Performance
-
- White, green, and red LED illumination
- Low: 37 lumens for 29 hours
- Medium: 479 lumens for 4.5 hours
- High: 944 lumens for 3.25 hours
- Low, medium, high, and strobe lighting modes
- Switching
-
- Dual tailcap push-button switch
- Color selection ring
- Constant-on and momentary
- Five selectable light mode sequences
- Construction
-
- Aluminum body
- Type III anodized finish
- Sealed with an NBR O-ring
- Waterproof (IPX8), submersible to 3.3'
- Glass lens with anti-reflection coating
- Crenelated front bezel and tail shroud
- Diamond-textured, wide push button
- Removable carbon-steel belt clip
- Works with two CR123 or one 18650 battery
- Includes one Li-ion rechargeable 18650 battery
- Built-in micro-USB charging port
- LED battery status indicator: green for full; amber for medium; red for low
- Weighs 6.9 oz with a battery
UPC: 019428152833 In the Box Pelican 7600 Rechargeable Tactical Tri-Color Flashlight (Matte Black) 18650 Li-Ion Rechargeable Battery USB Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelican 7600 Rechargeable Tactical Tri-Color Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelican 7600 Specs | | | Lumen Output | High: 944 Lumens
Medium: 479 Lumens
Low: 37 Lumens | | Illumination Source | 1 x Multi-Color LED | | | | Estimated Runtime | High: 3.25 Hours
Medium: 4.5 Hours
Low: 29 Hours | | Battery Type | 1 x 18650 Lithium-Ion or
2 x CR123A | | | | Lens Material | Glass | | Material of Construction | Aluminum, Brass, Stainless Steel | | Water Resistance | Waterproof to 3.3' / 1 m | | Operating Temperature | -4 to 140°F / -20 to 60°C | | Dimensions | L: 6.2" / L: 15.7 cm | | Weight | 5.4 oz / 153.0 g (Without Batteries)
6.9 oz / 196.0 g (With Batteries) | | | | Package Weight | 0.775 lb | | Box Dimensions (LxWxH) | 7.25 x 2.8 x 2.6" |
