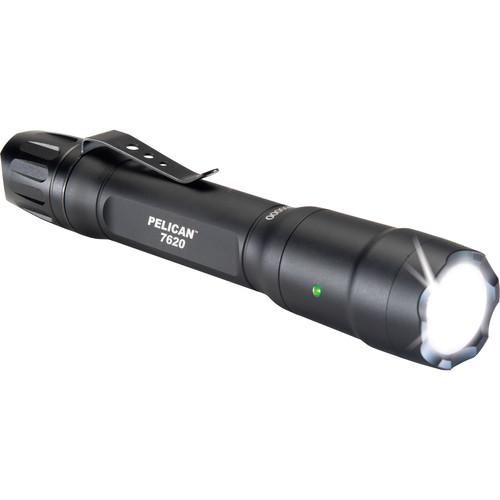

User Manual for Pelican 7620 Tactical Flashlight Click to enlarge the picture
Contents of the user manual for the Pelican 7620 Tactical Flashlight
- Product category: Handheld Flashlights Pelican
- Brand: Pelican
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelican Handheld Flashlights
|
User manual for the Pelican 7620 Tactical Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelican product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelican user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelican product will considerably shorten its lifespan!
|
Product description The Pelican 7620 Tactical Flashlight is a truly versatile torch—it can run on three kinds of batteries, and you can choose from five preset programs to suit your needs. Crafted of hard-anodized aluminum alloy with an anti-reflective coated glass lens, the 7620 can run on two AA cells (NiMH or alkaline), three CR123s, two CR123s (using a spacer), or one rechargeable 18650. Use the two-stage push-button tailcap switch to turn the light on and off on a momentary- or constant-on basis, or to cycle through the high, medium, low, and strobe settings. Optional selectable programs include high/strobe/medium/low, high only, high/medium/low, low/medium/high, and high/low. The LED battery power indicator on the side of the head shows at a glance how much juice you have left. - Output/Runtime
- Three CR123 batteries:
- High: 1124 lumens / 2 hours
- Medium: 528 lumens / 3 hours
- Low: 28 lumens / 37 hours
Two CR123 batteries:- High: 973 lumens / 1.5 hours
- Medium: 492 lumens / 2.3 hours
- Low: 25 lumens / 35 hours
One 18650 battery:- High: 922 lumens / 1.3 hours
- Medium: 495 lumens / 3.8 hours
- Low: 25 lumens / 53 hours
Two NiMH AA batteries:- High: 493 lumens / 1 hour
- Medium: 247 lumens / 5 hours
- Low: 24 lumens / 21 hours
Two alkaline AA batteries:- High: 387 lumens / 1.8 hours
- Medium: 193 lumens / 4.5 hours
- Low: 30 lumens / 13 hours
- Switching
-
- Two-stage push-button tailcap switch
- Momentary and constant on
- Selectable programs: high/strobe/medium/low, high only, high/medium/low, low/medium/high, and high/low
- Construction Details
-
- Hard-anodized aluminum-alloy housing
- Glass lens with anti-reflective coating
- Runs on two AA, two CR123, three CR123, or one 18650 battery
- LED battery status indicator
- IPX8-rated water resistant, submersible to 3.3'
- Removable clip
UPC: 019428154745 In the Box Pelican 7620 Tactical Flashlight CR123 Spacer 2 x AA Batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelican 7620 Tactical Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelican 076200-0000-110 Specs | | | Lumen Output | CR123A Lithium:
High: 1124 Lumens
Medium: 528 Lumens
Low: 28 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | CR123A Lithium
Low: 37 Hours
Medium: 3 Hours
High: 2 Hours | | Battery Type | 3 x CR123A Lithium or
2 x CR123A Lithium or
1 x 18650 Lithium-Ion or
2 x AA NiMH or
2 x AA Alkaline | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 3.3' / 1 m, IPX8 | | Dimensions | L: 6.8" / L: 17.3 cm | | Weight | 6.9 oz / 196 g (With Batteries)
5.2 oz / 147 g (Without Batteries) | | | | Package Weight | 0.62 lb | | Box Dimensions (LxWxH) | 8.8 x 4.7 x 1.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
