User Manual for Pelican 9440 Remote Area Lighting System Gen 2 Click to enlarge the picture
Contents of the user manual for the Pelican 9440 Remote Area Lighting System Gen
- Product category: Outdoor Area Lighting Pelican
- Brand: Pelican
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelican Outdoor Area Lighting
 |
User manual for the Pelican 9440 Remote Area Lighting System Gen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelican product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelican user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelican product will considerably shorten its lifespan!
|

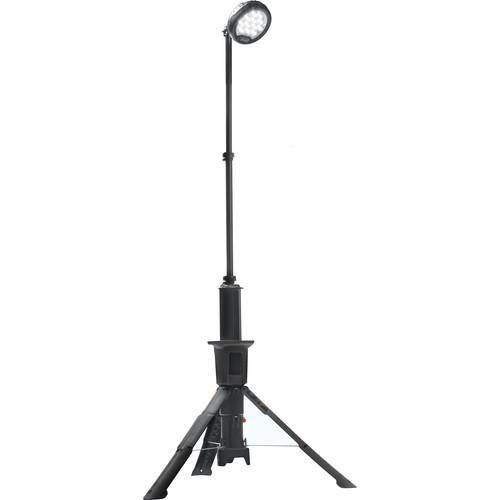

Product description Make sure you have a spotlight even where the utility lines don't run with Pelican's black 9440 Remote Area Lighting System Gen 2 (RALS). This model comes equipped with Bluetooth connectivity capability to Android and iOS mobile devices running a free app. The app gives users control of the on and off with a slider to precisely choose the output from zero to 100%. The RALS is defined by its unibody construction and easy set up while delivering up to 5300 lumens of light with a 125° beam spread to illuminate a job site, work space, staging area or emergency scene. The top mast extends up to 7' and rotates, while the head pivots up and down to allow users to precisely put light right where it is needed. The RALS collapses and folds up neatly into a single unit for easy transportation or storage, and the included shoulder strap makes carrying it with other gear easier. An integrated tripod leg system provides a stable base even on unsteady terrain. - Performance
-
- Low: 1400 lumens
- Med: 2800 lumens
- High: 5300 lumens
- White-light 12 LED array
- 125° beam pattern floods a wide area
- Switching
-
- Location: Body
- Type: Pushbutton
- Press to turn on, press repeatedly to cycle through low/med/high outputs
- Free iOS and Android apps control on/off with a slider for variable output selection
- Construction
-
- Impact-resistant polycarbonate body
- Two-stage telescoping arm
- Flip-lock clamps hold arm in position
- Mast rotates and head pivots for precise beam placement
- Arm extends head up to 85"
- IP65-rated, dustproof and weather resistant
- Tripod leg design for stability
- Electronics
-
- Bluetooth connectivity via Android and iOS mobile devices with app installed
- Multi-colored battery level indicator
- Runs on 110VAC when plugged in an charging the battery
- Rechargeable li-ion battery included
- Stainless steel clip locks charging cord in charging port

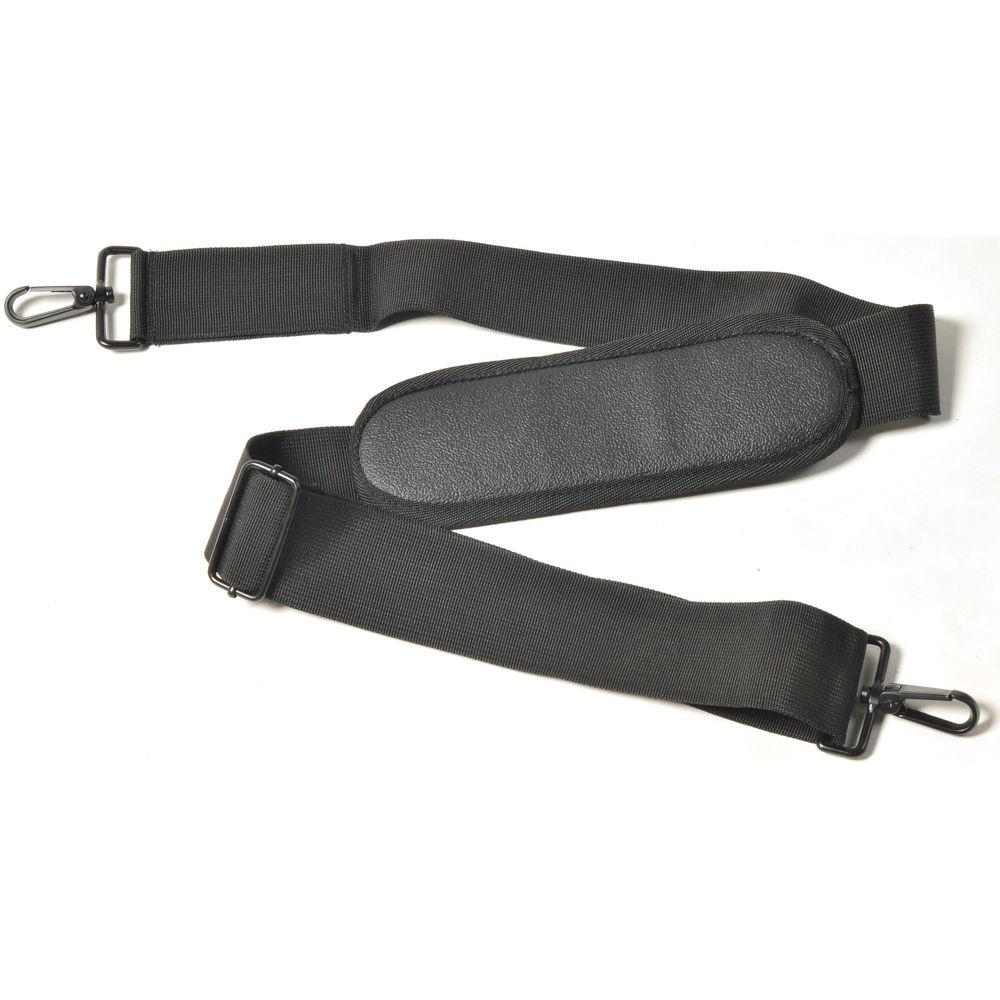

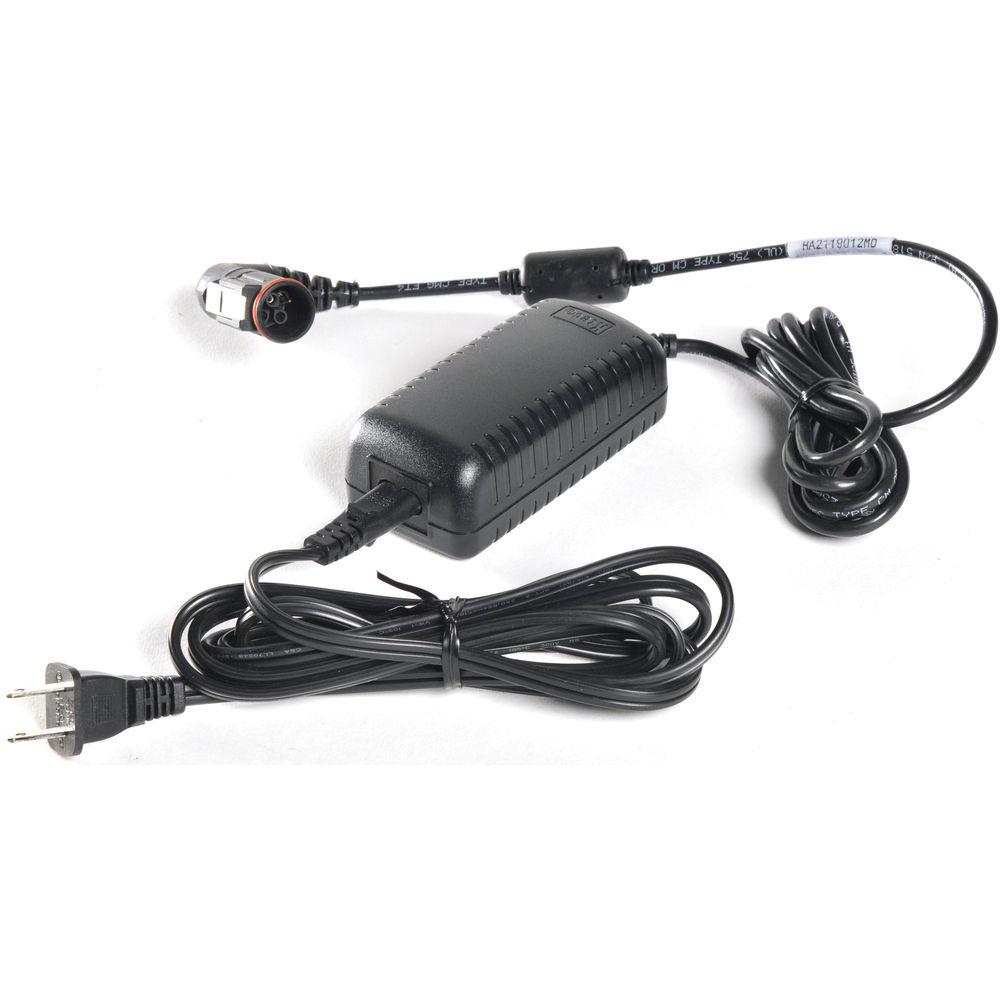

UPC: 019428130428 In the Box Pelican 9440 Remote Area Lighting System Gen 2 (Black) Shoulder Strap 110VAC Charging Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelican 9440 Remote Area Lighting System Gen 2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelican 094400-0001-110 Specs | Light Source | 12 x white LED array
Beam spread: 125° | | Output Range | Low: 1400 lumens
Med: 2800 lumens
High: 5300 lumens | | Battery | 1 x Rechargeable li-ion | | Runtime | Low: 6.0 h
Medium: 4.0 h
High: 1.5 h | | Charge Time | 3.75 h, from full discharge | | Approvals | CE Approval and certification, RoHS compliant | | Dimensions | Head: 7.9 x 7.9 x 3.5" / 20.0 x 20.0 x 8.9 cm
Unit, closed: 37.4 x 7.9" / 95.0 x 20.0 cm
Unit, deployed: 85.0 x 35.9" / 215.8 x 91.0 cm | | Weight | 16.1 lb / 7.3 kg | | | | Package Weight | 18.9 lb | | Box Dimensions (LxWxH) | 41.0 x 9.5 x 9.5" |
