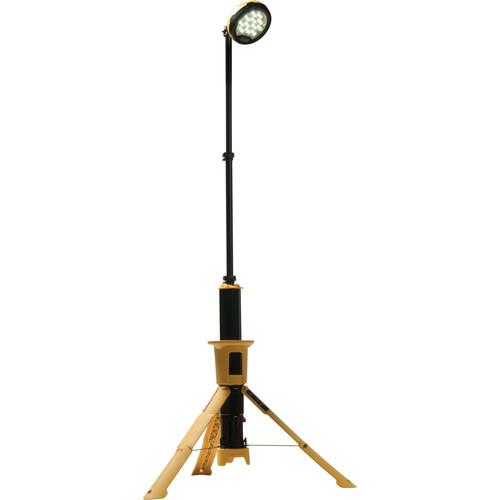

Product description Make sure you have a spotlight even where the utility lines don't run with Pelican's yellow 9440 Remote Area Lighting System Gen 2 (RALS). This model comes equipped with Bluetooth connectivity capability to Android and iOS mobile devices running a free app. The app gives users control of the on and off with a slider to precisely choose the output from zero to 100%. The RALS is defined by its unibody construction and easy set up while delivering up to 5300 lumens of light with a 125° beam spread to illuminate a job site, work space, staging area or emergency scene. The top mast extends up to 7' and rotates, while the head pivots up and down to allow users to precisely put light right where it is needed. The RALS collapses and folds up neatly into a single unit for easy transportation or storage, and the included shoulder strap makes carrying it with other gear easier. An integrated tripod leg system provides a stable base even on unsteady terrain. - Performance
-
- Low: 1400 lumens
- Med: 2800 lumens
- High: 5300 lumens

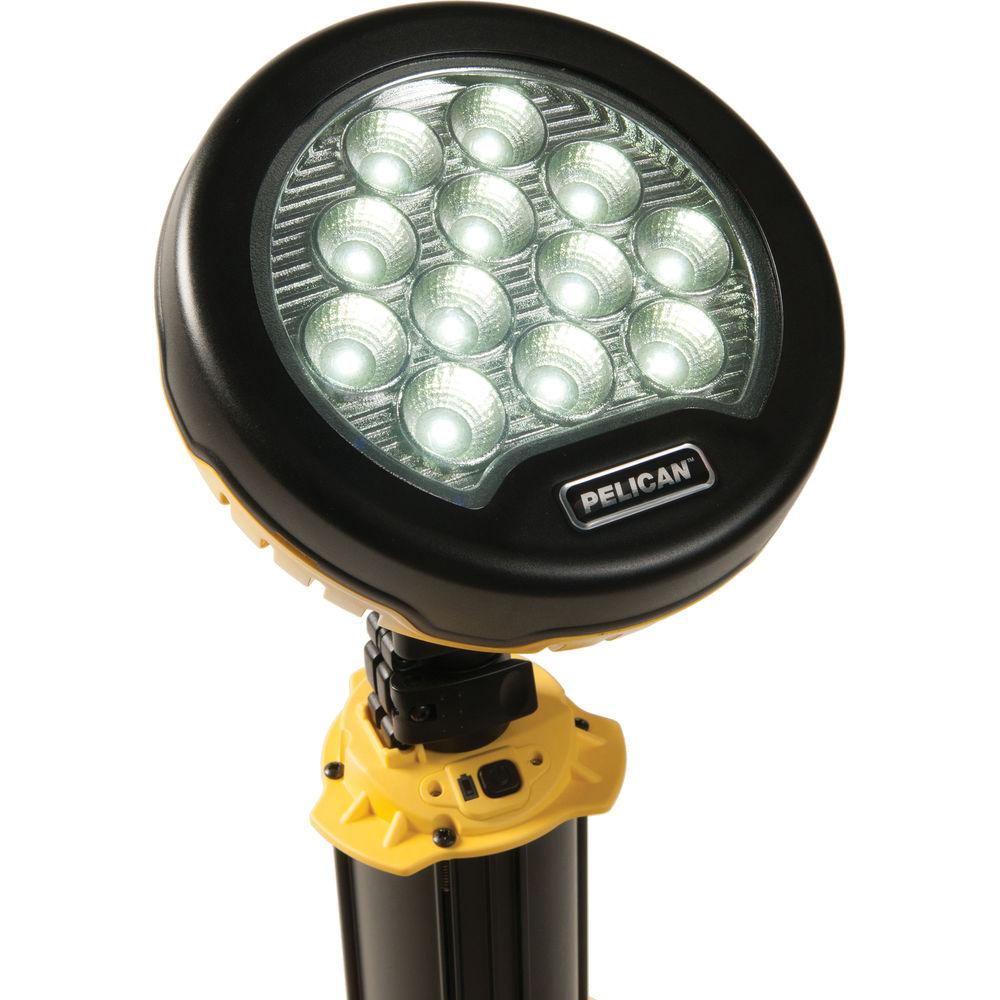

- White-light 12 LED array
- 125° beam pattern floods a wide area

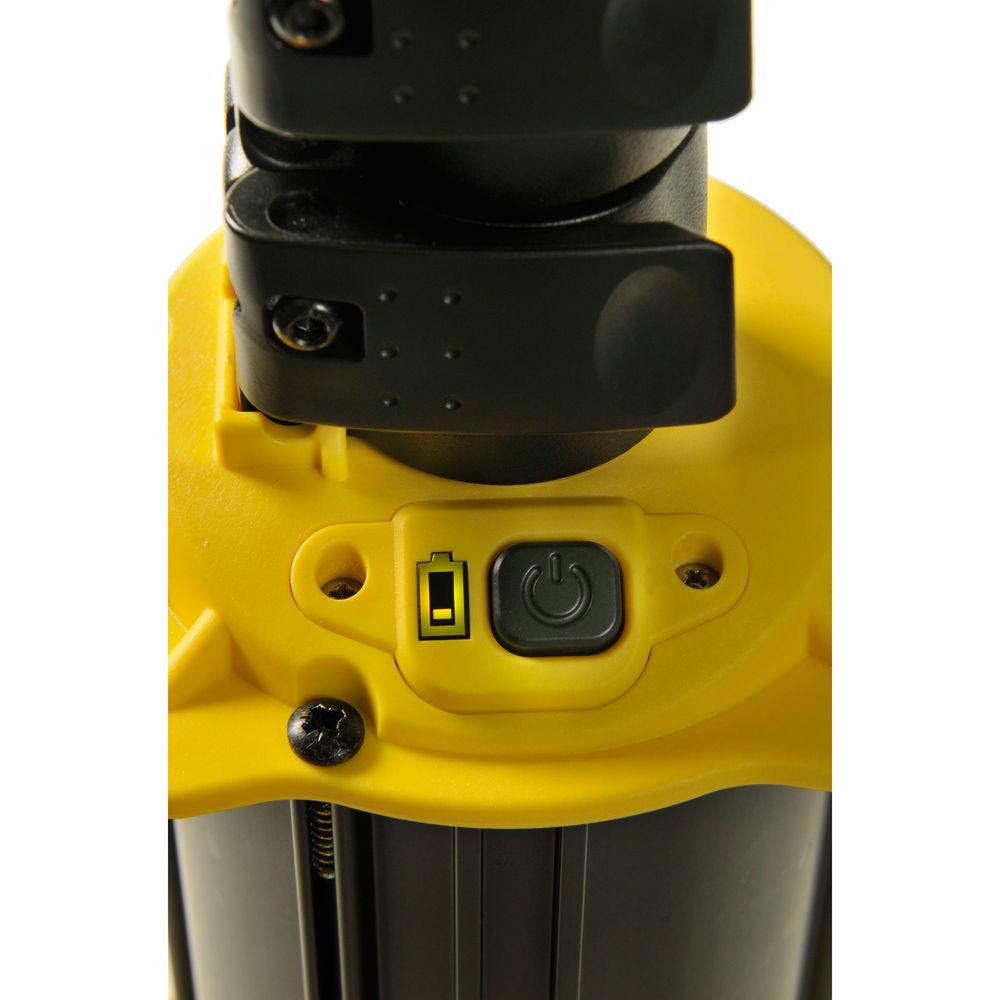

- Switching
-
- Location: Body
- Type: Pushbutton
- Press to turn on, press repeatedly to cycle through low/med/high outputs
- Free iOS and Android apps control on/off with a slider for variable output selection
- Construction
-
- Impact-resistant polycarbonate body
- Two-stage telescoping arm
- Flip-lock clamps hold arm in position
- Mast rotates and head pivots for precise beam placement
- Arm extends head up to 85"
- IP65-rated, dustproof and weather resistant
- Tripod leg design for stability
- Electronics
-
- Bluetooth connectivity via Android and iOS mobile devices with app installed
- Multi-colored battery level indicator
- Runs on 110VAC when plugged in an charging the battery
- Rechargeable li-ion battery included
- Stainless steel clip locks charging cord in charging port

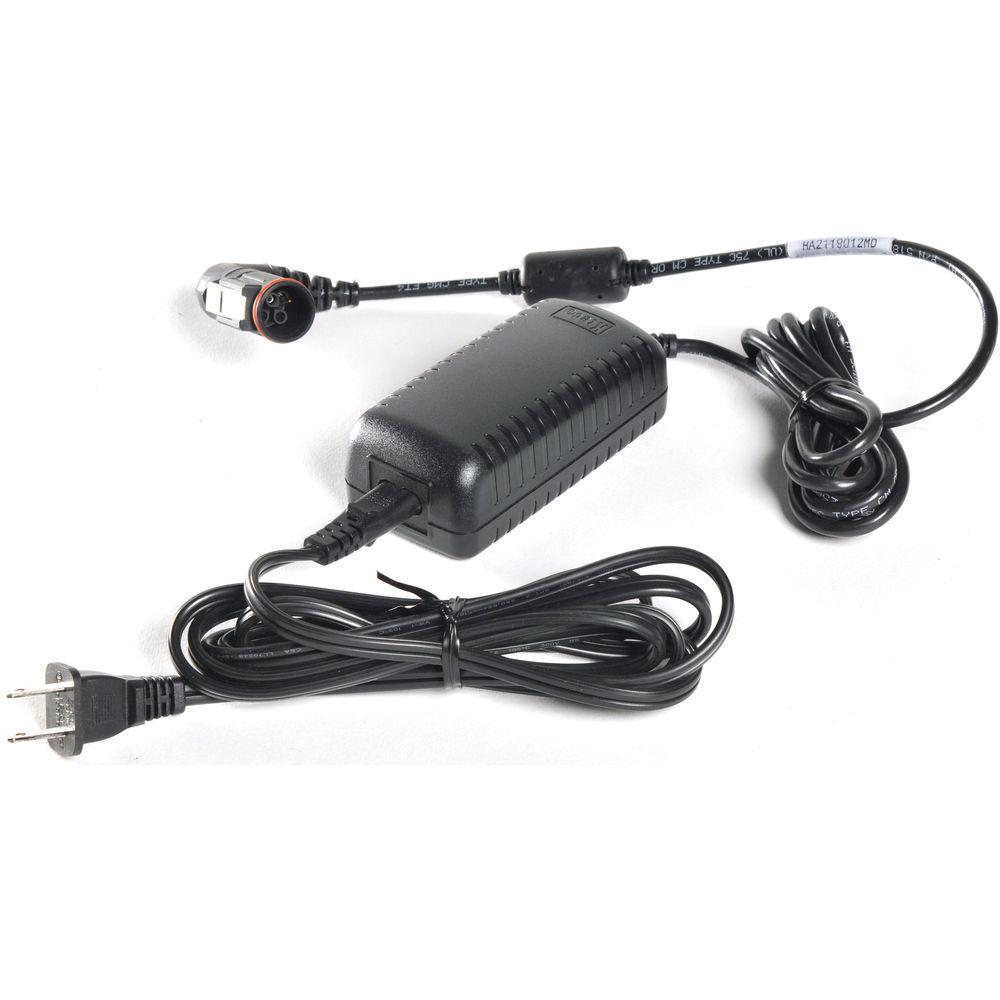

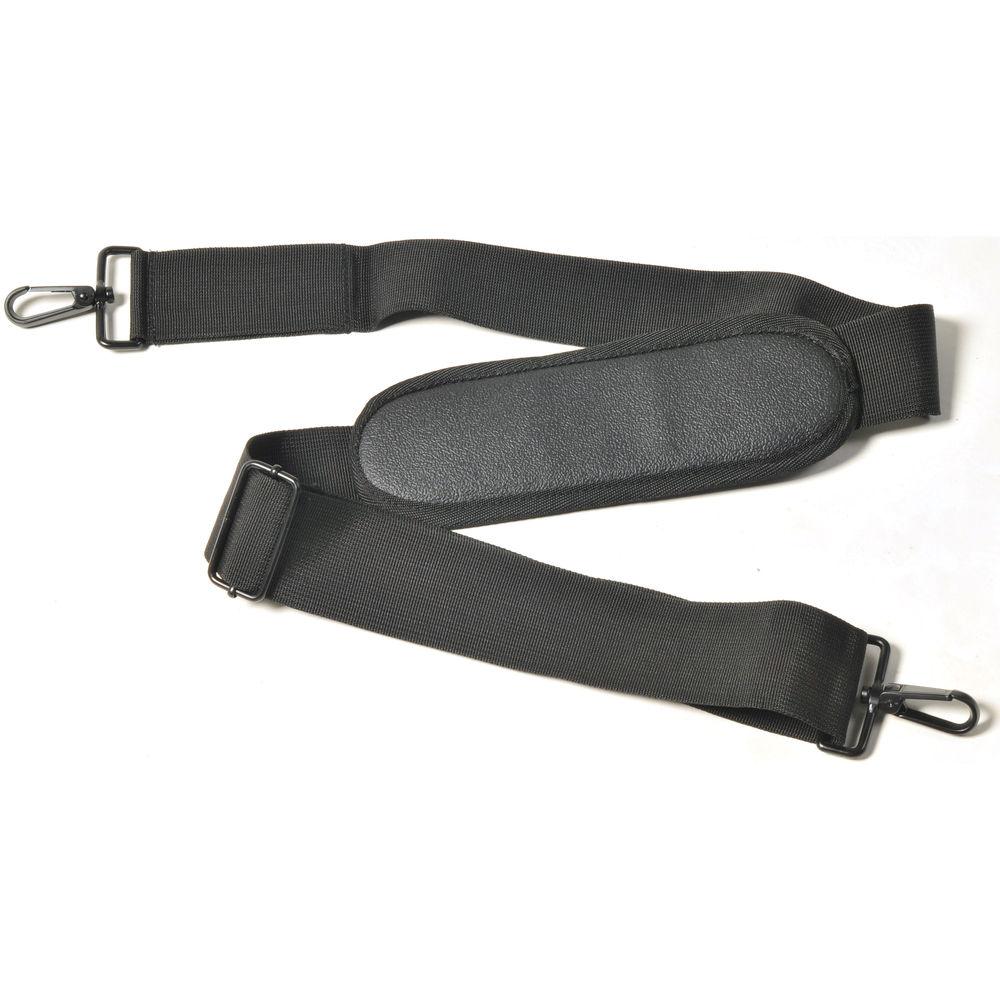

UPC: 019428130435 In the Box Pelican 9440 Remote Area Lighting System Gen 2 (Yellow) Shoulder Strap 110VAC Charging Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelican 9440 Remote Area Lighting System Gen 2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelican 094400-0001-245 Specs | Light Source | 12 x white LED array
Beam spread: 125° | | Output Range | Low: 1400 lumens
Med: 2800 lumens
High: 5300 lumens | | Battery | 1 x Rechargeable li-ion | | Runtime | Low: 6.0 h
Medium: 4.0 h
High: 1.5 h | | Charge Time | 3.75 h, from full discharge | | Approvals | CE Approval and certification, RoHS compliant | | Dimensions | Head: 7.9 x 7.9 x 3.5" / 20.0 x 20.0 x 8.9 cm
Unit, closed: 37.4 x 7.9" / 95.0 x 20.0 cm
Unit, deployed: 85.0 x 35.9" / 215.8 x 91.0 cm | | Weight | 16.1 lb / 7.3 kg | | | | Package Weight | 19.9 lb | | Box Dimensions (LxWxH) | 41.5 x 9.5 x 9.2" |
