User Manual for Pelican 9455 Remote Area Lighting System Click to enlarge the picture
Contents of the user manual for the Pelican 9455 Remote Area Lighting System
- Product category: Outdoor Area Lighting Pelican
- Brand: Pelican
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelican Outdoor Area Lighting
 |
User manual for the Pelican 9455 Remote Area Lighting System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelican product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelican user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelican product will considerably shorten its lifespan!
|

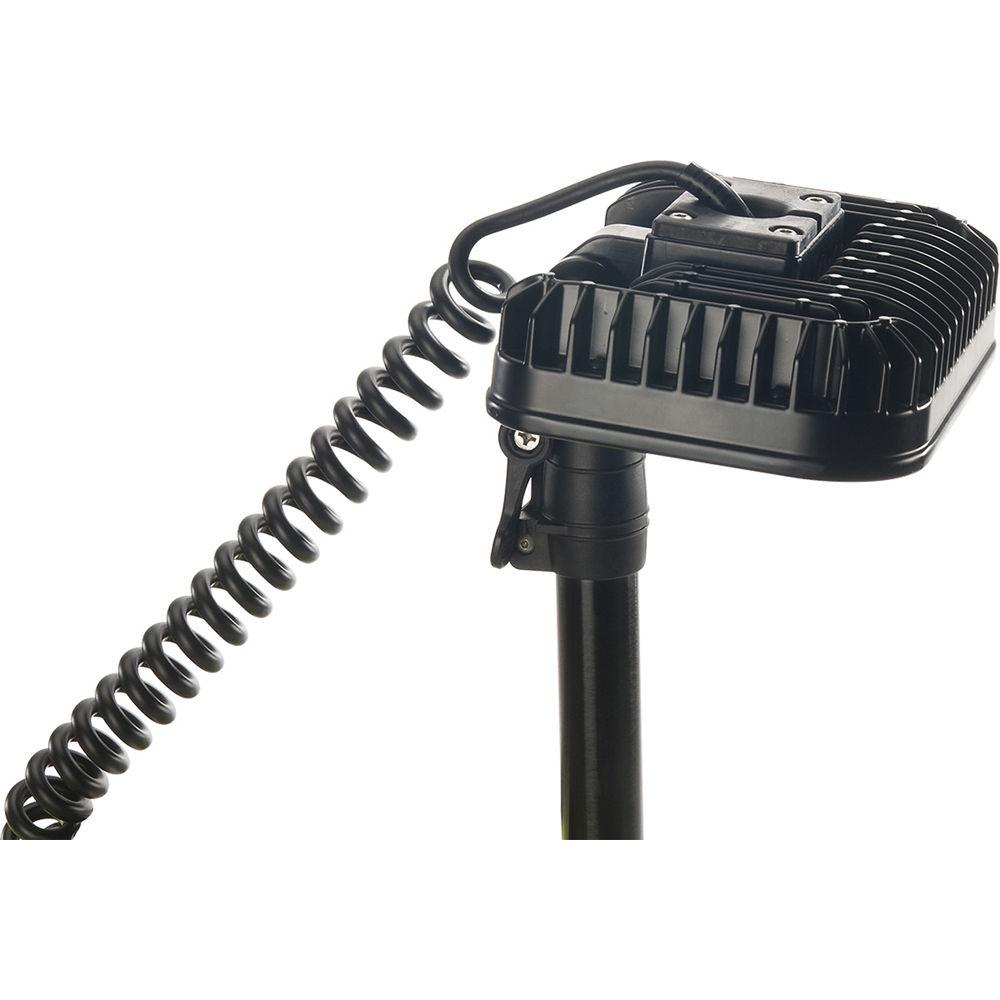

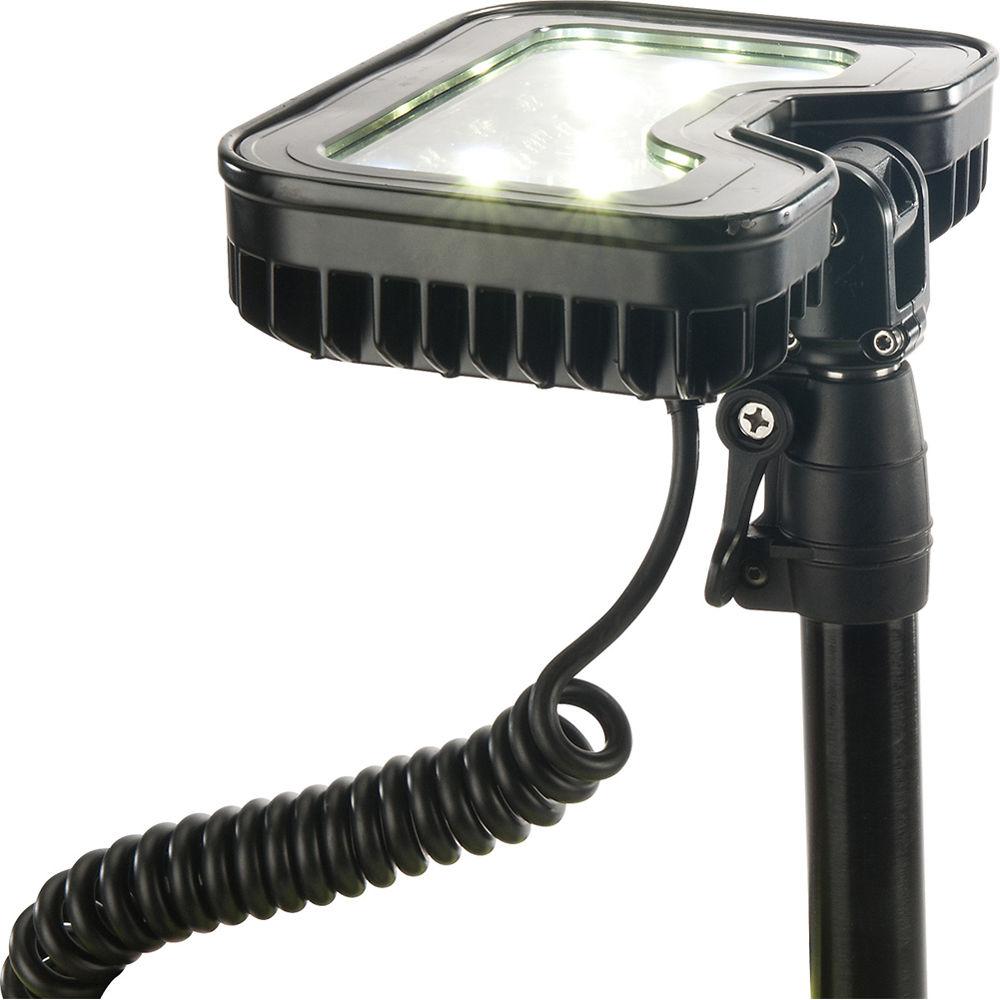

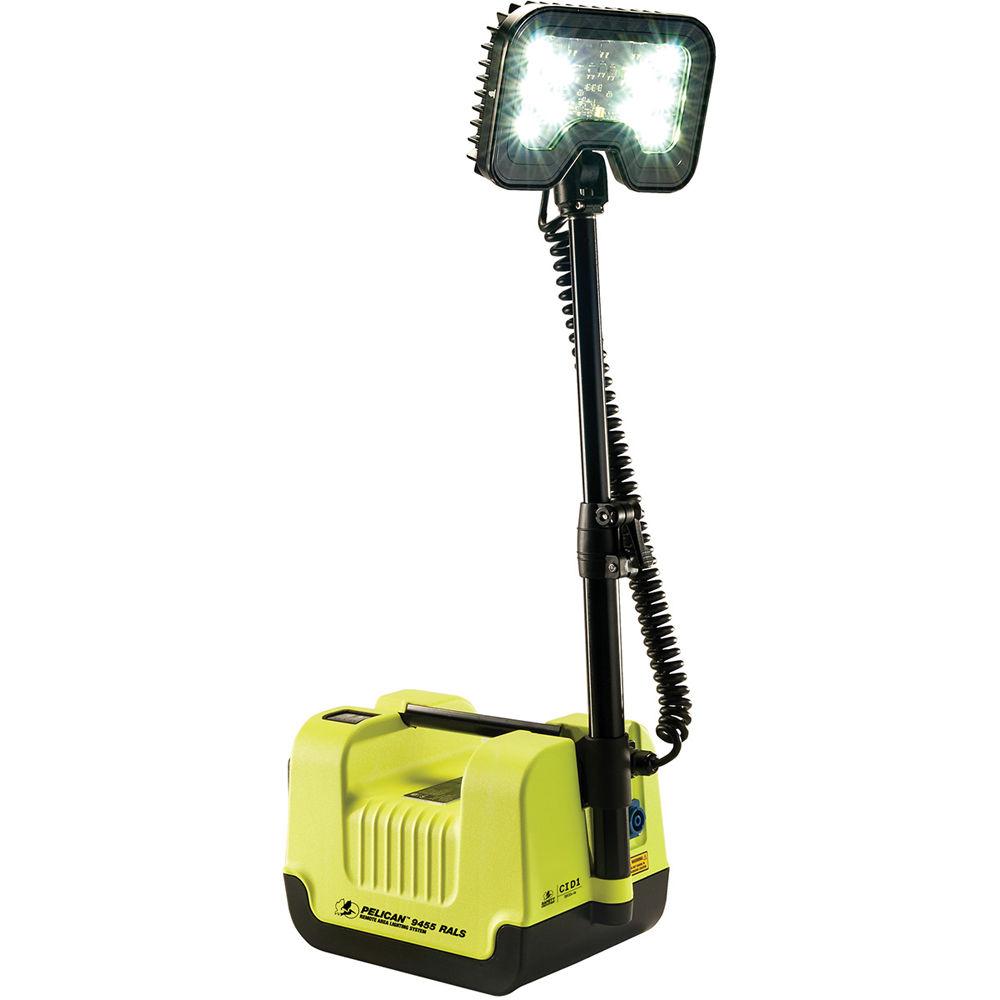

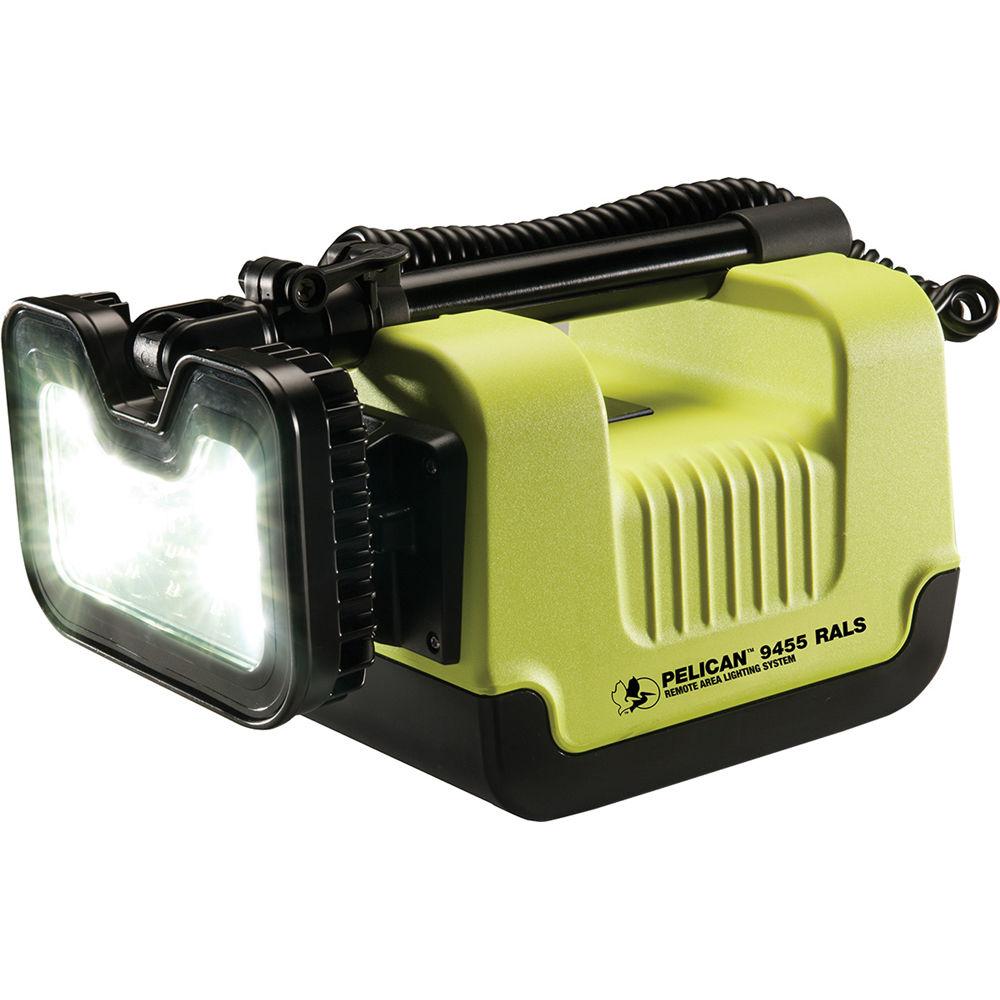

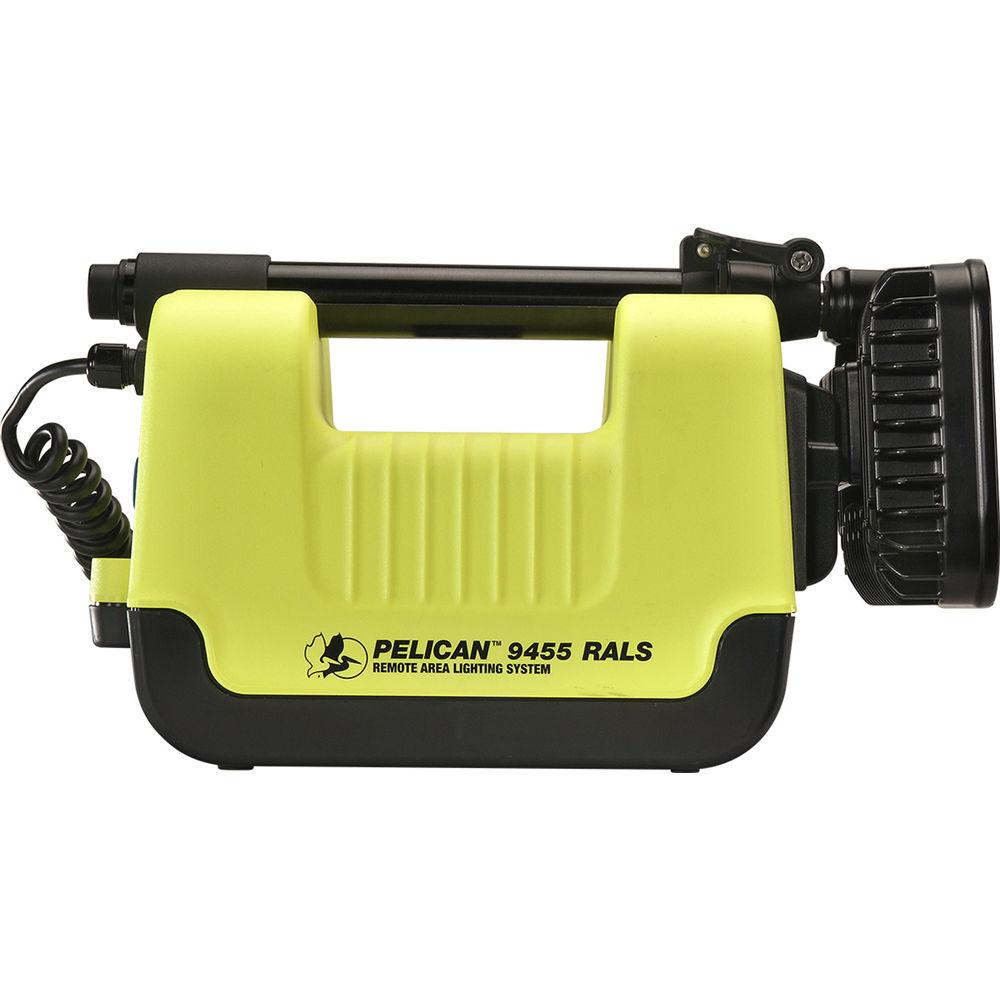

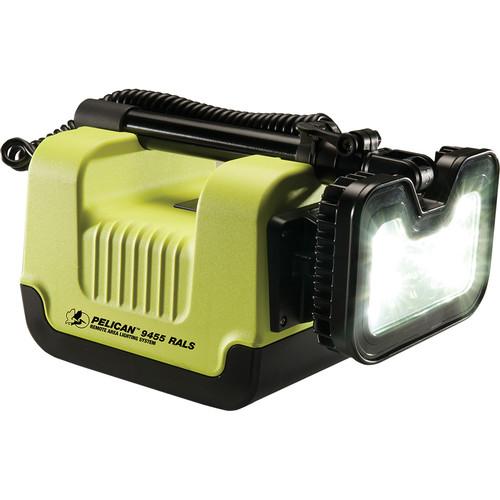

Product description Highly portable and easy to set up, the 9455 Remote Area Lighting System from Pelican provides the light you need to work, even in confined spaces. Its 10-LED head extends 31.5" high, tilts 180° (from pointing straight up to straight down) and shines up to 1600 lumens of light in a 125° spread.Folded up, the unit measures just 15.4 x 7.9 x 9.1" and weighs just 16 pounds. It's rechargeable, so there are no batteries to replace, and it's constructed of sturdy polycarbonate with an aluminum head and mast. The light will run for 10 hours on the 800-lumen low setting and five hours on high; the low battery indicator provides 30 minutes' warning that power is running out.The 9455 RALS is Class I Division 1, ATEX Zone 0, and IECEx ia safety certified. - Light Performance
-
- Low: 800 lumens
- High: 1600 lumens
- Flashing mode
- Ten white LED emitter array
- Wide 125° beam spread
- Runtime: low power 10 hours, high power 5 hours
- Rechargeable Ni-MH battery
- Charge time: 8 hours
- Low-battery indicator
- Switching
-
- Type: Silicone rubber push-button
- Location: back of light head
- Construction Details
-
- Extendable aluminum mast with maximum height of 31.5"
- 360° rotating light head for precise beam placement
- IP54-rated, dust and water resistant
- Closed dimensions: 15.4 x 7.9 x 9.1"
- Weighs 16 lb including battery
In the Box Pelican 9455 Remote Area Lighting System Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelican 9455 Remote Area Lighting System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelican 9455 Specs | Illumination Source | 10 x LEDs | | Output Range | Low: 800 lumens
High: 1600 lumens | | Beam Angle | 125° | | Battery | Rechargeable Ni-MH | | Runtime | High: 5 h
Low: 10 h | | Charge Time | 8 h | | Construction | Body: Polycarbonate
Head: Aluminum
Mast: Aluminum
Lens: Polycarbonate | | Waterproofing | IP54-rated, dust and water resistant | | Dimensions | Head: 8.3 x 5.7 x 2.0" / 21.0 x 14.5 x 5.0 cm
Body, Closed: 15.4 x 7.9 x 9.1" / 39 x 20 x 23 cm
Mast Length: 31.5" / 80 cm | | Weight | 16 lb / 7.3 kg |
