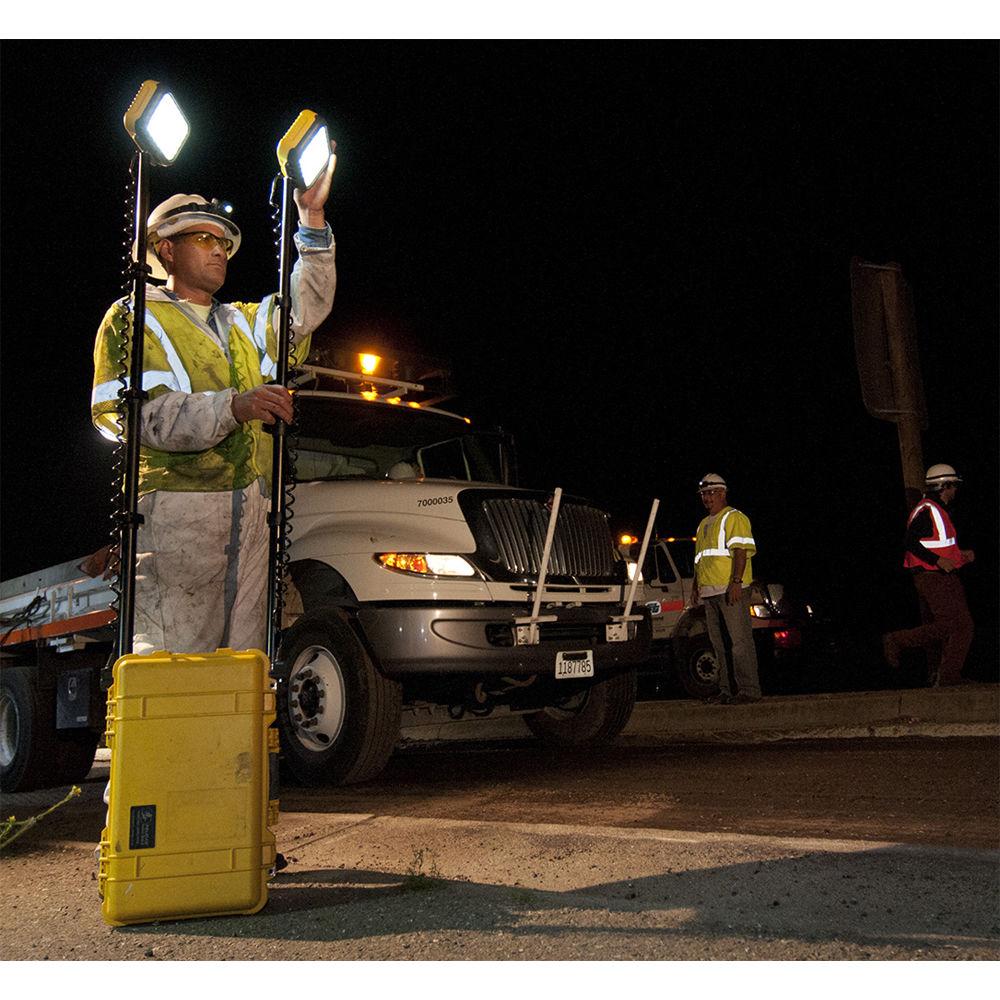

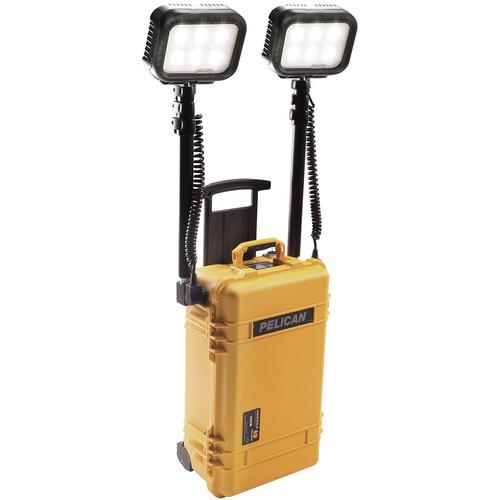

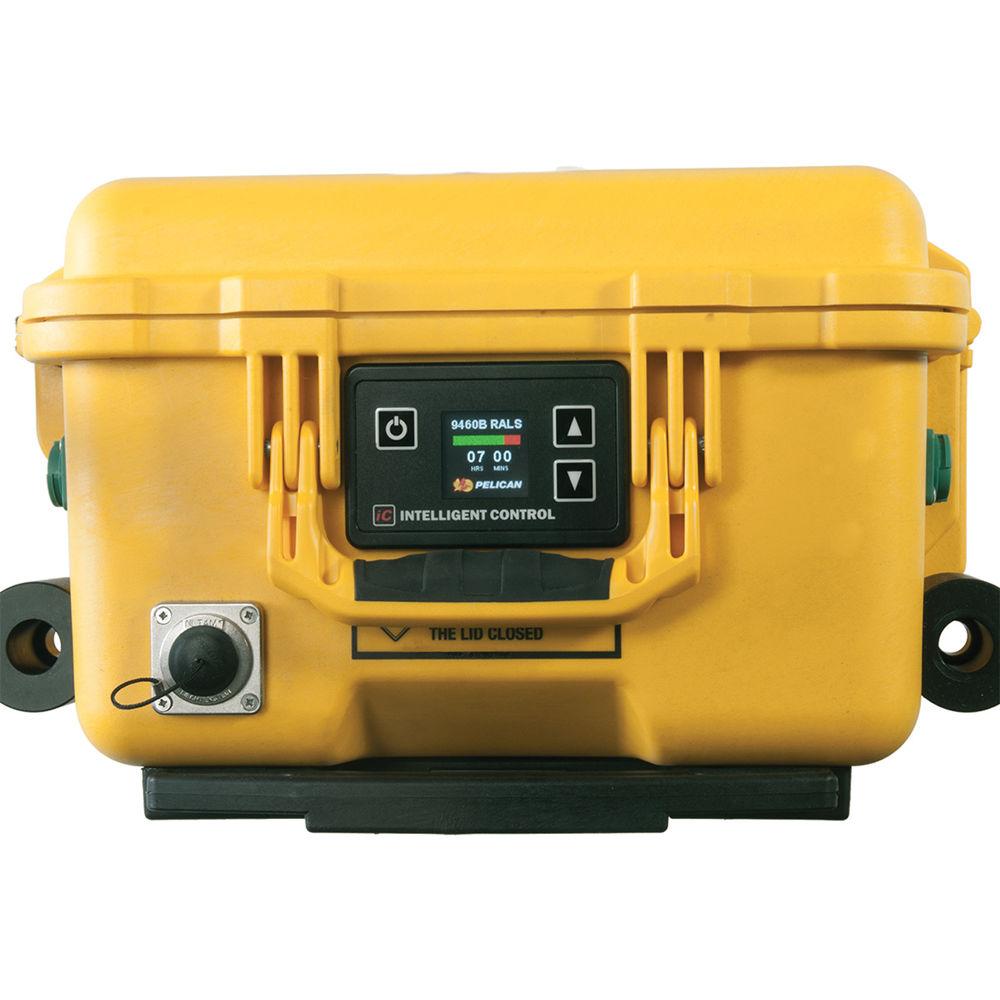

Product description Ideal for police, emergency crews, and construction after dark, the Pelican 9460 Remote Area Lighting System combines Pelican's 1510 Protector Case with 2 mast-mounted, 360° rotating LED fixtures that provide a total of 6,000 lumens. The 9460 system is controlled by an Intelligent Control System which calculates and displays current battery life, allows the user to regulate the intensity of the light, and choose the desired run time. All items are stored inside the case and assemble in minutes. Each aluminum light mast extends to a height of 5.9' (1.8 m) and retracts when not in use. The rechargeable battery has a 7.0 hour run time in high mode and a power conserving 40.0 hour run time on low setting on a full 6.0 hour charge. Pelican 1510 Case - Strong
- Crushproof, high impact copolymer: Watertight, airtight, dust proof, chemical-resistant, and corrosion proof. Padlock protectors provide added strength and extra security against cutting and theft
- Easy to Transport
- Built-in dolly with 1.5" multi-terrain wheels. Side and top handles, easy-open double-throw latches. Meets current FAA requirements for carry-on luggage (Requirements are subject to change; always check with your carrier)
- Purge Valve
- Built-in purge valve for changes in altitude or temperature
- Multi Use
- Ideal for use by utility service people, firefighters, police, the military, industrial lighting suppliers, photographers, videographers, news agencies
LED Fixtures - Two Levels of Output
- Bright 90 degree beam spread with High and Low power settings
Masts - Adjustable
- Extend to 5.9' (1.8 m). Can be used with case as a mast or detached or use as a hand-held boom
Battery - Long Run Time, Short Charge Time
- Up to 40 hours of burn time on Low and 7 hours on High. Blinking low battery warning light. Recharges with 120V in as little as 6.0 hours from full discharge

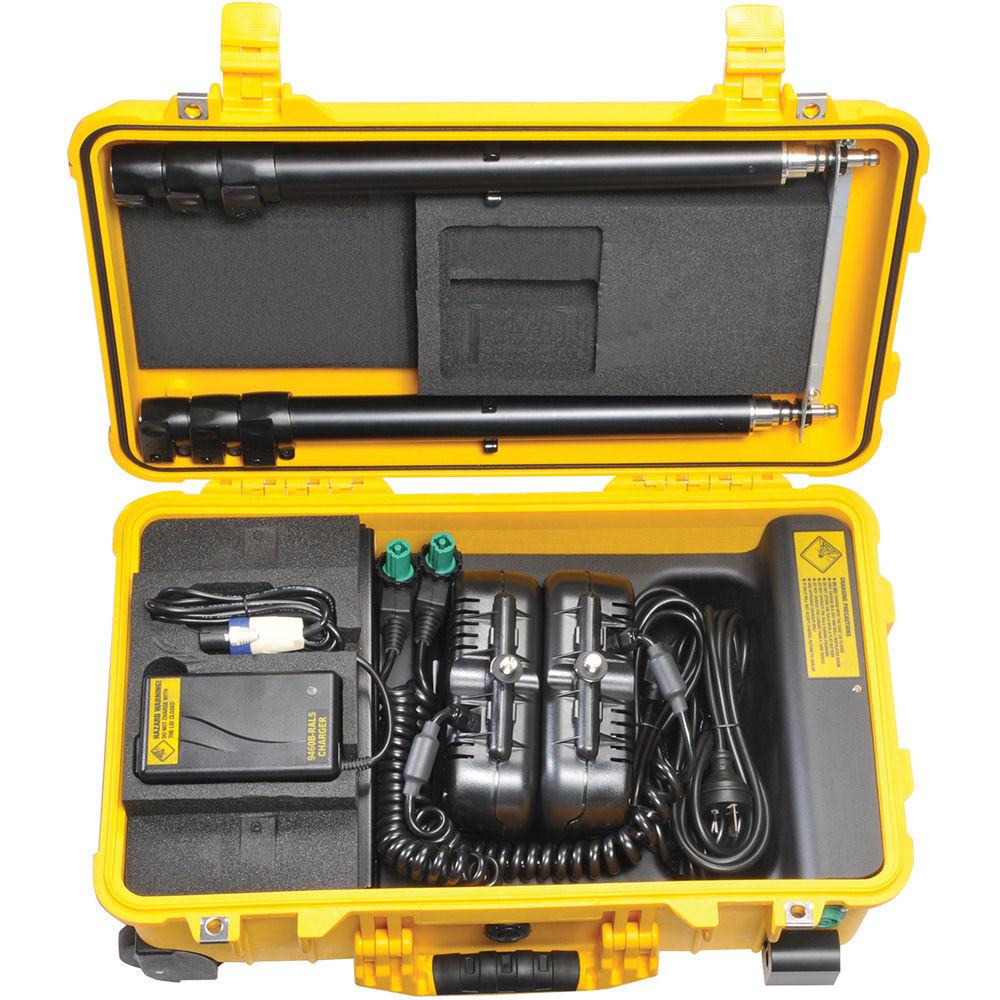

UPC: 019428130879 In the Box Pelican 9460 Remote Area Lighting System Pelican Yellow 1510 Wheeled Case 2 x LED Fixtures 2 x 5.9' (1.8 m) Telescopic Masts Rechargeable Battery Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelican 9460 Remote Area Lighting System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelican 094600-0002-245 Specs | Light Source | 6 x LED | | Power Source | 12 VDC vehicle-style outlet | | Lamp Life | 50,000 Hours | | Beam Spread | 120 Degrees | | Battery | Type: 12 V sealed lead acid, rechargeable
Run time: 40.0 hours (Low mode),7.0 hours (High mode)
Charge time: 6.0 hours from full discharge
Battery life: 500 cycles
Low battery warning: intermittent blinking | | Approvals | CE Approval and certification, RoHS compliant | | Dimensions | Head: 6.5 x 7.87 x 2.56" (16.5 x 20 x 6.5 cm) (LxWxD)
Mast height extended: 70.9" (179.9 cm) Case closed: 22.0 x 13.8 x 9.0" (55.9 x 35.1 x 22.9 cm) (LxWxH)
Cord length: 13.8" (35 cm) | | Weight | 55 lb / 24.9 kg | | | | Package Weight | 62.5 lb | | Box Dimensions (LxWxH) | 26.0 x 16.8 x 12.5" |
