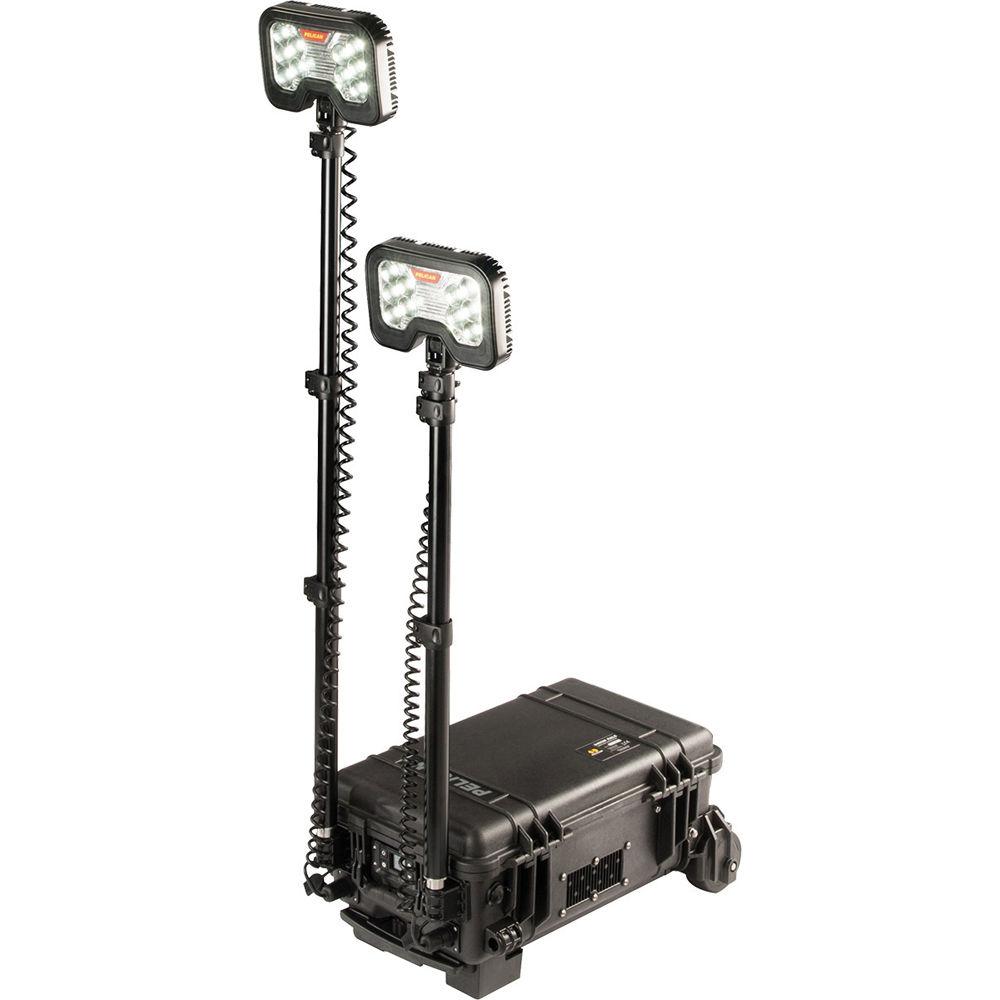

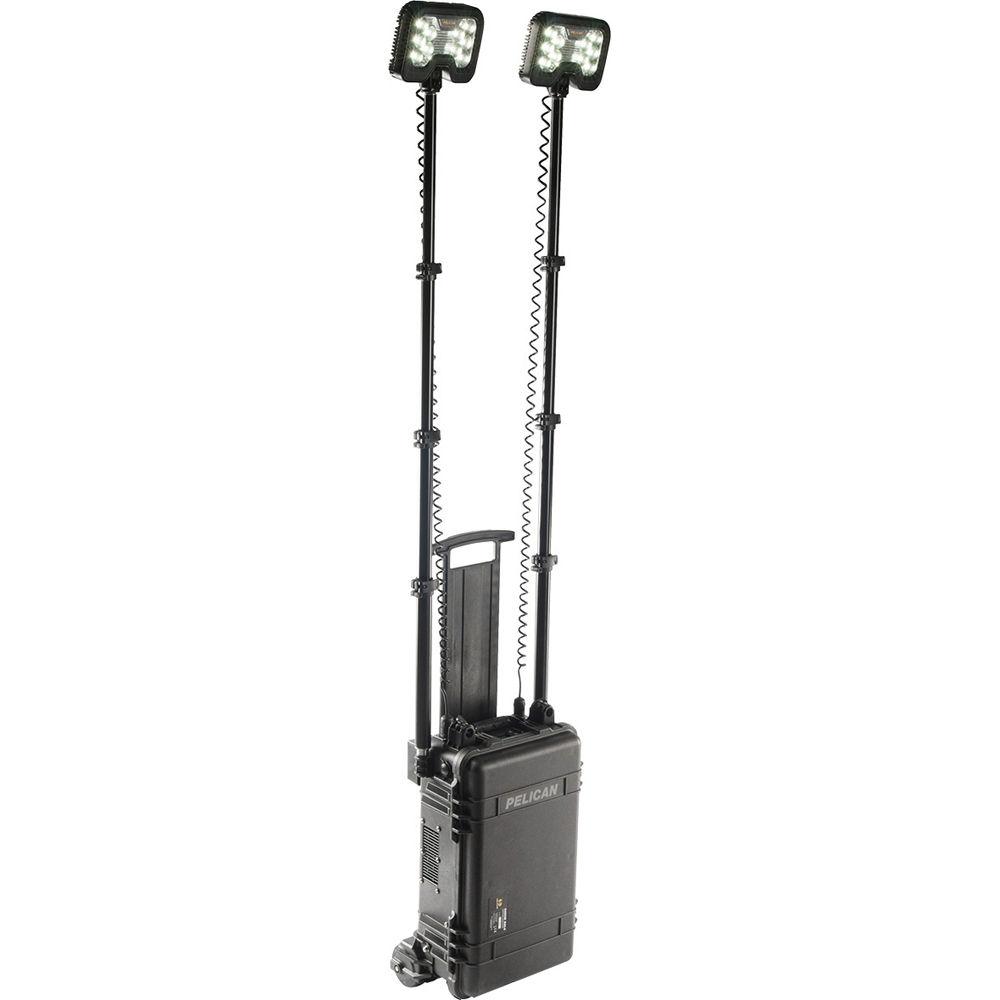

Product description Ideal for police, first responders, and construction after dark, the Pelican 9460 Remote Area Lighting System offers up to 12,000 lumens of light in a sturdy, stable and portable unit. The two LED light heads rise to more than 6 feet in height, swivel 360°, and can run from three to 24 hours on a charge, depending on the output level. The 9460 can be operated via Bluetooth remote control and employs an Intelligent Control System, which displays current battery level and allows the user to regulate light output and choose the desired runtime. Two USB ports can be used to run or charge smartphones and other devices. The light heads and masts are stored inside the case and assemble in minutes. Each aluminum light mast extends to a height of 6.6' (2.0 meters) and retracts when not in use. The rechargeable battery has a three-hour runtime in high mode and runs as long as 24 hours on low power. The battery charges in in eight hours and has a lifespan 500 cycles. - Construction
-
- Two 6,000-lumen light heads with 10 LEDs each
- Aluminum light heads and masts
- Polycarbonate lenses
- O-ring-sealed polycarbonate housing
- Carry handle
- Lamp life: 50,000 hours
- Use and Handling
-

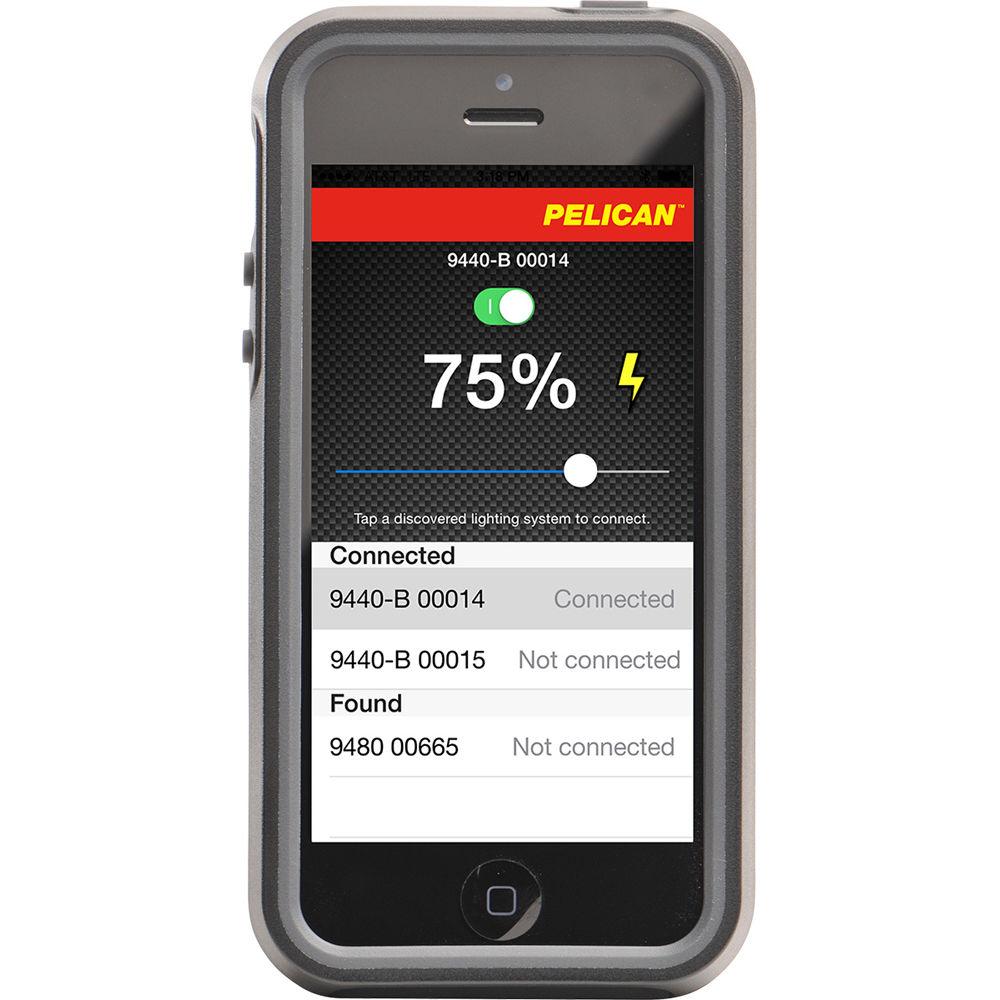

- Bluetooth remote control
- Housing can stand on end or lie flat

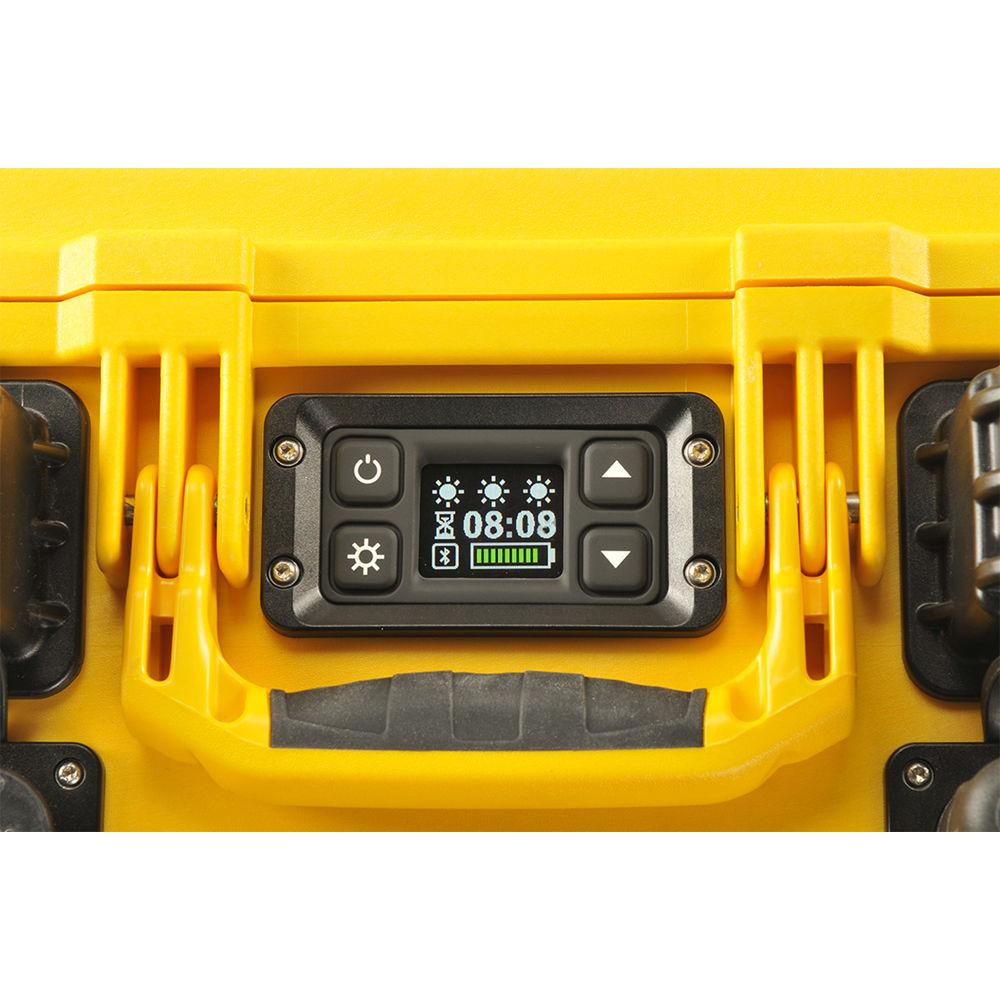

- Intelligent Control sets output, runtime or one of three preset power levels
- Charges in eight hours
- Runtimes: 3-24 hours

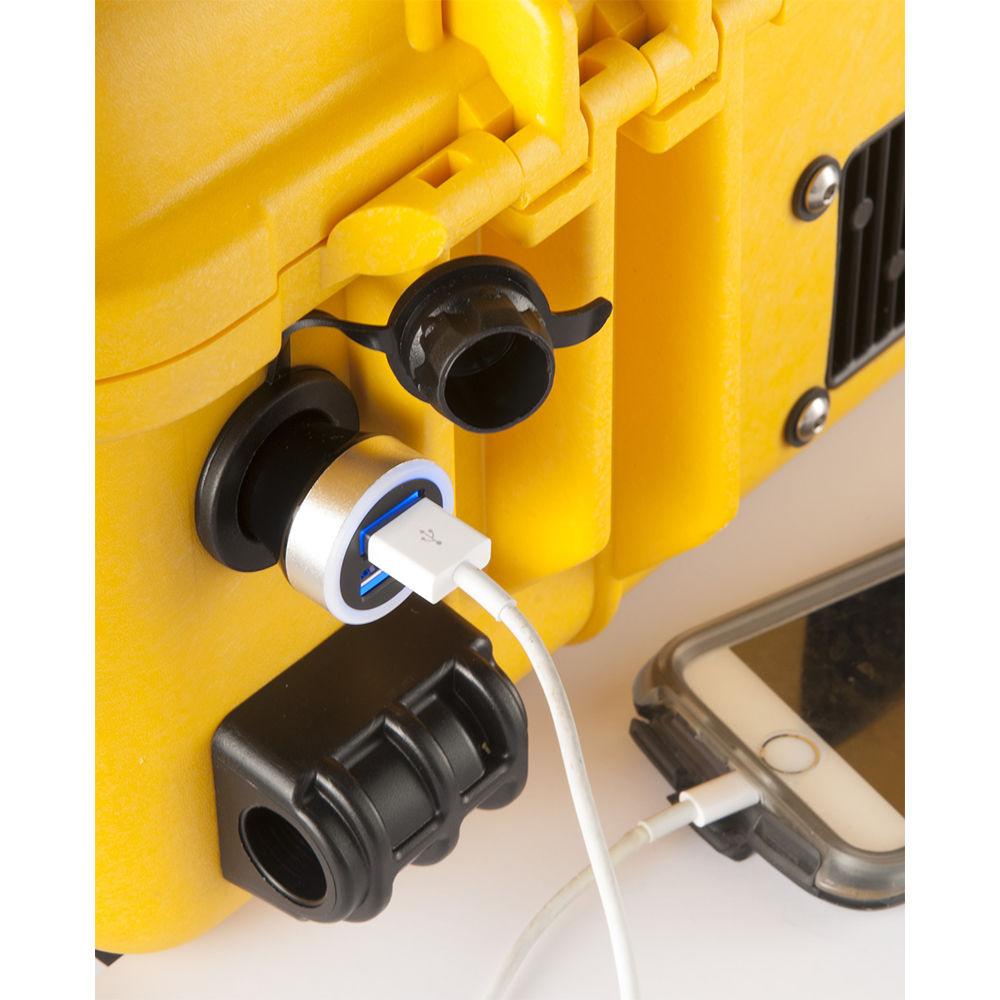

- Two USB ports
- Can run on AC wall power
UPC: 019428130886 In the Box Pelican 9460 Remote Area Lighting System Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelican 9460 Remote Area Lighting System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelican 094600-0002-110 Specs Light Source | 2 x 10 LED light heads | Lamp Life | 50,000 hours | Output | 6,000 lumen per head | Battery | Type: 12 V sealed lead acid, rechargeable Runtime: 3-24 hours Charge Time: 8 hours from full discharge Battery Life: 500 cycles | Dimensions | Head: 8.25 x 5.75 x 2.25" / 21.0 x 14.6 x 5.7 cm Mast, Fully Extended: 79.5" / 201.9 cm Housing, Closed: 23.25 x 14.00 x 9.25 / 59.1 x 35.6 x 23.5 cm | Weight | 61.0 lb / 27.7 kg | | Package Weight | 62.5 lb | Box Dimensions (LxWxH) | 25.8 x 16.5 x 16.5" |
