User Manual for Pelican 9460M Remote Area Lighting System Click to enlarge the picture
Contents of the user manual for the Pelican 9460M Remote Area Lighting System
- Product category: Outdoor Area Lighting Pelican
- Brand: Pelican
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelican Outdoor Area Lighting
 |
User manual for the Pelican 9460M Remote Area Lighting System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelican product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelican user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelican product will considerably shorten its lifespan!
|

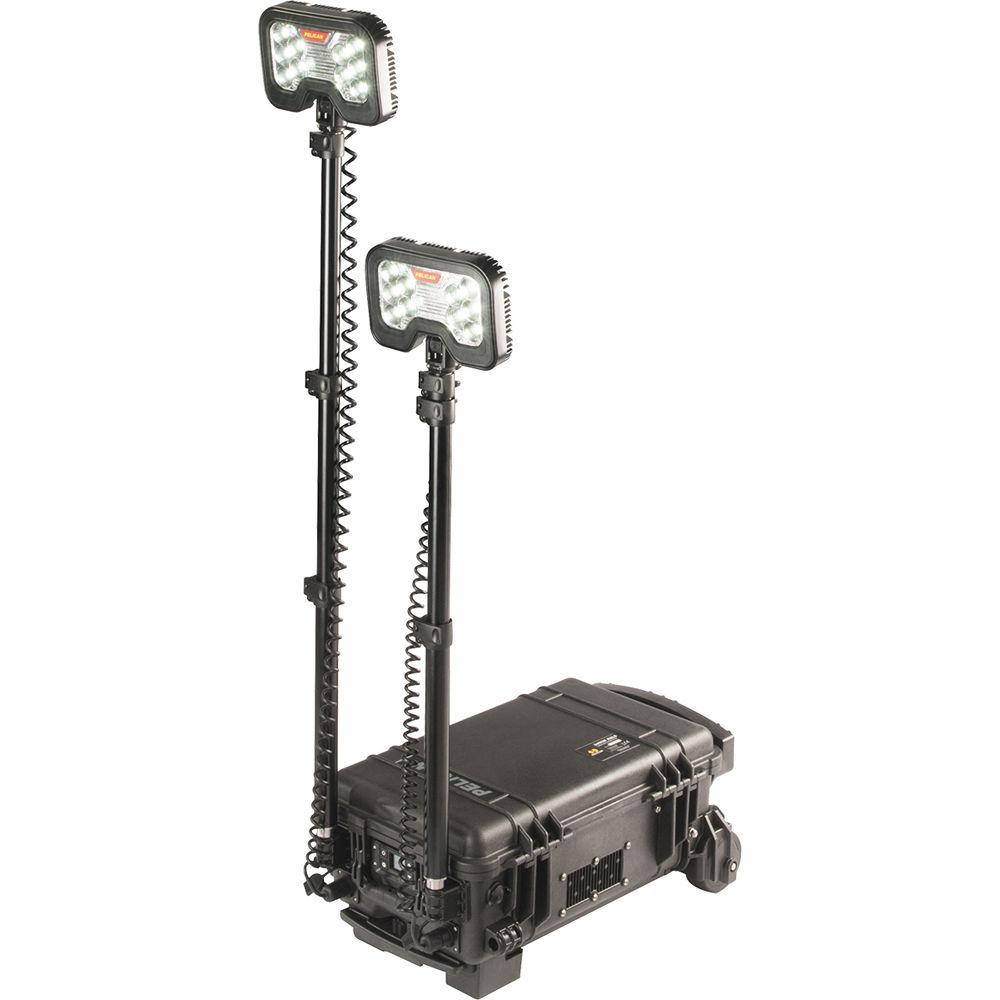

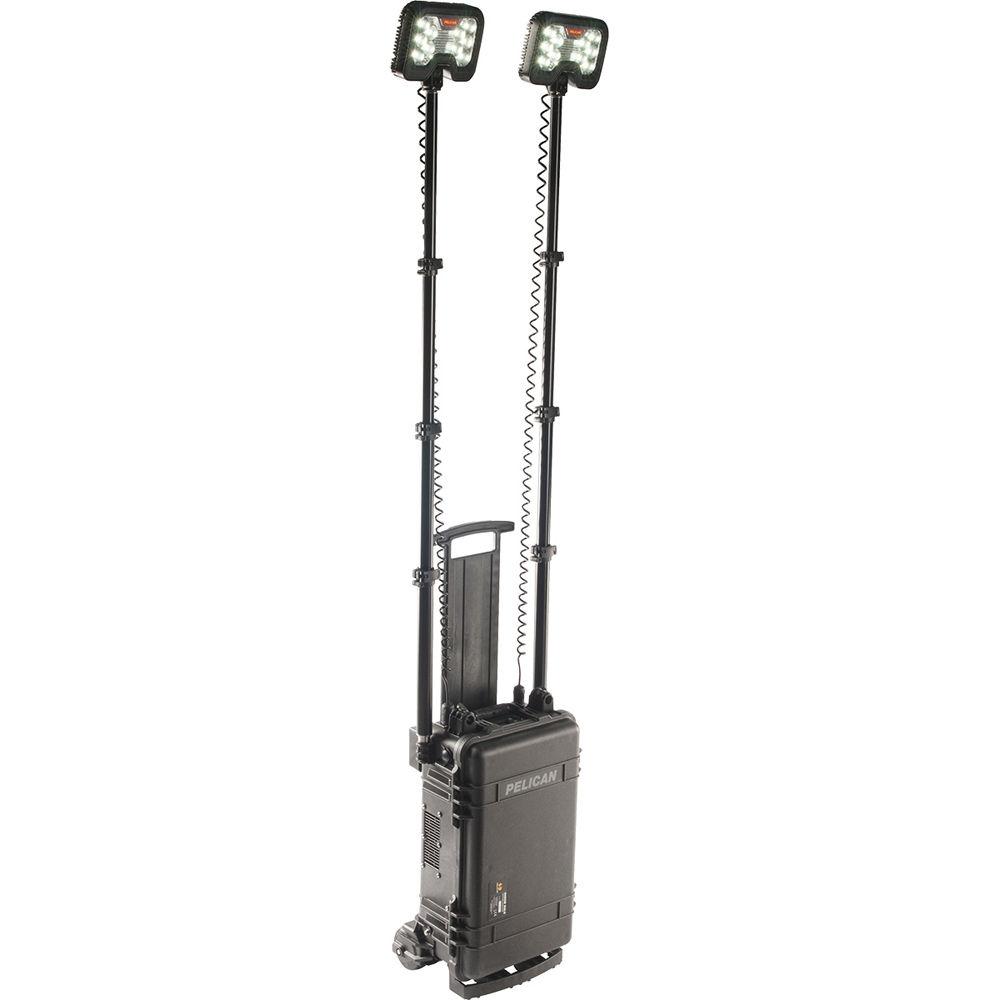

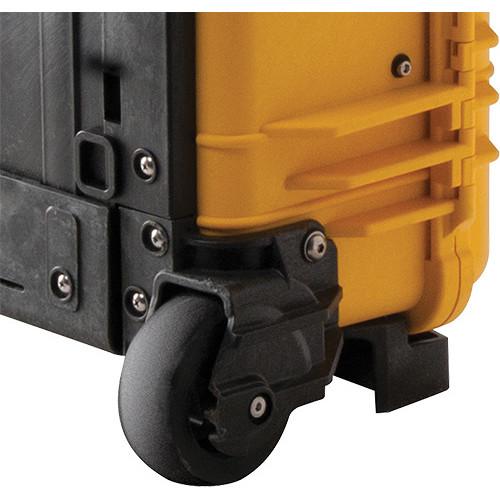

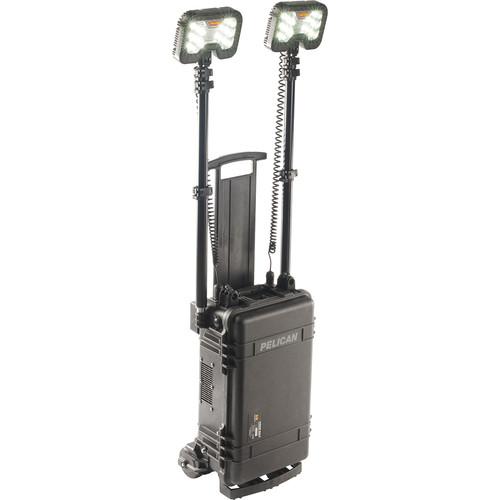

Product description Ideal for police, first responders, and construction after dark, the Pelican 9460M Remote Area Lighting System offers up to 12,000 lumens of light in a sturdy, stable and portable unit. The two LED light heads rise to more than 6 feet in height, swivel 360°, and can run from three to 24 hours on a charge, depending on the output level. The 9460M can be operated via Bluetooth remote control and employs an Intelligent Control System, which displays current battery level and allows the user to regulate light output and choose the desired runtime. Two USB ports can be used to run or charge smartphones and other devices. The unit's 1.5" wheels are designed to roll over varied terrain for ease of transport. The light heads and masts are stored inside the case and assemble in minutes. Each aluminum light mast extends to a height of 6.6' (2.0 meters) and retracts when not in use. The rechargeable battery has a three-hour runtime in high mode and runs as long as 24 hours on low power. The battery charges in in six hours and has a lifespan 500 cycles. - Construction
-
- Two 6,000-lumen light heads with 10 LEDs each
- Aluminum light heads and masts
- Polycarbonate lenses
- O-ring-sealed polycarbonate housing
- Carry handle
- Lamp life: 50,000 hours
- Use and Handling
-

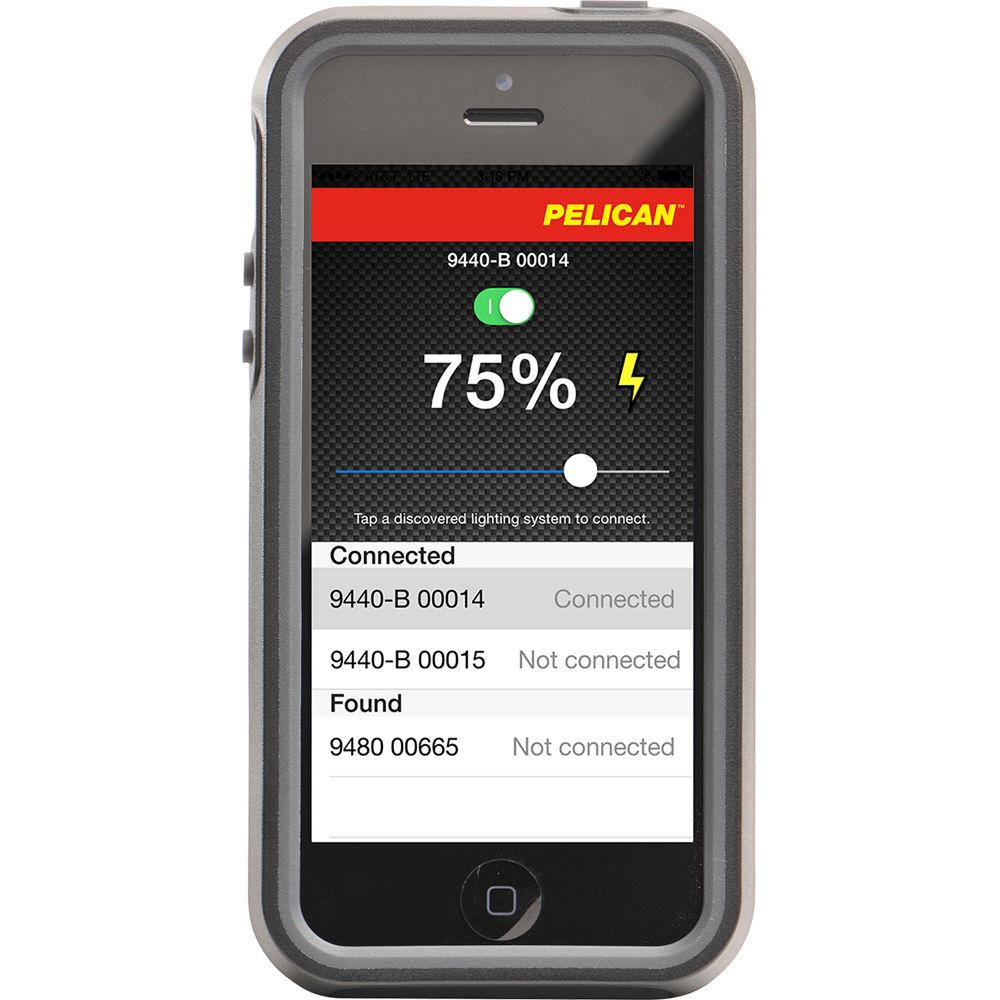

- Bluetooth remote control
- Housing can stand on end or lie flat

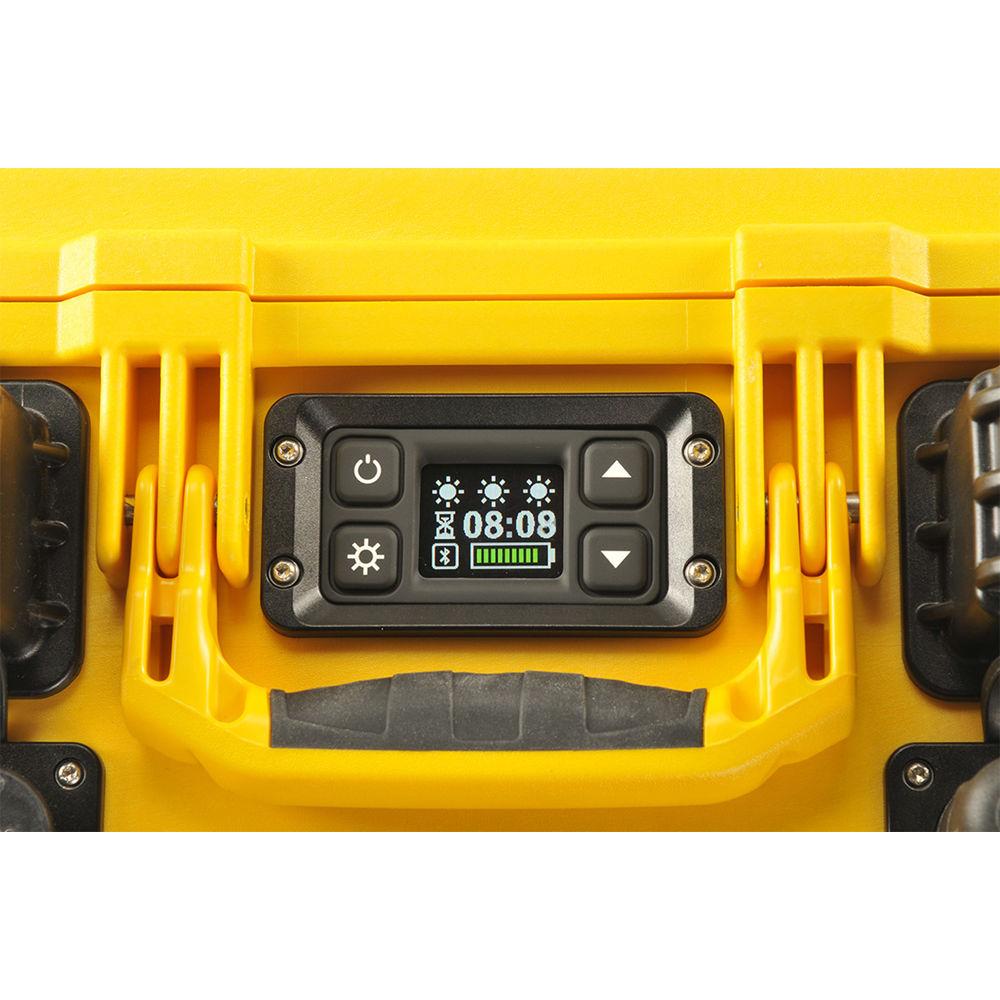

- Intelligent Control sets output, runtime or one of three preset power levels
- Charges in six hours
- Runtimes: 3-24 hours

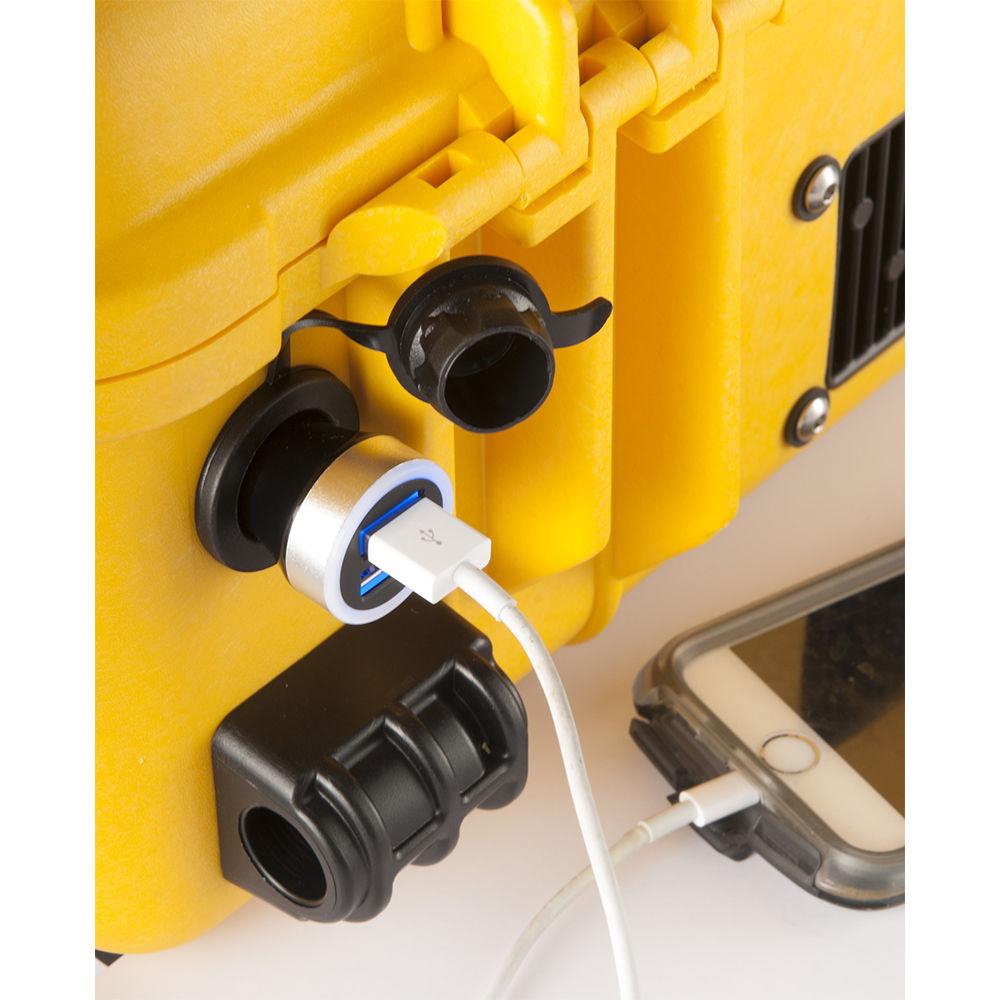

- Two USB ports
- Can run on AC wall power
UPC: 019428139254 In the Box Pelican 9460M Remote Area Lighting System Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelican 9460M Remote Area Lighting System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelican 094600-0012-110 Specs | Light Source | 2 x 10 LED light heads | | Lamp Life | 50,000 hours | | Output | 6,000 lumen per head | | Battery | Type: 12 V sealed lead acid, rechargeable
Runtime: 3-24 hours
Charge Time: 6 hours from full discharge
Battery Life: 500 cycles | | Dimensions | Head: 8.25 x 5.75 x 2.25" / 21.0 x 14.6 x 5.7 cm
Mast, Fully Extended: 79.5" / 201.9 cm Housing, Closed: 23.25 x 14.00 x 9.25 / 59.1 x 35.6 x 23.5 cm | | Weight | 64.0 lb / 29.0 kg | | | | Package Weight | 67.0 lb | | Box Dimensions (LxWxH) | 27.3 x 16.5 x 14.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 65 owners. Add your rating and experience with the product.
