User Manual for Pelican 9470M Remote Area Lighting System Click to enlarge the picture
Contents of the user manual for the Pelican 9470M Remote Area Lighting System
- Product category: Outdoor Area Lighting Pelican
- Brand: Pelican
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelican Outdoor Area Lighting
 |
User manual for the Pelican 9470M Remote Area Lighting System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelican product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelican user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelican product will considerably shorten its lifespan!
|

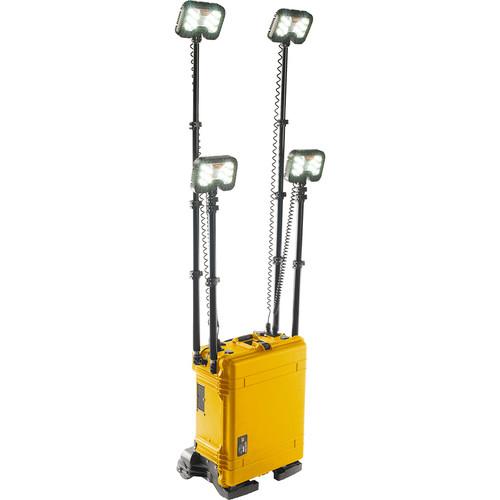

Product description Ideal for police, first responders, and construction after dark, the 9470M Remote Area Lighting System offers up to 24,000 lumens of light in a sturdy, stable, and portable unit. The four LED light heads rise to nearly 7 feet in height, swivel 360°, and can run from 2 hours 45 minutes to 24 hours on a charge, depending on the output level. The 9470M can be operated via Bluetooth remote control and employs an Intelligent Control System, which displays current battery level and allows the user to regulate light output and choose the desired run time. Two USB ports can be used to run or charge smartphones and other devices. The light heads and masts are stored inside the case and assemble in minutes. Each aluminum light mast extends to a height of 6.8' (2.1 meters) and retracts when not in use. The rechargeable battery has a 2.75 hour run time in high mode and runs as long as 24 hours on low power. The battery charges in eight hours and has a lifespan 500 cycles. - Construction
-
- Four 6,000-lumen light heads with 10 LEDs each
- Aluminum light heads and masts
- Polycarbonate lenses
- O-ring-sealed polycarbonate housing
- Carry handle
- Lamp life: 50,000 hours
- Use and Handling
-

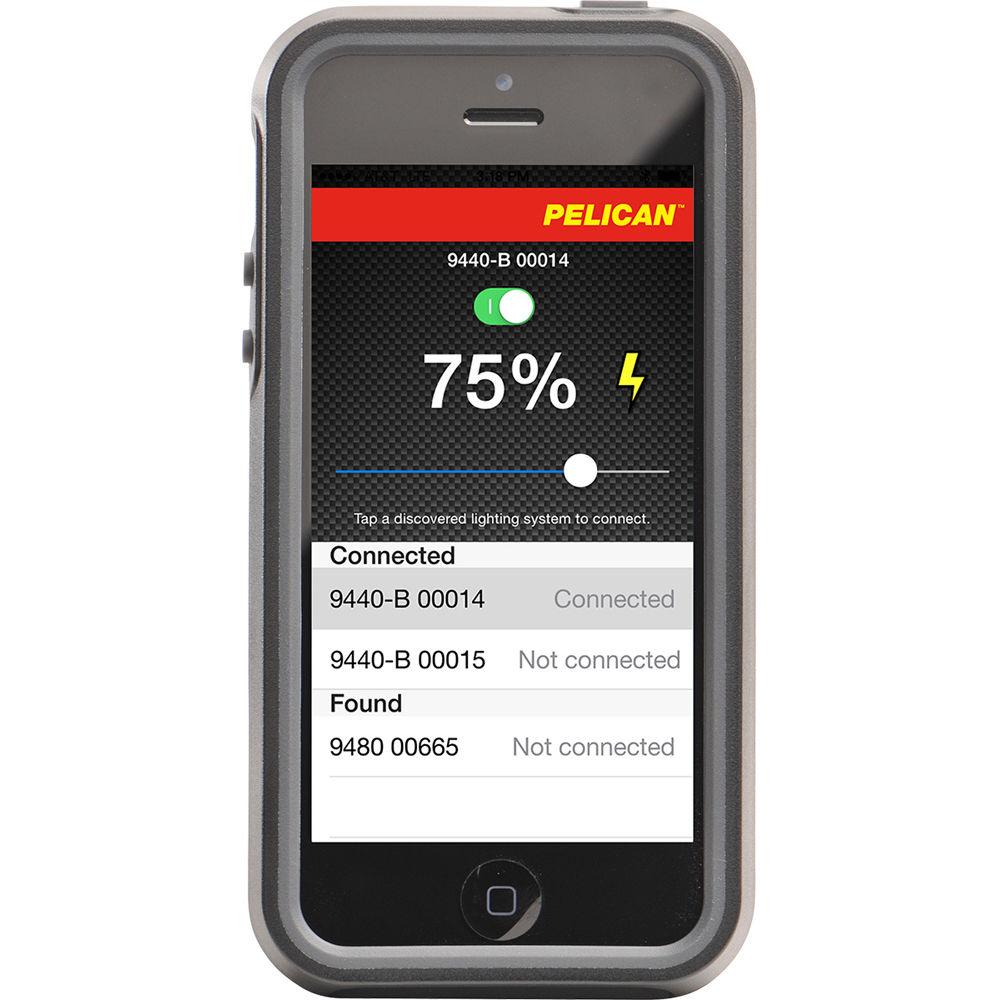

- Bluetooth remote control

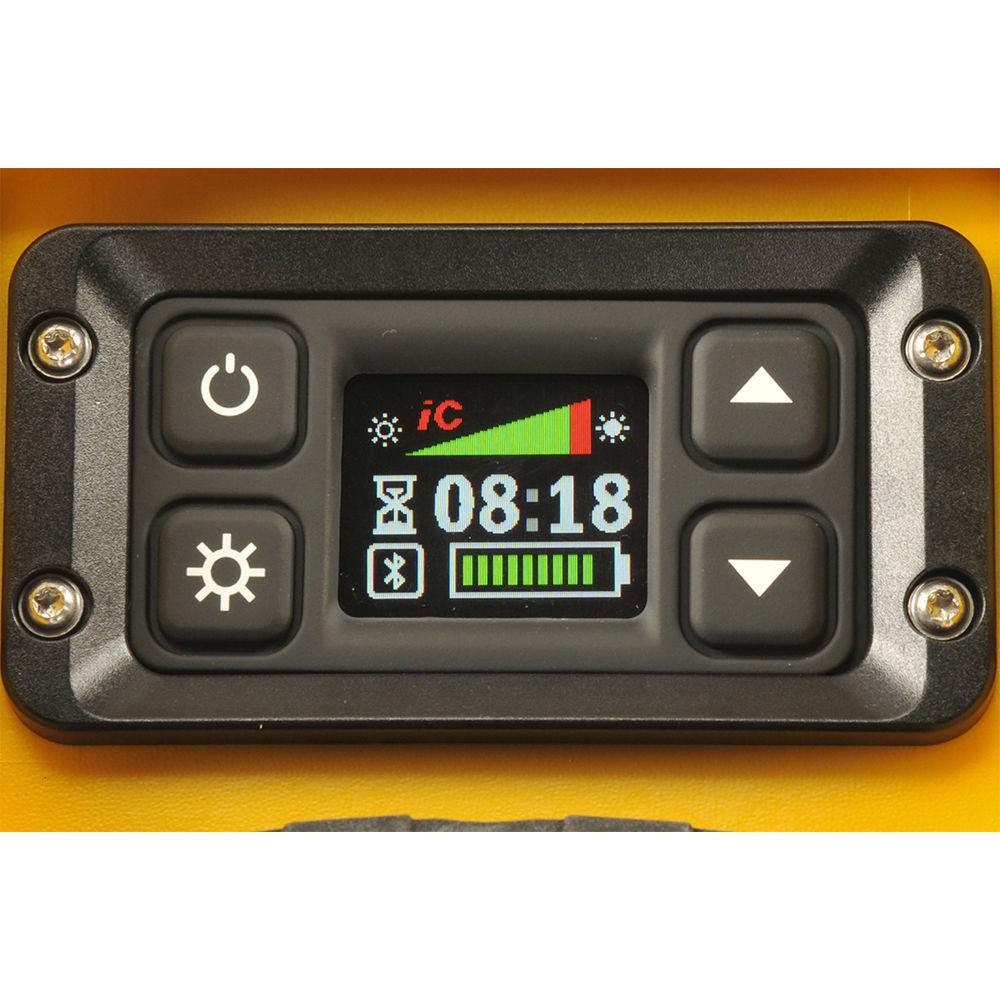

- Intelligent Control sets output, runtime, or one of three preset power levels
- Charges in eight hours
- Runtimes: 2.75-24 hours

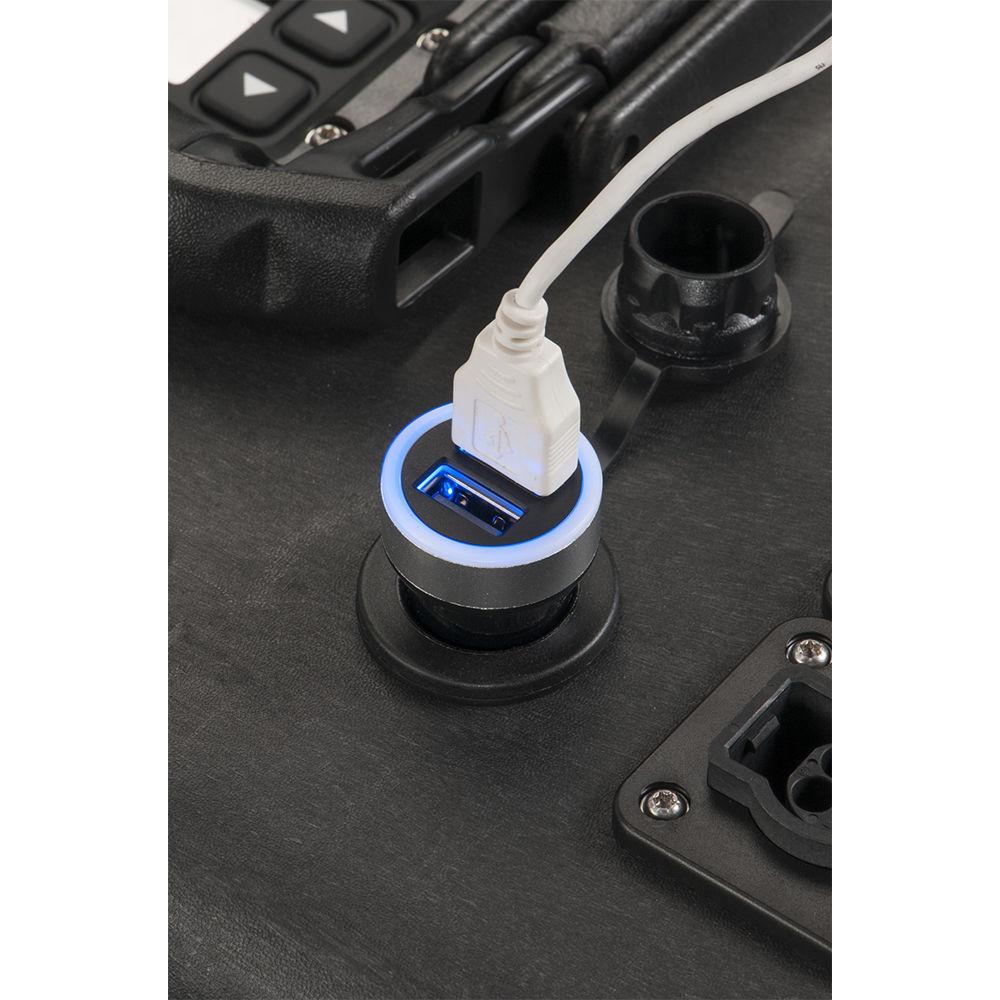

- Two USB ports
- Can run on AC wall power
UPC: 019428139315 In the Box Pelican 9470M Remote Area Lighting System Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelican 9470M Remote Area Lighting System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelican 094700-0012-245 Specs | Light Source | 4 x 10 LED light heads | | Lamp Life | 50,000 hours | | Output | 6,000 lumen per head | | Battery | Type: 12 V sealed lead acid, rechargeable
Run Time: 2.75-24 hours
Charge Time: 8 hours from full discharge
Battery Life: 500 cycles | | Dimensions | Head: 8.25 x 5.75 x 2.25" / 21.0 x 14.6 x 5.7 cm
Mast, Fully Extended: 82.0" / 208.3 cm
Housing, Closed: 24.75 x 20.0 x 11.75" / 62.9 x 50.8 x 29.8 cm | | Weight | 108 lb / 49 kg | | | | Package Weight | 120.45 lb | | Box Dimensions (LxWxH) | 26.5 x 23.0 x 14.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
