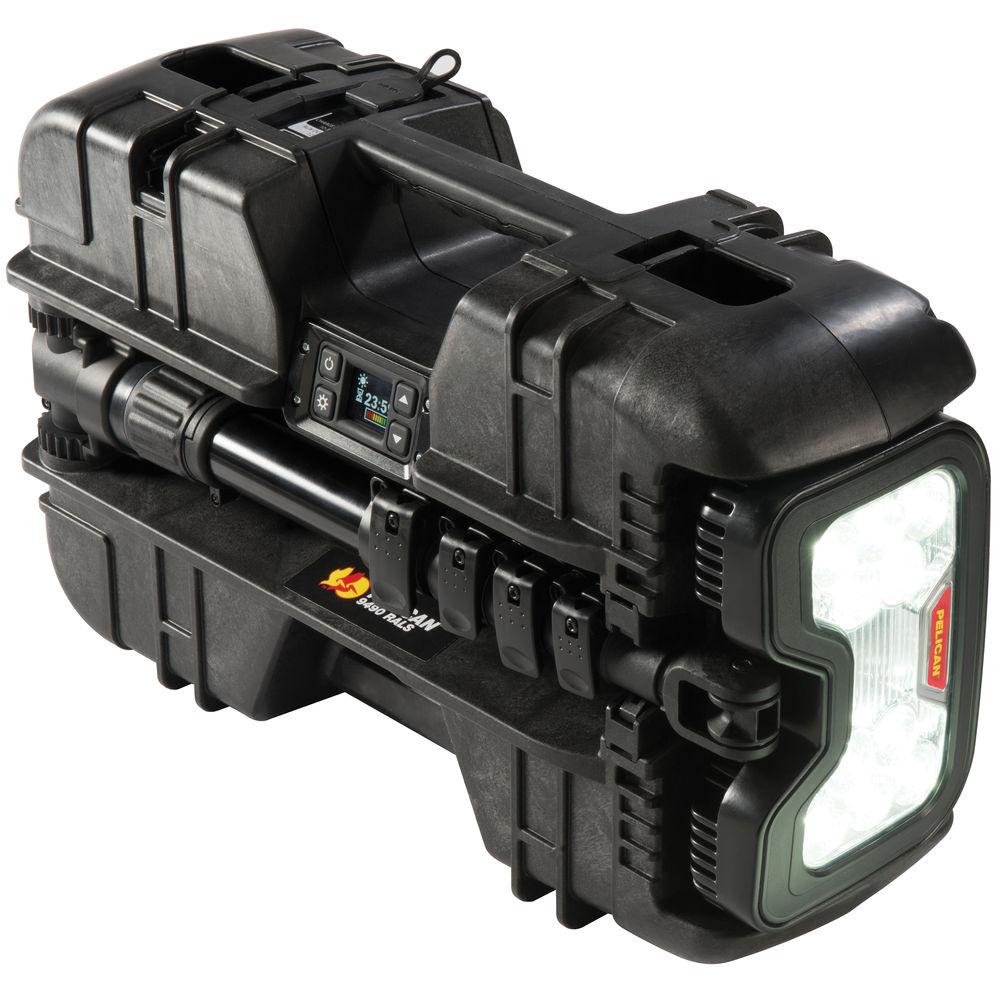

Product description Whether for recreational or professional use, the black 9480 Remote Area Lighting System from Pelican will shine a bright light on your activity, with a maximum output of 4,000 lumens and a maximum runtime of 28 hours. Weather-resistant thanks to its polypropylene copolymer housing, the RALS delivers 4,000 lumens on high, 3,000 on medium, and 1,000 on low. There's also a flashing mode for emergency signalling. The head contains 8 powerful LEDs and delivers a beam of light with a wide 125° spread. When the 24" mast is deployed, the head can be rotated 340°. To provide you with an uninterrupted operation, the battery pack features a modular design and can be easily replaced with a fully charged pack within seconds. It contains a rechargeable 12V sealed lead acid battery which will last from 6 to 28 hours, depending on a selected brightness mode. The pack also has a built-in battery status indicator and a silicone rubber control keypad. Additionally, this lighting system has a built-in Bluetooth and can be operated remotely from a free iOS app. For easy carrying the system has a long handle and steel pins for attaching an included shoulder strap. Also included with this lighting system is a power cord. - Light Performance
-
- Low: 1000 lumens
- Medium: 3000 lumens
- High: 4000 lumens
- Head has 8 LEDs total
- Beam spread 125°
- Flashing mode for emergency signalling
- LEDs have 50,000-hour life
- Bluetooth
-
- Built-in Bluetooth allows remote operation
- Requires using RALS app
- Compatible with iPhone 4s and later
- Battery and Runtime
-
- Sealed lead acid 12V rechargeable battery

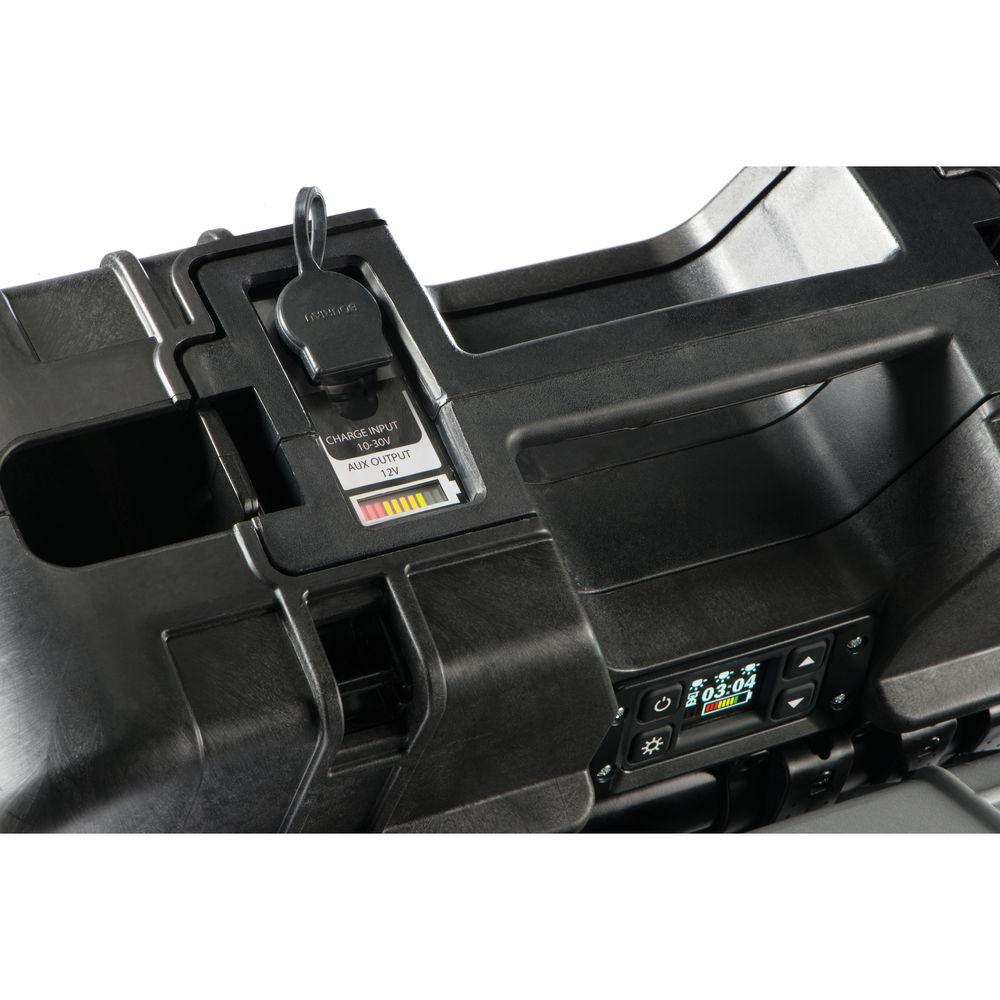

- Battery status indicator for at-a-glance monitoring

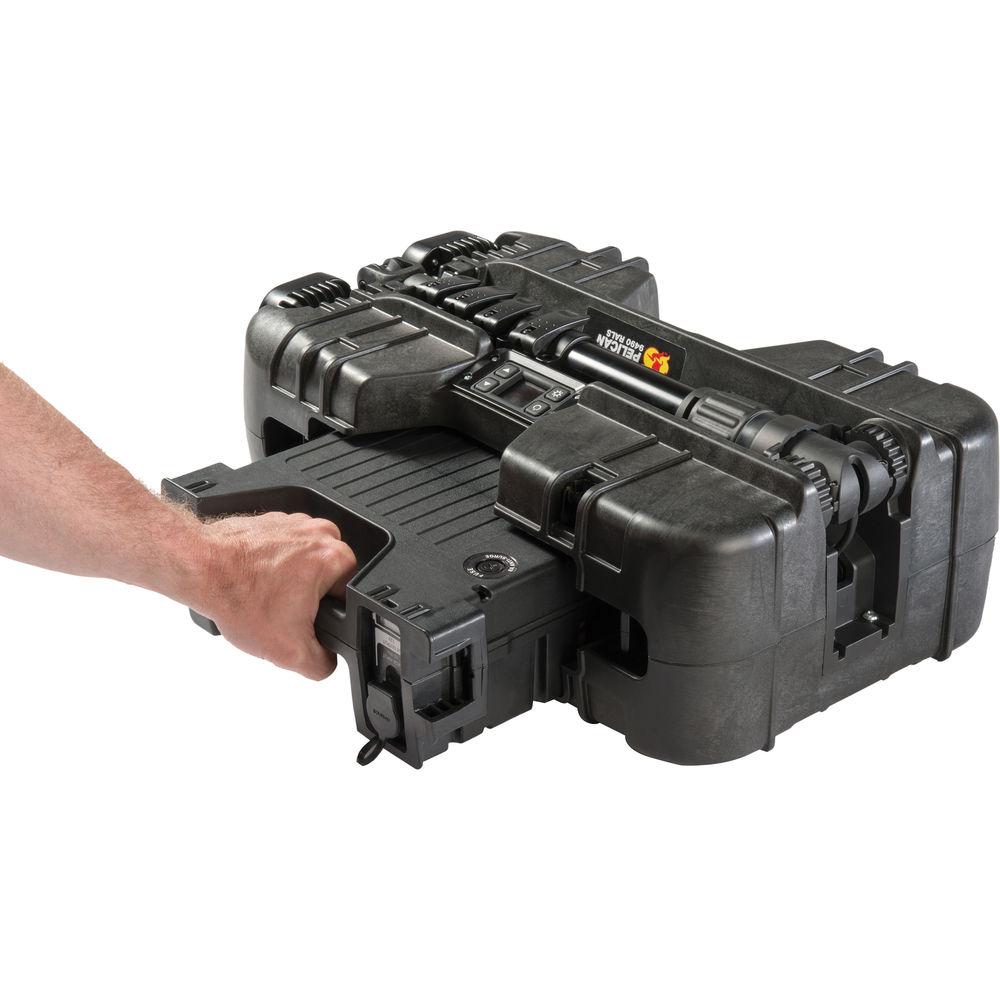

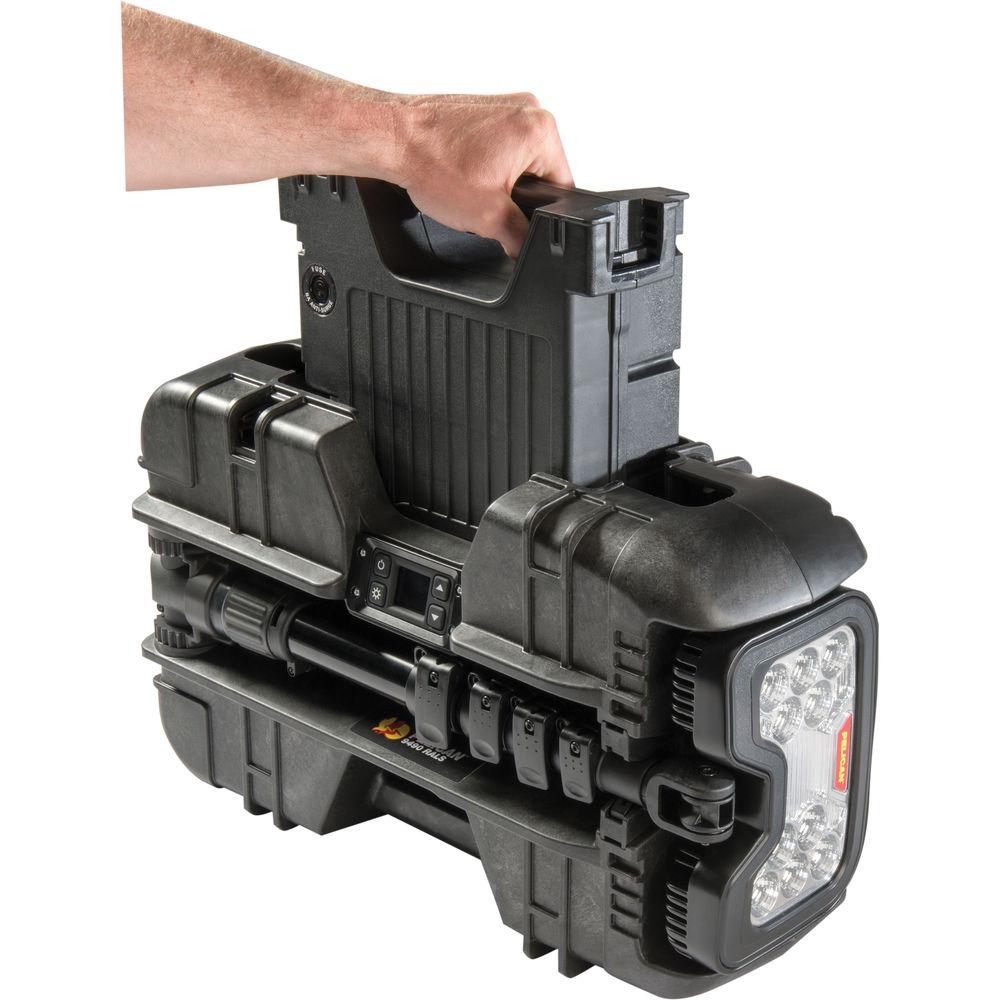

- Modular design allows for easy swapping of battery packs
- High power runtime: 6 hours
- Medium power runtime: 8 hours
- Low power runtime: 28 hours
- Construction Details
-
- Polypropylene copolymer housing is resistant to abrasives and impact

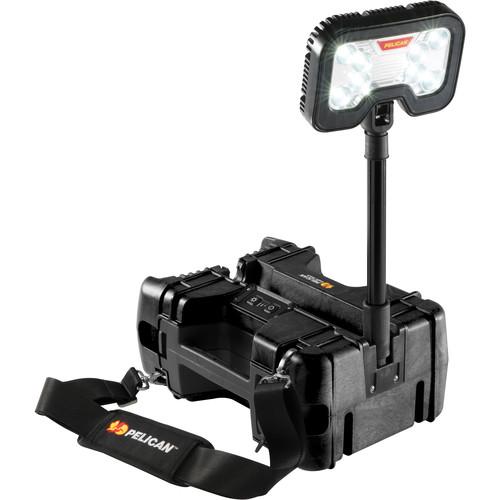

- Mast extends to 24"
- Head swivels 340° atop mast
- Housing design allows easy swapping battery packs

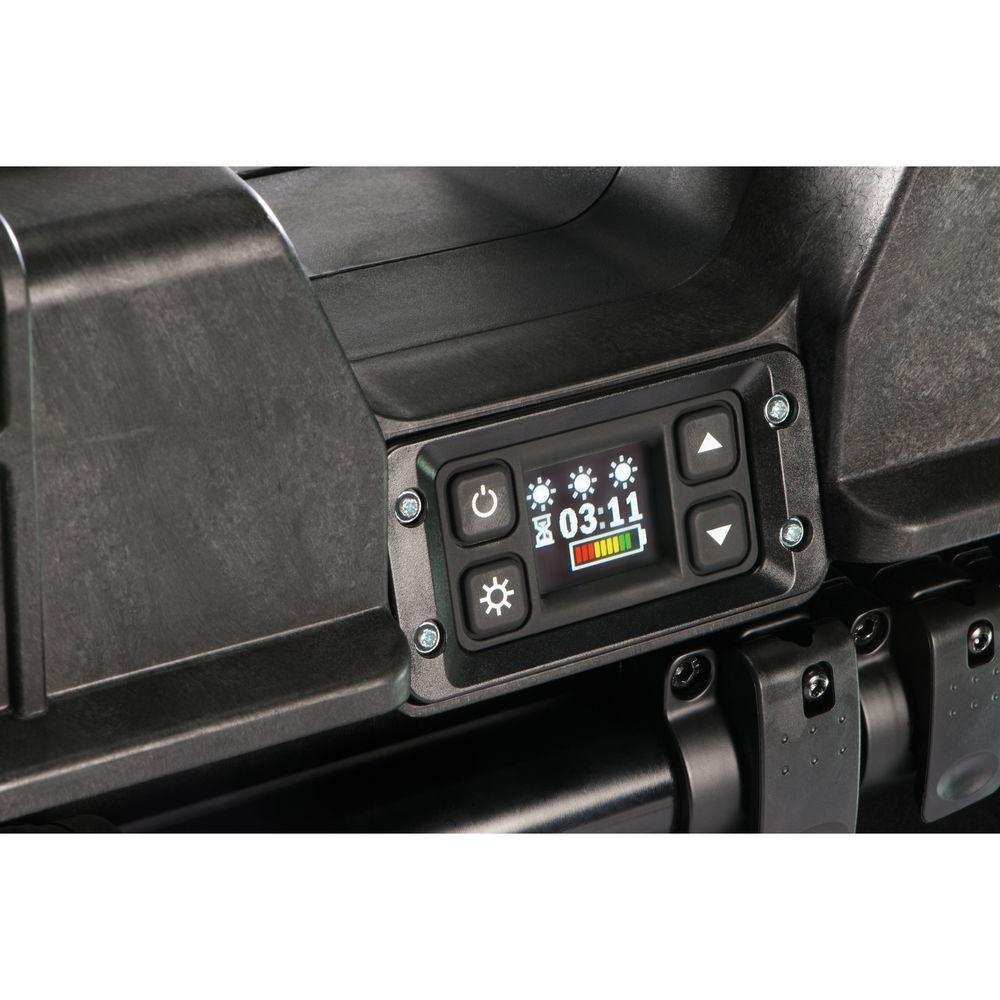

- Silicone rubber keypad offers safe operation in adverse weather conditions

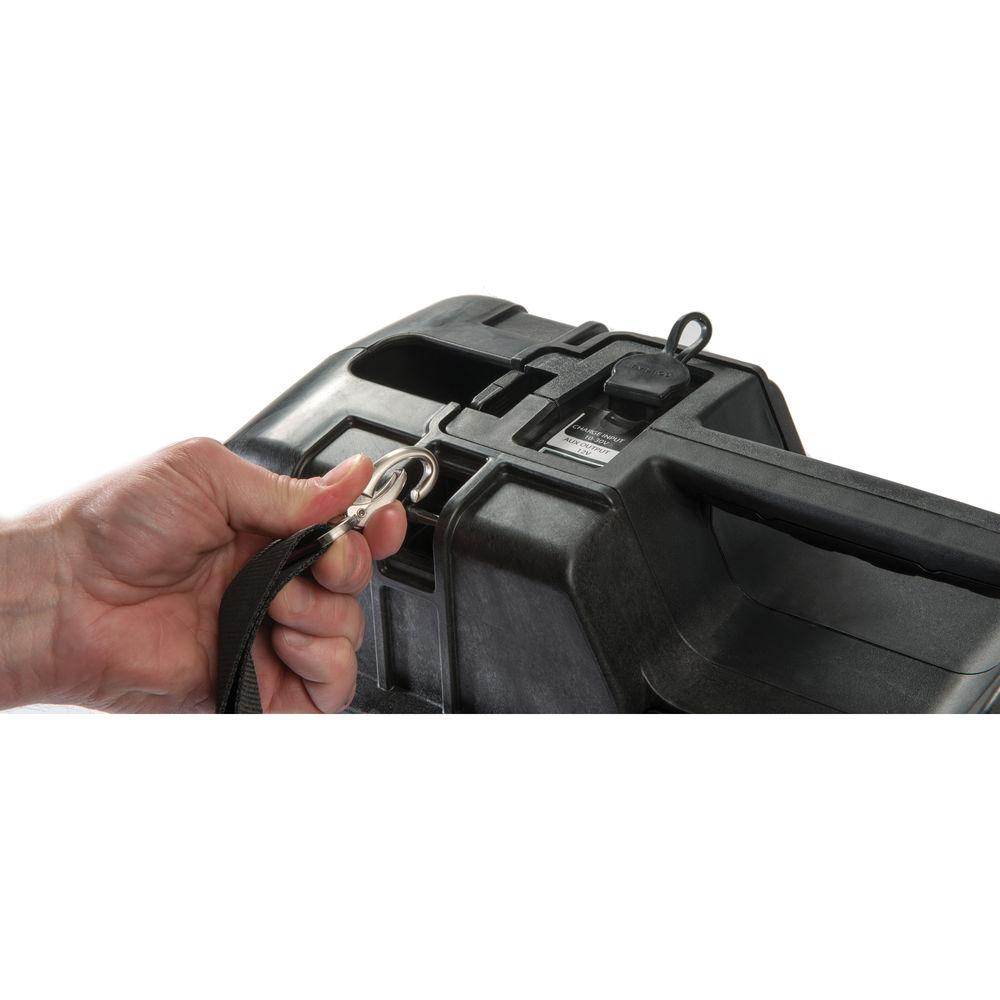

- Shoulder strap with metal clips allows secure attachment and easier prolonged carrying
- Weatherproof IP54-rated
UPC: 019428124533 In the Box Pelican 9480 Remote Area Lighting System (Black) Power Cord Shoulder Strap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelican 9480 Remote Area Lighting System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelican 094800-0000-110 Specs | Lamp Type | LED, high flux | | Maximum Output | 4000 lumens
High: 4000 lumens, Medium: 3000 lumens, Low: 1000 lumens | | Battery / Runtime | 12 V rechargeable sealed lead acid / high: 6 hr, medium: 8 hr, low: 28 hr max | | Charging Time | 8 h from full discharge | | Construction | Polypropylene copolymer | | Waterproofing | IP54-rated, weather resistant | | Operating Temperature | -4 to 122°F ( -20 to 50°C) | | Dimensions | Head: 8.25 x 2.25 x 5.75" (21.0 x 14.6 x 5.7 cm)
Main unit: 15.5 x 10.25 x 6.5" (39.4 x 26.0 x 16.5 cm)
Mast: 23.8" (60.3 cm) | | Weight | 27.5 lb (12.5 kg) | | | | Package Weight | 32.95 lb | | Box Dimensions (LxWxH) | 21.0 x 11.5 x 7.1" |
