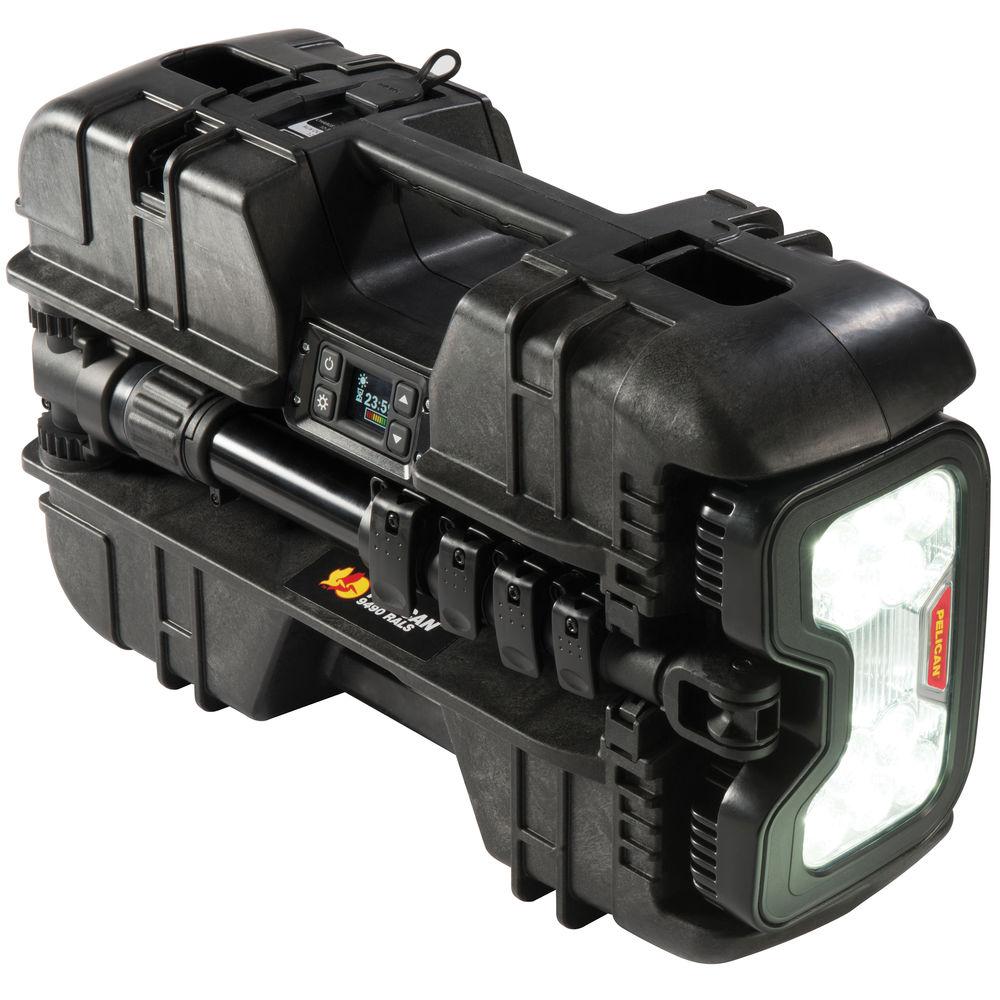

Product description The black 9490 Remote Area Lighting System from Pelican is a self-contained, rechargeable, battery-powered light source with a multi-position telescoping mast that reaches a height of 6 feet and is topped with a 10-LED head that pivots 340° to precisely place the 125° angle beam. With a 6000-lumen maximum output and up to 24 hours of continuous runtime; it provides a convenient alternative to generator-powered lights. An Intelligent Control system allows for variable light output levels from 1 to 100% power, and calculates and displays current battery life, allowing the user to regulate the intensity of the light and choose the desired run time. For quick use, there are three preset output levels: 1500 lumen, 3000 lumen, and 6000 lumen. Remote control operation is supported via a free app for iPhone and connects via Bluetooth to give full control of on/off switching and variable output selection. - Light Performance
-
- Low: 1500 lumen, 25%
- Med: 3000 lumen, 50%
- High: 6000 lumen, 100%
- Ten white LED emitter array
- Three preset output levels
- Variable output between 1 and 100% intensity level
- Wide 125° beam spread
- Switching
-
- Type: Multiple pushbuttons
- Location: front of housing
- Separate on/off, mode, and brightness selection
- Connect to iPhone via Bluetooth
- Free app gives you remote control of the on/off, and variable output management for precise intensity
- Construction Details
-

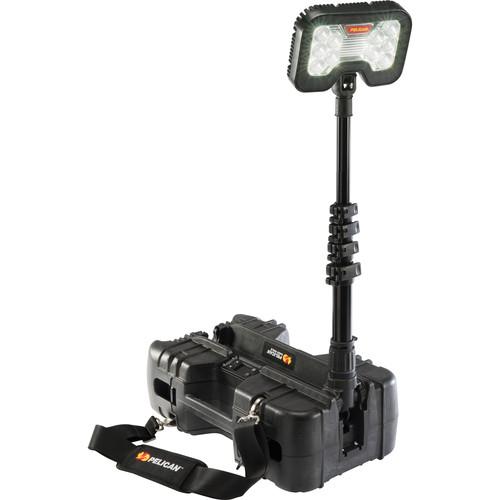

- Extendable five-section aluminum mast with a max height of 6' (1.8m)
- Mast has snap-locks for selecting mast height
- 340° pivoting light head for precise beam placement
- IP54-rated, dust and water resistant

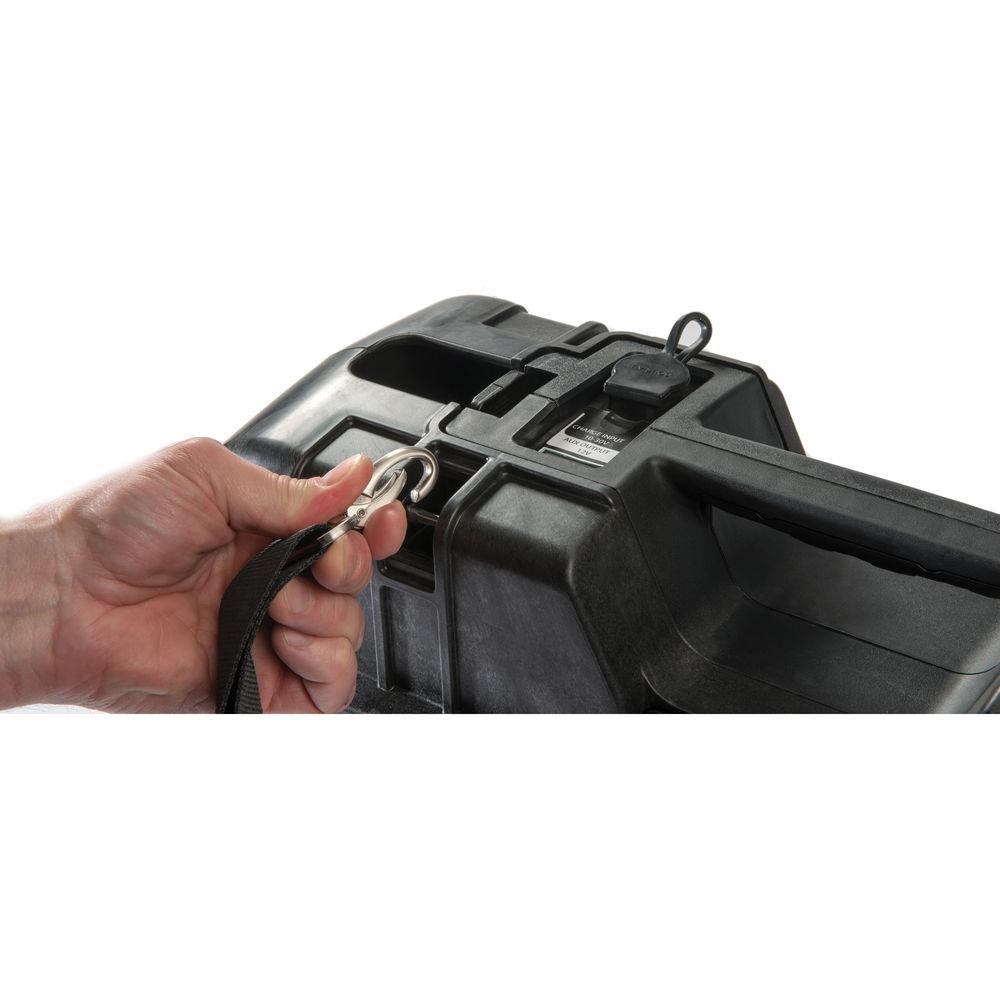

- Integrated carrying handle and removable shoulder strap
- Closed dimensions: 20.00 x 11.25 x 6.50"
- Weighs 32 lb including battery
- Electronics
-

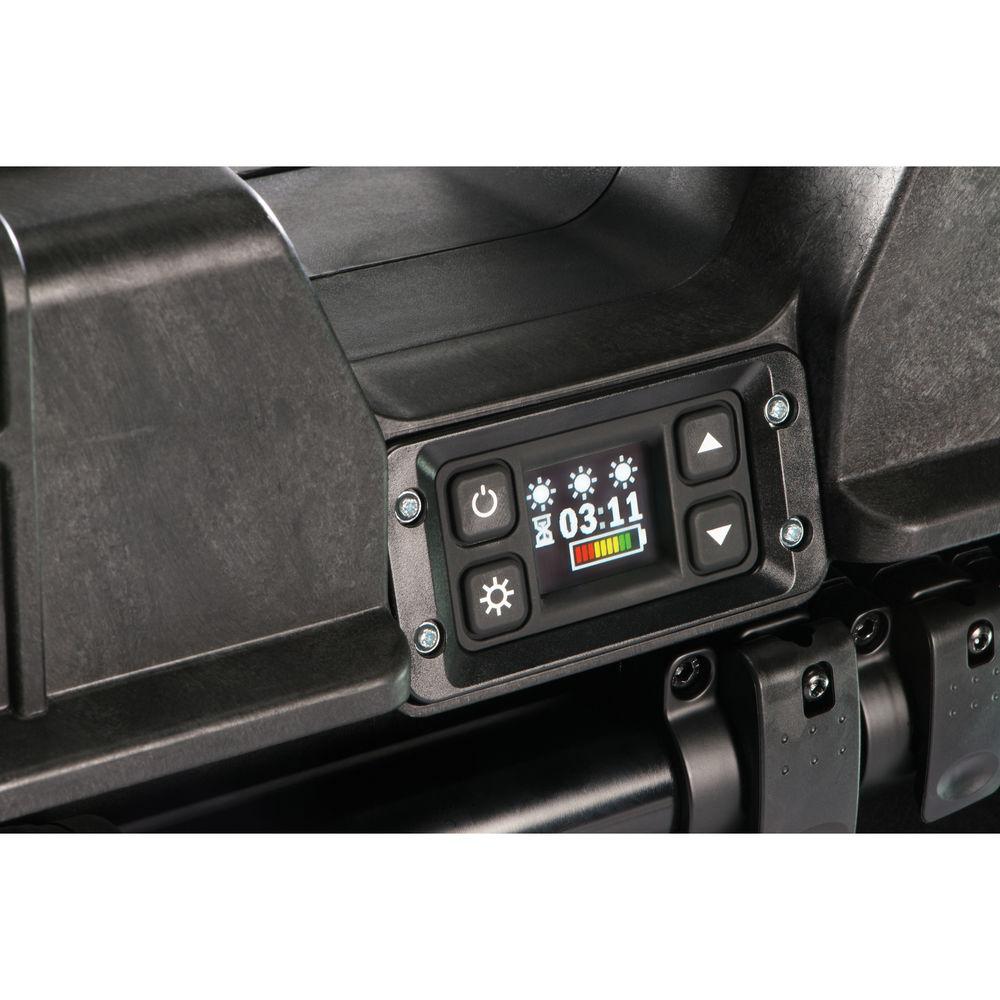

- Full-time battery level display
- Low battery warning
- Rechargeable Sealed Lead Acid battery
- Charge time: 8 hours
- Up to 24 hours of runtime

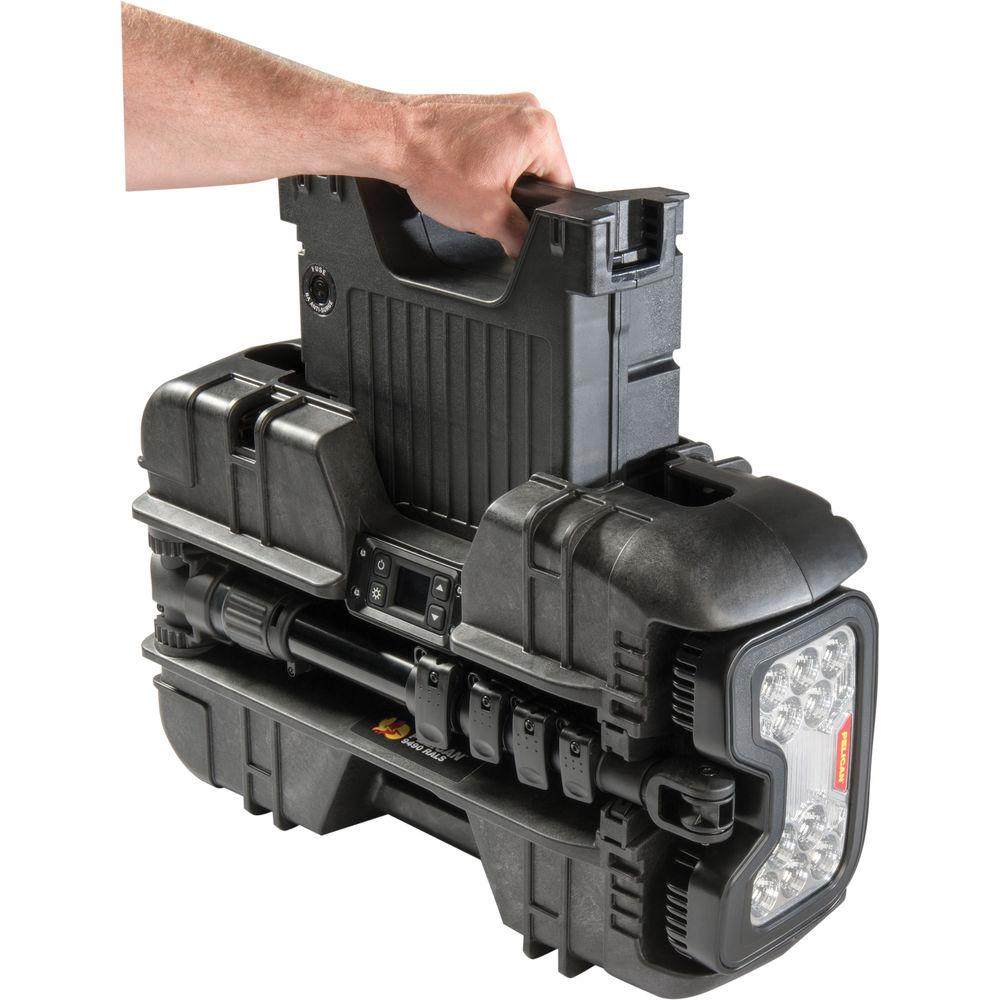

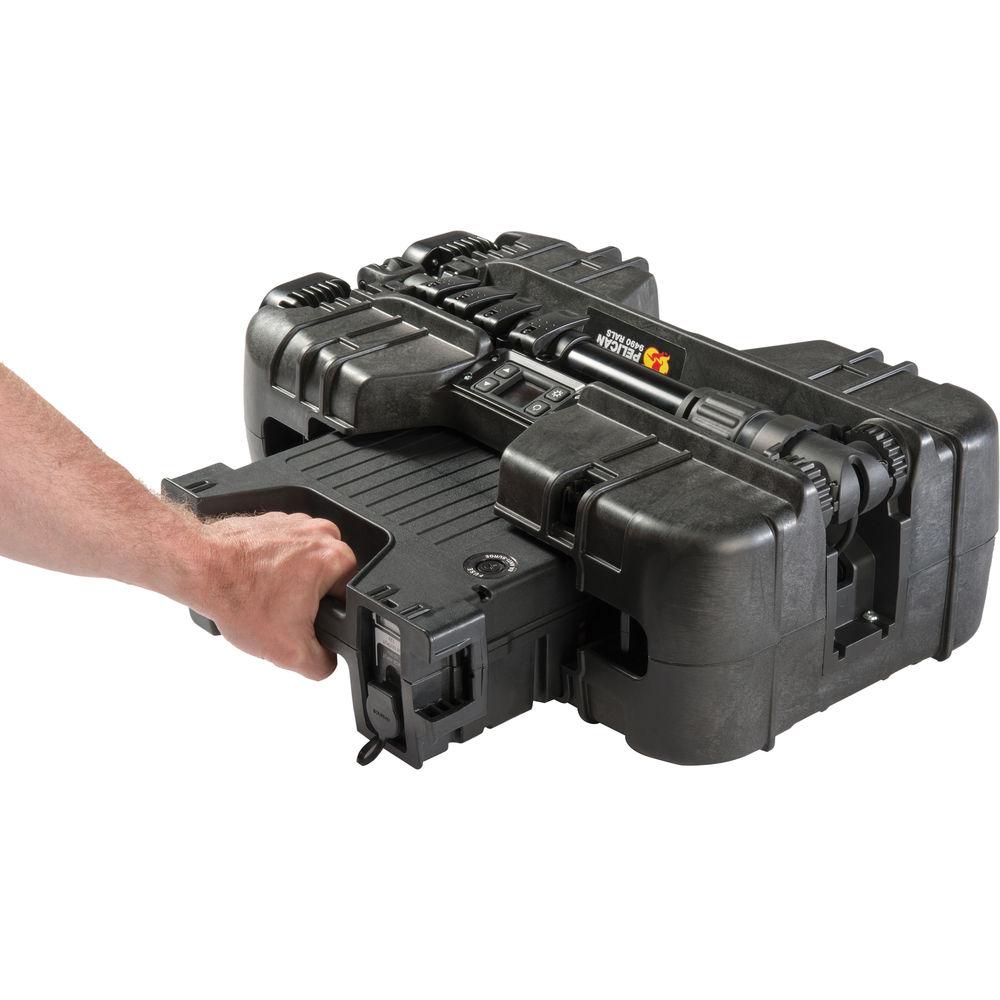

- Exchangeable battery pack, sold separately
UPC: 019428124519 In the Box Pelican 9490 Remote Area Lighting System (Black) Shoulder Strap 110 VAC Charging Cord Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelican 9490 Remote Area Lighting System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelican 094900-0000-110 Specs | Illumination Source | 10 x LEDs | | Output Range | Low: 1500 lumens
Med: 3000 lumens
High: 6000 lumens | | Beam Angle | 125° | | Battery | Sealed lead acid | | Runtime | High: 3.5 h
Med: 12.0 h
Low: 24.0 h | | Charge Time | 8 h | | Construction | Body: Polypropylene
Head: Aluminum
Mast: Aluminum
Lens: Polycarbonate | | Waterproofing | IP54-rated, dust and water resistant | | Dimensions | Head: 8.25 x 5.75 x 2.25" / 20.96 x 14.61 x 5.72 cm
Body, closed: 20.0 x 11.25 x 6.50" / 50.80 x 28.58 x 16.51 cm
Mast length: 72.00" / 182.88 cm | | Weight | 32.0 lb / 14.5 kg | | | | Package Weight | 37.65 lb | | Box Dimensions (LxWxH) | 25.0 x 12.7 x 7.7" |
