User Manual for Pelican 9600 LED Modular Light Click to enlarge the picture
Contents of the user manual for the Pelican 9600 LED Modular Light
- Product category: Outdoor Area Lighting Pelican
- Brand: Pelican
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pelican Outdoor Area Lighting
|
User manual for the Pelican 9600 LED Modular Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pelican product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pelican user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pelican product will considerably shorten its lifespan!
|

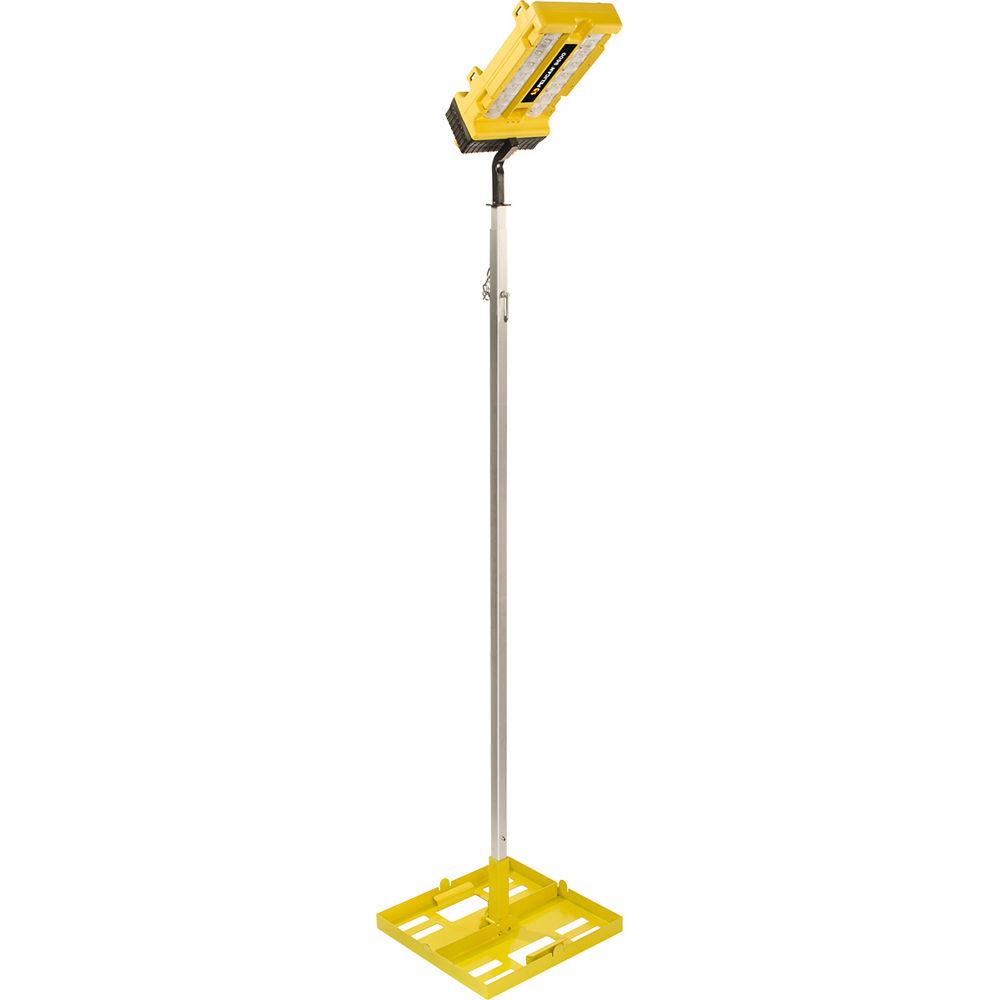

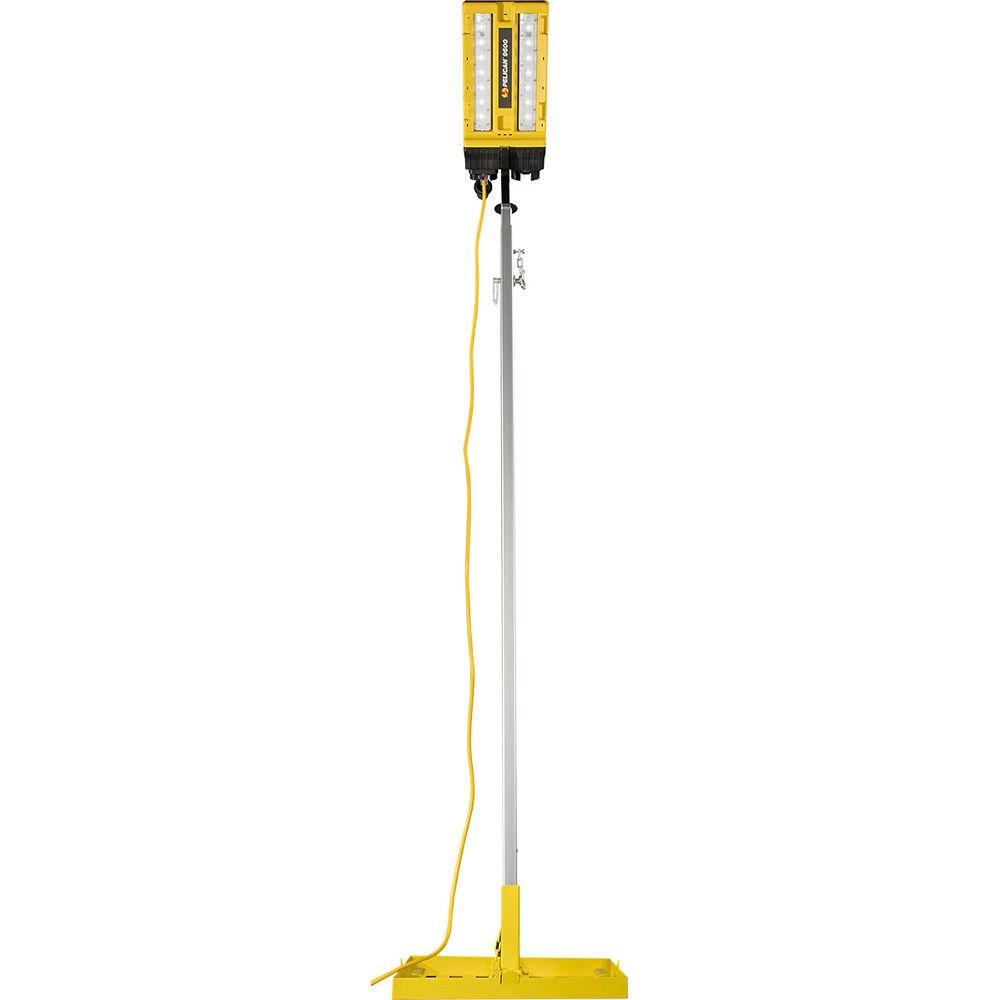

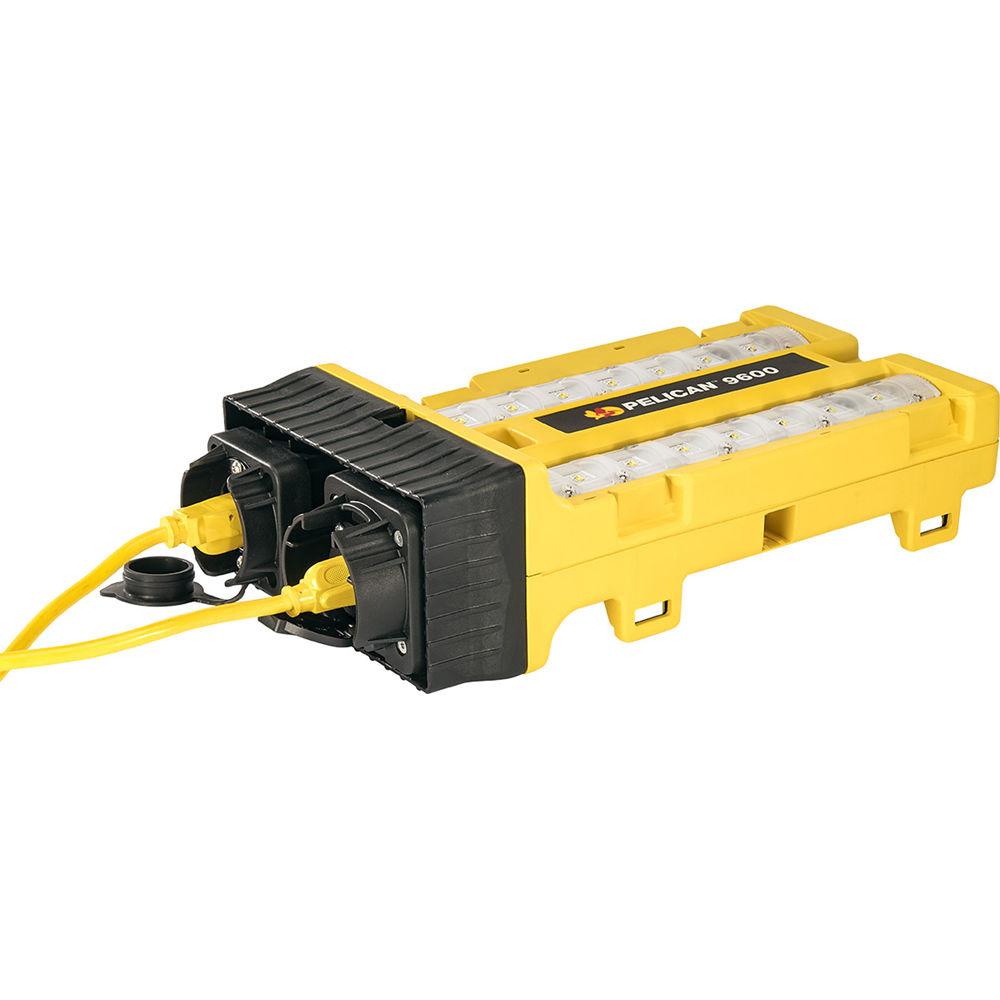

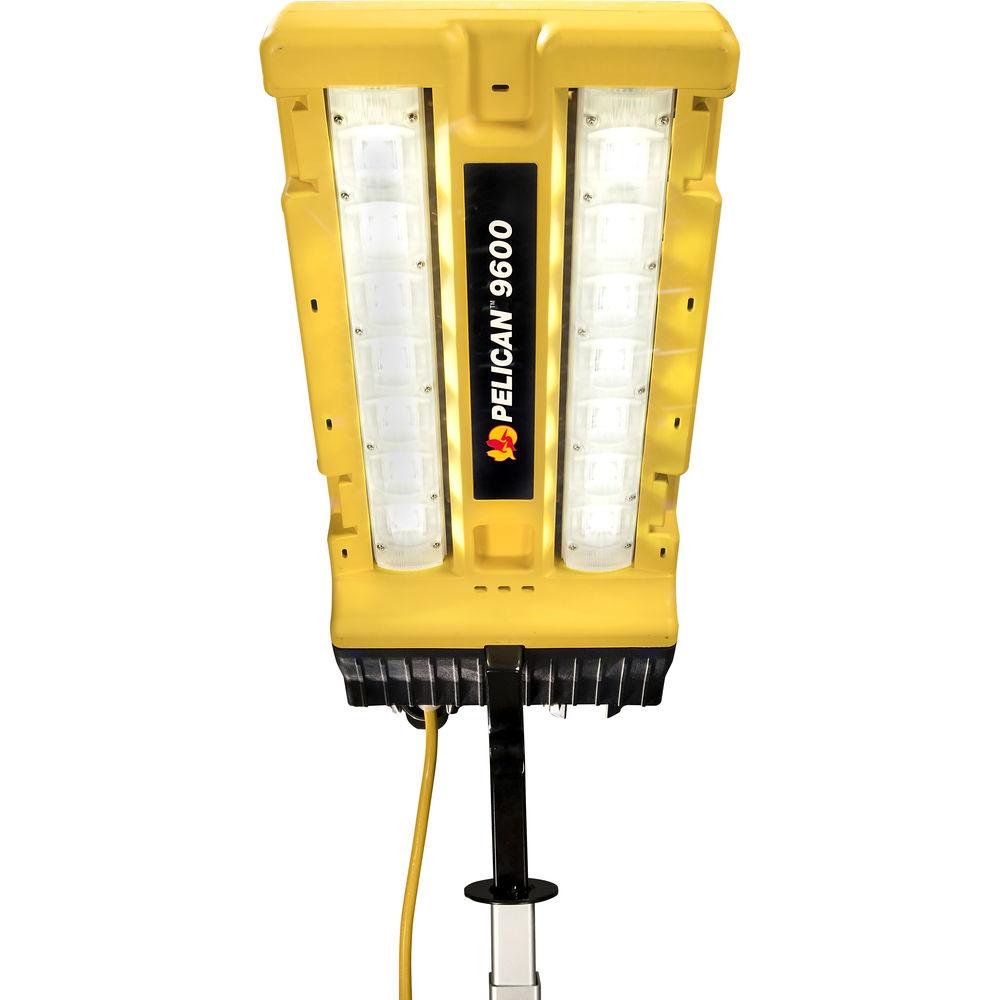

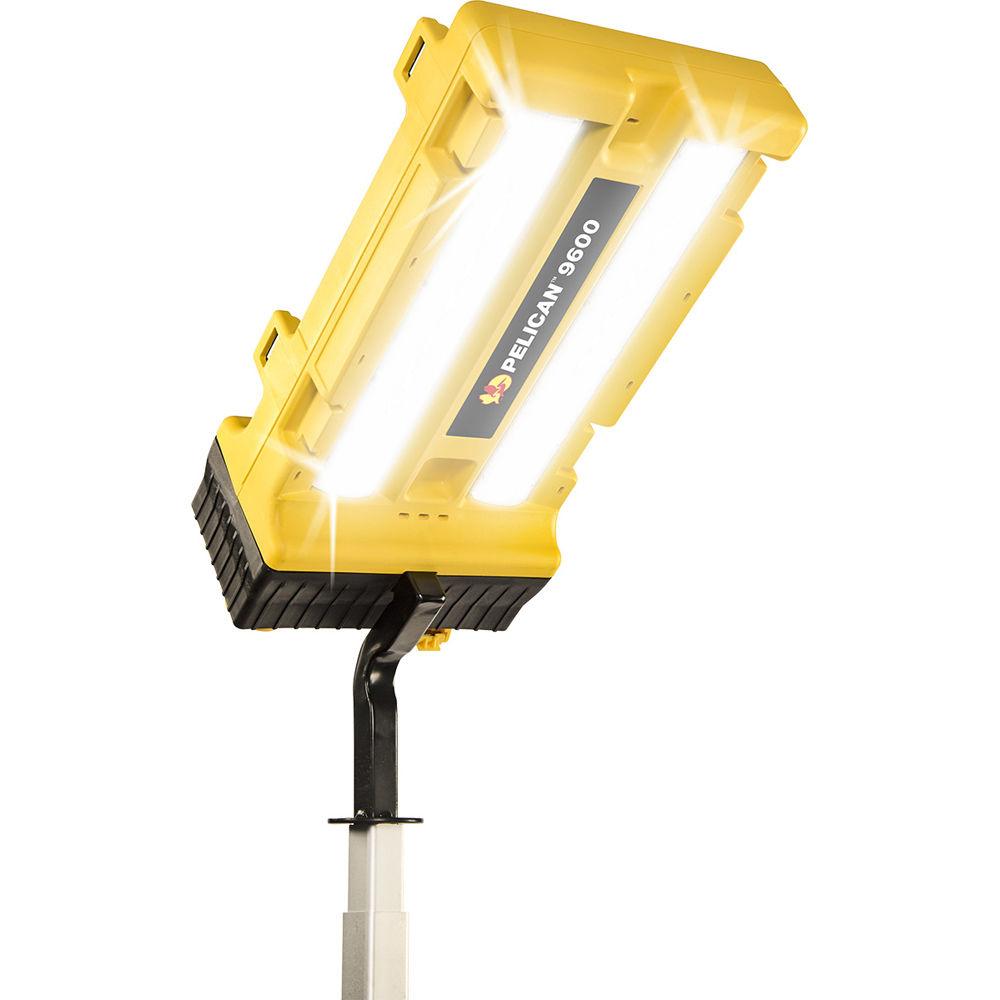

Product description The Pelican 9600 LED Modular Light delivers 3000 lumens in a 120° beam spread for area lighting, and can be chained with up to 33 other units to light long sections of rail track or a tunnel, or even set up a makeshift runway. The module is equipped with two strips of seven LEDs each, and the strips tilt 15° to customize the coverage. Covered input and output receptacles are found on the base of the unit. Bracket mounts are provided on the sides and ends, for vertical or horizontal orientation, and four strap attachment points give additional mounting options. The LEDs are protected by recessed polycarbonate lenses, the housing features internal shock supports and is tested to withstand drops of 6' onto concrete, and the module is IP54-rated water resistant. Poles, bases and cables are sold separately. -
- 3000-lumen output, 120° beam spread
- 2 strips of 7 LEDs each
- Strips tilt 15° to customize light coverage
- Side and end mounts for separately sold poles
- 4 strap attachment points
- IP54-rated water resistant
- Shock resistant to 6'
- Can be chained to 33 other units
UPC: 019428155506 In the Box Pelican 9600 LED Modular Light Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pelican 9600 LED Modular Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPelican 9600 Specs Light Source | 14 x LED | Output | 3000 Lumens | Beam Angle | 120° | Power Draw | 24 W | Water Resistance | IP54 | Dimensions | 18.3 x 8.3 x 4.7" / 46.5 x 21 x 12 cm | Weight | 7.9 lb / 3.6 kg |
