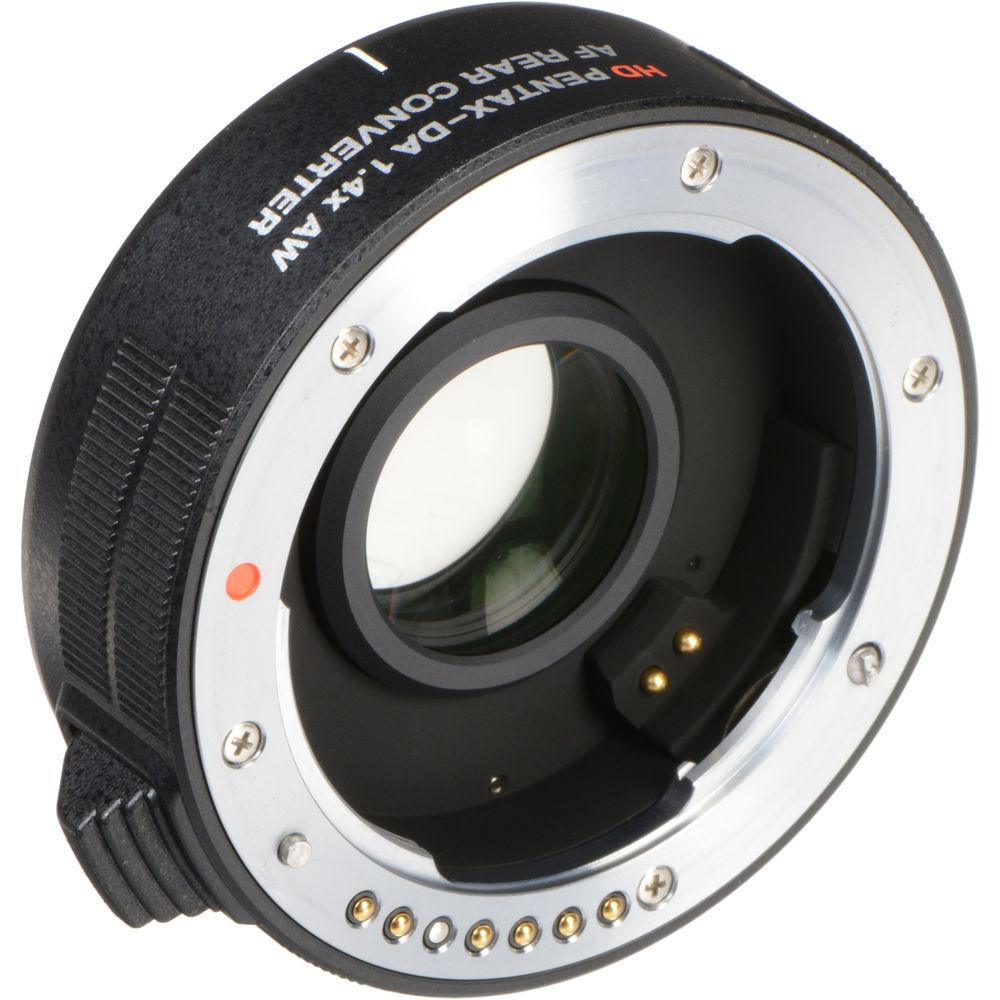

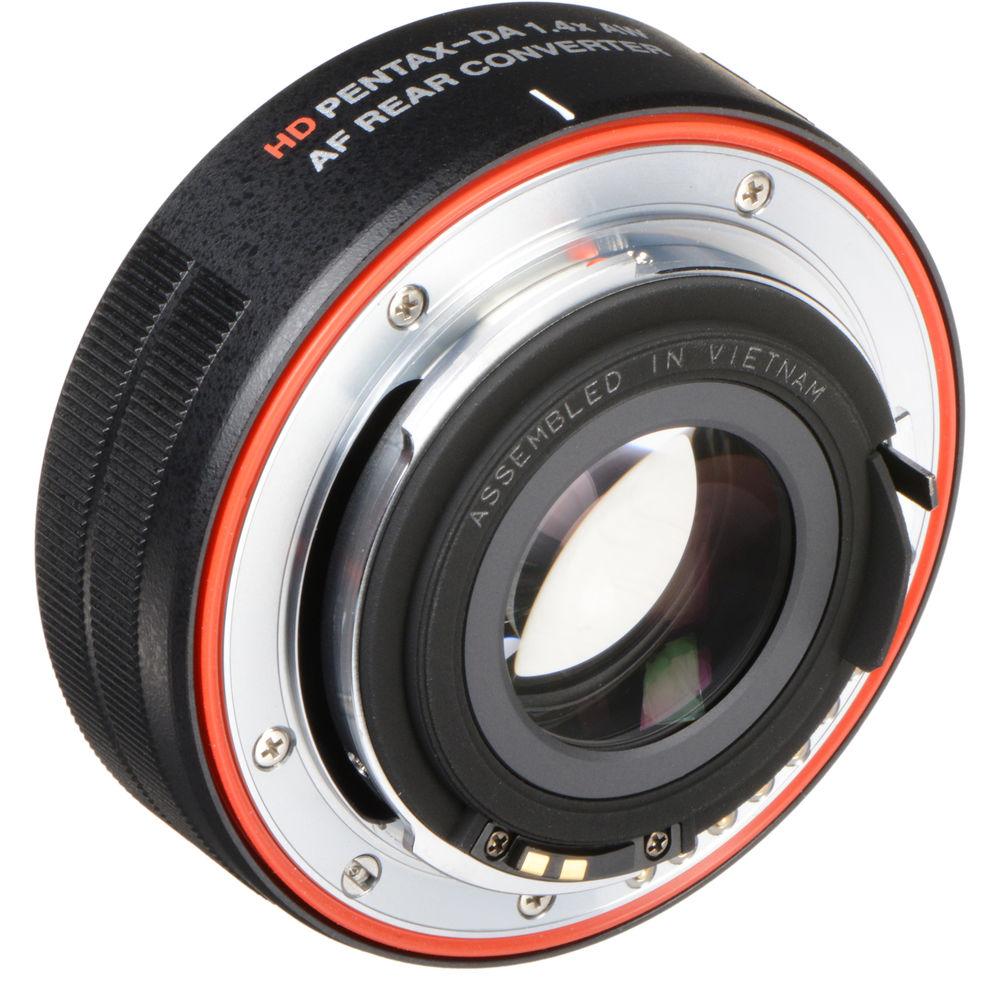

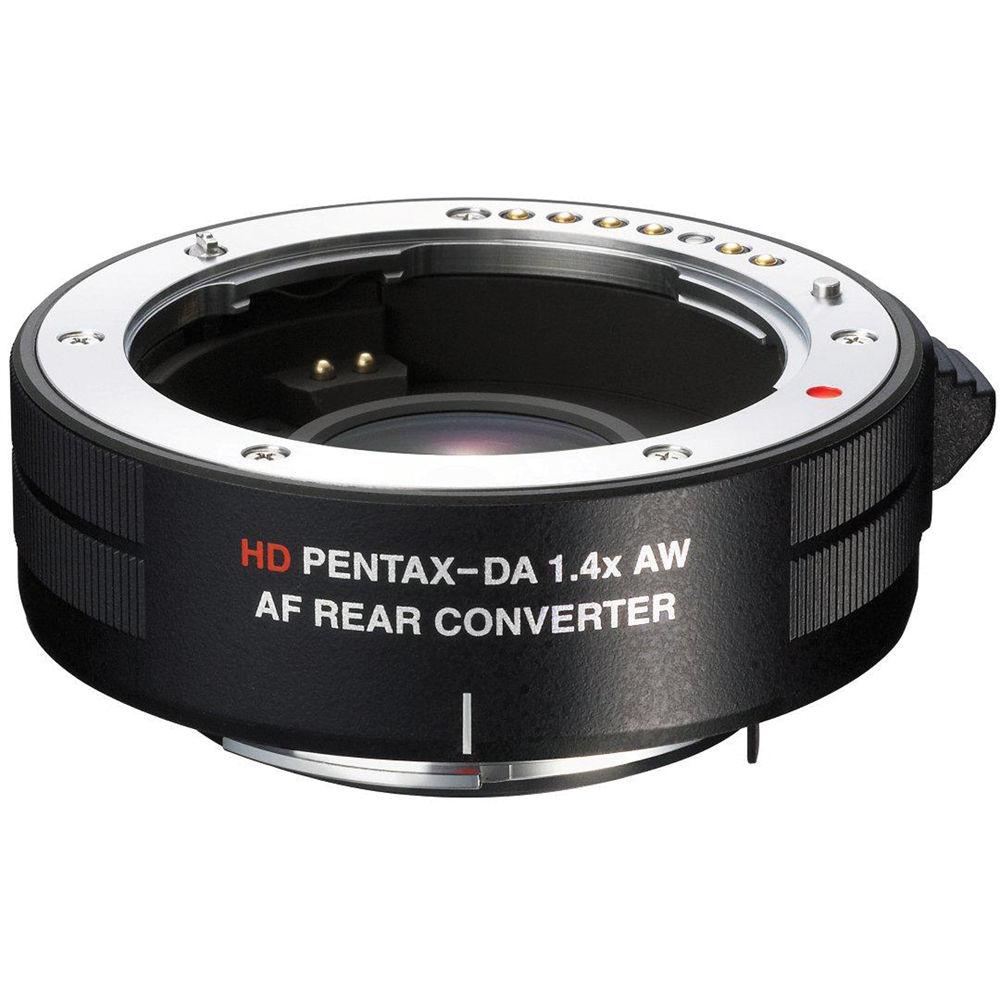

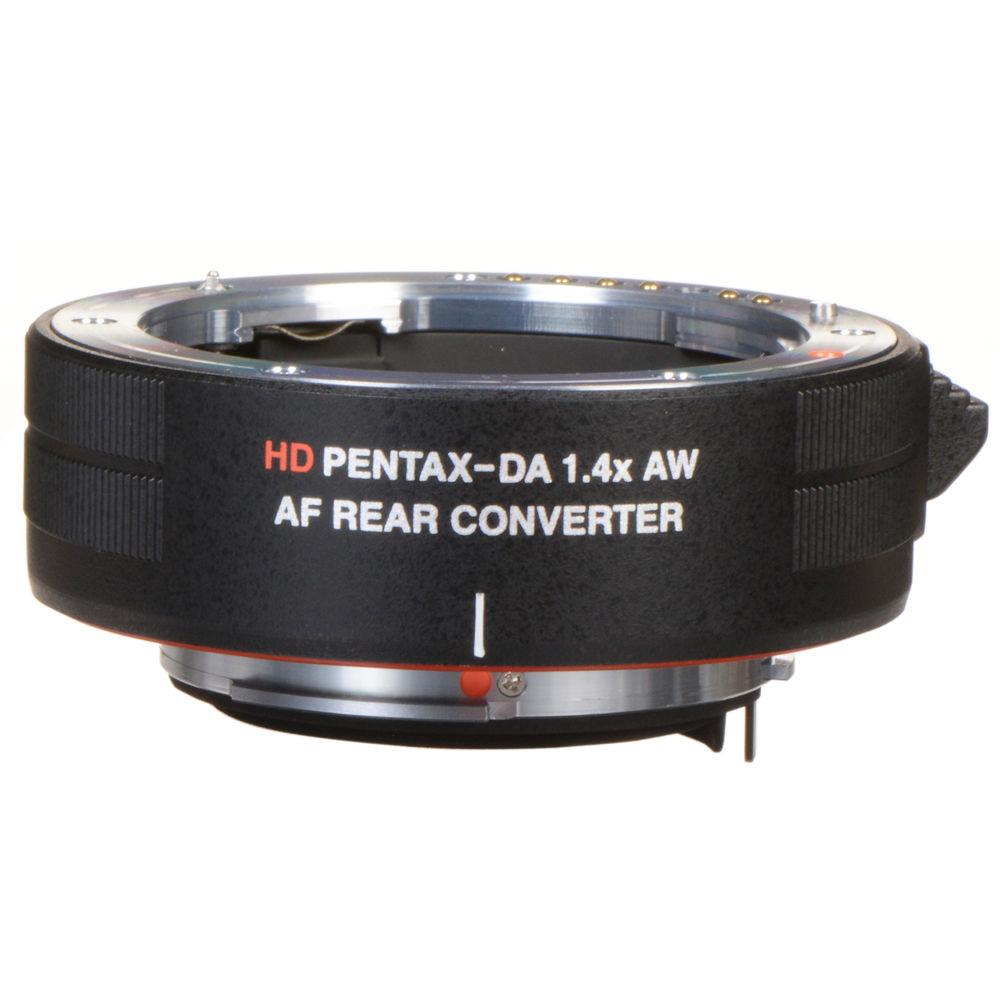

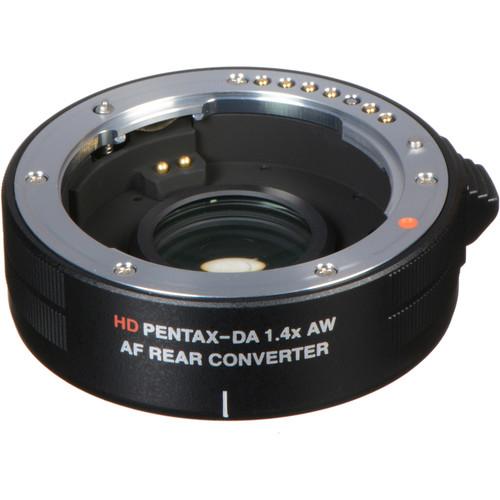

User Manual for Pentax 1.4x HD PENTAX-DA AF Rear Converter AW for K-Mount Lenses Click to enlarge the picture
Contents of the user manual for the Pentax 1.4x HD PENTAX-DA AF Rear
- Product category: Teleconverters Pentax
- Brand: Pentax
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pentax Teleconverters
 |
User manual for the Pentax 1.4x HD PENTAX-DA AF Rear contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pentax product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pentax user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pentax product will considerably shorten its lifespan!
|
Product description The 1.4x HD PENTAX-DA AF Rear Converter AW from Ricoh is compatible with Pentax KAF2 mount lenses on select DSLR cameras. It mounts between the camera body and lens, and increases the focal length of the lens by 1.4x, while reducing the aperture by 1 f/stop. The minimum focus distance of the lens is preserved, as are auto focus and auto aperture functionality. The rear converter works flawlessly with both the camera-driven AF system and the lens-driven AF system, including that of the SDM and DC-series lenses. The camera's firmware must be updated to the latest version before using the autofocus function. - PENTAX HD Lens Coating
- Treated with Pentax's exclusive multi-layer lens coating, which provides high light transmission and low reflectance for sharp, clear images free of flare and ghosting--even under adverse lighting conditions, such as backlighting.
- Weather-Resistant
- Durable, weather-resistant construction protects the converter and the barrels of compatible, weather-sealed lenses. Shoot worry-free in rainy or misty conditions and when subjected to sprays or splashes.
- 1.4x Magnification in a Compact Form Factor
- Mounts between the camera body and lens and increases lens focal length by 1.4x (40%)--yet has a notably small form factor, measuring only 0.8" and weighing in at just 4.4 oz. This compact size allows you to reach out to distant subjects and capture blur-free shots more easily. Since the minimum focusing distance of the lens is retained, this converter allows you to get just as close as before--but with greater magnification for more detailed images. Keep in mind that when the converter is mounted, the lens's maximum aperture will be smaller by 1 f/stop.
- Auto Focus and Aperture Functionality
- Auto focus and auto aperture functionality retained when using the converter, which works flawlessly with both the camera-driven AF system and the lens-driven AF system, such as that on the SDM and DC-series lenses. The camera's firmware must be updated to the latest version before using the autofocus function.
- Compatible Lenses
- The converter is compatible with Pentax KAF2 mount lenses. Autofocus is possible with lenses featuring a maximum aperture of f/4 or faster.
- Compatible Cameras
- K-3, K-50, K-500, K-30, K-5 II, K-5 II s, K-5, K-01, K-7 and K-r.
- Bundled Accessories
- The DA Limited Soft Case for the HD PENTAX DA and smc PENTAX DA 70mm f/2.4 Limited lenses is supplied. Also included are the Lens Mount Cap K and Body Mount Cap K.
UPC: 027075273313 In the Box Pentax 1.4x HD PENTAX-DA AF Rear Converter AW for K-Mount Lenses 70mm DA Soft Lens Case Rear Lens Cap (B) for Bayonet Mount Lenses Body Mount Cap K Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Pentax 1.4x HD PENTAX-DA AF Rear Converter AW for K-Mount Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPentax 37962 Specs | Mount | Pentax K | | Magnification | 1.4x | | Optical Design | 4 Elements in 3 Groups | | Light Loss | 1 Stop | | Length | 0.8" / 20 mm | | Diameter | 2.6" / 65 mm | | Weight | 4.4 oz / 126.0 g | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 4.1 x 3.7 x 3.7" |
