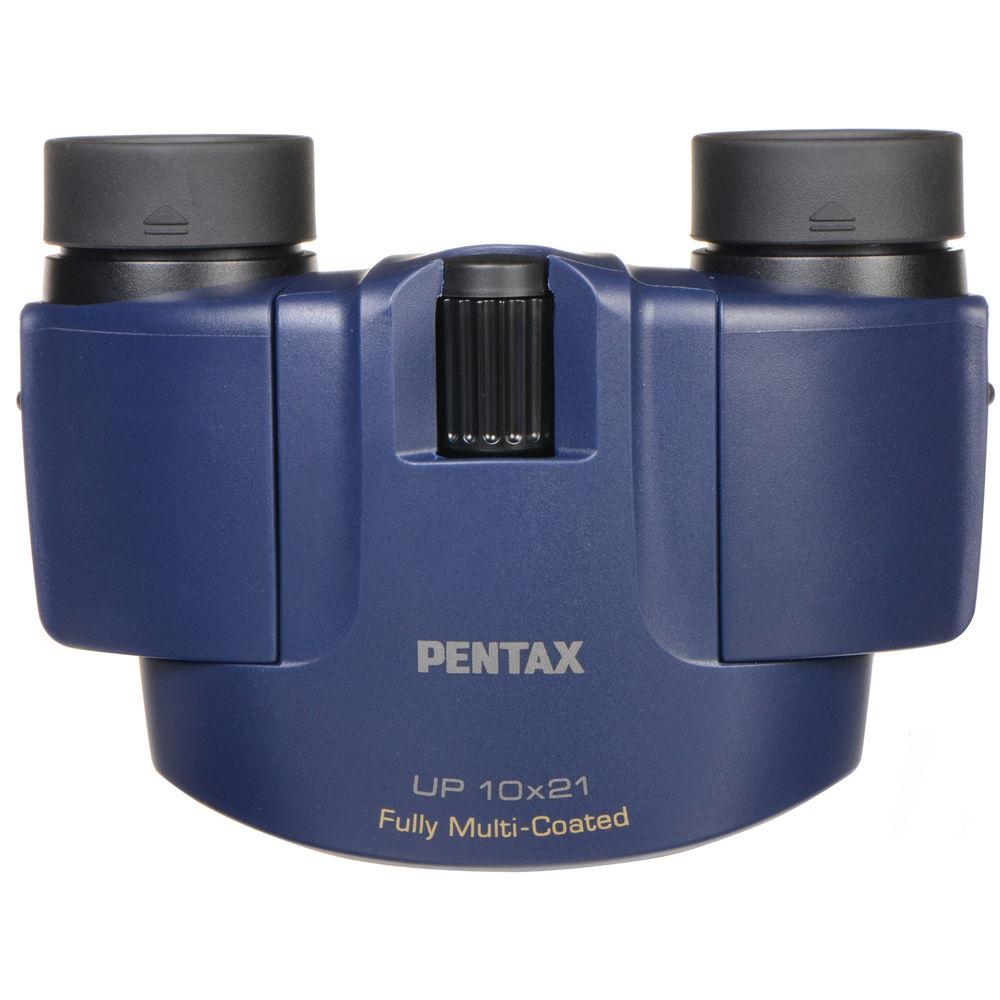

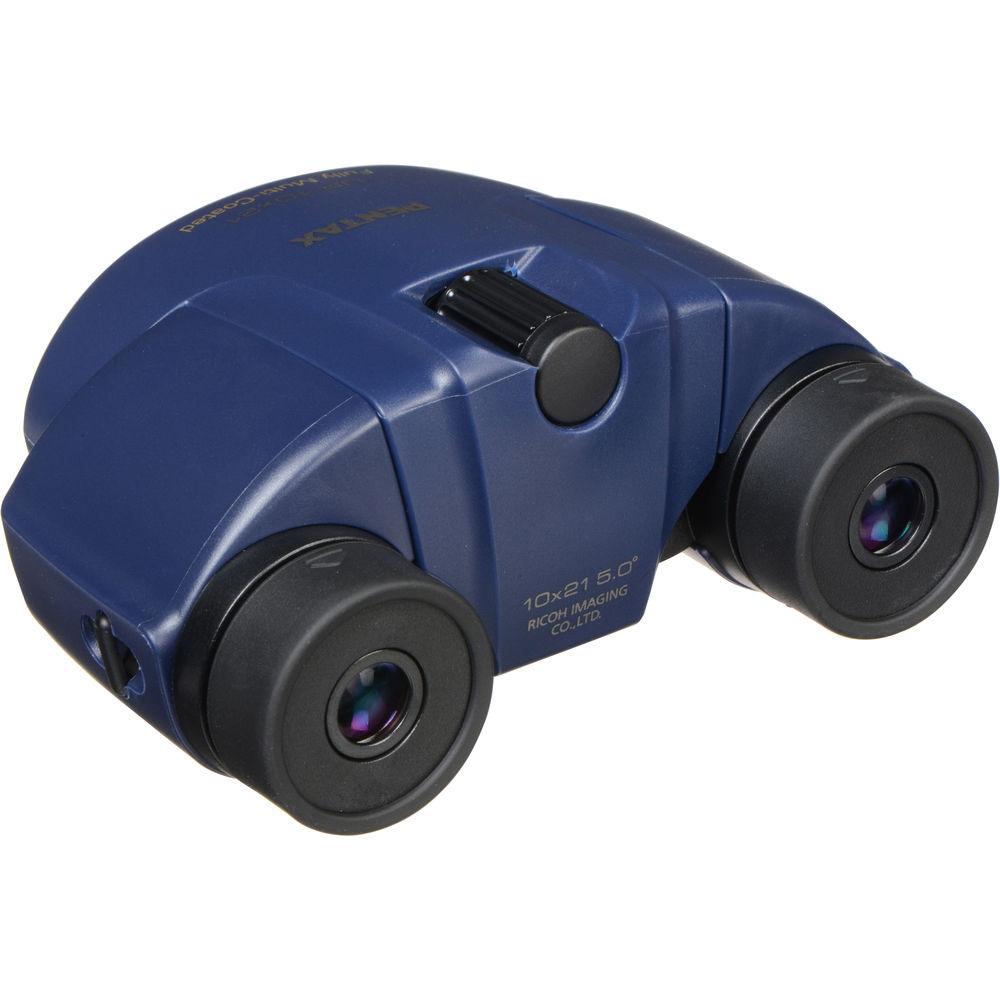

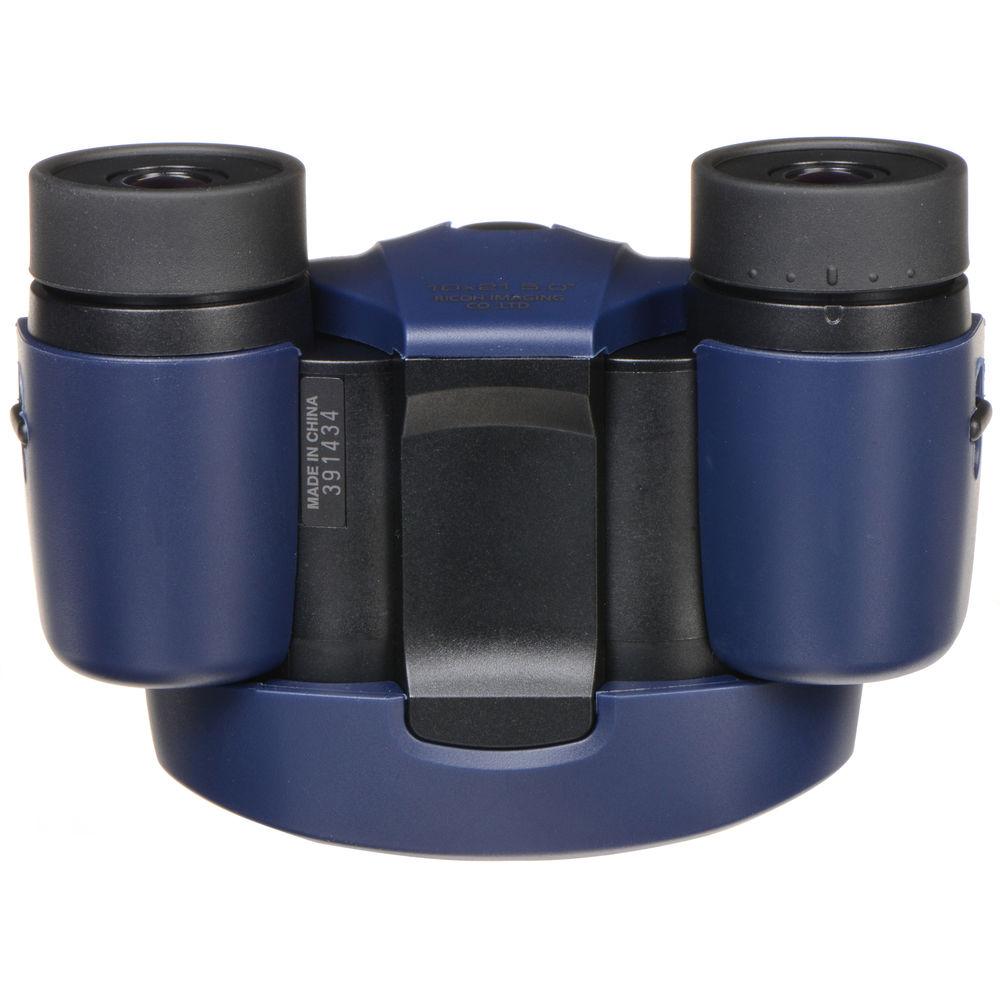

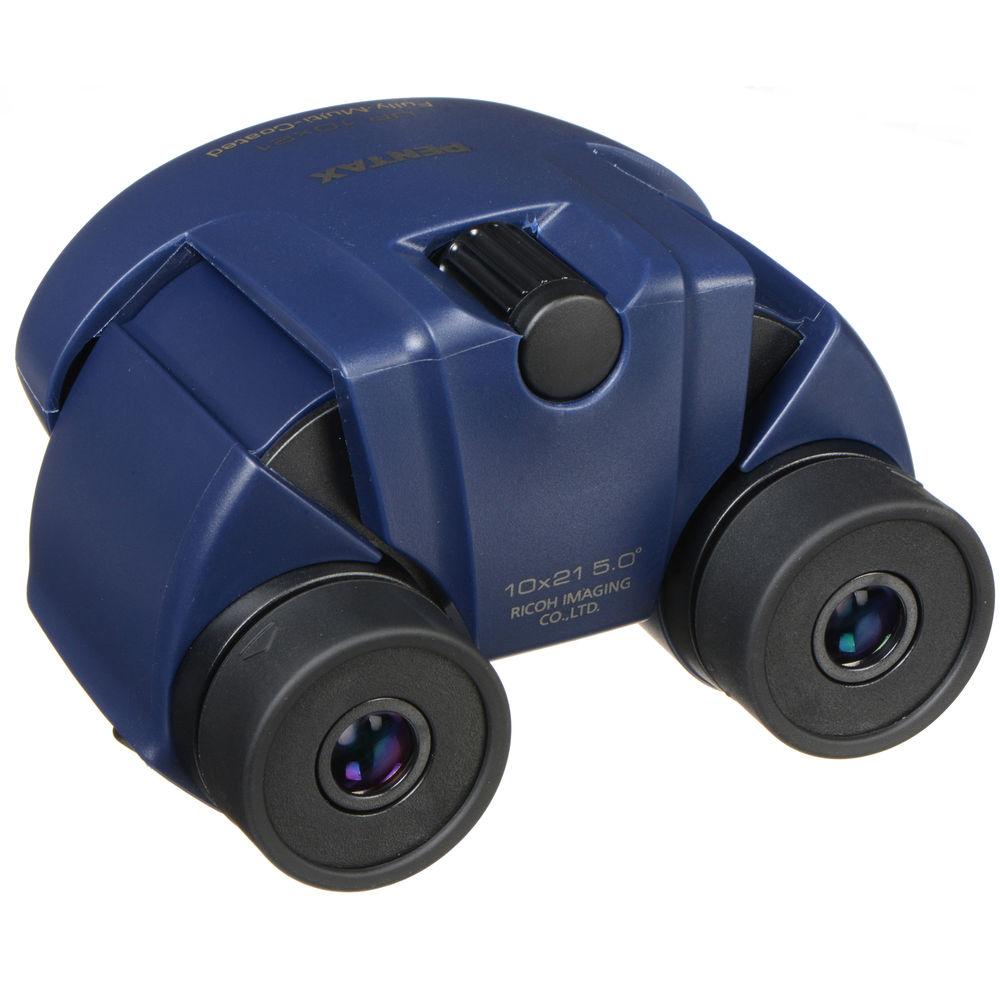

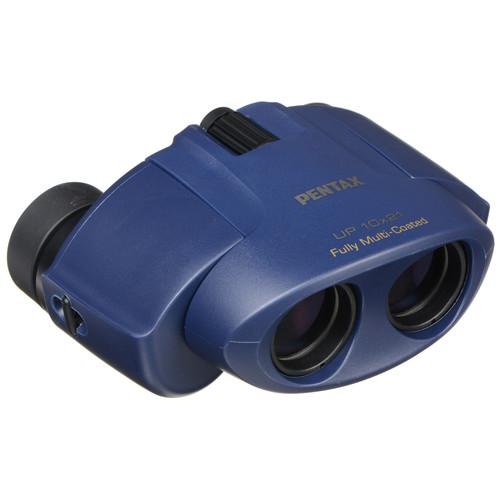

User Manual for Pentax 10x21 U-Series UP Binocular Click to enlarge the picture
Contents of the user manual for the Pentax 10x21 U-Series UP Binocular
- Product category: Binoculars Pentax
- Brand: Pentax
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pentax Binoculars
 |
User manual for the Pentax 10x21 U-Series UP Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pentax product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pentax user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pentax product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More The compact and lightweight navy 10x21 U-Series UP Binocular combines aspherical optical elements and BAK4 Porro prisms to deliver edge-to-edge image sharpness with a 50° angle of view. The optical elements are also fully multicoated to provide a high transmission of light. With an 10x magnification and 21mm objectives, you obtain a higher than average magnification and a compact form factor. You can easily spot your targets with a wide 5° angular field of view and quickly bring them into focus with a center focus wheel. In addition to observing distant scenes, birds and game, the minimum focus of 9.2' allows you to study in detail close objects like animal footprints, marks or landscape features. The binocular also features a 2.1mm exit pupil, a 9.5mm eye relief, an interpupillary and a diopter adjustments.
The binocular is very compact, lightweight, and features a single piece frame that houses objectives, which allows for a synchronized interpupillary adjustment. To accommodate eye glasses wearers, the binocular offers sliding rubber eyecups. Also included are a carrying case, a neck strap, and eyepiece covers. - Optical Performance
-
- Aspherical optical elements offer edge-to-edge image sharpness
- BAK4 Porro prisms
- Fully multicoated optics
- Angular field of view: 5°
- Interpupillary adjustment
- Diopter adjustment
- Construction Details
-
- Single main piece allows for a synchronized interpupillary adjustment
- Contoured armoring provides a comfortable grip
- Center focus knob offers an easy focusing
- Sliding rubber eyecups
UPC: 027075288829 In the Box Pentax 10x21 U-Series UP Binocular (Navy) - Neck Strap

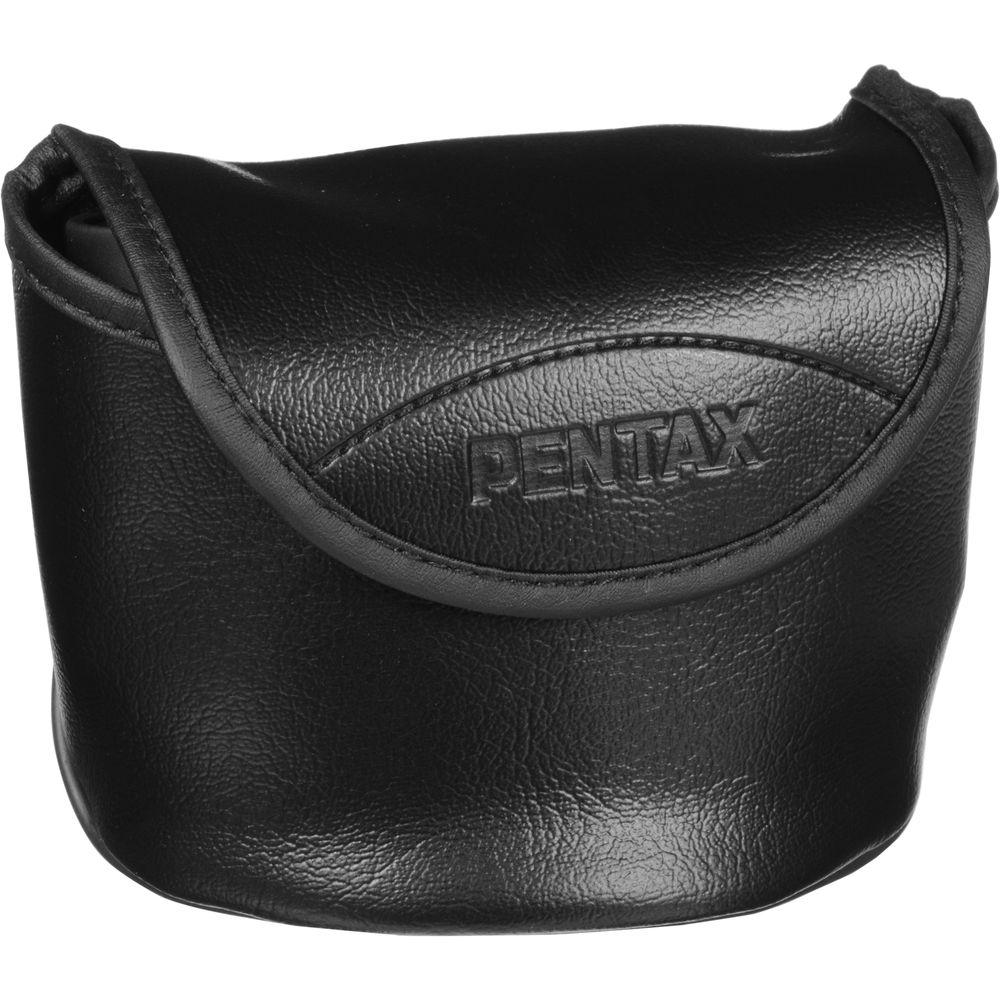

- Carrying Case
- 2 x Eyepiece Covers
- Limited 25-Year Warranty
Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Infographic: Pentax U Series Binoculars Staff Writer 10/28/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Pentax 10x21 U-Series UP Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPentax UP Specs | Prism Type | Porro | | Magnification | 10 x | | Objective Lens Diameter | 21 mm | | Angle of View | 5° (Actual) | | Field of View | 262.5' @ 1000 yd / 87.5 m @ 1000 m | | Minimum Focus Distance | 59.4' / 18.1 m | | Exit Pupil Diameter | 2.1 mm | | Eye Relief | 9.5 mm | | Focus Type | Center | | Dimensions | 4.3 x 3.1 x 1.9" / 10.9 x 8.0 x 4.8 cm | | Weight | 7.4 oz / 209.8 g | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 4.6 x 3.8 x 2.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 87 owners. Add your rating and experience with the product.
