User Manual for Pentax 10x25 A-Series AD WP Compact Binocular Click to enlarge the picture
Contents of the user manual for the Pentax 10x25 A-Series AD WP Compact
- Product category: Binoculars Pentax
- Brand: Pentax
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pentax Binoculars
 |
User manual for the Pentax 10x25 A-Series AD WP Compact contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pentax product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pentax user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pentax product will considerably shorten its lifespan!
|

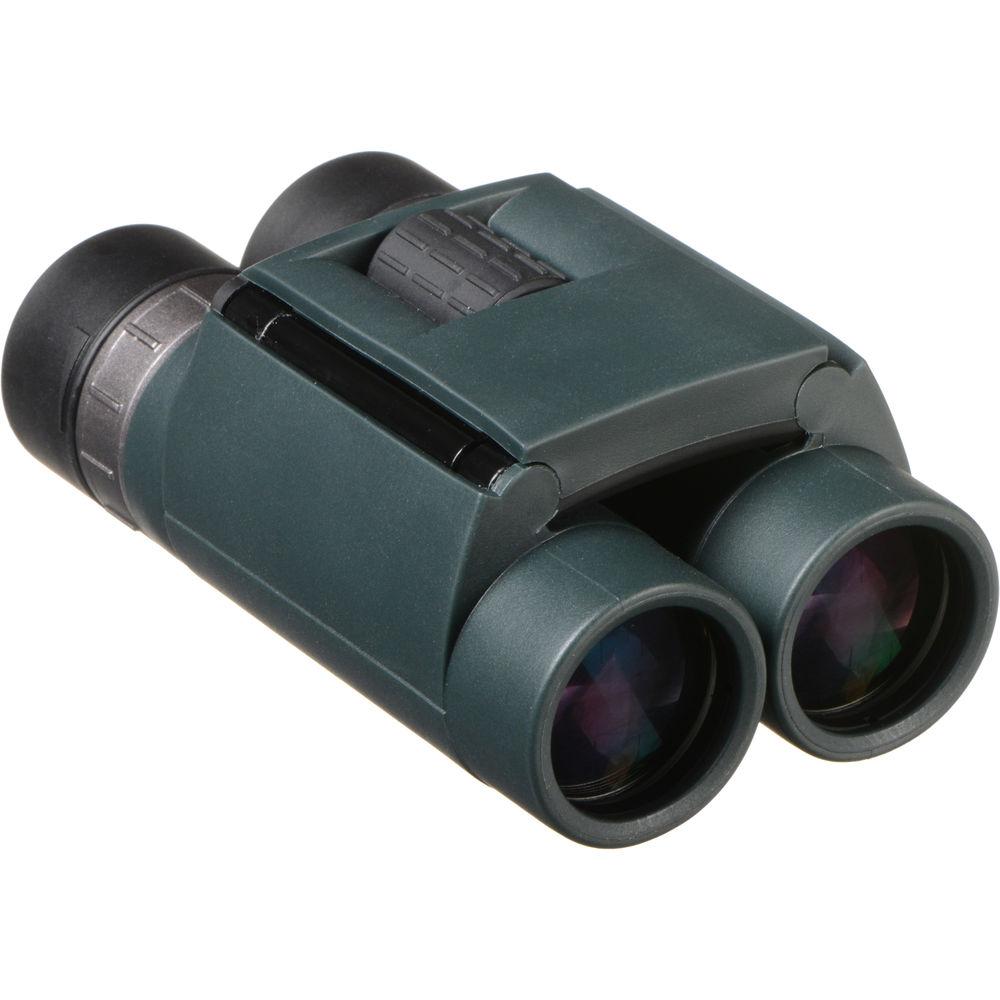

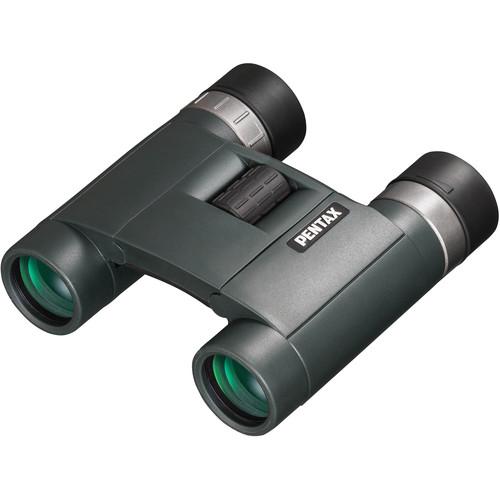

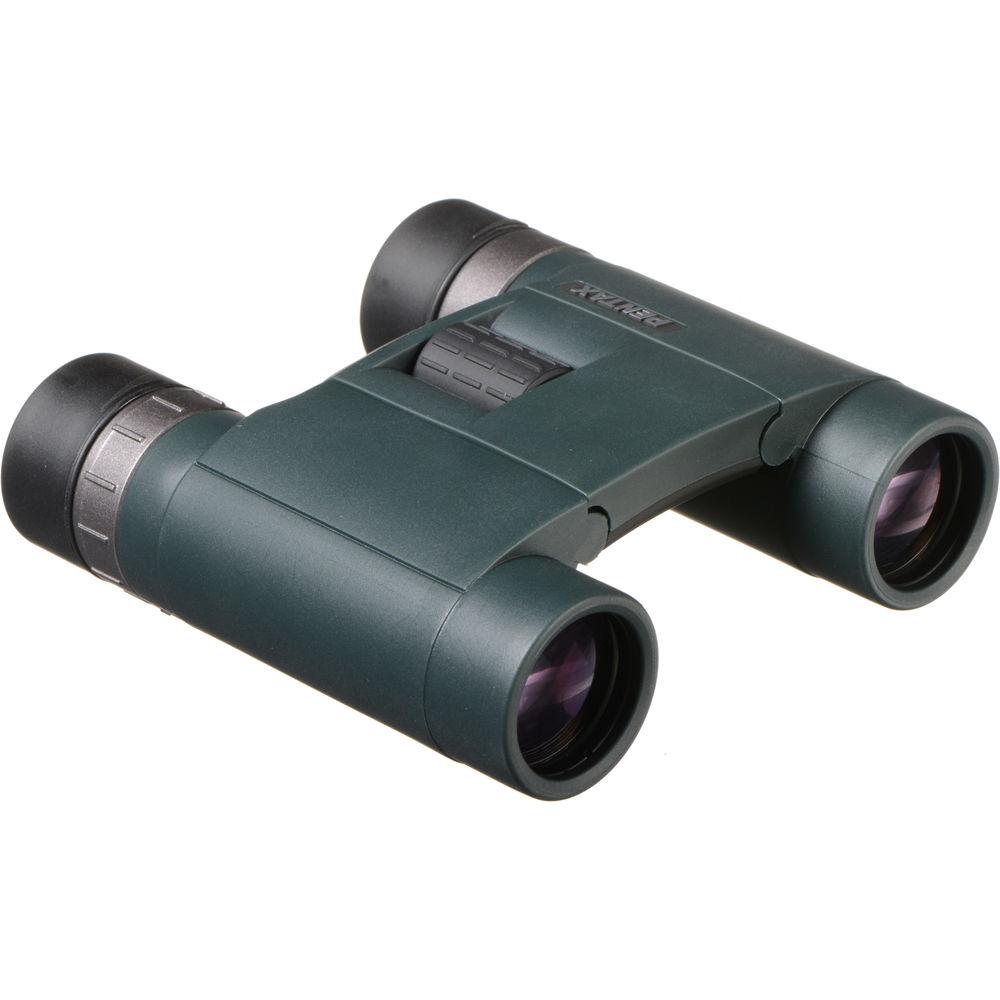

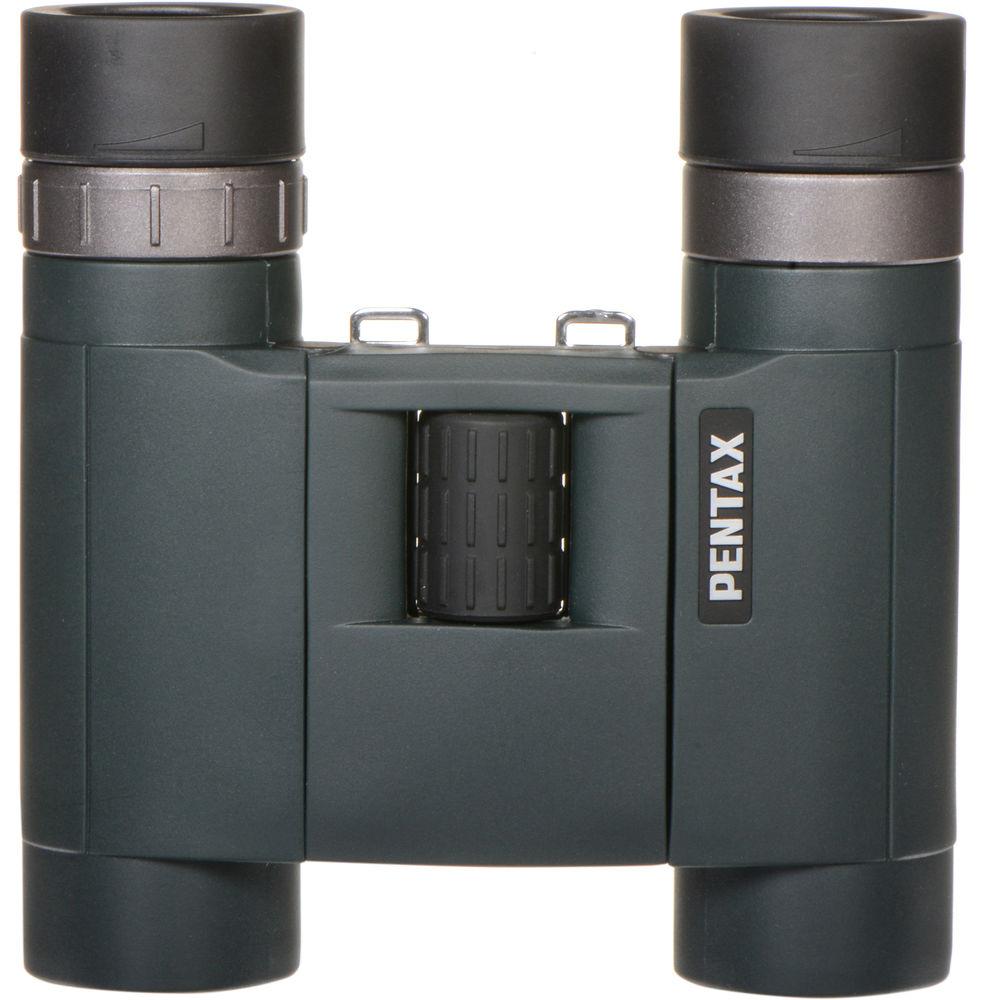

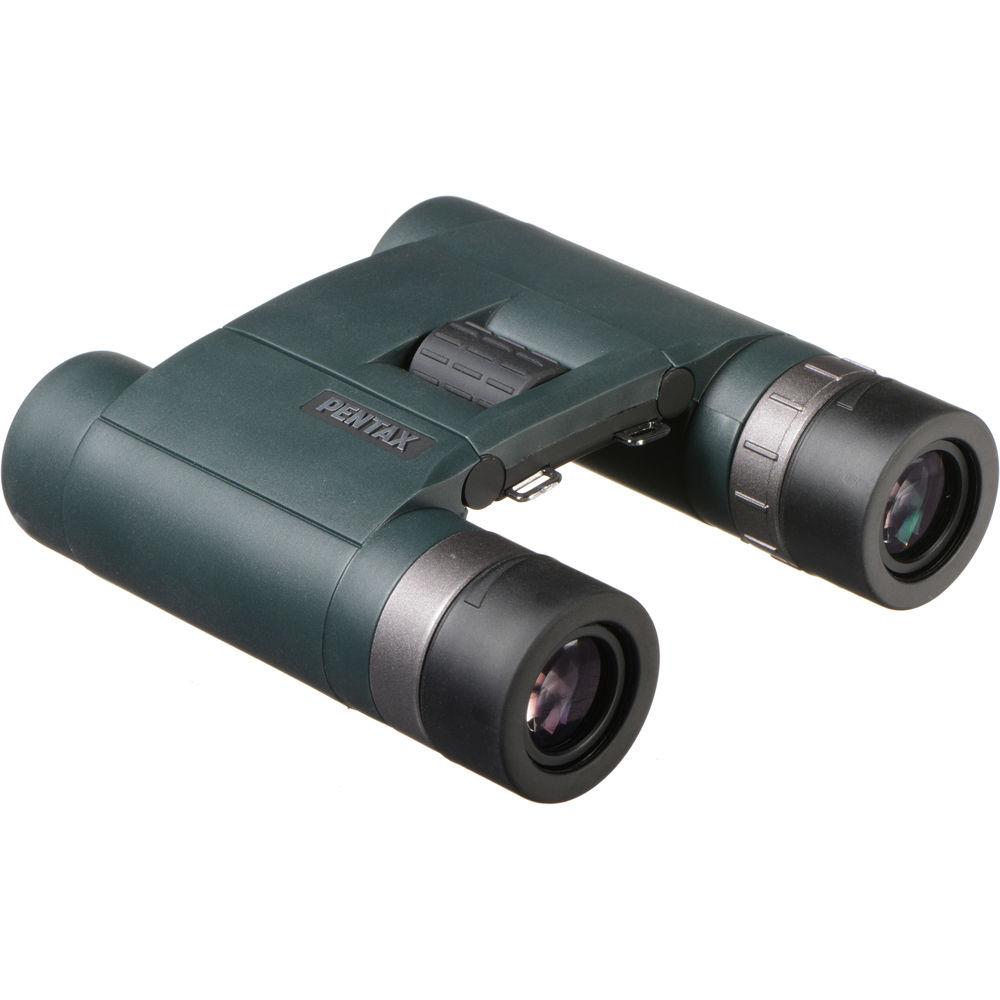

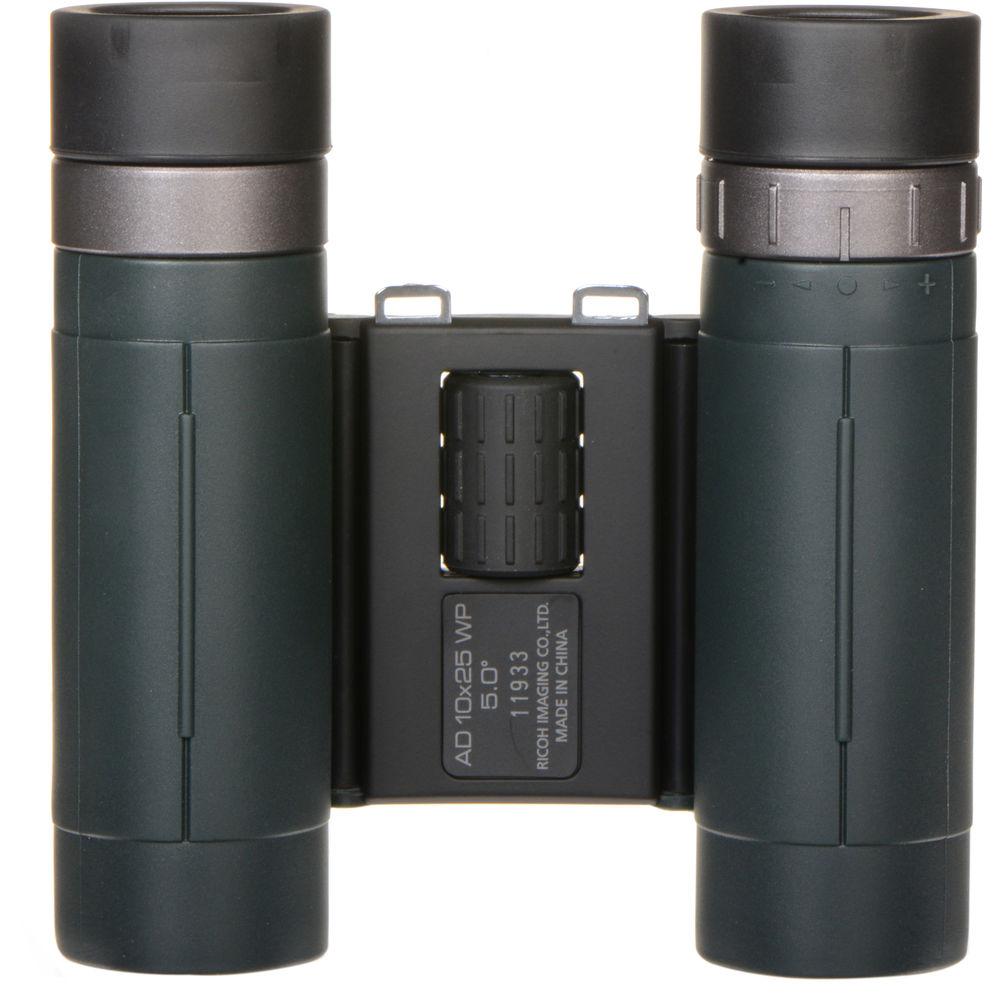

Product description The B&H Binocular Buying Guide Read More Designed for the nature enthusiast who wants to pack light without sacrificing image quality, the Pentax 10x25 A-Series AD WP Compact Binocular delivers bright, clear images while weighing in at just 10.6 ounces. Their BAK4 roof prisms are phase corrected to improve image contrast and enhance color rendition. All of the optics are anti-reflection and fully multi-coated to maximize light transmission, producing the brightest views possible.An asymmetrical hinge design enables the binocular to be folded up much smaller than typical center-hinged optics. In order to cut weight, the housing is made of corrosion- and impact-resistant fiberglass-reinforced polycarbonate polymer. The material is also temperature resistant, allowing for its use in extreme climates while reducing expansion and contraction that wide temperature swings can cause (and which can make the optical components move out of collimation over time). Its optical tubes are nitrogen filled and O-ring sealed, making them submersible to 3.3' as well as fogproof in all weather conditions. - Optical Performance
-
- 10x magnification
- 25mm objective lenses
- BAK4 roof prisms
- Phase-corrected prism coatings enhance contrast and improve color rendition
- Anti-reflection fully multi-coated optics
- 262.5' field of view at 1000 yards
- 50° angle of view
- Use and Handling
-
- Asymmetrical hinge design enables ultra-compact stowage
- Closed bridge configuration
- Knurled center focusing wheel
- Twist-up eyecups for use with or without eyewear
- 20mm eye relief, 2.5mm exit pupil
- Construction Details
-
- Lightweight fiberglass-reinforced polycarbonate housing
- Housing is corrosion, temperature, and impact resistant
- Nitrogen filled for fogproof performance; submersible to 3.3' (1m)
- Rubberized armoring protects against impacts and provides slip-resistant grip
- Inner focusing mechanism provides smooth focus while preserving waterproof seals
- Weighs in at just 10.6 oz

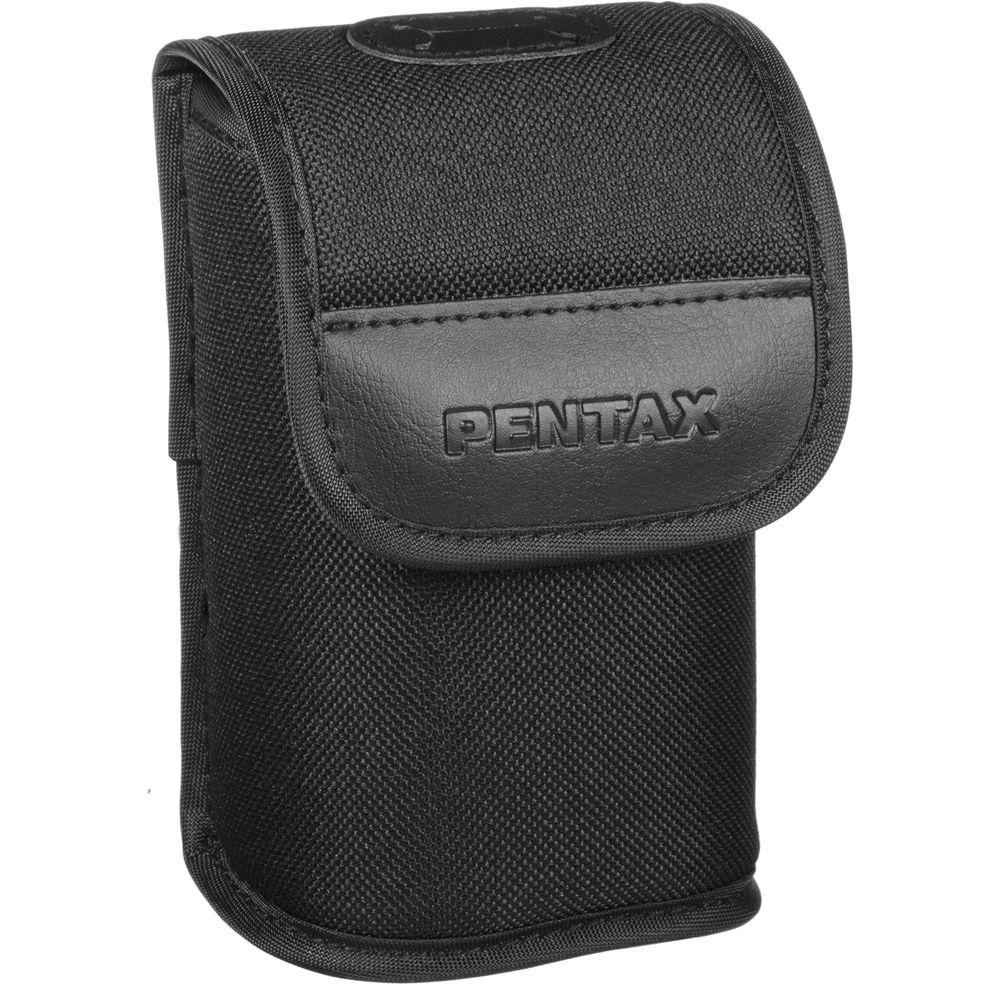

UPC: 027075288669 In the Box Pentax 10x25 A-Series AD WP Compact Binocular Neck Strap Carrying Case with Strap 2 x Eyepiece Caps Limited 25-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 acxswqstvyttvtaesrderzducwuxwqurbzq Table of Contents
|
Upload User Manual
Have you got an user manual for the Pentax 10x25 A-Series AD WP Compact Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPentax AD WP Specs | Prism Type | Roof | | Magnification | 10 x | | Objective Lens Diameter | 25 mm | | Angle of View | 5.0° (Actual) | | Field of View | 262.5' @ 1000 yd / 87.5 m @ 1000 m | | Minimum Focus Distance | 9.8' / 3 m | | Exit Pupil Diameter | 2.5 mm | | Eye Relief | 20 mm | | Focus Type | Center | | Tripod Mount | None | | Dimensions | 4.3 x 4.1 x 1.6" / 10.9 x 10.4 x 4.1 cm | | Weight | 10.6 oz / 300.5 g | | | | Package Weight | 0.83 lb | | Box Dimensions (LxWxH) | 4.85 x 3.6 x 2.6" |
