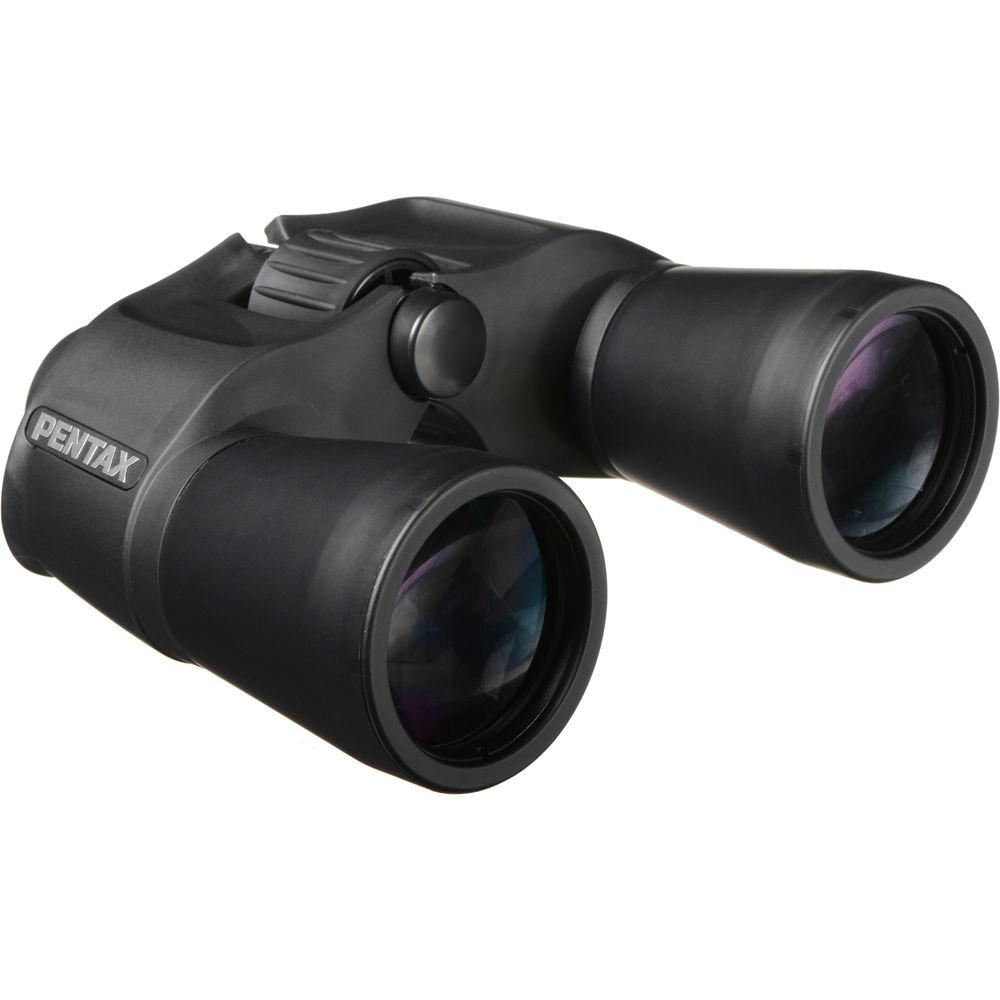

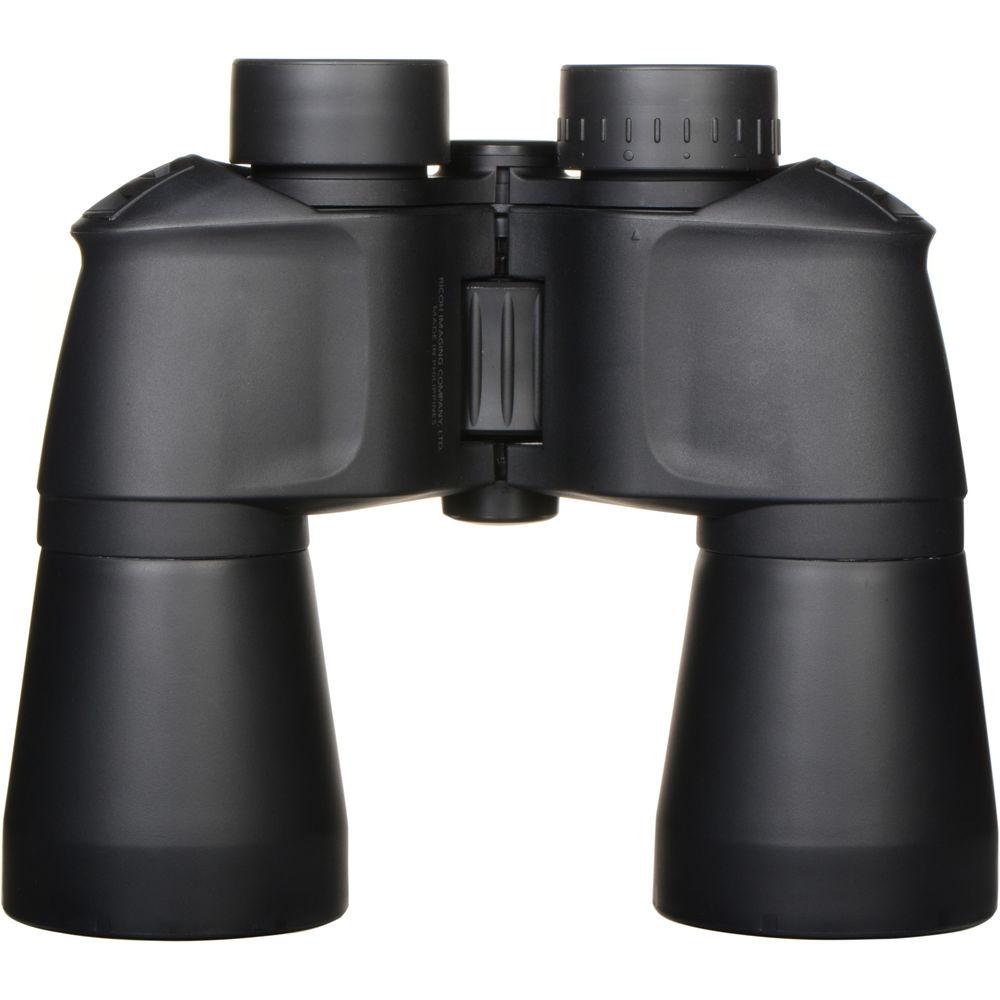

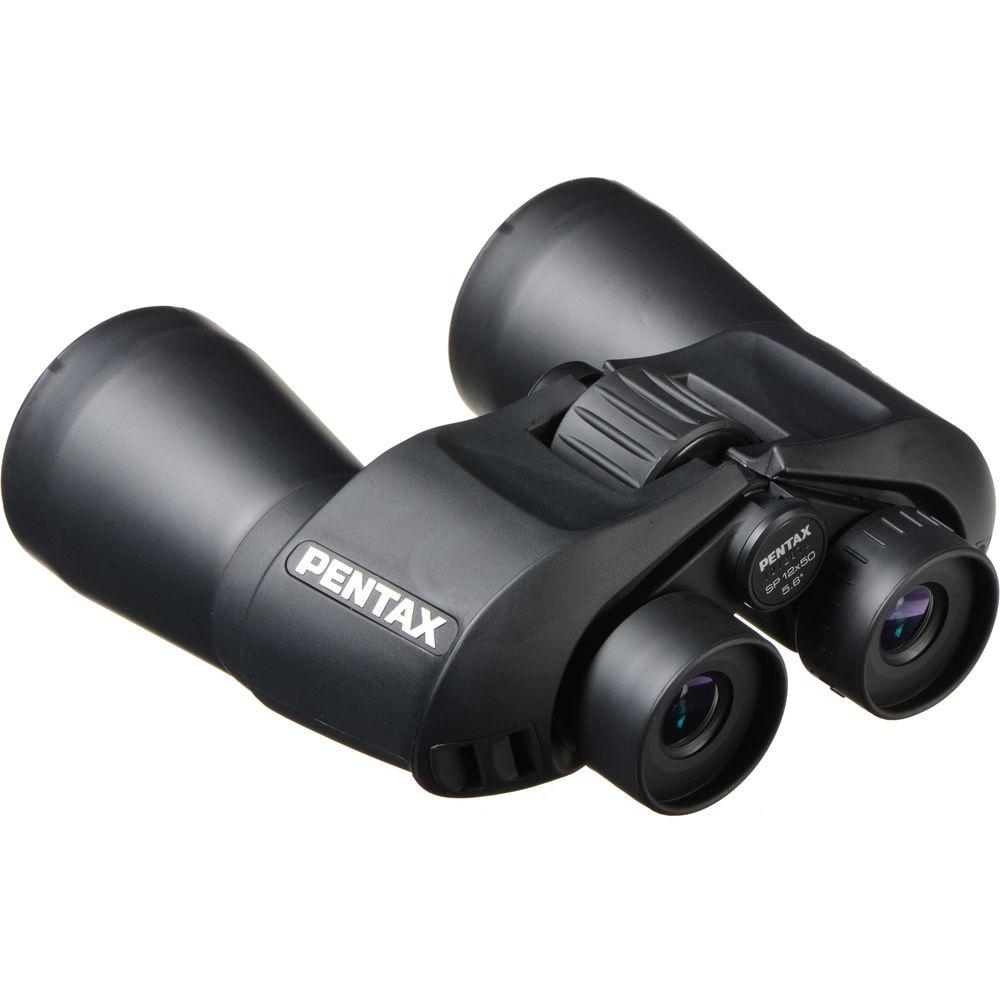

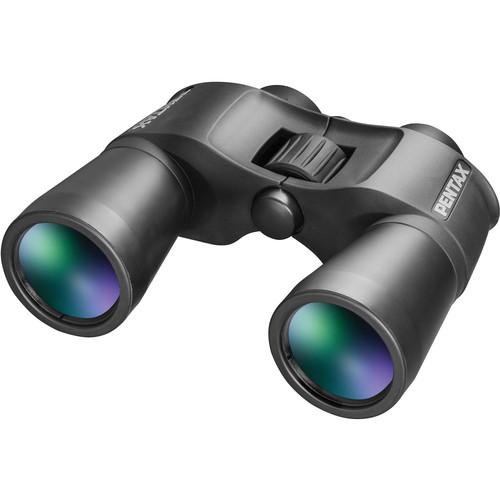

User Manual for Pentax 12x50 S-Series SP Binocular Click to enlarge the picture
Contents of the user manual for the Pentax 12x50 S-Series SP Binocular
- Product category: Binoculars Pentax
- Brand: Pentax
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Pentax Binoculars
 |
User manual for the Pentax 12x50 S-Series SP Binocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Pentax product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Pentax user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Pentax product will considerably shorten its lifespan!
|
Product description The B&H Binocular Buying Guide Read More Designed for both astronomical and terrestrial use, Pentax's 12x50 S-Series SP Binocular features large oversized fully multicoated 50mm objectives to reduce reflection and maximize light transmission through the entire optical path. Utilizing the traditional porro prism configuration gives scenes a rich depth of view for an immersive observation experience and provides a comfortable feel in the hand with a lot of surface area to maintain a sure grip. The large objectives and coatings maximize the amount of light getting to the user's eyes for exceptional low-light capabilities, and its high 12x magnification provides an immersive observation experience whether users are bird watching or comet hunting.The binocular sports a generous 11mm eye relief and the fold-down eyecups seal against the ocular cavity to block stray peripheral light which can dim images. Its over-sized objectives add weight and bias the center of gravity forward making user fatigue a concern and hand-shake a possibility, so to aid long observation sessions the binocular can be mounted on a tripod using an optional adapter. - Optical Performance
-
- 12x magnification
- 50mm objective lenses
- BAK4 porro prism optical path
- Anti-reflection fully multicoated optics
- 294.0'' field of view at 1000 yards
- 67° wide angle of view
- Use and Handling
-
- Closed bridge configuration
- Large knurled center focus wheel
- Right-eye diopter adjustment
- 11mm eye relief, 4.2mm exit pupil
- Fold-down rubber eyecups seal against ocular cavity and block stray peripheral light
- Construction Details
-
- Rubberized armoring protects against impacts and provides slip-resistant grip
- Tripod mountable with optional adapter

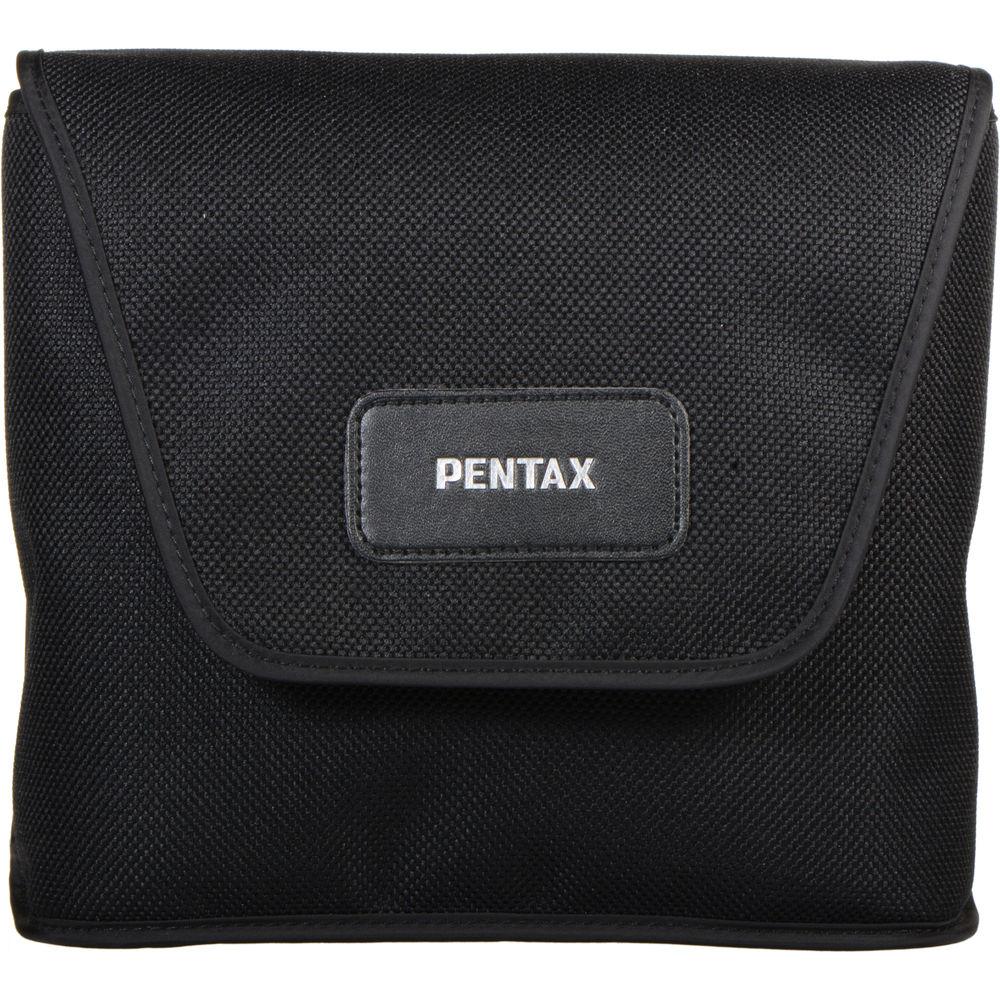

UPC: 027075288744 In the Box Pentax 12x50 S-Series SP Binocular Neck Strap Carrying Case with Strap 2 x Objective Lens Caps 2 x Eyepiece Caps Limited 25-Year Warranty Summer Binocular Buying Guide Christopher Witt 07/14/2016 A Guide to Marine Binoculars Todd Vorenkamp 06/25/2015 Pentax Sport Optics Binocular Roundup Joseph Albanese 06/24/2015 A Guide to Birding with Binoculars Todd Vorenkamp 06/16/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the Pentax 12x50 S-Series SP Binocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersPentax SP Specs | Prism Type | Porro | | Magnification | 12 x | | Objective Lens Diameter | 50 mm | | Angle of View | 5.6° (Actual) | | Field of View | 294.0' @ 1000 yd / 98.0 m @ 1000 m | | Minimum Focus Distance | 191.5' / 58.4 m | | Exit Pupil Diameter | 4.2 mm | | Eye Relief | 11 mm | | Focus Type | Center | | Tripod Mount | Yes (Adapter Optional) | | Dimensions | 7.8 x 6.3 x 2.3" / 19.8 x 16.0 x 5.8 cm | | Weight | 31.00 oz / 878.85 g | | | | Package Weight | 2.655 lb | | Box Dimensions (LxWxH) | 8.7 x 7.7 x 3.5" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
